# ENH: Implement DOP853 ODE integrator #10173

Merged
merged 20 commits into from Aug 15, 2019
Merged

# ENH: Implement DOP853 ODE integrator#10173

merged 20 commits into from Aug 15, 2019

## Conversation

Contributor

### nmayorov commented May 12, 2019

I tried to figure out DOP853 algorithm in order to finish #9290

Eventually I decided to make a `RungeKutta` subclass implementation trying to make it more straightforward.

The main features of DOP853 compared to RK45 and RK23:

1. There are two error estimators. Both estimators are implemented in the same way --- by a linear combination of computed RK stages. Then the final error is computed by a certain combination. This requires very little modification of the original code, two sets of coefficients needs to be defined.
2. Three extra stages are required to compute the interpolant. This again is relatively straightforward and done inside `_dense_output_impl`.
3. The suggested interpolant is not expressed in the polynomial basis. Of course it can be expressed as such, but to use the original coefficients we need to use the suggested evaluation scheme. This is implemented inside `Dop853DenseOutput`.
4. Enhanced step size control is suggested with parameter `beta`. I haven't implemented this yet and put it as a low priority.

### Comparison of RK23, RK45 and DOP853 on a celestial mechanics problem:

```import numpy as np
from scipy.integrate import solve_ivp

mu = 0.0122771
nu = 1 - mu

t0 = 0
tf = 17.0652165601579625588917206249
y0 = [0.994, 0, 0, -2.00158510637908252240537862224]

rtol=1e-10
atol=1e-14

def fun(x, y):
D1 = ((y[0] + mu)**2 + y[1]**2) ** 1.5
D2 = ((y[0] - nu)**2 + y[1]**2) ** 1.5

return np.array([
y[2],
y[3],
y[0] + 2 * y[3] - nu * (y[0] + mu) / D1 - mu * (y[0] - nu) / D2,
y[1] - 2 * y[2] - nu * y[1] / D1 - mu * y[1] / D2
])

np.set_printoptions(10)
for method in ['RK23', 'RK45', 'DOP853']:
res = solve_ivp(fun, [t0, tf], y0, method=method, rtol=rtol, atol=atol)
print(method)
print("Solution at tf: {}".format(res.y[:, -1]))
print("Number of function evaluations: {}".format(res.nfev))
print("--------------------------------------------------")```

The result:

``````RK23
Solution at tf: [ 0.9929909741 -0.0024338004 -0.4547767983 -2.0295309619]
Number of function evaluations: 99674
--------------------------------------------------
RK45
Solution at tf: [ 0.9929909646 -0.0024338146 -0.4547799205 -2.0295307335]
Number of function evaluations: 7622
--------------------------------------------------
DOP853
Solution at tf: [ 0.9929909675 -0.0024338098 -0.4547789079 -2.0295308438]
Number of function evaluations: 4046
--------------------------------------------------
``````

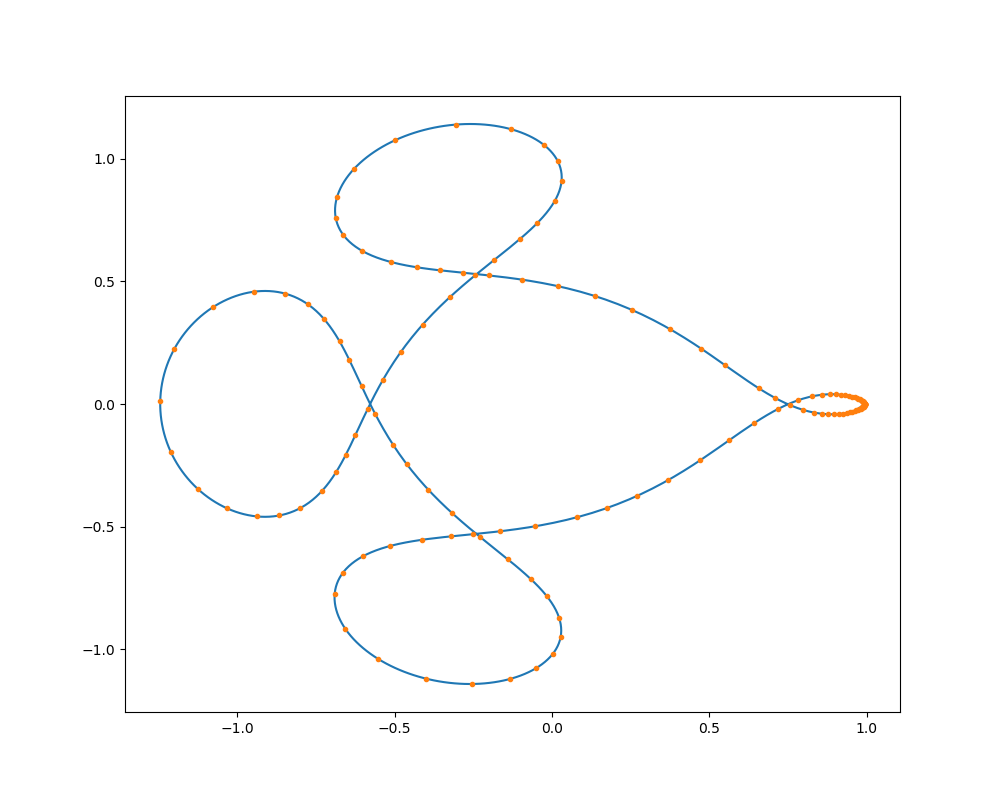

Dense output illustration with `rtol=1e-8` (same `atol`):

Overall it seems to work correctly and perform more efficient with low tolerances.

However currently it does ~20% more function evaluations compared to the Fortran code. It must have something to do with error estimation and step size control / step rejection. At least I want to determine the reason for it. But I certainly don't plan to make it behave exactly as the Fortran code --- hard to achieve, creates strange code and doesn't give any real benefits.

I hope you guys are still interested in making it part of scipy and don't mind that I took a different approach to the implementation. Your code was certainly useful for me.

Contributor

### Juanlu001 commented May 13, 2019

 Hi @nmayorov, thanks a lot for taking this over! I'm so happy that it's on good hands :) And glad my original attempt was helpful! Regarding the number of function evaluations: At least I want to determine the reason for it. But I certainly don't plan to make it behave exactly as the Fortran code --- hard to achieve, creates strange code and doesn't give any real benefits. I was thinking of trying a side-by-side debugging, but perhaps that's not the best strategy if the code is not going to be exactly the same. Still, I will take a look at it this week. On the other hand, we will try this method in poliastro and report here how it went.
