Echo server in Elixir used in a CI/CD Pipeline

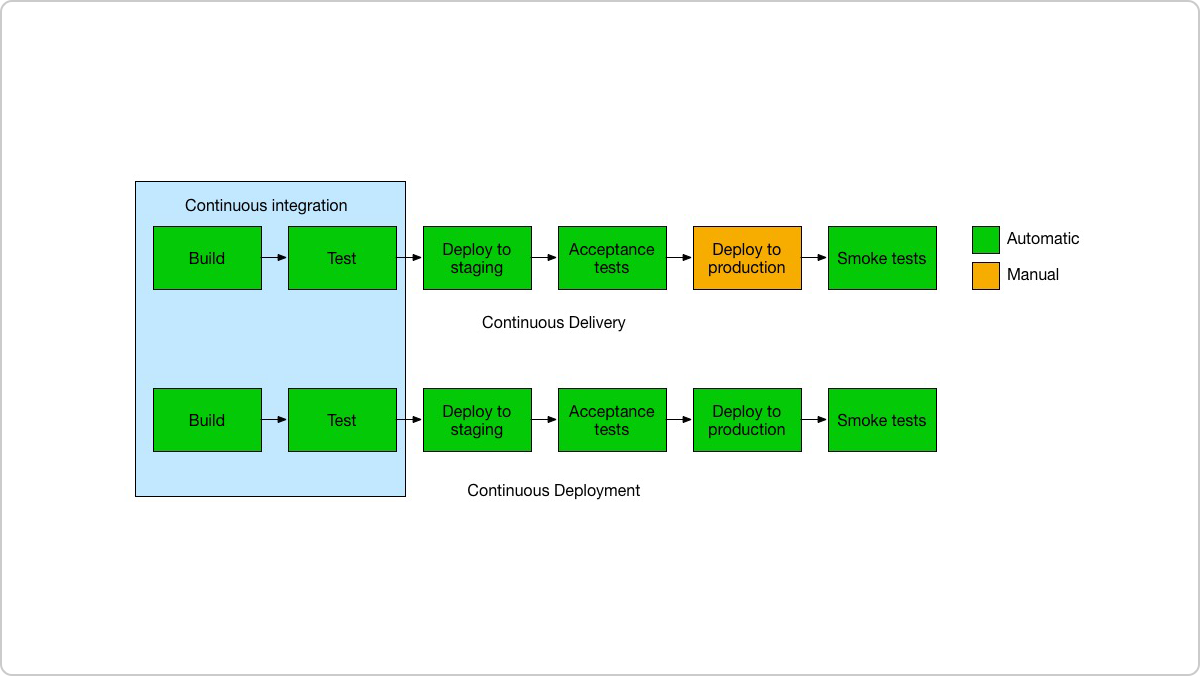

CI

Developers practicing continuous integration merge their changes back to the main branch as often as possible. The developer's changes are validated by creating a build and running automated tests against the build. By doing so, you avoid the integration hell that usually happens when people wait for release day to merge their changes into the release branch.

CD as Continuous delivery

Continuous delivery is an extension of continuous integration to make sure that you can release new changes to your customers quickly in a sustainable way. This means that on top of having automated your testing, you also have automated your release process and you can deploy your application at any point of time by clicking on a button.

CD as Continuous deployment

Continuous deployment goes one step further than continuous delivery. With this practice, every change that passes all stages of your production pipeline is released to your customers. There's no human intervention, and only a failed test will prevent a new change to be deployed to production.

Pics or it didn't happen

Source

Workshop

CI / CD tools

Bamboo

Travis CI

Circle CI

Team City

Jenkins

etc

Jenkins

On Linux, in order to launch a Jenkins instance that can run Docker, you need to build it based on this custom Dockerfile:

    docker build -t myjenkins -f jenkins-Dockerfile .

    docker run --name myjenkins -p 8080:8080 -u root -d -v jenkins_home:/var/jenkins_home -v $(which docker):/usr/bin/docker -v /var/run/docker.sock:/var/run/docker.sock myjenkins:latest

On Windows you'll launch a Jenkins instance that has Docker in it:

    docker run --name myjenkins -p 8080:8080 -d -v jenkins_home:/var/jenkins_home getintodevops/jenkins-withdocker:lts

You might have to update and/or install some plugins in this Jenkins instance for Docker and Pipelines to work.

Docker Machine

On Linux run

    for n in `seq 1 2`; do docker-machine create --driver virtualbox stage$n; done
    for n in `seq 1 3`; do docker-machine create --driver virtualbox prod$n; done

On Windows, with Hyper-V

• Configure networking first: https://docs.docker.com/machine/drivers/hyper-v/#2-set-up-a-new-external-network-switch-optional

    docker-machine create --driver hyperv --hyperv-virtual-switch "Primary Virtual Switch" stage1
    docker-machine create --driver hyperv --hyperv-virtual-switch "Primary Virtual Switch" stage2

    docker-machine create --driver hyperv --hyperv-virtual-switch "Primary Virtual Switch" prod1
    docker-machine create --driver hyperv --hyperv-virtual-switch "Primary Virtual Switch" prod2
    docker-machine create --driver hyperv --hyperv-virtual-switch "Primary Virtual Switch" prod3

Docker Swarm

    export STAGE_IP=$(docker-machine ip stage1)
    echo $STAGE_IP
    docker-machine ssh stage1 "docker swarm init --advertise-addr $STAGE_IP"
    docker-machine ssh stage2 "docker swarm join --token SWMTKN-1-xxxxx $STAGE_IP:2377"

    docker-machine ssh stage1 "docker service create \
      --name=viz \
      --publish=8080:8080/tcp \
      --constraint=node.role==manager \
      --mount=type=bind,src=/var/run/docker.sock,dst=/var/run/docker.sock \
      dockersamples/visualizer"

    export PROD_IP=$(docker-machine ip prod1)
    echo $PROD_IP
    docker-machine ssh prod1 "docker swarm init --advertise-addr $PROD_IP"
    docker-machine ssh prod2 "docker swarm join --token SWMTKN-1-xxxxx $PROD_IP:2377"
    docker-machine ssh prod3 "docker swarm join --token SWMTKN-1-xxxxx $PROD_IP:2377"

    docker-machine ssh prod1 "docker service create \
      --name=viz \
      --publish=8080:8080/tcp \
      --constraint=node.role==manager \
      --mount=type=bind,src=/var/run/docker.sock,dst=/var/run/docker.sock \
      dockersamples/visualizer"

Test the Swarms

Open a browser and point it to http://$STAGE_IP:8080 and http://$PROD_IP:8080 respectively

Allow Jenkins to connect to Swarm managers

On the host, exec into the Jenkins container and create an SSH key pair

    docker exec -it myjenkins bash

Run this in the Jenkins container:

    ssh-keygen -f /var/jenkins_home/id_rsa -q -N ""

Exit the container and now run:

    docker-machine ssh stage1 "echo `docker exec myjenkins cat /var/jenkins_home/id_rsa.pub` >> .ssh/authorized_keys"
    docker-machine ssh prod1 "echo `docker exec myjenkins cat /var/jenkins_home/id_rsa.pub` >> .ssh/authorized_keys"

Echo server in Elixir

TCP Server

There is a Erlang module called gen_tcp that we'll use to for communicating with TCP sockets.

In lib/server.ex we have the module responsible for that. It starts a server

def start(port) do
  tcp_options = [:binary, {:packet, 0}, {:active, false}]
  {:ok, socket} = :gen_tcp.listen(port, tcp_options)
  listen(socket)
end

then loop forever accepting income connections

defp listen(socket) do
  {:ok, conn} = :gen_tcp.accept(socket)
  spawn(fn -> recv(conn) end)
  listen(socket)
end

when a client connects it spawns a new process and start receiving data from the new made connection

defp recv(conn) do
  case :gen_tcp.recv(conn, 0) do
    {:ok, data} ->
      :gen_tcp.send(conn, data)
      recv(conn)
    {:error, :closed} ->
      :ok
  end
end

Running on the console

To run this open a console and start the server.

    $ iex -S mix
    iex> Echo.Server.start(6000)

The -S mix options will load your project into the current session.

In Docker

    docker build -t ees -f Dockerfile .
    docker run --rm --name ees -p 6000:6000 ees:latest

Connect using telnet or netcat and try it out.

Unit tests

    $ mix test

In Docker

    docker build -t unit -f unit-Dockerfile .
    docker run --rm --name unit unit:latest

Running the smoke tests against a running server

    docker build -t test -f test-Dockerfile .

Running against one of the IPs of the current machine:

    docker run -e HOST=`hostname -I | cut -d' ' -f1` --rm --name test test:latest

Running against another server:

    docker run -e HOST="another server's IP" --rm --name test test:latest

Jenkins Pipeline

• Create a Pipeline job in Jenkins with
• GitHub project https://github.com/scretu/elixir-echo-server/
• 2 build parameters: STAGE_SWARM_MANAGER and PROD_SWARM_MANAGER pointing to $STAGE_IP and $PROD_IP respectively
• Definition: Pipeline script from SCM, where SCM is Git and Repository is https://github.com/scretu/elixir-echo-server and branch is master
• It should look like this
• Once you run the Pipeline, it should look like this:
• But you will have to configure the Docker Hub credentials (see Pipeline stage Build Docker)
