Microchip MEB II board

Serge Vakulenko edited this page Mar 5, 2015 · 23 revisions

WiFire

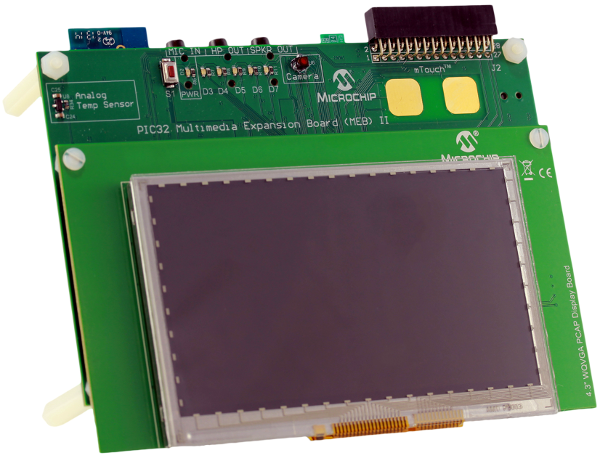

Microchip Multimedia Expansion Board II (manual and schematics) is a flexible development platform, which works with PIC32MZ EC Starter Kit (manual and schematics).

Features of MZ Starter Kit:

  • PIC32MZ microcontroller 200 MHz (MIPS architecture, DSP, 2Mb Flash and 512Kb RAM)
  • HI-speed USB 2.0 port with host/device/dual OTG role
  • USB 2.0 OTG controller with USB and micro-USB connectors
  • Ethernet port 10/100Base-T
  • SMSC LAN8740A PHY daughter board (Alternatives: LAN8720, IP101G, LAN9303)
  • On-board oscillator 24 MHz
  • Three user LEDs
  • Three user buttons
  • Integrated debugger/programmer with mini-USB connector
  • ICSP port
  • 3.3V operating voltage
  • USB powered

Features of MEB-II:

  • Microchip MRF24WG0MA WiFi module
  • Bluetooth transceiver
  • 4.3” touch display
  • 24-bit stereo audio codec
  • mTouch sensing buttons
  • Analog temperature sensor
  • Analog accelerometer
  • VGA camera
  • Micro SD card connector
  • PICtail connector

Memory:

  • 2 Mbytes of program Flash memory
  • 512 kbytes of RAM
  • 160 kbytes of boot Flash memory
  • 4 Mbytes of external SQI Flash on Starter Kit board
  • 2 Mbytes of external EBI SRAM on MEB-II board

A rich set of peripheral functions is available: UART, SPI, I2C, I2S, ADC, timers. Two internal oscillators available: 8 MHz and 32 kHz.

Signals

LEDs/Buttons

Signal PIC32 Pin Type SK Pin Function
RH0 RH0 O 113 LED1 on SK (red), LED1 on MEB-II
RH1 RH1 O 115 LED2 on SK (yellow), LED3 on MEB-II
RH2 RH2 O 62 LED3 on SK (green), LED2 on MEB-II
RH6 AN42/ERXD2/RH6 O 92 LED4 on MEB-II
RH11 EBIRDY2/RH11 O 84 LED5 on MEB-II
RB12 AN7/RB12 I --- Button S1 on SK
RB13 AN8/RB13 I --- Button S2 on SK
RB14 AN9/RPB14/SCK3/RB14 I --- Button S3 on SK
RA0 TMS/RA0 I 4 Fire Button on MEB-II

microSD

Signal PIC32 Pin Type SK Pin Function
SD_DATA3/SD_CD AN9/RPB14/SCK3/RB14 I/O 163 Data 3/Card Detect
SD_DATA2 N/C I/O 164 Data 2
SD_DATA1 AN45/C1INA/RPB5/RB5/VBUSON I/O 165 Data 1
SD_DATA0 ETXCLK/RPD7/RD7 I/O 168 Data 0
SD_CLK AN14/C1IND/RPG6/SCK2/RG6 O 167 Clock
SD_CMD AN12/C2IND/RPG8/SCL4/RG8 O 166 Command
RJ5 EBICS1/RJ5 I 76 Mechanical Card Detect

Ethernet

Signal PIC32 Pin Type PHY Pin Function
ETXEN ETXEN/RPD6/RD6 O 1 Transmit enable
ETXD0 AN35/ETXD0/RJ8 O 2 Transmit data 0
ETXD1 AN36/ETXD1/RJ9 O 3 Transmit data 1
ERXD1 AN41/ERXD1/RH5 I 15 Receive data 1
ERXD0 ERXD0/RH8 I 16 Receive data 0
ERXERR AN40/ERXERR/RH4 I 17 Receive error
ECRS/RH13 ERXDV/ECRSV/RH13 I 18 Receive data valid
EMDC EMDC/AEMDC/RPD11/RD11 O 19 SMI Clock
EMDIO EMDIO/AEMDIO/RJ1 I/O 20 SMI Data
SOSCI/RC13 SOSCI/RPC13/RC13 I 21 PHY interrupt request

Wi-Fi

Signal PIC32 Pin Type SK Pin Function
INT0 INT0/RD0 I 14 Wi-Fi Interrupt
RH14 EBIADV/RH14 O 85 Sleep
SDI4 AN13/C1INC/RPG7/SDA4/RG7 I 89 Serial Data Out
SDO4 AN3/C2INA/RPB3/RB3 O 105 Serial Data In
SS4 AN26/RPE9/RE9 O 95 Chip Select
RJ0 ETXERR/RJ0 O 120 Reset
SCK4 RPD10/SCK4/RD10 I/O 114 Serial Clock

Bluetooth

Signal PIC32 Pin Type SK Pin Function
SCK2 AN14/C1IND/RPG6/SCK2/RG6 I 87 Serial Transmit
RB2 AN2/C2INB/RPB2/RB2 O 107 Regulator Enable
U2RTS ETXCLK/RPD7/RD7 O 122 Request-to-Send
U2CTS AN12/C2IND/RPG8/SCL4/RG8 I/O 91 Serial Clear-to-Send
U2TX AN9/RPB14/SCK3/RB14 O 88 Serial Receive/mTouch Button Analog Channel

Analog

Signal PIC32 Pin Type SK Pin Function
AN6 AN6/RB11 O 119 Accelerometer X-axis Out
AN7 AN7/RB12 O 121 Accelerometer Y-axis Out
AN8 AN8/RB13 O 123 Accelerometer Z-axis Out
AN23 RG15 I 23 Temperature Sensor

Audio Codec

Signal PIC32 Pin Type SK Pin Function
SS1 TDO/RF12 O 1 Left-Right Clock
RH3 RH3 O 64 Audio Power Down
SDA2 SDA2/RA3 I/O 82 I2C Data
SDI1 AN32/AETXD0/RPD14/RD14 I 94 Audio Serial Data Output
REFCLKO1 AN33/RPD15/SCK6/RD15 O 96 External Master Clock Input
SCL2 SCL2/RA2 I/O 112 Serial Clock
SDO1 CVREFOUT/AN5/RPB10/RB10 O 117 Audio Serial Data Input
SCK1 RPD1/SCK1/RD1 O 118 Audio Bit Clock

EBI-SRAM/Display

Signal PIC32 Pin Type SK Pin Function
RB1 PGEC1/AN1/RPB1/RB1 O 7 Horizontal Sync
EBIWE EBIWE/PMWR/RC3 O 68 Pixel Clock
RJ3 EBIA22/RJ3 O 77 Reset
EBICS2 EBICS2/RJ6/SQI_PWR O 78 Chip Select
RB4 AN4/C1INB/RB4 O 103 Data Enable
RH9 ERXD3/RH9 O 108 Vertical Sync
RH13 ECRS/RH12 O 116 Stand-by
EBID15 EBID15/PMD15 I/O 131 R0
LCD_B7 (EBID4/PMD4) I/O 132 B7
LCD_R1 (EBID15/PMD15) I/O 133 R1
EBID3 EBID3/PMD3 I/O 134 B6
LCD_R2 (EBID15/PMD15) I/O 135 R2
EBID2 EBID2/PMD2 I/O 136 B5
EBID11 EBID11/PMD11 I/O 137 R3
EBID1 EBID1/PMD1 I/O 138 B4
EBID12 EBID12/PMD12 I/O 139 R4
EBID0 EBID0/PMD0 I/O 140 B3
EBID13 EBID13/PMD13 I/O 141 R5
EBID4 EBID4/PMD4 I/O 142 B2
EBID14 EBID14/PMD14 I/O 143 R6
LCD_B1 (EBID4/PMD4) I/O 144 B1
LCD_R7 (EBID15/PMD15) I/O 145 R7
LCD_B0 (EBID4/PMD4) I/O 146 B0
EBID10 EBID10/PMD10 I/O 147 G0
LCD_G7 (EBID10/PMD10) I/O 148 G7
LCD_G1 (EBID10/PMD10) I/O 149 G1
EBID9 EBID9/PMD9 I/O 150 G6
EBID5 EBID5/PMD5 I/O 151 G2
EBID8 EBID8/PMD8 I/O 152 G5
EBID6 EBID6/PMD6 I/O 153 G3
EBID7 EBID7/PMD7 I/O 154 G4
EBIOE EBIOE/PMRD/RC4 O 155 Pixel Clock

Touch

Signal PIC32 Pin Type SK Pin Function
MCLR ICSP_MCLR_VPP_TARGET I/O 13 Touch Controller Reset (System Reset in general)
RH10 ECOL/RH10 O 110 Touch Wake-up
SCL1 RPA14/SCL1/RA14 I/O 124 Serial Clock
SDA1 RPA15/SDA1/RA15 I/O 126 Serial Data
INT1 AN25/RPE8/RE8 I 93 Touch Interrupt

mTouch button

Signal PIC32 Pin Type SK Pin Function
AN42 AN42/ERXD2/RH6 I 92 Touch Button B1
AN28 VREF+/RA10 I 111 Touch Button B2

Camera

Signal PIC32 Pin Type SK Pin Function
RB0 PGED1/AN0/RPB0/RB0 O 5 LDO Shutdown
OC5 AN10/RPB15/OCFB/RB15 O 90 System Input Clock
RJ7 EBICS3/RJ7 O 80 Power Down
SCL3 SCL3/RPF8/RF8 I/O 106 Serial Clock
SDA3 SDA3/RPF2/RF2 I/O 104 Serial Data
INT2 SQICS0/RPD4/RD4 I 19 Camera Pixel Clock
RA1 TCK/RA1 I 2 Horizontal Sync
RA9 EBIRDY3/RJ2 I 86 Vertical Sync

EBI-SRAM

Signal PIC32 Pin Type SK Pin Function
EBIA1/RK1 EBIA1/PMA1 I/O 27 Address 1/Camera Data 1
EBIA3/RK2 EBIA3/PMA3 I/O 31 Address 3/Camera Data 2
EBIA16/RK0 EBIA16/RK0 I/O 61 Address 16/Camera Data 0
EBIA17/RK3 EBIA17/RK3 I/O 63 Address 17/Camera Data 3
EBIA18/RK4 EBIA18/RK4 I/O 65 Address 17/Camera Data 4
EBIA19/RK5 EBIA19/RK5 I/O 67 Address 17/Camera Data 5
EBIA20/RK6 EBIA20/RK6 I/O 73 Address 17/Camera Data 6
EBIA21/RK7 EBIA21/RK7 I/O 75 Address 17/Camera Data 7
EBIA0 EBIA0/PMA0/RJ15 O 25 Address 0
EBIA2 EBIA2/PMA2/RG9 O 29 Address 2
EBIA4 EBIA4/PMA4 O 33 Address 4
EBIA5 EBIA5/PMA5/RA5 O 35 Address 5
EBIA6 EBIA5/PMA5/RA5 O 37 Address 6
EBIA7 EBIA7/PMA7 O 43 Address 7
EBIA9 EBIA9/PMA9 O 47 Address 9
EBIA10 EBIA10/PMA10/RB8 O 49 Address 10
EBIA11 EBIA11/PMA11/RB12 O 51 Address 11
EBIA12 EBIA12/PMA12/RC2 O 53 Address 12
EBIA13 EBIA13/PMA13/RJ13 O 55 Address 13
EBIA14 EBIA14/PMCS1/PMA14/RA4 O 57 Address 14
EBIA15 EBIA15/PMCS2/RD9 O 59 Address 15
EBIA23 EBIA23/RH15 O 79 Sleep Enable
EBIBS0 EBIBS0/RJ12 O 81 Bank Select 0 (Lower Bank)
EBIBS1 EBIBS1/RJ10 O 83 Bank Select 1 (Upper Bank)

PICtail Connector

J2 PIC32 Pin Function
1 --- +3.3V
2 EBIRDY3/RJ2 LCD_VSYNC
3 SCL2/RA2 AUDIO_SCL
4 RPA14/SCL1/RA14 TOUCH_SCL
5 SDA2/RA3 AUDIO_SDA
6 RPA15/SDA1/RA15 TOUCH_SDA
7 AN13/C1INC/RPG7/SDA4/RG7 WIFI_SDO
8 AN13/C1INC/RPG7/SDA4/RG7 WIFI_SDO
9 AN12/C2IND/RPG8/SCL4/RG8 BT_RTS, SD_DATA0
10 AN3/C2INA/RPB3/RB3 WIFI_SDI
11 AN14/C1IND/RPG6/SCK2/RG6 BT_TX, SD_CLK
12 RPD10/SCK4/RD10 WIFI_SCK
13 RPF3/USBID/RF3 SS2
14 TDO/RF12 AUDIO_LRCK
15 AN32/AETXD0/RPD14/RD14 AUDIO_SDTO
16 RPD10/SCK4/RD10 WIFI_SCK
17 VREF+/RA10 Touch Button B2
18 AN3/C2INA/RPB3/RB3 WIFI_SDI
19 AN9/RPB14/SCK3/RB14 BT_RX, SD_CD
20 AN9/RPB14/SCK3/RB14 BT_RX, SD_CD
21 CVREFOUT/AN5/RPB10/RB10 AUDIO_SDTI
22 AN10/RPB15/OCFB/RB15 CAM_XVCLK
23 PGED1/AN0/RPB0/RB0 CAM_LDO_SHDN
24 AN26/RPE9/RE9 WIFI_CS
25 RPD1/SCK1/RD1 AUDIO_BICK
26 --- +3.3V
27 TDO/RF12 AUDIO_LRCK
28 --- GND

Serial port

For LiteBSD console, I use an external TTL-to-USB adapter wired to three pins of PICtail connector:

USB-to-Serial

J2 PIC32 Pin Function TTL-to-USB adapter
4 RA14 U1RX TX
6 RA15 U1TX RX
28 --- GND GND

In case these pins don't work for you for some reason, you can find alternatives on page: PIC32MZ UART pins.

Default configuration words

Programmer for Microchip PIC32 microcontrollers, Version 1.118M
    Copyright: (C) 2011-2014 Serge Vakulenko
      Adapter: PICkit2 Version 2.32.0
    Processor: MZ2048ECH144 (id 45127053)
 Flash memory: 2048 kbytes
  Boot memory: 80 kbytes
Configuration:
    DEVCFG0 = ffffcff7
                     3 Debugger disabled
                     4 JTAG enabled
                     8 Use PGC2/PGD2
                   3   Flash ECC disabled, unlocked
                  1    Deny Debug access to group 0 regions
                  2    Deny Debug access to group 1 regions
    DEVCFG1 = 7f743839
                     1 System PLL
                   0   Primary oscillator: External
    DEVCFG2 = fff9b11a
                     2 PLL divider: 1/3
                    1  PLL input frequency range: 5-10 MHz
                  31   PLL feedback divider: x50
                 1     PLL postscaler: 1/2
              4        USB PLL input clock: 24 MHz
              8        Enable USB PLL
    DEVCFG3 = bfffffff
               1       Ethernet MII interface enable
               2       Default Ethernet pins
               8       Permission Group Lock - only 1 reconfig
              1        Peripheral Module Disable - only 1 reconfig
              2        Peripheral Pin Select - only 1 reconfig
                       USBID pin: controlled by port
