Duplicate rendering when changing viewport coordinates

[paulrouget]

STR:

HTML:

<style>
  body {
    background: red;
    height: 2000px;
  }
</style>

Change this in servo:

diff --git a/ports/servo/glutin_app/window.rs b/ports/servo/glutin_app/window.rs
index 436f7518ee..4c679c8095 100644
--- a/ports/servo/glutin_app/window.rs
+++ b/ports/servo/glutin_app/window.rs
@@ -700,7 +700,7 @@ impl WindowMethods for Window {
                 let (width, height) = window.get_inner_size().expect("Failed to get window inner size.");
                 let inner_size = (TypedSize2D::new(width as f32, height as f32) * dpr).to_u32();

-                let viewport = DeviceUintRect::new(TypedPoint2D::zero(), inner_size);
+                let viewport = DeviceUintRect::new(TypedPoint2D::new(50,50), TypedSize2D::new(300,300));

                 EmbedderCoordinates {
                     viewport: viewport,

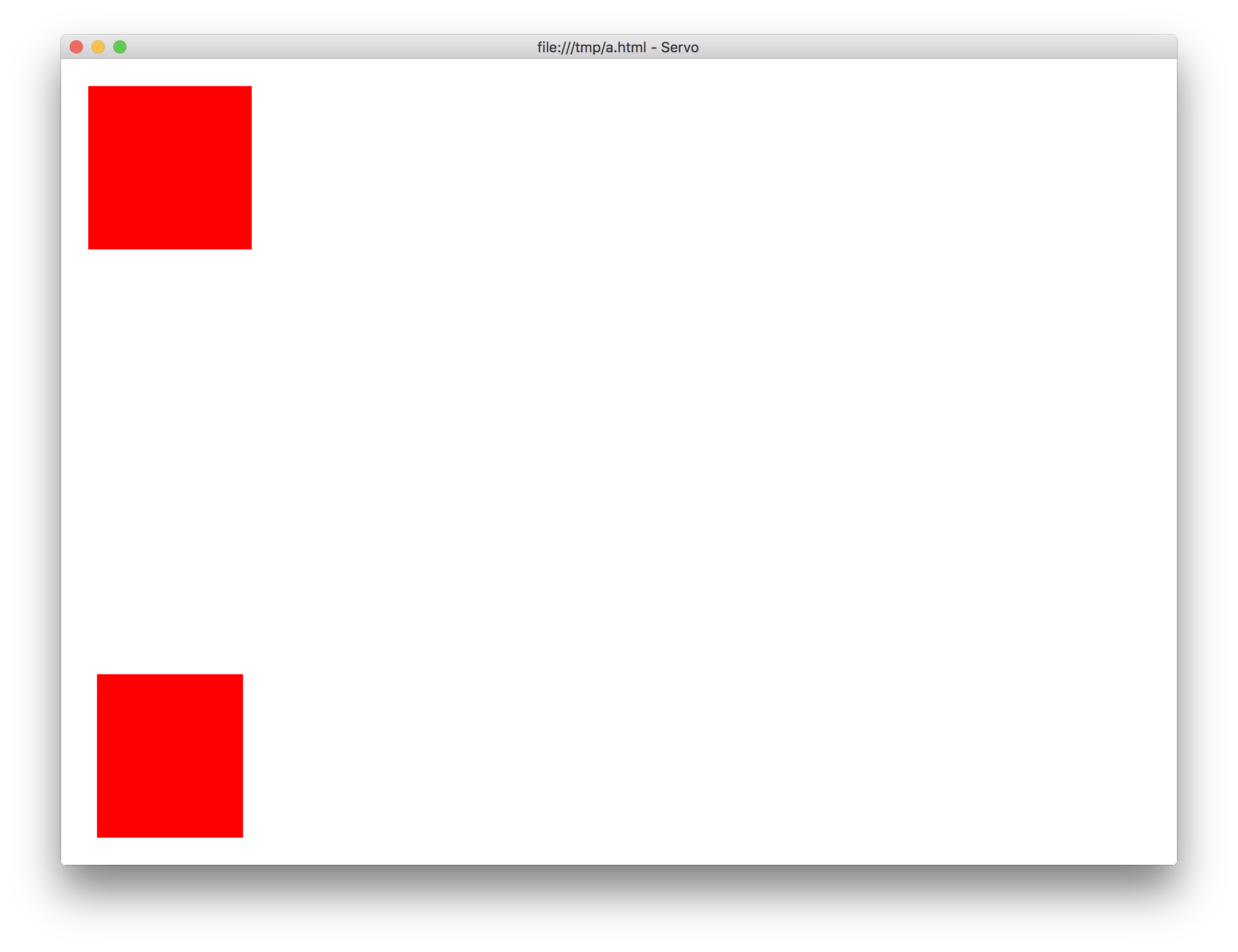

Result:

@glennw any idea why the content doesn't stay in the top square? When we add a document (via add_document), are we supposed to use the size of the framebuffer of the size of the document?

[paulrouget]

/cc @gw3583

[paulrouget]

It only happen when the document overflows. I think the compositor code is fine. But layout must be missing something.

@gw3583 / @glennw are we supposed to also shift the layout coordinates?

[gw3583]

I don't think you should have to change any layout coordinates. Any ideas @kvark ?

[paulrouget]

I believe I need to set the document dimension in add_document. It appears to work better. I'm confused to why this is necessary as set_window_parameter is supposed to used to send the same information.

[paulrouget]

I believe I need to set the document dimension in add_document. It appears to work better.

Less content is rendered in the bottom part, but still, there's still a red square there.

[kvark]

Document scissoring appears to be broken right now (in our own "document" example). I'm looking into it.

[paulrouget]

@kvark Updating WR doesn't look trivial (few changes in the API). Are you planning an update soon?

[kvark]

Tomorrow, according to @gw3583 👏

[paulrouget]

This is fixed now. Thanks!
