Outline drawing behavior for boxes with negative sizes #21138

Open
CYBAI opened this issue Jul 8, 2018 · 0 comments
Open

Outline drawing behavior for boxes with negative sizes #21138

CYBAI opened this issue Jul 8, 2018 · 0 comments

Comments

@CYBAI
Copy link
Collaborator

@CYBAI CYBAI commented Jul 8, 2018

Refer to w3c/csswg-drafts#2892

Here's the Servo (built with bd0c001) screenshot

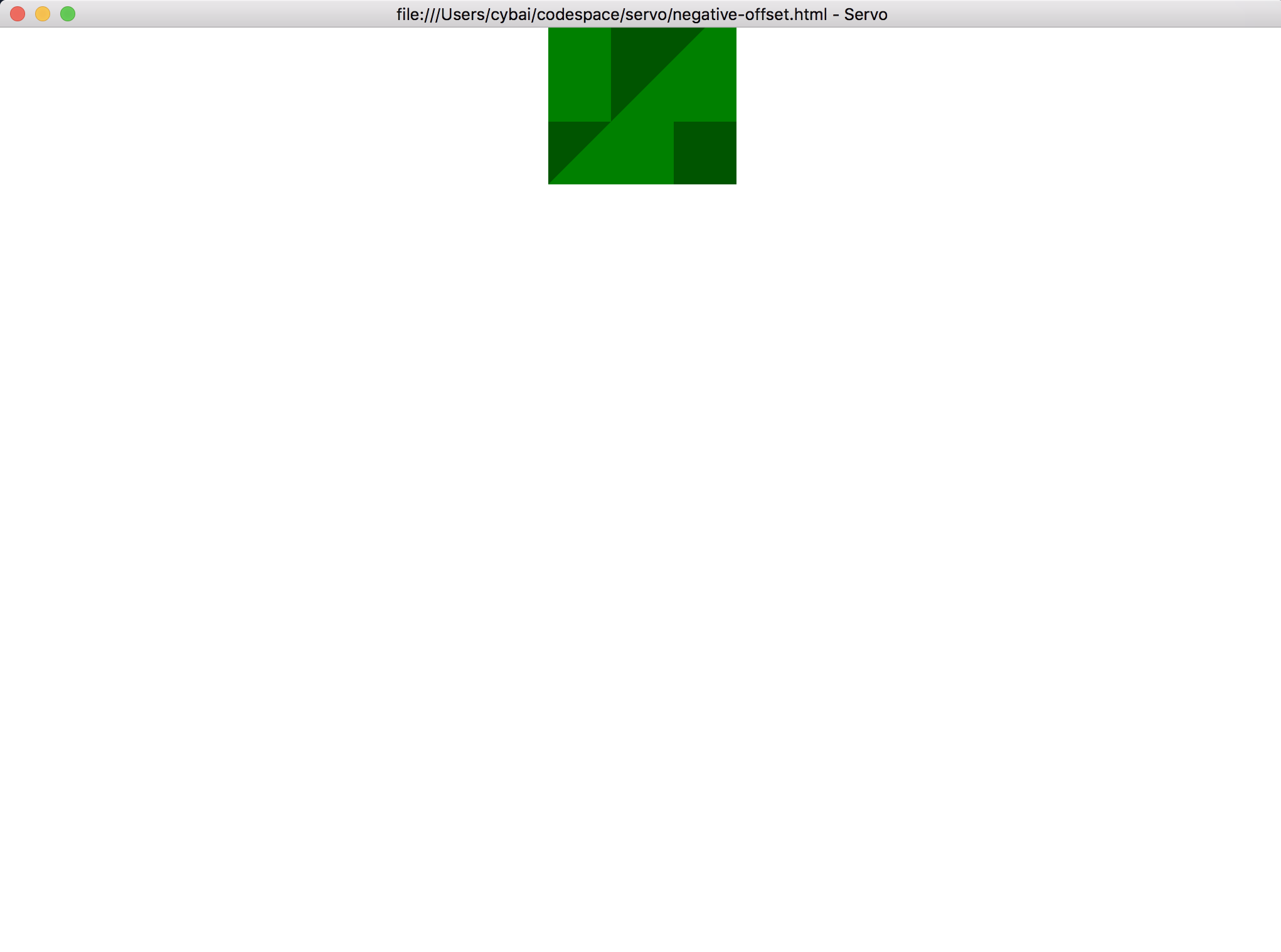

First Case

default

HTML:

<html>
  <head>
    <style>
html {
  display: table;
  height: 100%;
  width: 100%;
}

body {
  display: table-cell;
  vertical-align: middle;
}

div {
  margin: auto;
  width: 100px;
  height: 100px;
  outline: inset 100px green;
  outline-offset: -125px;
}
   </style>
  </head>
  <body>
    <div></div>
  </body>
</html>

Second Case

default

<html>
  <head>
    <style>
html {
  display: table;
  height: 100%;
  width: 25px;
  margin: auto;
}

body {
  display: table-cell;
  vertical-align: middle;
}

div::before {
	line-height: 25px;
	font-size: 25px;
	content: "  ";
	background: white;
}
div {
	display: inline;
	outline: 25px ridge white;
	outline-offset: -40px;
	border: 25px dotted #ABABAB;
}
    </style>
  </head>
  <body>
    <div></div>
  </body>
</html>
