Twitter won't load - stuck in endless refresh prompt

[dralley]

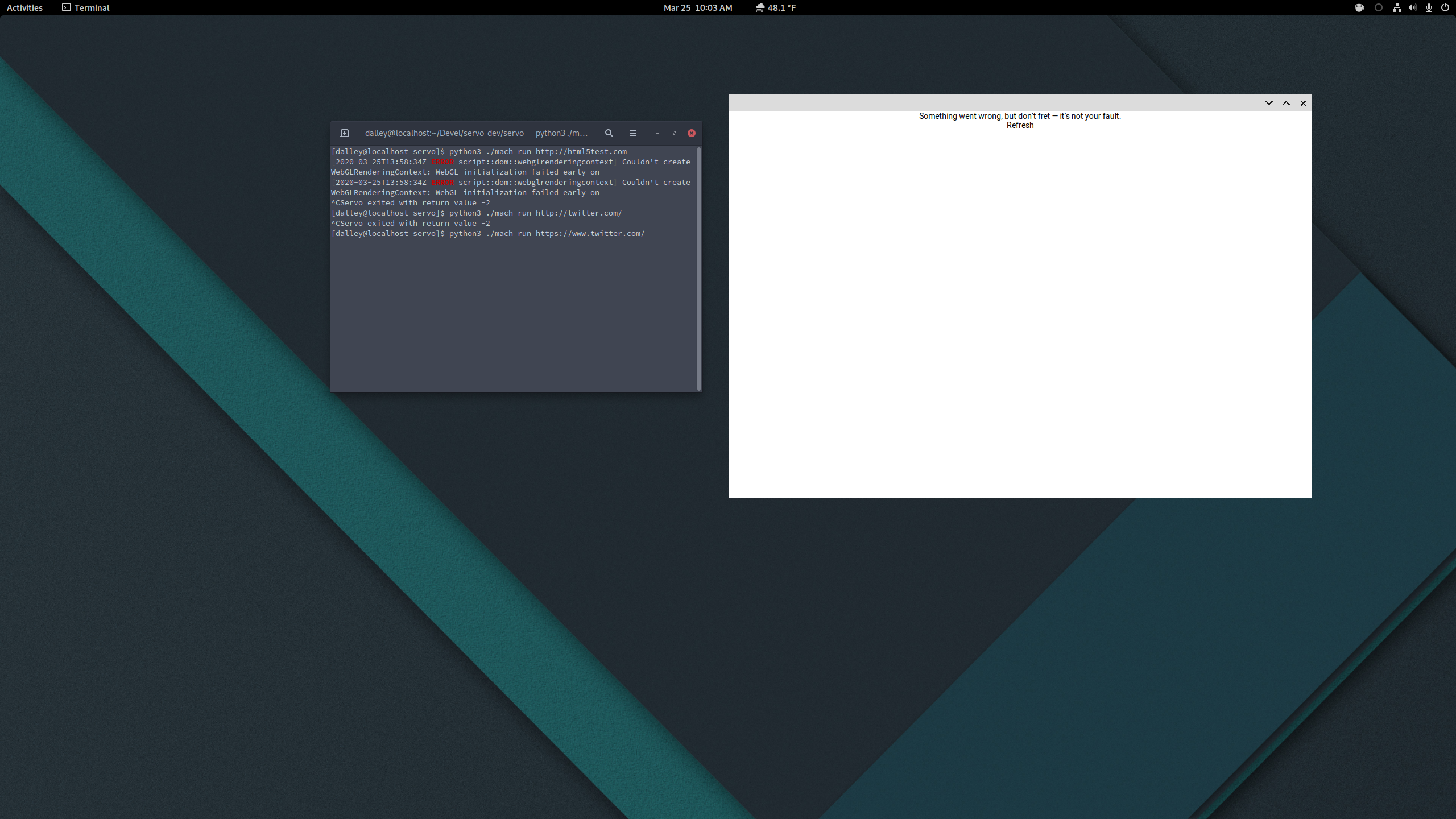

No error or explicit failure. Clicking the refresh text refreshes the page but it just asks to refresh again afterwards, endlessly.

[dralley]

re: #18818

[CYBAI]

Thanks to the --load-script-source option! We're able to debug twitter locally now!

Finally figured out why twitter can't be rendered correctly in Servo now.

Following is how I tried to debug it and the root cause in the end.

• Debugging Process
• Find the root cause
• TL;DR

---

Debugging Process

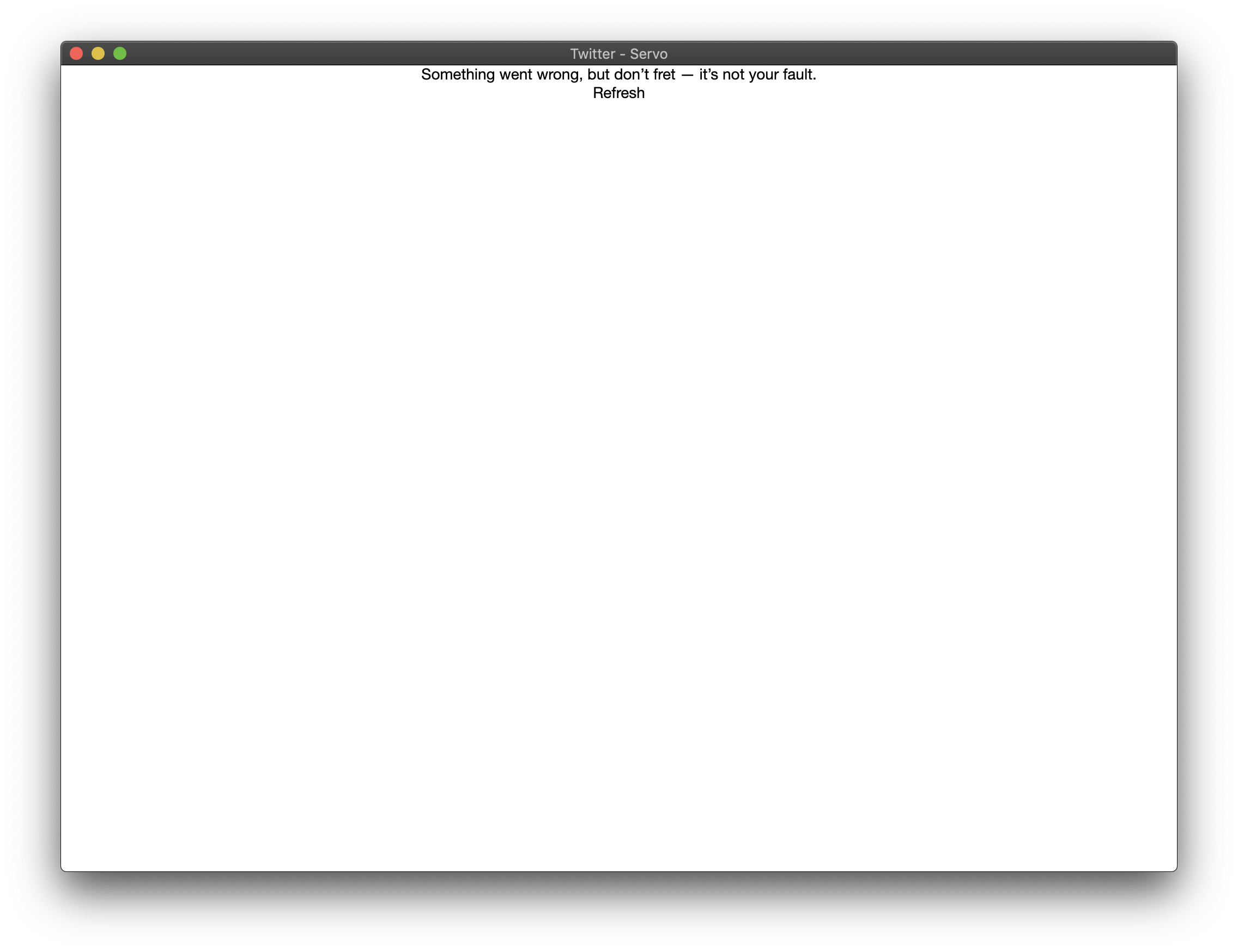

This is currently how twitter is rendered in Servo.

The twitter error message says, Something went wrong, but don't fret - it's not your fault.

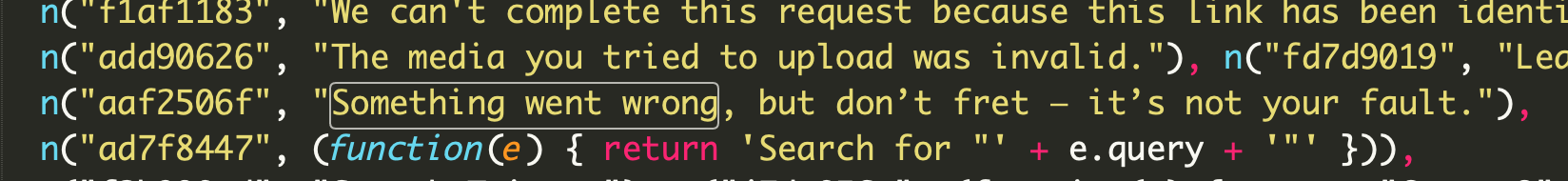

With grepping from unminified-js folder, we can know the message is defined in abs.twimg.com/responsive-web/web/i18n-rweb/en.f1d67e74.js and it's equal to aaf2506f.

With grepping aaf2506f, we can know it's the dJGd react component because it has componentDidCatch for showing the error message.

So, I added console.log(t.componentStack) into the componentDidCatch function; then, it shows that the error is from circle element inside ActivityIndicator.

Stacktrace of the react component

    in circle
    in svg
    in div
    in View
    in div
    in View
    in ActivityIndicator
    in @twitter/ActivityIndicator
    in div
    in View
    in t
    in n
    in div
    in View
    in div
    in View
    in div
    in View
    in t
    in div
    in View
    in @twitter/Responsive
    in @twitter/Container
    in div
    in View
    in header
    in View
    in t
    in i
    in _
    in routerWithMatchPropRemoved(Connect(i))
    in withRouter(routerWithMatchPropRemoved(Connect(i)))
    in div
    in View
    in @twitter/Responsive
    in t
    in t
    in u
    in ForwardRef
    in ForwardRef
    in t
    in t
    in t
    in _
    in t
    in u
    in ForwardRef
    in ForwardRef
    in t
    in Unknown
    in t
    in t
    in r
    in routerWithMatchPropRemoved(r)
    in withRouter(routerWithMatchPropRemoved(r))
    in t
    in t
    in t
    in _
    in s
    in t
    in div
    in View
    in div
    in View
    in r

Digging deeper into the ActivityIndicator component, we can find it's the tyyN react component in abs.twimg.com/responsive-web/web/vendors~main.19622e04.js. The circle elements and svg element are there.

I tried several ways to see if twitter can be rendered correctly and following 3 kinds work fine to render a broken layout twitter

1. Change the svg to div
2. Remove the circle components
3. Remove style props of circle

The 3rd one of removing style just made me notice if it's related to style.

Then, I tried to create a minimized test case on codesandbox (here).

Luckily and thankfully, codesandbox uses a dev build of react and it will show the full stacktrace for why it fails.

---

Find the root cause

https://github.com/facebook/react/blob/4c7036e807fa18a3e21a5182983c7c0f05c5936e/packages/react-dom/src/shared/CSSPropertyOperations.js#L52-L85

This is the setValueForStyles function in react-dom library.

It gets style from the node (an element) and will set the style value to the style.

However, we don't support style for SVGElement yet so it just throws error while setting a value to undefined in line 82.

---

TL;DR

We don't support style for SVGElement yet. React will use it to mutate styles so it will fail to mutate in Servo currently due to assigning a value to undefined.

[atouchet]

This still isn't working for me in the latest nightly. Am I doing something wrong?

[CYBAI]

The issue is related to SVG so you will need to enable SVG to make it work.

./mach run --pref dom.svg.enabled https://twitter.com

[atouchet]

Ah, that does appear to get it to load. The site has major visual issues when it loads though. I don't remember it being nearly that bad previously.
