Black Screen: Servo fails to render anything on Xorg drivers #26353

Open
r1walz opened this issue Apr 29, 2020 · 16 comments
Open

Black Screen: Servo fails to render anything on Xorg drivers #26353

r1walz opened this issue Apr 29, 2020 · 16 comments
Labels
A-gfx/rendering P-linux

Comments

@r1walz
Copy link

@r1walz r1walz commented Apr 29, 2020

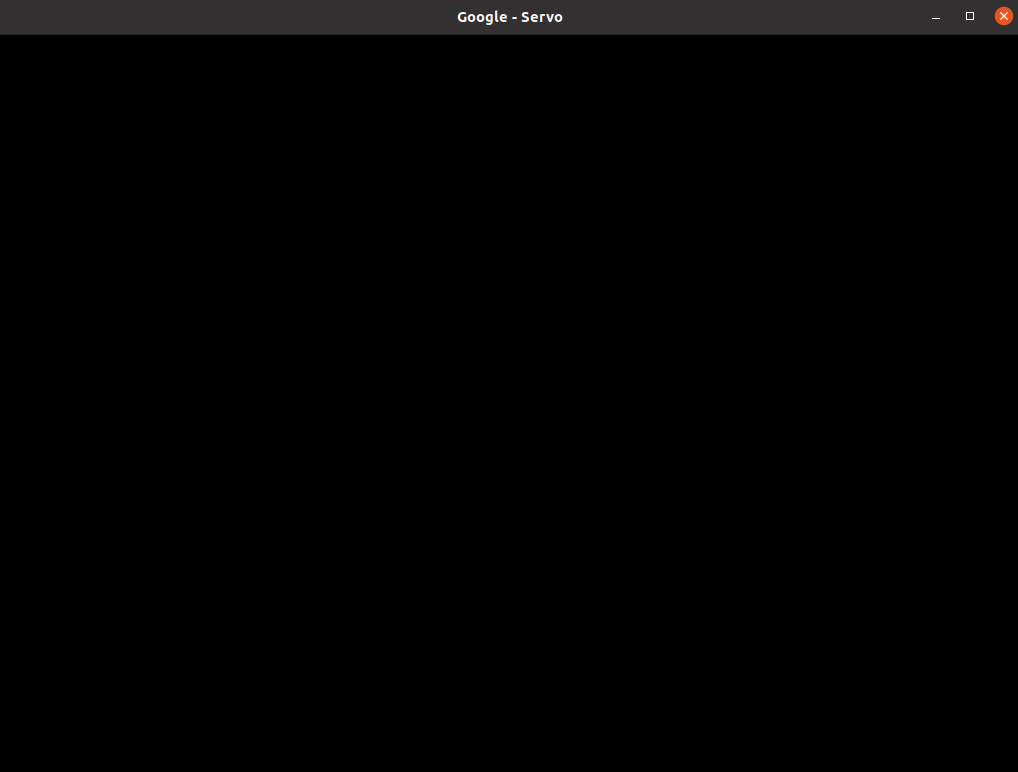

I compiled servo on my machine running Ubuntu 20.4, everything seemingly went well. But servo doesn't show anything except for a black screen. I'm able to interact with the components of the page but everything is black ref. image:

servo

The output of some important commands:

$ uname -a
Linux abby 5.4.0-26-generic #30-Ubuntu SMP Mon Apr 20 16:58:30 UTC 2020 x86_64 x86_64 x86_64 GNU/Linux

$ nvidia-smi
Wed Apr 29 22:08:47 2020
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 435.21       Driver Version: 435.21       CUDA Version: 10.1     |
|-------------------------------+----------------------+----------------------+
| GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
|===============================+======================+======================|
|   0  GeForce RTX 207...  Off  | 00000000:01:00.0 Off |                  N/A |
| N/A   55C    P8     4W /  N/A |    488MiB /  7982MiB |      5%      Default |
+-------------------------------+----------------------+----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                       GPU Memory |
|  GPU       PID   Type   Process name                             Usage      |
|=============================================================================|
|    0      1380      G   /usr/lib/xorg/Xorg                            45MiB |
|    0      2441      G   /usr/lib/xorg/Xorg                           146MiB |
|    0      2690      G   /usr/bin/gnome-shell                         102MiB |
|    0      2999      G   ...AAAAAAAAAAAACAAAAAAAAAA= --shared-files   182MiB |
+-----------------------------------------------------------------------------+

$ glxinfo
name of display: :1
display: :1  screen: 0
direct rendering: Yes
server glx vendor string: NVIDIA Corporation
server glx version string: 1.4
server glx extensions:
    GLX_ARB_context_flush_control, GLX_ARB_create_context,
    GLX_ARB_create_context_no_error, GLX_ARB_create_context_profile,
    GLX_ARB_create_context_robustness, GLX_ARB_fbconfig_float,
    GLX_ARB_multisample, GLX_EXT_buffer_age,
    GLX_EXT_create_context_es2_profile, GLX_EXT_create_context_es_profile,
    GLX_EXT_framebuffer_sRGB, GLX_EXT_import_context, GLX_EXT_libglvnd,
    GLX_EXT_stereo_tree, GLX_EXT_swap_control, GLX_EXT_swap_control_tear,
    GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info, GLX_EXT_visual_rating,
    GLX_NV_copy_image, GLX_NV_delay_before_swap, GLX_NV_float_buffer,
    GLX_NV_robustness_video_memory_purge, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer,
    GLX_SGI_swap_control, GLX_SGI_video_sync
client glx vendor string: NVIDIA Corporation
client glx version string: 1.4
client glx extensions:
    GLX_ARB_context_flush_control, GLX_ARB_create_context,
    GLX_ARB_create_context_no_error, GLX_ARB_create_context_profile,
    GLX_ARB_create_context_robustness, GLX_ARB_fbconfig_float,
    GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_buffer_age,
    GLX_EXT_create_context_es2_profile, GLX_EXT_create_context_es_profile,
    GLX_EXT_fbconfig_packed_float, GLX_EXT_framebuffer_sRGB,
    GLX_EXT_import_context, GLX_EXT_stereo_tree, GLX_EXT_swap_control,
    GLX_EXT_swap_control_tear, GLX_EXT_texture_from_pixmap,
    GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_NV_copy_buffer,
    GLX_NV_copy_image, GLX_NV_delay_before_swap, GLX_NV_float_buffer,
    GLX_NV_multisample_coverage, GLX_NV_present_video,
    GLX_NV_robustness_video_memory_purge, GLX_NV_swap_group,
    GLX_NV_video_capture, GLX_NV_video_out, GLX_SGIX_fbconfig,
    GLX_SGIX_pbuffer, GLX_SGI_swap_control, GLX_SGI_video_sync
GLX version: 1.4
GLX extensions:
    GLX_ARB_context_flush_control, GLX_ARB_create_context,
    GLX_ARB_create_context_no_error, GLX_ARB_create_context_profile,
    GLX_ARB_create_context_robustness, GLX_ARB_fbconfig_float,
    GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_buffer_age,
    GLX_EXT_create_context_es2_profile, GLX_EXT_create_context_es_profile,
    GLX_EXT_framebuffer_sRGB, GLX_EXT_import_context, GLX_EXT_stereo_tree,
    GLX_EXT_swap_control, GLX_EXT_swap_control_tear,
    GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info, GLX_EXT_visual_rating,
    GLX_NV_copy_image, GLX_NV_delay_before_swap, GLX_NV_float_buffer,
    GLX_NV_robustness_video_memory_purge, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer,
    GLX_SGI_swap_control, GLX_SGI_video_sync
Memory info (GL_NVX_gpu_memory_info):
    Dedicated video memory: 8192 MB
    Total available memory: 8192 MB
    Currently available dedicated video memory: 7480 MB
OpenGL vendor string: NVIDIA Corporation
OpenGL renderer string: GeForce RTX 2070 with Max-Q Design/PCIe/SSE2
OpenGL core profile version string: 4.6.0 NVIDIA 435.21
OpenGL core profile shading language version string: 4.60 NVIDIA
OpenGL core profile context flags: (none)
OpenGL core profile profile mask: core profile
OpenGL core profile extensions:
    GL_AMD_multi_draw_indirect, GL_AMD_seamless_cubemap_per_texture,
    GL_AMD_vertex_shader_layer, GL_AMD_vertex_shader_viewport_index,
    GL_ARB_ES2_compatibility, GL_ARB_ES3_1_compatibility,
    GL_ARB_ES3_2_compatibility, GL_ARB_ES3_compatibility,
    GL_ARB_arrays_of_arrays, GL_ARB_base_instance, GL_ARB_bindless_texture,
    GL_ARB_blend_func_extended, GL_ARB_buffer_storage,
    GL_ARB_clear_buffer_object, GL_ARB_clear_texture, GL_ARB_clip_control,
    GL_ARB_color_buffer_float, GL_ARB_compressed_texture_pixel_storage,
    GL_ARB_compute_shader, GL_ARB_compute_variable_group_size,
    GL_ARB_conditional_render_inverted, GL_ARB_conservative_depth,
    GL_ARB_copy_buffer, GL_ARB_copy_image, GL_ARB_cull_distance,
    GL_ARB_debug_output, GL_ARB_depth_buffer_float, GL_ARB_depth_clamp,
    GL_ARB_depth_texture, GL_ARB_derivative_control,
    GL_ARB_direct_state_access, GL_ARB_draw_buffers,
    GL_ARB_draw_buffers_blend, GL_ARB_draw_elements_base_vertex,
    GL_ARB_draw_indirect, GL_ARB_draw_instanced, GL_ARB_enhanced_layouts,
    GL_ARB_explicit_attrib_location, GL_ARB_explicit_uniform_location,
    GL_ARB_fragment_coord_conventions, GL_ARB_fragment_layer_viewport,
    GL_ARB_fragment_program, GL_ARB_fragment_program_shadow,
    GL_ARB_fragment_shader, GL_ARB_fragment_shader_interlock,
    GL_ARB_framebuffer_no_attachments, GL_ARB_framebuffer_object,
    GL_ARB_framebuffer_sRGB, GL_ARB_geometry_shader4,
    GL_ARB_get_program_binary, GL_ARB_get_texture_sub_image, GL_ARB_gl_spirv,
    GL_ARB_gpu_shader5, GL_ARB_gpu_shader_fp64, GL_ARB_gpu_shader_int64,
    GL_ARB_half_float_pixel, GL_ARB_half_float_vertex, GL_ARB_imaging,
    GL_ARB_indirect_parameters, GL_ARB_instanced_arrays,
    GL_ARB_internalformat_query, GL_ARB_internalformat_query2,
    GL_ARB_invalidate_subdata, GL_ARB_map_buffer_alignment,
    GL_ARB_map_buffer_range, GL_ARB_multi_bind, GL_ARB_multi_draw_indirect,
    GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_occlusion_query,
    GL_ARB_occlusion_query2, GL_ARB_parallel_shader_compile,
    GL_ARB_pipeline_statistics_query, GL_ARB_pixel_buffer_object,
    GL_ARB_point_parameters, GL_ARB_point_sprite, GL_ARB_polygon_offset_clamp,
    GL_ARB_post_depth_coverage, GL_ARB_program_interface_query,
    GL_ARB_provoking_vertex, GL_ARB_query_buffer_object,
    GL_ARB_robust_buffer_access_behavior, GL_ARB_robustness,
    GL_ARB_sample_locations, GL_ARB_sample_shading, GL_ARB_sampler_objects,
    GL_ARB_seamless_cube_map, GL_ARB_seamless_cubemap_per_texture,
    GL_ARB_separate_shader_objects, GL_ARB_shader_atomic_counter_ops,
    GL_ARB_shader_atomic_counters, GL_ARB_shader_ballot,
    GL_ARB_shader_bit_encoding, GL_ARB_shader_clock,
    GL_ARB_shader_draw_parameters, GL_ARB_shader_group_vote,
    GL_ARB_shader_image_load_store, GL_ARB_shader_image_size,
    GL_ARB_shader_objects, GL_ARB_shader_precision,
    GL_ARB_shader_storage_buffer_object, GL_ARB_shader_subroutine,
    GL_ARB_shader_texture_image_samples, GL_ARB_shader_texture_lod,
    GL_ARB_shader_viewport_layer_array, GL_ARB_shading_language_100,
    GL_ARB_shading_language_420pack, GL_ARB_shading_language_include,
    GL_ARB_shading_language_packing, GL_ARB_shadow, GL_ARB_sparse_buffer,
    GL_ARB_sparse_texture, GL_ARB_sparse_texture2,
    GL_ARB_sparse_texture_clamp, GL_ARB_spirv_extensions,
    GL_ARB_stencil_texturing, GL_ARB_sync, GL_ARB_tessellation_shader,
    GL_ARB_texture_barrier, GL_ARB_texture_border_clamp,
    GL_ARB_texture_buffer_object, GL_ARB_texture_buffer_object_rgb32,
    GL_ARB_texture_buffer_range, GL_ARB_texture_compression,
    GL_ARB_texture_compression_bptc, GL_ARB_texture_compression_rgtc,
    GL_ARB_texture_cube_map, GL_ARB_texture_cube_map_array,
    GL_ARB_texture_env_add, GL_ARB_texture_env_combine,
    GL_ARB_texture_env_crossbar, GL_ARB_texture_env_dot3,
    GL_ARB_texture_filter_anisotropic, GL_ARB_texture_filter_minmax,
    GL_ARB_texture_float, GL_ARB_texture_gather,
    GL_ARB_texture_mirror_clamp_to_edge, GL_ARB_texture_mirrored_repeat,
    GL_ARB_texture_multisample, GL_ARB_texture_non_power_of_two,
    GL_ARB_texture_query_levels, GL_ARB_texture_query_lod,
    GL_ARB_texture_rectangle, GL_ARB_texture_rg, GL_ARB_texture_rgb10_a2ui,
    GL_ARB_texture_stencil8, GL_ARB_texture_storage,
    GL_ARB_texture_storage_multisample, GL_ARB_texture_swizzle,
    GL_ARB_texture_view, GL_ARB_timer_query, GL_ARB_transform_feedback2,
    GL_ARB_transform_feedback3, GL_ARB_transform_feedback_instanced,
    GL_ARB_transform_feedback_overflow_query, GL_ARB_transpose_matrix,
    GL_ARB_uniform_buffer_object, GL_ARB_vertex_array_bgra,
    GL_ARB_vertex_array_object, GL_ARB_vertex_attrib_64bit,
    GL_ARB_vertex_attrib_binding, GL_ARB_vertex_buffer_object,
    GL_ARB_vertex_program, GL_ARB_vertex_shader,
    GL_ARB_vertex_type_10f_11f_11f_rev, GL_ARB_vertex_type_2_10_10_10_rev,
    GL_ARB_viewport_array, GL_ARB_window_pos, GL_ATI_draw_buffers,
    GL_ATI_texture_float, GL_ATI_texture_mirror_once,
    GL_EXTX_framebuffer_mixed_formats, GL_EXT_Cg_shader, GL_EXT_abgr,
    GL_EXT_bgra, GL_EXT_bindable_uniform, GL_EXT_blend_color,
    GL_EXT_blend_equation_separate, GL_EXT_blend_func_separate,
    GL_EXT_blend_minmax, GL_EXT_blend_subtract, GL_EXT_compiled_vertex_array,
    GL_EXT_depth_bounds_test, GL_EXT_direct_state_access,
    GL_EXT_draw_buffers2, GL_EXT_draw_instanced, GL_EXT_draw_range_elements,
    GL_EXT_fog_coord, GL_EXT_framebuffer_blit, GL_EXT_framebuffer_multisample,
    GL_EXT_framebuffer_multisample_blit_scaled, GL_EXT_framebuffer_object,
    GL_EXT_framebuffer_sRGB, GL_EXT_geometry_shader4,
    GL_EXT_gpu_program_parameters, GL_EXT_gpu_shader4,
    GL_EXT_import_sync_object, GL_EXT_memory_object, GL_EXT_memory_object_fd,
    GL_EXT_multi_draw_arrays, GL_EXT_multiview_texture_multisample,
    GL_EXT_multiview_timer_query, GL_EXT_packed_depth_stencil,
    GL_EXT_packed_float, GL_EXT_packed_pixels, GL_EXT_pixel_buffer_object,
    GL_EXT_point_parameters, GL_EXT_polygon_offset_clamp,
    GL_EXT_post_depth_coverage, GL_EXT_provoking_vertex,
    GL_EXT_raster_multisample, GL_EXT_rescale_normal, GL_EXT_secondary_color,
    GL_EXT_semaphore, GL_EXT_semaphore_fd, GL_EXT_separate_shader_objects,
    GL_EXT_separate_specular_color, GL_EXT_shader_image_load_formatted,
    GL_EXT_shader_image_load_store, GL_EXT_shader_integer_mix,
    GL_EXT_shadow_funcs, GL_EXT_sparse_texture2, GL_EXT_stencil_two_side,
    GL_EXT_stencil_wrap, GL_EXT_texture3D, GL_EXT_texture_array,
    GL_EXT_texture_buffer_object, GL_EXT_texture_compression_dxt1,
    GL_EXT_texture_compression_latc, GL_EXT_texture_compression_rgtc,
    GL_EXT_texture_compression_s3tc, GL_EXT_texture_cube_map,
    GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add,
    GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3,
    GL_EXT_texture_filter_anisotropic, GL_EXT_texture_filter_minmax,
    GL_EXT_texture_integer, GL_EXT_texture_lod, GL_EXT_texture_lod_bias,
    GL_EXT_texture_mirror_clamp, GL_EXT_texture_object, GL_EXT_texture_sRGB,
    GL_EXT_texture_sRGB_R8, GL_EXT_texture_sRGB_decode,
    GL_EXT_texture_shared_exponent, GL_EXT_texture_storage,
    GL_EXT_texture_swizzle, GL_EXT_timer_query, GL_EXT_transform_feedback2,
    GL_EXT_vertex_array, GL_EXT_vertex_array_bgra, GL_EXT_vertex_attrib_64bit,
    GL_EXT_window_rectangles, GL_EXT_x11_sync_object, GL_IBM_rasterpos_clip,
    GL_IBM_texture_mirrored_repeat, GL_KHR_blend_equation_advanced,
    GL_KHR_blend_equation_advanced_coherent, GL_KHR_context_flush_control,
    GL_KHR_debug, GL_KHR_no_error, GL_KHR_parallel_shader_compile,
    GL_KHR_robust_buffer_access_behavior, GL_KHR_robustness,
    GL_KHR_shader_subgroup, GL_KTX_buffer_region,
    GL_NVX_blend_equation_advanced_multi_draw_buffers,
    GL_NVX_conditional_render, GL_NVX_gpu_memory_info, GL_NVX_nvenc_interop,
    GL_NVX_progress_fence, GL_NV_ES1_1_compatibility,
    GL_NV_ES3_1_compatibility, GL_NV_alpha_to_coverage_dither_control,
    GL_NV_bindless_multi_draw_indirect,
    GL_NV_bindless_multi_draw_indirect_count, GL_NV_bindless_texture,
    GL_NV_blend_equation_advanced, GL_NV_blend_equation_advanced_coherent,
    GL_NV_blend_minmax_factor, GL_NV_blend_square, GL_NV_clip_space_w_scaling,
    GL_NV_command_list, GL_NV_compute_program5,
    GL_NV_compute_shader_derivatives, GL_NV_conditional_render,
    GL_NV_conservative_raster, GL_NV_conservative_raster_dilate,
    GL_NV_conservative_raster_pre_snap,
    GL_NV_conservative_raster_pre_snap_triangles,
    GL_NV_conservative_raster_underestimation, GL_NV_copy_depth_to_color,
    GL_NV_copy_image, GL_NV_depth_buffer_float, GL_NV_depth_clamp,
    GL_NV_draw_texture, GL_NV_draw_vulkan_image, GL_NV_explicit_multisample,
    GL_NV_feature_query, GL_NV_fence, GL_NV_fill_rectangle,
    GL_NV_float_buffer, GL_NV_fog_distance, GL_NV_fragment_coverage_to_color,
    GL_NV_fragment_program, GL_NV_fragment_program2,
    GL_NV_fragment_program_option, GL_NV_fragment_shader_barycentric,
    GL_NV_fragment_shader_interlock, GL_NV_framebuffer_mixed_samples,
    GL_NV_framebuffer_multisample_coverage, GL_NV_geometry_shader4,
    GL_NV_geometry_shader_passthrough, GL_NV_gpu_multicast,
    GL_NV_gpu_program4, GL_NV_gpu_program4_1, GL_NV_gpu_program5,
    GL_NV_gpu_program5_mem_extended, GL_NV_gpu_program_fp64,
    GL_NV_gpu_shader5, GL_NV_half_float, GL_NV_internalformat_sample_query,
    GL_NV_light_max_exponent, GL_NV_memory_attachment, GL_NV_mesh_shader,
    GL_NV_multisample_coverage, GL_NV_multisample_filter_hint,
    GL_NV_occlusion_query, GL_NV_packed_depth_stencil,
    GL_NV_parameter_buffer_object, GL_NV_parameter_buffer_object2,
    GL_NV_path_rendering, GL_NV_path_rendering_shared_edge,
    GL_NV_pixel_data_range, GL_NV_point_sprite, GL_NV_primitive_restart,
    GL_NV_query_resource, GL_NV_query_resource_tag, GL_NV_register_combiners,
    GL_NV_register_combiners2, GL_NV_representative_fragment_test,
    GL_NV_robustness_video_memory_purge, GL_NV_sample_locations,
    GL_NV_sample_mask_override_coverage, GL_NV_scissor_exclusive,
    GL_NV_shader_atomic_counters, GL_NV_shader_atomic_float,
    GL_NV_shader_atomic_float64, GL_NV_shader_atomic_fp16_vector,
    GL_NV_shader_atomic_int64, GL_NV_shader_buffer_load,
    GL_NV_shader_storage_buffer_object, GL_NV_shader_subgroup_partitioned,
    GL_NV_shader_texture_footprint, GL_NV_shader_thread_group,
    GL_NV_shader_thread_shuffle, GL_NV_shading_rate_image,
    GL_NV_stereo_view_rendering, GL_NV_texgen_reflection,
    GL_NV_texture_barrier, GL_NV_texture_compression_vtc,
    GL_NV_texture_env_combine4, GL_NV_texture_multisample,
    GL_NV_texture_rectangle, GL_NV_texture_rectangle_compressed,
    GL_NV_texture_shader, GL_NV_texture_shader2, GL_NV_texture_shader3,
    GL_NV_transform_feedback, GL_NV_transform_feedback2,
    GL_NV_uniform_buffer_unified_memory, GL_NV_vdpau_interop,
    GL_NV_vdpau_interop2, GL_NV_vertex_array_range, GL_NV_vertex_array_range2,
    GL_NV_vertex_attrib_integer_64bit, GL_NV_vertex_buffer_unified_memory,
    GL_NV_vertex_program, GL_NV_vertex_program1_1, GL_NV_vertex_program2,
    GL_NV_vertex_program2_option, GL_NV_vertex_program3,
    GL_NV_viewport_array2, GL_NV_viewport_swizzle, GL_OVR_multiview,
    GL_OVR_multiview2, GL_S3_s3tc, GL_SGIS_generate_mipmap,
    GL_SGIS_texture_lod, GL_SGIX_depth_texture, GL_SGIX_shadow,
    GL_SUN_slice_accum

OpenGL version string: 4.6.0 NVIDIA 435.21
OpenGL shading language version string: 4.60 NVIDIA
OpenGL context flags: (none)
OpenGL profile mask: (none)
OpenGL extensions:
    GL_AMD_multi_draw_indirect, GL_AMD_seamless_cubemap_per_texture,
    GL_AMD_vertex_shader_layer, GL_AMD_vertex_shader_viewport_index,
    GL_ARB_ES2_compatibility, GL_ARB_ES3_1_compatibility,
    GL_ARB_ES3_2_compatibility, GL_ARB_ES3_compatibility,
    GL_ARB_arrays_of_arrays, GL_ARB_base_instance, GL_ARB_bindless_texture,
    GL_ARB_blend_func_extended, GL_ARB_buffer_storage,
    GL_ARB_clear_buffer_object, GL_ARB_clear_texture, GL_ARB_clip_control,
    GL_ARB_color_buffer_float, GL_ARB_compatibility,
    GL_ARB_compressed_texture_pixel_storage, GL_ARB_compute_shader,
    GL_ARB_compute_variable_group_size, GL_ARB_conditional_render_inverted,
    GL_ARB_conservative_depth, GL_ARB_copy_buffer, GL_ARB_copy_image,
    GL_ARB_cull_distance, GL_ARB_debug_output, GL_ARB_depth_buffer_float,
    GL_ARB_depth_clamp, GL_ARB_depth_texture, GL_ARB_derivative_control,
    GL_ARB_direct_state_access, GL_ARB_draw_buffers,
    GL_ARB_draw_buffers_blend, GL_ARB_draw_elements_base_vertex,
    GL_ARB_draw_indirect, GL_ARB_draw_instanced, GL_ARB_enhanced_layouts,
    GL_ARB_explicit_attrib_location, GL_ARB_explicit_uniform_location,
    GL_ARB_fragment_coord_conventions, GL_ARB_fragment_layer_viewport,
    GL_ARB_fragment_program, GL_ARB_fragment_program_shadow,
    GL_ARB_fragment_shader, GL_ARB_fragment_shader_interlock,
    GL_ARB_framebuffer_no_attachments, GL_ARB_framebuffer_object,
    GL_ARB_framebuffer_sRGB, GL_ARB_geometry_shader4,
    GL_ARB_get_program_binary, GL_ARB_get_texture_sub_image, GL_ARB_gl_spirv,
    GL_ARB_gpu_shader5, GL_ARB_gpu_shader_fp64, GL_ARB_gpu_shader_int64,
    GL_ARB_half_float_pixel, GL_ARB_half_float_vertex, GL_ARB_imaging,
    GL_ARB_indirect_parameters, GL_ARB_instanced_arrays,
    GL_ARB_internalformat_query, GL_ARB_internalformat_query2,
    GL_ARB_invalidate_subdata, GL_ARB_map_buffer_alignment,
    GL_ARB_map_buffer_range, GL_ARB_multi_bind, GL_ARB_multi_draw_indirect,
    GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_occlusion_query,
    GL_ARB_occlusion_query2, GL_ARB_parallel_shader_compile,
    GL_ARB_pipeline_statistics_query, GL_ARB_pixel_buffer_object,
    GL_ARB_point_parameters, GL_ARB_point_sprite, GL_ARB_polygon_offset_clamp,
    GL_ARB_post_depth_coverage, GL_ARB_program_interface_query,
    GL_ARB_provoking_vertex, GL_ARB_query_buffer_object,
    GL_ARB_robust_buffer_access_behavior, GL_ARB_robustness,
    GL_ARB_sample_locations, GL_ARB_sample_shading, GL_ARB_sampler_objects,
    GL_ARB_seamless_cube_map, GL_ARB_seamless_cubemap_per_texture,
    GL_ARB_separate_shader_objects, GL_ARB_shader_atomic_counter_ops,
    GL_ARB_shader_atomic_counters, GL_ARB_shader_ballot,
    GL_ARB_shader_bit_encoding, GL_ARB_shader_clock,
    GL_ARB_shader_draw_parameters, GL_ARB_shader_group_vote,
    GL_ARB_shader_image_load_store, GL_ARB_shader_image_size,
    GL_ARB_shader_objects, GL_ARB_shader_precision,
    GL_ARB_shader_storage_buffer_object, GL_ARB_shader_subroutine,
    GL_ARB_shader_texture_image_samples, GL_ARB_shader_texture_lod,
    GL_ARB_shader_viewport_layer_array, GL_ARB_shading_language_100,
    GL_ARB_shading_language_420pack, GL_ARB_shading_language_include,
    GL_ARB_shading_language_packing, GL_ARB_shadow, GL_ARB_sparse_buffer,
    GL_ARB_sparse_texture, GL_ARB_sparse_texture2,
    GL_ARB_sparse_texture_clamp, GL_ARB_spirv_extensions,
    GL_ARB_stencil_texturing, GL_ARB_sync, GL_ARB_tessellation_shader,
    GL_ARB_texture_barrier, GL_ARB_texture_border_clamp,
    GL_ARB_texture_buffer_object, GL_ARB_texture_buffer_object_rgb32,
    GL_ARB_texture_buffer_range, GL_ARB_texture_compression,
    GL_ARB_texture_compression_bptc, GL_ARB_texture_compression_rgtc,
    GL_ARB_texture_cube_map, GL_ARB_texture_cube_map_array,
    GL_ARB_texture_env_add, GL_ARB_texture_env_combine,
    GL_ARB_texture_env_crossbar, GL_ARB_texture_env_dot3,
    GL_ARB_texture_filter_anisotropic, GL_ARB_texture_filter_minmax,
    GL_ARB_texture_float, GL_ARB_texture_gather,
    GL_ARB_texture_mirror_clamp_to_edge, GL_ARB_texture_mirrored_repeat,
    GL_ARB_texture_multisample, GL_ARB_texture_non_power_of_two,
    GL_ARB_texture_query_levels, GL_ARB_texture_query_lod,
    GL_ARB_texture_rectangle, GL_ARB_texture_rg, GL_ARB_texture_rgb10_a2ui,
    GL_ARB_texture_stencil8, GL_ARB_texture_storage,
    GL_ARB_texture_storage_multisample, GL_ARB_texture_swizzle,
    GL_ARB_texture_view, GL_ARB_timer_query, GL_ARB_transform_feedback2,
    GL_ARB_transform_feedback3, GL_ARB_transform_feedback_instanced,
    GL_ARB_transform_feedback_overflow_query, GL_ARB_transpose_matrix,
    GL_ARB_uniform_buffer_object, GL_ARB_vertex_array_bgra,
    GL_ARB_vertex_array_object, GL_ARB_vertex_attrib_64bit,
    GL_ARB_vertex_attrib_binding, GL_ARB_vertex_buffer_object,
    GL_ARB_vertex_program, GL_ARB_vertex_shader,
    GL_ARB_vertex_type_10f_11f_11f_rev, GL_ARB_vertex_type_2_10_10_10_rev,
    GL_ARB_viewport_array, GL_ARB_window_pos, GL_ATI_draw_buffers,
    GL_ATI_texture_float, GL_ATI_texture_mirror_once,
    GL_EXTX_framebuffer_mixed_formats, GL_EXT_Cg_shader, GL_EXT_abgr,
    GL_EXT_bgra, GL_EXT_bindable_uniform, GL_EXT_blend_color,
    GL_EXT_blend_equation_separate, GL_EXT_blend_func_separate,
    GL_EXT_blend_minmax, GL_EXT_blend_subtract, GL_EXT_compiled_vertex_array,
    GL_EXT_depth_bounds_test, GL_EXT_direct_state_access,
    GL_EXT_draw_buffers2, GL_EXT_draw_instanced, GL_EXT_draw_range_elements,
    GL_EXT_fog_coord, GL_EXT_framebuffer_blit, GL_EXT_framebuffer_multisample,
    GL_EXT_framebuffer_multisample_blit_scaled, GL_EXT_framebuffer_object,
    GL_EXT_framebuffer_sRGB, GL_EXT_geometry_shader4,
    GL_EXT_gpu_program_parameters, GL_EXT_gpu_shader4,
    GL_EXT_import_sync_object, GL_EXT_memory_object, GL_EXT_memory_object_fd,
    GL_EXT_multi_draw_arrays, GL_EXT_multiview_texture_multisample,
    GL_EXT_multiview_timer_query, GL_EXT_packed_depth_stencil,
    GL_EXT_packed_float, GL_EXT_packed_pixels, GL_EXT_pixel_buffer_object,
    GL_EXT_point_parameters, GL_EXT_polygon_offset_clamp,
    GL_EXT_post_depth_coverage, GL_EXT_provoking_vertex,
    GL_EXT_raster_multisample, GL_EXT_rescale_normal, GL_EXT_secondary_color,
    GL_EXT_semaphore, GL_EXT_semaphore_fd, GL_EXT_separate_shader_objects,
    GL_EXT_separate_specular_color, GL_EXT_shader_image_load_formatted,
    GL_EXT_shader_image_load_store, GL_EXT_shader_integer_mix,
    GL_EXT_shadow_funcs, GL_EXT_sparse_texture2, GL_EXT_stencil_two_side,
    GL_EXT_stencil_wrap, GL_EXT_texture3D, GL_EXT_texture_array,
    GL_EXT_texture_buffer_object, GL_EXT_texture_compression_dxt1,
    GL_EXT_texture_compression_latc, GL_EXT_texture_compression_rgtc,
    GL_EXT_texture_compression_s3tc, GL_EXT_texture_cube_map,
    GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add,
    GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3,
    GL_EXT_texture_filter_anisotropic, GL_EXT_texture_filter_minmax,
    GL_EXT_texture_integer, GL_EXT_texture_lod, GL_EXT_texture_lod_bias,
    GL_EXT_texture_mirror_clamp, GL_EXT_texture_object, GL_EXT_texture_sRGB,
    GL_EXT_texture_sRGB_R8, GL_EXT_texture_sRGB_decode,
    GL_EXT_texture_shared_exponent, GL_EXT_texture_storage,
    GL_EXT_texture_swizzle, GL_EXT_timer_query, GL_EXT_transform_feedback2,
    GL_EXT_vertex_array, GL_EXT_vertex_array_bgra, GL_EXT_vertex_attrib_64bit,
    GL_EXT_window_rectangles, GL_EXT_x11_sync_object, GL_IBM_rasterpos_clip,
    GL_IBM_texture_mirrored_repeat, GL_KHR_blend_equation_advanced,
    GL_KHR_blend_equation_advanced_coherent, GL_KHR_context_flush_control,
    GL_KHR_debug, GL_KHR_no_error, GL_KHR_parallel_shader_compile,
    GL_KHR_robust_buffer_access_behavior, GL_KHR_robustness,
    GL_KHR_shader_subgroup, GL_KTX_buffer_region,
    GL_NVX_blend_equation_advanced_multi_draw_buffers,
    GL_NVX_conditional_render, GL_NVX_gpu_memory_info, GL_NVX_nvenc_interop,
    GL_NVX_progress_fence, GL_NV_ES1_1_compatibility,
    GL_NV_ES3_1_compatibility, GL_NV_alpha_to_coverage_dither_control,
    GL_NV_bindless_multi_draw_indirect,
    GL_NV_bindless_multi_draw_indirect_count, GL_NV_bindless_texture,
    GL_NV_blend_equation_advanced, GL_NV_blend_equation_advanced_coherent,
    GL_NV_blend_minmax_factor, GL_NV_blend_square, GL_NV_clip_space_w_scaling,
    GL_NV_command_list, GL_NV_compute_program5,
    GL_NV_compute_shader_derivatives, GL_NV_conditional_render,
    GL_NV_conservative_raster, GL_NV_conservative_raster_dilate,
    GL_NV_conservative_raster_pre_snap,
    GL_NV_conservative_raster_pre_snap_triangles,
    GL_NV_conservative_raster_underestimation, GL_NV_copy_depth_to_color,
    GL_NV_copy_image, GL_NV_depth_buffer_float, GL_NV_depth_clamp,
    GL_NV_draw_texture, GL_NV_draw_vulkan_image, GL_NV_explicit_multisample,
    GL_NV_feature_query, GL_NV_fence, GL_NV_fill_rectangle,
    GL_NV_float_buffer, GL_NV_fog_distance, GL_NV_fragment_coverage_to_color,
    GL_NV_fragment_program, GL_NV_fragment_program2,
    GL_NV_fragment_program_option, GL_NV_fragment_shader_barycentric,
    GL_NV_fragment_shader_interlock, GL_NV_framebuffer_mixed_samples,
    GL_NV_framebuffer_multisample_coverage, GL_NV_geometry_shader4,
    GL_NV_geometry_shader_passthrough, GL_NV_gpu_multicast,
    GL_NV_gpu_program4, GL_NV_gpu_program4_1, GL_NV_gpu_program5,
    GL_NV_gpu_program5_mem_extended, GL_NV_gpu_program_fp64,
    GL_NV_gpu_shader5, GL_NV_half_float, GL_NV_internalformat_sample_query,
    GL_NV_light_max_exponent, GL_NV_memory_attachment, GL_NV_mesh_shader,
    GL_NV_multisample_coverage, GL_NV_multisample_filter_hint,
    GL_NV_occlusion_query, GL_NV_packed_depth_stencil,
    GL_NV_parameter_buffer_object, GL_NV_parameter_buffer_object2,
    GL_NV_path_rendering, GL_NV_path_rendering_shared_edge,
    GL_NV_pixel_data_range, GL_NV_point_sprite, GL_NV_primitive_restart,
    GL_NV_query_resource, GL_NV_query_resource_tag, GL_NV_register_combiners,
    GL_NV_register_combiners2, GL_NV_representative_fragment_test,
    GL_NV_robustness_video_memory_purge, GL_NV_sample_locations,
    GL_NV_sample_mask_override_coverage, GL_NV_scissor_exclusive,
    GL_NV_shader_atomic_counters, GL_NV_shader_atomic_float,
    GL_NV_shader_atomic_float64, GL_NV_shader_atomic_fp16_vector,
    GL_NV_shader_atomic_int64, GL_NV_shader_buffer_load,
    GL_NV_shader_storage_buffer_object, GL_NV_shader_subgroup_partitioned,
    GL_NV_shader_texture_footprint, GL_NV_shader_thread_group,
    GL_NV_shader_thread_shuffle, GL_NV_shading_rate_image,
    GL_NV_stereo_view_rendering, GL_NV_texgen_reflection,
    GL_NV_texture_barrier, GL_NV_texture_compression_vtc,
    GL_NV_texture_env_combine4, GL_NV_texture_multisample,
    GL_NV_texture_rectangle, GL_NV_texture_rectangle_compressed,
    GL_NV_texture_shader, GL_NV_texture_shader2, GL_NV_texture_shader3,
    GL_NV_transform_feedback, GL_NV_transform_feedback2,
    GL_NV_uniform_buffer_unified_memory, GL_NV_vdpau_interop,
    GL_NV_vdpau_interop2, GL_NV_vertex_array_range, GL_NV_vertex_array_range2,
    GL_NV_vertex_attrib_integer_64bit, GL_NV_vertex_buffer_unified_memory,
    GL_NV_vertex_program, GL_NV_vertex_program1_1, GL_NV_vertex_program2,
    GL_NV_vertex_program2_option, GL_NV_vertex_program3,
    GL_NV_viewport_array2, GL_NV_viewport_swizzle, GL_OVR_multiview,
    GL_OVR_multiview2, GL_S3_s3tc, GL_SGIS_generate_mipmap,
    GL_SGIS_texture_lod, GL_SGIX_depth_texture, GL_SGIX_shadow,
    GL_SUN_slice_accum

OpenGL ES profile version string: OpenGL ES 3.2 NVIDIA 435.21
OpenGL ES profile shading language version string: OpenGL ES GLSL ES 3.20
OpenGL ES profile extensions:
    GL_ANDROID_extension_pack_es31a, GL_EXT_EGL_image_external_wrap_modes,
    GL_EXT_base_instance, GL_EXT_blend_func_extended, GL_EXT_blend_minmax,
    GL_EXT_buffer_storage, GL_EXT_clear_texture, GL_EXT_clip_control,
    GL_EXT_clip_cull_distance, GL_EXT_color_buffer_float,
    GL_EXT_color_buffer_half_float, GL_EXT_compressed_ETC1_RGB8_sub_texture,
    GL_EXT_conservative_depth, GL_EXT_copy_image, GL_EXT_debug_label,
    GL_EXT_depth_clamp, GL_EXT_discard_framebuffer,
    GL_EXT_disjoint_timer_query, GL_EXT_draw_buffers_indexed,
    GL_EXT_draw_elements_base_vertex, GL_EXT_draw_transform_feedback,
    GL_EXT_float_blend, GL_EXT_frag_depth, GL_EXT_geometry_point_size,
    GL_EXT_geometry_shader, GL_EXT_gpu_shader5, GL_EXT_map_buffer_range,
    GL_EXT_memory_object, GL_EXT_memory_object_fd, GL_EXT_multi_draw_indirect,
    GL_EXT_multisample_compatibility, GL_EXT_multisampled_render_to_texture,
    GL_EXT_multisampled_render_to_texture2,
    GL_EXT_multiview_texture_multisample, GL_EXT_multiview_timer_query,
    GL_EXT_occlusion_query_boolean, GL_EXT_polygon_offset_clamp,
    GL_EXT_post_depth_coverage, GL_EXT_primitive_bounding_box,
    GL_EXT_raster_multisample, GL_EXT_render_snorm, GL_EXT_robustness,
    GL_EXT_sRGB, GL_EXT_sRGB_write_control, GL_EXT_semaphore,
    GL_EXT_semaphore_fd, GL_EXT_separate_shader_objects,
    GL_EXT_shader_group_vote, GL_EXT_shader_implicit_conversions,
    GL_EXT_shader_integer_mix, GL_EXT_shader_io_blocks,
    GL_EXT_shader_non_constant_global_initializers, GL_EXT_shader_texture_lod,
    GL_EXT_shadow_samplers, GL_EXT_sparse_texture, GL_EXT_sparse_texture2,
    GL_EXT_tessellation_point_size, GL_EXT_tessellation_shader,
    GL_EXT_texture_border_clamp, GL_EXT_texture_buffer,
    GL_EXT_texture_compression_bptc, GL_EXT_texture_compression_dxt1,
    GL_EXT_texture_compression_rgtc, GL_EXT_texture_compression_s3tc,
    GL_EXT_texture_cube_map_array, GL_EXT_texture_filter_anisotropic,
    GL_EXT_texture_filter_minmax, GL_EXT_texture_format_BGRA8888,
    GL_EXT_texture_mirror_clamp_to_edge, GL_EXT_texture_norm16,
    GL_EXT_texture_rg, GL_EXT_texture_sRGB_R8, GL_EXT_texture_sRGB_decode,
    GL_EXT_texture_storage, GL_EXT_texture_view, GL_EXT_unpack_subimage,
    GL_EXT_window_rectangles, GL_KHR_blend_equation_advanced,
    GL_KHR_blend_equation_advanced_coherent, GL_KHR_context_flush_control,
    GL_KHR_debug, GL_KHR_no_error, GL_KHR_parallel_shader_compile,
    GL_KHR_robust_buffer_access_behavior, GL_KHR_robustness,
    GL_KHR_shader_subgroup, GL_NVX_blend_equation_advanced_multi_draw_buffers,
    GL_NV_bgr, GL_NV_bindless_texture, GL_NV_blend_equation_advanced,
    GL_NV_blend_equation_advanced_coherent, GL_NV_blend_minmax_factor,
    GL_NV_clip_space_w_scaling, GL_NV_compute_shader_derivatives,
    GL_NV_conditional_render, GL_NV_conservative_raster,
    GL_NV_conservative_raster_pre_snap_triangles, GL_NV_copy_buffer,
    GL_NV_copy_image, GL_NV_draw_buffers, GL_NV_draw_instanced,
    GL_NV_draw_texture, GL_NV_draw_vulkan_image,
    GL_NV_explicit_attrib_location, GL_NV_fbo_color_attachments,
    GL_NV_fill_rectangle, GL_NV_fragment_coverage_to_color,
    GL_NV_fragment_shader_barycentric, GL_NV_fragment_shader_interlock,
    GL_NV_framebuffer_blit, GL_NV_framebuffer_mixed_samples,
    GL_NV_framebuffer_multisample, GL_NV_generate_mipmap_sRGB,
    GL_NV_geometry_shader_passthrough, GL_NV_gpu_shader5, GL_NV_image_formats,
    GL_NV_instanced_arrays, GL_NV_internalformat_sample_query,
    GL_NV_memory_attachment, GL_NV_mesh_shader, GL_NV_non_square_matrices,
    GL_NV_occlusion_query_samples, GL_NV_pack_subimage, GL_NV_packed_float,
    GL_NV_packed_float_linear, GL_NV_path_rendering,
    GL_NV_path_rendering_shared_edge, GL_NV_pixel_buffer_object,
    GL_NV_polygon_mode, GL_NV_read_buffer, GL_NV_read_depth,
    GL_NV_read_depth_stencil, GL_NV_read_stencil,
    GL_NV_representative_fragment_test, GL_NV_sRGB_formats,
    GL_NV_sample_locations, GL_NV_sample_mask_override_coverage,
    GL_NV_scissor_exclusive, GL_NV_shader_atomic_fp16_vector,
    GL_NV_shader_noperspective_interpolation,
    GL_NV_shader_subgroup_partitioned, GL_NV_shader_texture_footprint,
    GL_NV_shading_rate_image, GL_NV_shadow_samplers_array,
    GL_NV_shadow_samplers_cube, GL_NV_stereo_view_rendering,
    GL_NV_texture_array, GL_NV_texture_barrier, GL_NV_texture_border_clamp,
    GL_NV_texture_compression_latc, GL_NV_texture_compression_s3tc,
    GL_NV_texture_compression_s3tc_update, GL_NV_timer_query,
    GL_NV_viewport_array, GL_NV_viewport_array2, GL_NV_viewport_swizzle,
    GL_OES_compressed_ETC1_RGB8_texture, GL_OES_copy_image, GL_OES_depth24,
    GL_OES_depth32, GL_OES_depth_texture, GL_OES_depth_texture_cube_map,
    GL_OES_draw_buffers_indexed, GL_OES_draw_elements_base_vertex,
    GL_OES_element_index_uint, GL_OES_fbo_render_mipmap,
    GL_OES_geometry_point_size, GL_OES_geometry_shader,
    GL_OES_get_program_binary, GL_OES_gpu_shader5, GL_OES_mapbuffer,
    GL_OES_packed_depth_stencil, GL_OES_primitive_bounding_box,
    GL_OES_rgb8_rgba8, GL_OES_sample_shading, GL_OES_sample_variables,
    GL_OES_shader_image_atomic, GL_OES_shader_io_blocks,
    GL_OES_shader_multisample_interpolation, GL_OES_standard_derivatives,
    GL_OES_tessellation_point_size, GL_OES_tessellation_shader,
    GL_OES_texture_border_clamp, GL_OES_texture_buffer,
    GL_OES_texture_cube_map_array, GL_OES_texture_float,
    GL_OES_texture_float_linear, GL_OES_texture_half_float,
    GL_OES_texture_half_float_linear, GL_OES_texture_npot,
    GL_OES_texture_stencil8, GL_OES_texture_storage_multisample_2d_array,
    GL_OES_texture_view, GL_OES_vertex_array_object, GL_OES_vertex_half_float,
    GL_OES_viewport_array, GL_OVR_multiview, GL_OVR_multiview2,
    GL_OVR_multiview_multisampled_render_to_texture

132 GLX Visuals
    visual  x   bf lv rg d st  colorbuffer  sr ax dp st accumbuffer  ms  cav
  id dep cl sp  sz l  ci b ro  r  g  b  a F gb bf th cl  r  g  b  a ns b eat
----------------------------------------------------------------------------
0x021 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x022 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x024 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x025 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x026 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x027 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x028 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x029 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x02a 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x02b 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x02c 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x02d 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x02e 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x02f 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x030 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x031 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x032 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x033 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x034 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x035 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x036 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x037 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x038 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x039 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x03a 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x03b 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x03c 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x03d 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x03e 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x03f 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x040 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x041 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x042 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x043 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x044 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x045 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x046 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x047 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x048 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x049 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x04a 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x04b 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x04c 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x04d 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x04e 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x04f 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x050 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x051 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x052 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x053 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x054 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x055 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x056 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x057 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x058 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x059 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x05a 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x05b 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x05c 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x05d 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x05e 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x05f 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x060 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x061 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x062 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x063 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x064 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x065 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x066 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x067 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x068 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x069 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x06a 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x06b 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x06c 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x06d 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x06e 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x06f 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x070 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x071 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x072 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x073 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x074 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x075 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x076 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x077 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x078 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x079 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x023 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x07a 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x07b 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x07c 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x07d 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x07e 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x07f 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x080 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x081 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x082 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x083 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x084 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x085 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x086 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x087 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x088 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x089 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x08a 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x08b 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x08c 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x08d 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x08e 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x08f 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x090 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x091 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x092 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x093 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x094 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x095 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x096 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x097 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x098 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x099 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x09a 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x09b 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x09c 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x09d 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x09e 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x09f 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x0a0 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x0a1 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x0a2 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x0a3 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x0a4 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None

215 GLXFBConfigs:
    visual  x   bf lv rg d st  colorbuffer  sr ax dp st accumbuffer  ms  cav
  id dep cl sp  sz l  ci b ro  r  g  b  a F gb bf th cl  r  g  b  a ns b eat
----------------------------------------------------------------------------
0x0a5 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x0a6 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x0a7 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x0a8 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x0a9 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x0aa 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x0ab 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x0ac 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x0ad 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x0ae 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x0af 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x0b0 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x0b1 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x0b2 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x0b3 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x0b4 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x0b5 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x0b6 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x0b7 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x0b8 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x0b9 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x0ba 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x0bb 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x0bc 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x0bd 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x0be 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x0bf 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x0c0 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x0c1 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x0c2 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x0c3 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x0c4 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x0c5 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x0c6 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x0c7 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x0c8 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x0c9 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x0ca 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x0cb 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x0cc 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x0cd 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x0ce 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x0cf 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x0d0 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x0d1 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x0d2 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x0d3 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x0d4 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x0d5 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x0d6 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x0d7 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x0d8 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x0d9 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x0da 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x0db 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x0dc 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x0dd 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x0de 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x0df 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x0e0 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x0e1 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x0e2 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x0e3 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x0e4 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x0e5 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x0e6 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x0e7 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x0e8 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x0e9 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x0ea 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x0eb 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x0ec 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x0ed 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x0ee 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x0ef 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x0f0 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x0f1 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x0f2 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x0f3 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x0f4 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x0f5 24 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x0f6 24 dc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x0f7 24 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x0f8 24 dc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x0f9 24 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x0fa 24 dc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x0fb 24 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x0fc 24 dc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x0fd 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x0fe 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x0ff 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  0 0 None
0x100 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  0 0 None
0x101 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x102 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x103 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  0 0 None
0x104 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  0 0 None
0x105 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x106 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x107 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4  0  0 16 16 16 16  0 0 None
0x108 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4  0  0 16 16 16 16  0 0 None
0x109 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x10a 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x10b 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x10c 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x10d 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  2 1 None
0x10e 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  2 1 None
0x10f 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  4 1 None
0x110 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  4 1 None
0x111 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x112 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x113 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x114 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x115 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  2 1 None
0x116 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  2 1 None
0x117 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  4 1 None
0x118 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  4 1 None
0x119 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x11a 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x11b 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16  8 1 None
0x11c 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16  8 1 None
0x11d 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x11e 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x11f 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16  8 1 None
0x120 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16  8 1 None
0x121 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x122 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x123 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  0 16 16 16 16 16 1 None
0x124 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  0 16 16 16 16 16 1 None
0x125 32 tc  0  24  0 r  y .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x126 32 tc  0  32  0 r  y .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x127 32 tc  0  24  0 r  . .   8  8  8  0 .  s  4 24  8 16 16 16 16 16 1 None
0x128 32 tc  0  32  0 r  . .   8  8  8  8 .  s  4 24  8 16 16 16 16 16 1 None
0x129  0 sg  0  16  0 r  y .   5  6  5  0 .  .  4 16  0 16 16 16 16  0 0 None
0x12a  0 sg  0  16  0 r  . .   5  6  5  0 .  .  4 16  0 16 16 16 16  0 0 None
0x12b  0 sg  0  16  0 r  y .   5  6  5  0 .  .  4 24  0 16 16 16 16  0 0 None
0x12c  0 sg  0  16  0 r  . .   5  6  5  0 .  .  4 24  0 16 16 16 16  0 0 None
0x12d  0 sg  0  16  0 r  y .   5  6  5  0 .  .  4 24  8 16 16 16 16  0 0 None
0x12e  0 sg  0  16  0 r  . .   5  6  5  0 .  .  4 24  8 16 16 16 16  0 0 None
0x12f  0 sg  0  16  0 r  y .   5  6  5  0 .  .  4  0  0 16 16 16 16  0 0 None
0x130  0 sg  0  16  0 r  . .   5  6  5  0 .  .  4  0  0 16 16 16 16  0 0 None
0x131  0 sg  0   0  0 r  . .   0  0  0  0 .  .  4 16  0 16 16 16 16  0 0 None
0x132  0 sg  0   0  0 r  . .   0  0  0  0 .  .  4 24  0 16 16 16 16  0 0 None
0x133  0 sg  0   0  0 r  . .   0  0  0  0 .  .  4 24  8 16 16 16 16  0 0 None
0x134  0 sg  0  32  0 r  . .  16 16  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x135  0 sg  0  32  0    . .  16 16  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x136  0 sg  0  32  0 r  y .  16 16  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x137  0 sg  0  32  0    y .  16 16  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x138  0 sg  0  32  0 r  . .  32  0  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x139  0 sg  0  32  0    . .  32  0  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x13a  0 sg  0  32  0 r  y .  32  0  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x13b  0 sg  0  32  0    y .  32  0  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x13c  0 sg  0  64  0 r  . .  16 16 16 16 f  .  4  0  0 16 16 16 16  0 0 None
0x13d  0 sg  0  64  0    . .  16 16 16 16 f  .  4  0  0 16 16 16 16  0 0 None
0x13e  0 sg  0  64  0 r  y .  16 16 16 16 f  .  4  0  0 16 16 16 16  0 0 None
0x13f  0 sg  0  64  0    y .  16 16 16 16 f  .  4  0  0 16 16 16 16  0 0 None
0x140  0 sg  0 128  0 r  . .  32 32 32 32 f  .  4  0  0 16 16 16 16  0 0 None
0x141  0 sg  0 128  0    . .  32 32 32 32 f  .  4  0  0 16 16 16 16  0 0 None
0x142  0 sg  0 128  0 r  y .  32 32 32 32 f  .  4  0  0 16 16 16 16  0 0 None
0x143  0 sg  0 128  0    y .  32 32 32 32 f  .  4  0  0 16 16 16 16  0 0 None
0x144  0 sg  0  32  0 r  . .  16 16  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x145  0 sg  0  32  0    . .  16 16  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x146  0 sg  0  32  0 r  y .  16 16  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x147  0 sg  0  32  0    y .  16 16  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x148  0 sg  0  32  0 r  . .  16 16  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x149  0 sg  0  32  0    . .  16 16  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x14a  0 sg  0  32  0 r  y .  16 16  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x14b  0 sg  0  32  0    y .  16 16  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x14c  0 sg  0  32  0 r  . .  32  0  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x14d  0 sg  0  32  0    . .  32  0  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x14e  0 sg  0  32  0 r  y .  32  0  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x14f  0 sg  0  32  0    y .  32  0  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x150  0 sg  0  32  0 r  . .  32  0  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x151  0 sg  0  32  0    . .  32  0  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x152  0 sg  0  32  0 r  y .  32  0  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x153  0 sg  0  32  0    y .  32  0  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x154  0 sg  0  64  0 r  . .  16 16 16 16 f  .  4 24  0 16 16 16 16  0 0 None
0x155  0 sg  0  64  0    . .  16 16 16 16 f  .  4 24  0 16 16 16 16  0 0 None
0x156  0 sg  0  64  0 r  y .  16 16 16 16 f  .  4 24  0 16 16 16 16  0 0 None
0x157  0 sg  0  64  0    y .  16 16 16 16 f  .  4 24  0 16 16 16 16  0 0 None
0x158  0 sg  0  64  0 r  . .  16 16 16 16 f  .  4 24  8 16 16 16 16  0 0 None
0x159  0 sg  0  64  0    . .  16 16 16 16 f  .  4 24  8 16 16 16 16  0 0 None
0x15a  0 sg  0  64  0 r  y .  16 16 16 16 f  .  4 24  8 16 16 16 16  0 0 None
0x15b  0 sg  0  64  0    y .  16 16 16 16 f  .  4 24  8 16 16 16 16  0 0 None
0x15c  0 sg  0 128  0 r  . .  32 32 32 32 f  .  4 24  0 16 16 16 16  0 0 None
0x15d  0 sg  0 128  0    . .  32 32 32 32 f  .  4 24  0 16 16 16 16  0 0 None
0x15e  0 sg  0 128  0 r  y .  32 32 32 32 f  .  4 24  0 16 16 16 16  0 0 None
0x15f  0 sg  0 128  0    y .  32 32 32 32 f  .  4 24  0 16 16 16 16  0 0 None
0x160  0 sg  0 128  0 r  . .  32 32 32 32 f  .  4 24  8 16 16 16 16  0 0 None
0x161  0 sg  0 128  0    . .  32 32 32 32 f  .  4 24  8 16 16 16 16  0 0 None
0x162  0 sg  0 128  0 r  y .  32 32 32 32 f  .  4 24  8 16 16 16 16  0 0 None
0x163  0 sg  0 128  0    y .  32 32 32 32 f  .  4 24  8 16 16 16 16  0 0 None
0x164  0 sg  0  16  0 r  . .  16  0  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x165  0 sg  0  16  0    . .  16  0  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x166  0 sg  0  16  0 r  y .  16  0  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x167  0 sg  0  16  0    y .  16  0  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x168  0 sg  0  64  0 r  . .  32 32  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x169  0 sg  0  64  0    . .  32 32  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x16a  0 sg  0  64  0 r  y .  32 32  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x16b  0 sg  0  64  0    y .  32 32  0  0 f  .  4  0  0 16 16 16 16  0 0 None
0x16c  0 sg  0  16  0 r  . .  16  0  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x16d  0 sg  0  16  0    . .  16  0  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x16e  0 sg  0  16  0 r  y .  16  0  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x16f  0 sg  0  16  0    y .  16  0  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x170  0 sg  0  16  0 r  . .  16  0  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x171  0 sg  0  16  0    . .  16  0  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x172  0 sg  0  16  0 r  y .  16  0  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x173  0 sg  0  16  0    y .  16  0  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x174  0 sg  0  64  0 r  . .  32 32  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x175  0 sg  0  64  0    . .  32 32  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x176  0 sg  0  64  0 r  y .  32 32  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x177  0 sg  0  64  0    y .  32 32  0  0 f  .  4 24  0 16 16 16 16  0 0 None
0x178  0 sg  0  64  0 r  . .  32 32  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x179  0 sg  0  64  0    . .  32 32  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x17a  0 sg  0  64  0 r  y .  32 32  0  0 f  .  4 24  8 16 16 16 16  0 0 None
0x17b  0 sg  0  64  0    y .  32 32  0  0 f  .  4 24  8 16 16 16 16  0 0 None
@r1walz r1walz mentioned this issue Apr 30, 2020
Closed
@Darkspirit
Copy link
Contributor

@Darkspirit Darkspirit commented Apr 30, 2020 •
edited

Proprietary Nvidia is affected, Mesa/Nouveau is fine.
@r1walz
Copy link
Author

@r1walz r1walz commented Apr 30, 2020

Hey @Darkspirit, Thanks! Nouveau are working just fine. But, what's the problem with proprietary ones?
@Darkspirit
Copy link
Contributor

@Darkspirit Darkspirit commented Apr 30, 2020

My first naive guess was that it's related to depth, but I can't assess that.
Debug and Release builds made on proprietary Nvidia are affected.
A fresh build from https://dl.servo.org works on proprietary Nvidia.
@Darkspirit
Copy link
Contributor

@Darkspirit Darkspirit commented Apr 30, 2020

Builds made on proprietary Nvidia are not black on Mesa/Nouveau, only on proprietary Nvidia.
@Darkspirit Darkspirit mentioned this issue Apr 30, 2020
Open
@r1walz
Copy link
Author

@r1walz r1walz commented May 1, 2020

Yes @Darkspirit, I confirm that builds available at dl.servo.org are working on both proprietary and Mesa/Nouveau drivers. But, we still don't know for sure, why are they failing to work as intended on build from sources? Is there a regression somewhere? Relating to that, perhaps, how the versions are named might help us in finding that. Particularly, version Servo 0.0.1-70d4e142f is working find as of now.
@r1walz
Copy link
Author

@r1walz r1walz commented May 1, 2020

Filed #26386 to make versions easier to track in future!
@Darkspirit
Copy link
Contributor

@Darkspirit Darkspirit commented May 1, 2020

Regression range: 00ac447...306e8ac
Regressed by: #25853
@jdm
Copy link
Member

@jdm jdm commented May 1, 2020

Relevant code:

  • servo/ports/glutin/headed_window.rs

    Lines 147 to 158 in f063ae2

    // Initialize surfman
    let connection = Connection::from_winit_window(&winit_window).expect("Failed to create connection");
    let adapter = connection.create_adapter().expect("Failed to create adapter");
    let native_widget = connection
    .create_native_widget_from_winit_window(&winit_window)
    .expect("Failed to create native widget");
    let surface_type = SurfaceType::Widget { native_widget };
    let webrender_surfman = WebrenderSurfman::create(
    &connection,
    &adapter,
    surface_type,
    ).expect("Failed to create WR surfman");
  • https://github.com/servo/surfman/blob/master/surfman/src/platform/unix/x11/connection.rs#L192-L200
  • https://github.com/servo/surfman/blob/master/surfman/src/platform/unix/x11/connection.rs#L202-L212

  • servo/components/webrender_surfman/lib.rs

    Lines 56 to 102 in f063ae2

    pub fn create(
    connection: &Connection,
    adapter: &Adapter,
    surface_type: SurfaceType<NativeWidget>,
    ) -> Result<Self, Error> {
    let mut device = connection.create_device(&adapter)?;
    let flags = ContextAttributeFlags::ALPHA |
    ContextAttributeFlags::DEPTH |
    ContextAttributeFlags::STENCIL;
    let version = match connection.gl_api() {
    GLApi::GLES => GLVersion { major: 3, minor: 0 },
    GLApi::GL => GLVersion { major: 3, minor: 2 },
    };
    let context_attributes = ContextAttributes { flags, version };
    let context_descriptor = device.create_context_descriptor(&context_attributes)?;
    let mut context = device.create_context(&context_descriptor)?;
    let surface_access = SurfaceAccess::GPUOnly;
    let headless = match surface_type {
    SurfaceType::Widget { .. } => false,
    SurfaceType::Generic { .. } => true,
    };
    let surface = device.create_surface(&context, surface_access, surface_type)?;
    device
    .bind_surface_to_context(&mut context, surface)
    .map_err(|(err, mut surface)| {
    let _ = device.destroy_surface(&mut context, &mut surface);
    err
    })?;
    let swap_chain = if headless {
    let surface_provider = Box::new(SurfmanProvider::new(surface_access));
    Some(SwapChain::create_attached(
    &mut device,
    &mut context,
    surface_provider,
    )?)
    } else {
    None
    };
    let device = RefCell::new(device);
    let context = RefCell::new(context);
    let data = WebrenderSurfmanData {
    device,
    context,
    swap_chain,
    };
    Ok(WebrenderSurfman(Rc::new(data)))
    }

  • servo/components/servo/lib.rs

    Lines 352 to 373 in f063ae2

    // Initialize surfman
    let webrender_surfman = window.webrender_surfman();
    // Get GL bindings
    let webrender_gl = match webrender_surfman.connection().gl_api() {
    GLApi::GL => unsafe { gl::GlFns::load_with(|s| webrender_surfman.get_proc_address(s)) },
    GLApi::GLES => unsafe {
    gl::GlesFns::load_with(|s| webrender_surfman.get_proc_address(s))
    },
    };
    // Make sure the gl context is made current.
    webrender_surfman.make_gl_context_current().unwrap();
    debug_assert_eq!(webrender_gl.get_error(), gleam::gl::NO_ERROR,);
    // Bind the webrender framebuffer
    let framebuffer_object = webrender_surfman
    .context_surface_info()
    .unwrap_or(None)
    .map(|info| info.framebuffer_object)
    .unwrap_or(0);
    webrender_gl.bind_framebuffer(gleam::gl::FRAMEBUFFER, framebuffer_object);
This was referenced May 3, 2020
Open
Closed
@john01dav
Copy link

@john01dav john01dav commented Jun 11, 2020 •
edited

This bug happens on Arch Linux too, GTX 1070. Let me know if more information would be helpful.

EDIT: servo.org builds are broken too, it seems. I tried the latest nightly as of the time of writing (June 11th 2020 5:56 PM EST).
@limeschool
Copy link

@limeschool limeschool commented Jun 12, 2020

I'm also encountering this issue with Nvidia proprietary drivers. I didn't compile Servo, rather, I downloaded the latest nightly build from the website.
@Keno
Copy link

@Keno Keno commented Jun 21, 2020

Same problem with both a local build and the download from servo.org. Switching to nouveau drivers fixes the issue, but would be nice if it worked with the blob driver also.
@jdm
Copy link
Member

@jdm jdm commented Jun 22, 2020

It's interesting; this sounds very similar to the problem described in servo/surfman#173 that was fixed by servo/surfman#178, but we should already be using a revision of surfman that includes that change.
@jdm
Copy link
Member

@jdm jdm commented Jun 22, 2020

Possibly servo/surfman#178 (comment) is the strategy we should be investigating instead.
@Keno
Copy link

@Keno Keno commented Jun 22, 2020

FWIW, servo prints libEGL warning: DRI2: failed to authenticate, no idea if that's related, but from the issue you linked, it sounds like this symptom can be caused by OpenGL API problems, so I thought I'd mention.
@PhilParisot
Copy link

@PhilParisot PhilParisot commented Jul 3, 2020

Same is happening to me, on Pop!_OS 20.04 with Nvidia proprietary drivers :/
@Titaniumtown
Copy link

@Titaniumtown Titaniumtown commented Aug 15, 2020

Same issue, Nvidia proprietary drivers. Arch Linux
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment
Assignees
No one assigned
Labels
A-gfx/rendering P-linux
Projects
None yet
Milestone
No milestone
Linked pull requests

Successfully merging a pull request may close this issue.

None yet
8 participants
@jdm @Keno @john01dav @Titaniumtown @Darkspirit @PhilParisot @r1walz @limeschool
You can’t perform that action at this time.
