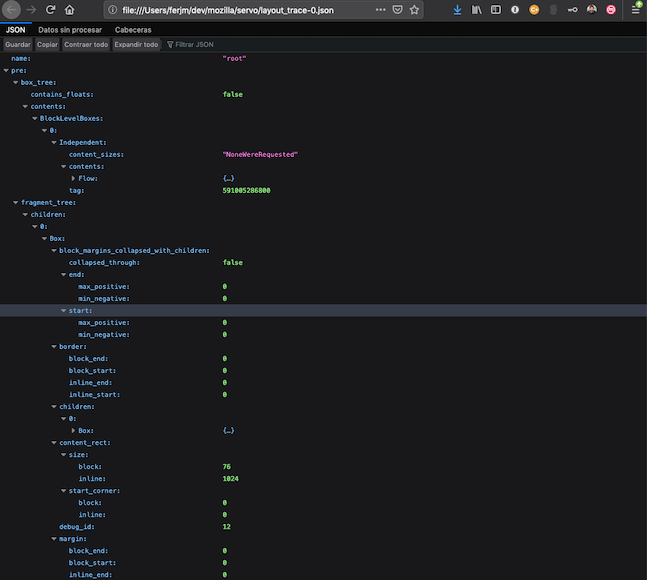

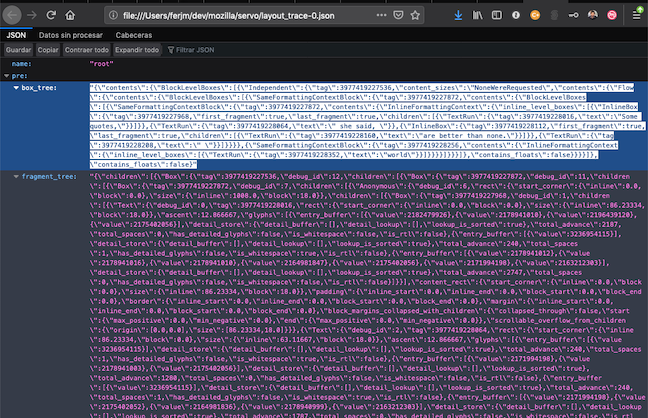

Dump box tree state into json files and display it on layout 2020 viewer

components/layout_2020/flow/float.rs

@@ -10,7 +10,7 @@ use crate::style_ext::{ComputedValuesExt, DisplayInside};
 use servo_arc::Arc;
 use style::properties::ComputedValues;

-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) struct FloatBox {
     pub contents: IndependentFormattingContext,
 }

components/layout_2020/flow/inline.rs

@@ -23,12 +23,12 @@ use style::values::specified::text::TextAlignKeyword;
 use style::Zero;
 use webrender_api::FontInstanceKey;

-#[derive(Debug, Default)]
+#[derive(Debug, Default, Serialize)]
 pub(crate) struct InlineFormattingContext {
     pub(super) inline_level_boxes: Vec<Arc<InlineLevelBox>>,
 }

-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) enum InlineLevelBox {
     InlineBox(InlineBox),
     TextRun(TextRun),
@@ -37,19 +37,21 @@ pub(crate) enum InlineLevelBox {
     Atomic(IndependentFormattingContext),
 }

-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) struct InlineBox {
     pub tag: OpaqueNode,
+    #[serde(skip_serializing)]
     pub style: Arc<ComputedValues>,
     pub first_fragment: bool,
     pub last_fragment: bool,
     pub children: Vec<Arc<InlineLevelBox>>,
 }

 /// https://www.w3.org/TR/css-display-3/#css-text-run
-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) struct TextRun {
     pub tag: OpaqueNode,
+    #[serde(skip_serializing)]
     pub parent_style: Arc<ComputedValues>,
     pub text: String,
 }

components/layout_2020/flow/mod.rs

@@ -31,22 +31,23 @@ mod root;

 pub use root::{BoxTreeRoot, FragmentTreeRoot};

-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) struct BlockFormattingContext {
     pub contents: BlockContainer,
     pub contains_floats: bool,
 }

-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) enum BlockContainer {
     BlockLevelBoxes(Vec<Arc<BlockLevelBox>>),
     InlineFormattingContext(InlineFormattingContext),
 }

-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) enum BlockLevelBox {
     SameFormattingContextBlock {
         tag: OpaqueNode,
+        #[serde(skip_serializing)]
         style: Arc<ComputedValues>,
         contents: BlockContainer,
     },

components/layout_2020/flow/root.rs

@@ -28,6 +28,7 @@ use style::properties::ComputedValues;
 use style::values::computed::Length;
 use style_traits::CSSPixel;

+#[derive(Serialize)]
 pub struct BoxTreeRoot(BlockFormattingContext);

 #[derive(Serialize)]

components/layout_2020/formatting_contexts.rs

@@ -18,9 +18,10 @@ use style::properties::ComputedValues;
 use style::values::computed::Length;

 /// https://drafts.csswg.org/css-display/#independent-formatting-context
-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) struct IndependentFormattingContext {
     pub tag: OpaqueNode,
+    #[serde(skip_serializing)]
     pub style: Arc<ComputedValues>,

     /// If it was requested during construction
@@ -38,7 +39,7 @@ pub(crate) struct IndependentLayout {

 // Private so that code outside of this module cannot match variants.
 // It should got through methods instead.
-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 enum IndependentFormattingContextContents {
     Flow(BlockFormattingContext),


components/layout_2020/layout_debug.rs

@@ -5,7 +5,7 @@
 //! Supports writing a trace file created during each layout scope
 //! that can be viewed by an external tool to make layout debugging easier.

-use crate::flow::FragmentTreeRoot;
+use crate::flow::{BoxTreeRoot, FragmentTreeRoot};
 use serde_json::{to_string, to_value, Value};
 use std::cell::RefCell;
 use std::fs::File;
@@ -32,38 +32,52 @@ macro_rules! layout_debug_scope(
     )
 );

+#[derive(Serialize)]
+struct TreeValues {
+    pub box_tree: Value,
+    pub fragment_tree: Value,
+}
+
 #[derive(Serialize)]
 struct ScopeData {
     name: String,
-    pre: Value,
-    post: Value,
+    pre: TreeValues,
+    post: TreeValues,
     children: Vec<Box<ScopeData>>,
 }

 impl ScopeData {
-    fn new(name: String, pre: Value) -> ScopeData {
+    fn new(name: String, box_tree: Value, fragment_tree: Value) -> ScopeData {
         ScopeData {
-            name: name,
-            pre: pre,
-            post: Value::Null,
+            name,
+            pre: TreeValues {
+                box_tree,
+                fragment_tree,
+            },
+            post: TreeValues {
+                box_tree: Value::Null,
+                fragment_tree: Value::Null,
+            },
             children: vec![],
         }
     }
 }

 struct State {
-    fragment: Arc<FragmentTreeRoot>,
+    fragment_tree: Arc<FragmentTreeRoot>,
+    box_tree: Arc<BoxTreeRoot>,
     scope_stack: Vec<Box<ScopeData>>,
 }

-/// A layout debugging scope. The entire state of the fragment tree
+/// A layout debugging scope. The entire state of the box and fragment trees
 /// will be output at the beginning and end of this scope.
 impl Scope {
     pub fn new(name: String) -> Scope {
         STATE_KEY.with(|ref r| {
             if let Some(ref mut state) = *r.borrow_mut() {
-                let fragment_tree = to_value(&state.fragment).unwrap();
-                let data = Box::new(ScopeData::new(name.clone(), fragment_tree));
+                let box_tree = to_value(&state.box_tree).unwrap();
+                let fragment_tree = to_value(&state.fragment_tree).unwrap();
+                let data = Box::new(ScopeData::new(name.clone(), box_tree, fragment_tree));
                 state.scope_stack.push(data);
             }
         });
@@ -77,7 +91,10 @@ impl Drop for Scope {
         STATE_KEY.with(|ref r| {
             if let Some(ref mut state) = *r.borrow_mut() {
                 let mut current_scope = state.scope_stack.pop().unwrap();
-                current_scope.post = to_value(&state.fragment).unwrap();
+                current_scope.post = TreeValues {
+                    box_tree: to_value(&state.box_tree).unwrap(),
+                    fragment_tree: to_value(&state.fragment_tree).unwrap(),
+                };
                 let previous_scope = state.scope_stack.last_mut().unwrap();
                 previous_scope.children.push(current_scope);
             }
@@ -93,14 +110,20 @@ pub fn generate_unique_debug_id() -> u16 {

 /// Begin a layout debug trace. If this has not been called,
 /// creating debug scopes has no effect.
-pub fn begin_trace(root: Arc<FragmentTreeRoot>) {
+pub fn begin_trace(box_tree: Arc<BoxTreeRoot>, fragment_tree: Arc<FragmentTreeRoot>) {
     assert!(STATE_KEY.with(|ref r| r.borrow().is_none()));

     STATE_KEY.with(|ref r| {
-        let root_trace = to_value(&root).unwrap();
+        let box_tree_value = to_value(&box_tree).unwrap();
+        let fragment_tree_value = to_value(&fragment_tree).unwrap();
         let state = State {
-            scope_stack: vec![Box::new(ScopeData::new("root".to_owned(), root_trace))],
-            fragment: root.clone(),
+            scope_stack: vec![Box::new(ScopeData::new(
+                "root".to_owned(),
+                box_tree_value,
+                fragment_tree_value,
+            ))],
+            box_tree,
+            fragment_tree,
         };
         *r.borrow_mut() = Some(state);
     });
@@ -113,8 +136,10 @@ pub fn end_trace(generation: u32) {
     let mut thread_state = STATE_KEY.with(|ref r| r.borrow_mut().take().unwrap());
     assert_eq!(thread_state.scope_stack.len(), 1);
     let mut root_scope = thread_state.scope_stack.pop().unwrap();
-    root_scope.post = to_value(&thread_state.fragment).unwrap();
-
+    root_scope.post = TreeValues {
+        box_tree: to_value(&thread_state.box_tree).unwrap_or(Value::Null),
+        fragment_tree: to_value(&thread_state.fragment_tree).unwrap_or(Value::Null),
+    };
     let result = to_string(&root_scope).unwrap();
     let mut file = File::create(format!("layout_trace-{}.json", generation)).unwrap();
     file.write_all(result.as_bytes()).unwrap();

components/layout_2020/positioned.rs

@@ -18,7 +18,7 @@ use style::properties::ComputedValues;
 use style::values::computed::{Length, LengthOrAuto, LengthPercentage, LengthPercentageOrAuto};
 use style::Zero;

-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) struct AbsolutelyPositionedBox {
     pub contents: IndependentFormattingContext,
 }

components/layout_2020/replaced.rs

@@ -17,7 +17,7 @@ use style::values::computed::{Length, LengthOrAuto};
 use style::values::CSSFloat;
 use style::Zero;

-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) struct ReplacedContent {
     pub kind: ReplacedContentKind,
     intrinsic: IntrinsicSizes,
@@ -41,7 +41,7 @@ pub(crate) struct IntrinsicSizes {
     pub ratio: Option<CSSFloat>,
 }

-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) enum ReplacedContentKind {
     Image(Option<Arc<Image>>),
 }

components/layout_2020/sizing.rs

@@ -48,7 +48,7 @@ impl ContentSizesRequest {
     }
 }

-#[derive(Clone, Debug)]
+#[derive(Clone, Debug, Serialize)]
 pub(crate) struct ContentSizes {
     pub min_content: Length,
     pub max_content: Length,
@@ -83,7 +83,7 @@ impl ContentSizes {
 }

 /// Optional min/max-content for storage in the box tree
-#[derive(Debug)]
+#[derive(Debug, Serialize)]
 pub(crate) enum BoxContentSizes {
     NoneWereRequested, // … during box construction
     Inline(ContentSizes),

components/layout_thread_2020/lib.rs

@@ -173,7 +173,7 @@ pub struct LayoutThread {
     outstanding_web_fonts: Arc<AtomicUsize>,

     /// The root of the box tree.
-    box_tree_root: RefCell<Option<BoxTreeRoot>>,
+    box_tree_root: RefCell<Option<Arc<BoxTreeRoot>>>,

     /// The root of the fragment tree.
     fragment_tree_root: RefCell<Option<Arc<FragmentTreeRoot>>>,
@@ -1154,7 +1154,8 @@ impl LayoutThread {
             } else {
                 build_box_tree()
             };
-            Some(box_tree)
+
+            Some(Arc::new(box_tree))
         } else {
             None
         };
@@ -1167,13 +1168,13 @@ impl LayoutThread {
                 self.viewport_size.height.to_f32_px(),
             );
             let run_layout = || box_tree.layout(&layout_context, viewport_size);
-            let fragment_tree = if let Some(pool) = rayon_pool {
+            let fragment_tree = Arc::new(if let Some(pool) = rayon_pool {
                 pool.install(run_layout)
             } else {
                 run_layout()
-            };
+            });
             *self.box_tree_root.borrow_mut() = Some(box_tree);
-            *self.fragment_tree_root.borrow_mut() = Some(Arc::new(fragment_tree));
+            *self.fragment_tree_root.borrow_mut() = Some(fragment_tree);
         }

         for element in elements_with_snapshot {
@@ -1382,6 +1383,12 @@ impl LayoutThread {
         document: Option<&ServoLayoutDocument>,
         context: &mut LayoutContext,
     ) {
+        if self.trace_layout {
+            if let Some(box_tree) = &*self.box_tree_root.borrow() {
+                layout_debug::begin_trace(box_tree.clone(), fragment_tree.clone());
+            }
+        }
+
         if !reflow_goal.needs_display() {
             // Defer the paint step until the next ForDisplay.
             //
@@ -1393,10 +1400,6 @@ impl LayoutThread {
             return;
         }

-        if self.trace_layout {
-            layout_debug::begin_trace(fragment_tree.clone());
-        }
-
         if let Some(document) = document {
             document.will_paint();
         }
