Unexpected behavior when combining filters #1354

Closed
mrobinson opened this issue Jun 9, 2017 · 1 comment
Closed

Unexpected behavior when combining filters #1354

mrobinson opened this issue Jun 9, 2017 · 1 comment
Assignees
Labels

Comments

@mrobinson
Copy link
Member

@mrobinson mrobinson commented Jun 9, 2017

I have observed that opacity filters do not combine as I would expect. For instance the two rectangles in the following wrench output are a different color:

root:
  items:
    - type: stacking-context
      bounds: [10, 10, 500, 500]
      filters: [opacity(0.50), opacity(0.50)]
      items:
        - type: rect
          bounds: [10, 10, 100, 100]
          color: green
    - type: stacking-context
      bounds: [110, 10, 500, 500]
      filters: [opacity(0.25)]
      items:
        - type: rect
          bounds: [10, 10, 100, 100]
          color: green

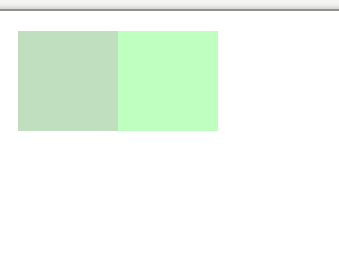

screenshot

@mrobinson mrobinson added the type: bug label Jun 9, 2017
@mrobinson
Copy link
Member Author

@mrobinson mrobinson commented Jun 9, 2017

@glennw Perhaps this is an issue with premultiplied alpha?

@kvark kvark self-assigned this Jul 17, 2017
bors-servo added a commit that referenced this issue Jul 19, 2017
Pre-multiplied alpha for the blend pass

Fixes #1449, fixes #1354
Running Servo tests is pending... Done.

<!-- Reviewable:start -->
---
This change is [<img src="https://reviewable.io/review_button.svg" height="34" align="absmiddle" alt="Reviewable"/>](https://reviewable.io/reviews/servo/webrender/1493)
<!-- Reviewable:end -->
