Sign upThe horizontal blur pass sometimes seems to blur in garbage from the side #1943
Comments
|
I can reproduce this with a static box shadow that has a fractional blur radius. There must be somewhere in the code that ends up with a rounding error when a fractional blur radius is supplied. I'll work on a fix today. |
|
Note to self: the blur radius is correctly rounded to device pixels, but the CSS space blur radius is retained as a float. Probably related to that. |
|
This got better with the latest webrender update. (Thank you!) Those unwanted things on the right and bottom are gone and only a white flickering is left. Commits between the previous and latest webrender update: |
DocumentAPI support on the Renderer side This is a second batch of changes related to Document API, following #1509. The idea is to allow Gecko to have separate documents for the chrome UI, page content, and bottom status bar, as opposed to using different pipelines in the same document. This change would allow minimal scene rebuilds per frame when UI is affected. WIP TODO: - [x] strict ordering API: 532bff5 - [x] Servo patch and test runs: kvark/servo@0263fa8 - [x] Firefox patch and try push: https://treeherder.mozilla.org/#/jobs?repo=try&revision=f939fbdab0231e6328061c12903db0c45847dd18 - ~~`box-shadow/boxshadow-skiprect.html`~~ (from #1943) - ~~`css-filter-chains/moz-element.html`~~ (same as in #2053) - ~~`transform/animate-layer-scale-inherit-1.html`~~ (from #2043) - [x] example - [x] `FrameBuilder` and `RenderedDocument` refactor https://tools.taskcluster.net/groups/DEvThfCaQWmt5Hp806GDLg/tasks/VLCZI7hVTQCc1xrDR3PgOQ/details# - [x] review comments cc @glennw @mstange @jrmuizel <!-- Reviewable:start --> --- This change is [<img src="https://reviewable.io/review_button.svg" height="34" align="absmiddle" alt="Reviewable"/>](https://reviewable.io/reviews/servo/webrender/2050) <!-- Reviewable:end -->
|
@glennw any news on this? |
|
@gankro Not specifically, although the recent work I've done on box-shadows should make this easier to fix / debug. It's also possible that it may have been fixed, but I'm guessing not, from your comment here? |
|
I was just following up on it since I vaguely recalled you mentioning this was going to be fixed soon. Just triaging some fuzziness that has been attributed to this. |
|
Summary of bug 1411693 comment 18: |
|
This is resolved with the recent snapping fixes for clip masks. |
https://bugzilla.mozilla.org/show_bug.cgi?id=1411693
Testcase (created by Darkspirit)

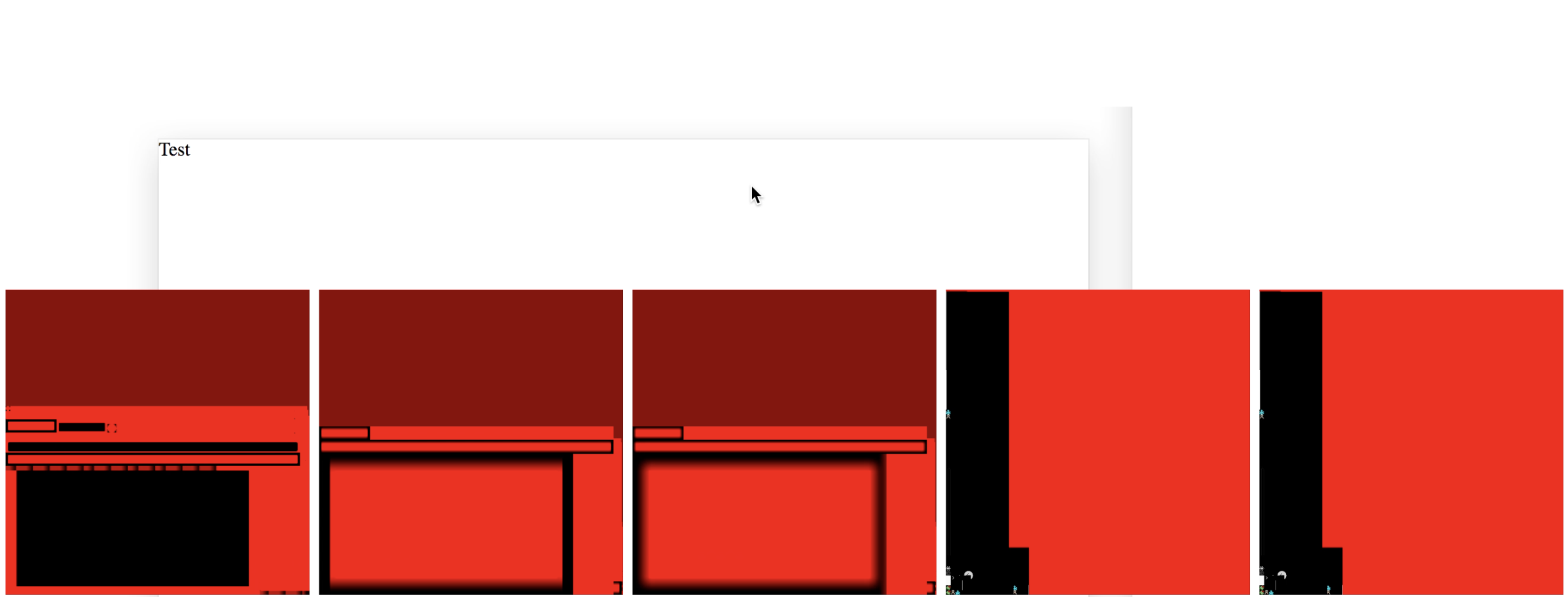

When hovering over the element on the page, the box-shadow sometimes has extra shadows on the right edges. Here are two screenshots with and without the glitch, and with
gfx.webrender.debug.render-targetsenabled:good frame:
bad frame:
You can see that in the bad frame, the render target in the middle has a box-shadow whose right edge is a bit brighter than in the good frame. It looks like the right edge got some stuff blurred in from beyond the right edge of the rectangle that is supposed to be sampling from.
