Inset box-shadows render incorrectly in some cases #2182

Closed
mstange opened this issue Dec 6, 2017 · 1 comment
Closed

Inset box-shadows render incorrectly in some cases #2182

mstange opened this issue Dec 6, 2017 · 1 comment
Labels
bugzilled type: bug

Comments

@mstange
Copy link
Contributor

@mstange mstange commented Dec 6, 2017

https://bugzilla.mozilla.org/show_bug.cgi?id=1423696

Testcase

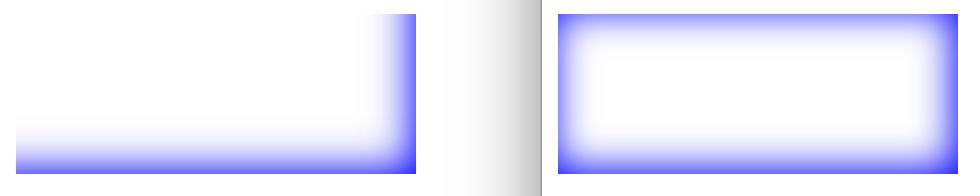

Actual vs expected results:
screen shot 2017-12-06 at 2 34 15 pm

It looks like the element's shape also clips the pre-blur shadow shape, instead of just clipping the blurred result.

---
root:
  items:
    - type: stacking-context
      bounds: [0, 0, 1000, 1000]
      items:
        - type: box-shadow
          bounds: [ 22, 22, 200, 80 ]
          color: blue
          clip-mode: inset
          offset: -2 -2
          blur-radius: 20
          spread-radius: 0
          border-radius:
            top-left: [0, 0]
            top-right: [0, 0]
            bottom-left: [0, 0]
            bottom-right: [0, 0]
@demo99 demo99 mentioned this issue Jan 5, 2018
Merged
bors-servo added a commit that referenced this issue Jan 8, 2018
@bors-servo
Auto merge of #2261 - demo99:box_shadow_inset3, r=glennw
Loading status checks…
fad8ced
Fix inflate size for inset box shadow.

The inflate size should be multiplied by 2 when downscaling to guarantee the 1 pixel extra edge.  This should fix issue #2182 and [bug 1423696](https://bugzilla.mozilla.org/show_bug.cgi?id=1423696).

gecko try result: https://treeherder.mozilla.org/#/jobs?repo=try&revision=aac72b3488afd74fce9afcd4edf7ce17763bd57e&selectedJob=154326187

There is an unexpected-pass test. I will add a patch to bug 1423696.

<!-- Reviewable:start -->
---
This change is [<img src="https://reviewable.io/review_button.svg" height="34" align="absmiddle" alt="Reviewable"/>](https://reviewable.io/reviews/servo/webrender/2261)
<!-- Reviewable:end -->
@glennw
Copy link
Member

@glennw glennw commented Jan 24, 2018

This is resolved fixed in bugzilla.
@glennw glennw closed this Jan 24, 2018
