[RFC] Introduce a web based debugger and some basic examples. #1607

glennw · 2017-08-24T06:44:49Z

This introduces a simple web based debugger for WR, as an optional feature.

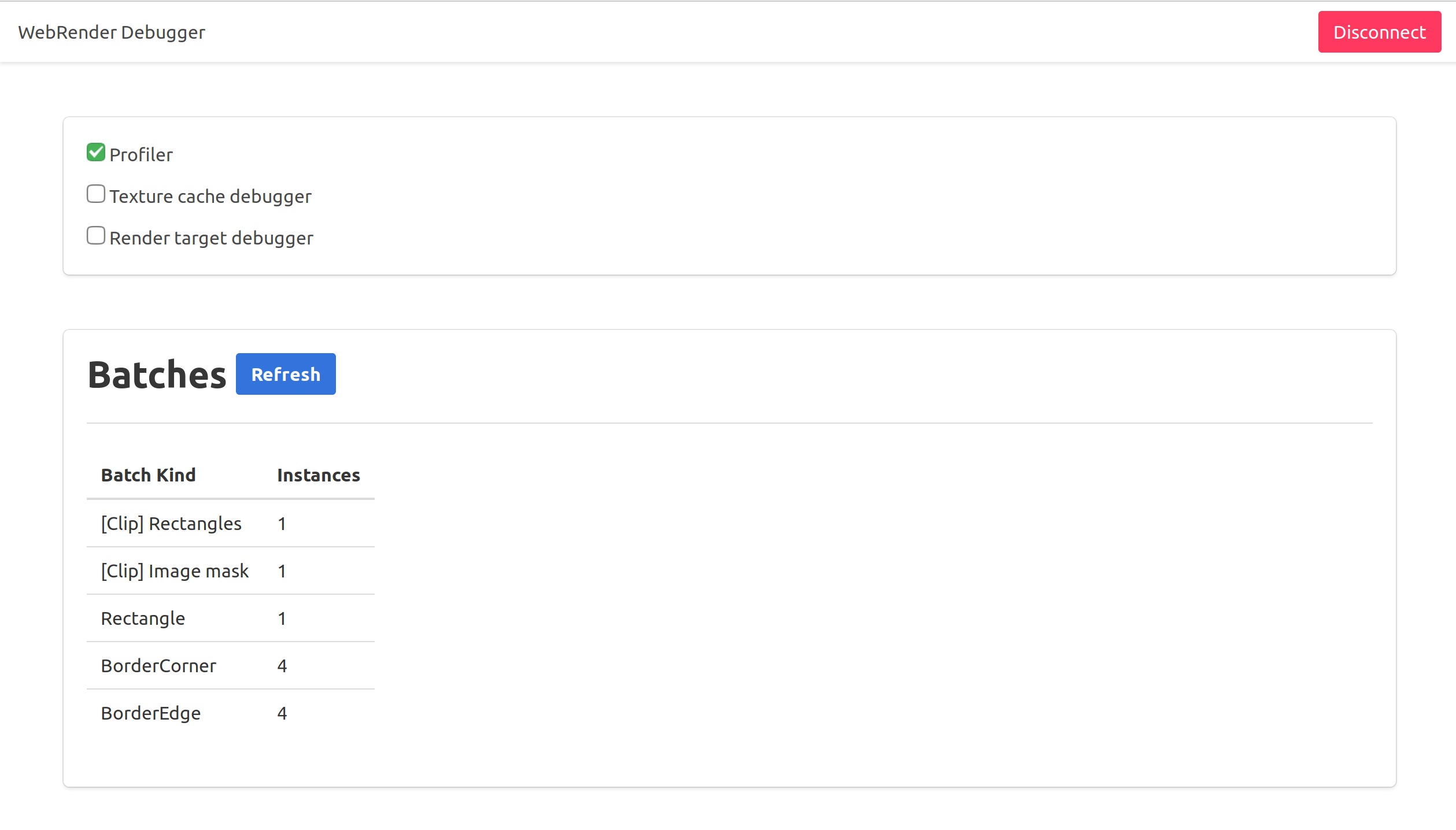

The initial implementation allows toggling the debug flags (e.g. profiler, texture cache debug view) and dumping a list of draw call batches to the browser.

In the future, I'd plan to expand the feature set significantly - for example, a render tree visualization, and more detailed timing. We can also use this as a debugging tool - for example, adding support for stepping through a single frame etc.

The main things to answer are:

Should the client live in this repo or elsewhere?
Is the current setup of the feature going to work OK with vendoring?
Is the current implementation / threading strategy reasonable?

The implementation uses Vue.js, websockets and Bulma.

This change is

glennw · 2017-08-24T06:45:15Z

glennw · 2017-08-24T06:45:27Z

Thoughts @kvark @jrmuizel @nical ?

glennw · 2017-08-24T07:05:22Z

BTW, it's listed as [RFC], but it's actually ready to go from my perspective, if everyone is happy with it as-is.

nical · 2017-08-24T07:18:41Z

I would like this to be in the repo. Hopefully, having it behind a feature flag like you did should be enough for vendoring.

kvark · 2017-08-24T16:01:43Z

webrender/src/renderer.rs

+                DebugMsg::FetchBatches(sender) => {
+                    let mut batch_list = BatchList::new();
+
+                    if let Some(ref frame) = self.current_frame {


nit: could combine this pattern match with the next one to avoid nesting

kvark · 2017-08-24T16:01:43Z

webrender/src/renderer.rs

+                        if let Some(ref frame) = frame.frame {
+                            for pass in &frame.passes {
+                                for target in &pass.alpha_targets.targets {
+                                    batch_list.push("[Clip] Clear", target.clip_batcher.border_clears.len());


can we add (to JSON) any information about the target itself?

Definitely - the batch list is very much a proof of concept - I'll expand on the information with a more detailed view as a follow up.

kvark · 2017-08-24T16:02:03Z

webrender/src/debug_server.rs

+#[derive(Serialize)]
+pub struct BatchList {
+    kind: &'static str,
+    batches: Vec<BatchInfo>,


we might consider having a bit stronger types here, e.g.

#[derive(Serialize)] pub struct ClipBatcherInfo { clears: usize, borders: usize, rectangles: usize, } #[derive(Serialize)] pub struct CacheBatcherInfo { ... } pub struct BatchList { kind: &'static str, clip: ClipBatcherInfo, cache: CacheBatcherInfo, alpha: HashMap<&'static str, usize>, }

Yep - sounds good. OK to do as a follow up?

kvark

Thanks @glennw , amazing stuff!

Should the client live in this repo or elsewhere?

Since we are already settled with multi-project single-repo approach, I think it would be great to have the debugger in the repo as well, for easier maintenance at the very least.

Is the current implementation / threading strategy reasonable?

Currently, it's doesn't appear that RenderBackend contributes much by being in the debug loop. I assume we need it for more debugging logic added in the future.

kvark · 2017-08-24T16:15:52Z

webrender/src/render_backend.rs

+                    notifier.unwrap()
+                            .as_mut()
+                            .unwrap()
+                            .new_frame_ready();


looks like new_frame_ready gets abused more. Maybe we should just add a ping method to be used both here and for MemoryPressure?

Sounds like a good idea.

kvark · 2017-08-24T16:15:52Z

webrender/src/renderer.rs

+
+    fn handle_debug_command(&mut self, command: DebugCommand) {
+        match command {
+            DebugCommand::EnableProfiler(enable) => {


since we are at it, maybe we can remove the duplicated logic from wrench and examples boilerplate

Do you mean remove the keyboard shortcuts? I think it makes sense to keep those for quick debugging - or did you mean something else?

kvark · 2017-08-24T16:15:52Z

webrender/src/renderer.rs

+
+    #[cfg(not(feature = "debugger"))]
+    fn update_debug_server(&self) {
+    }


perhaps, would be cleaner to do let _ = &self.debug_server than having underscore in _debug_server

glennw · 2017-08-24T21:55:00Z

@kvark Thanks for the review! Fixed up some of those nits. I think it's OK to do the rest as follow ups - does that sound OK? Also added the debugger feature to wrench, which I had missed previously.

kvark · 2017-08-25T02:11:26Z

@glennw

Do you mean remove the keyboard shortcuts?

yeah, I don't see much point in keeping the shortcuts if you can do the same thing by just enabling debugger feature. I won't lose my sleep if the shortcuts are still there though ;)

Fixed up some of those nits. I think it's OK to do the rest as follow ups - does that sound OK?

Absolutely!

One last concern before r=me is CI-testing the debugger feature. I don't see you modifying the travis/appveyor scripts.

bors-servo · 2017-08-25T02:57:53Z

☔ The latest upstream changes (presumably #1594) made this pull request unmergeable. Please resolve the merge conflicts.

glennw · 2017-08-25T03:24:11Z

@kvark Ah, good point - I've rebased and updated the travis file to build wrench in release + debugger mode.

kvark · 2017-08-25T16:36:10Z

Wonderful, it's shipping time!
@bors-servo r+

bors-servo · 2017-08-25T16:36:11Z

📌 Commit 3fd351f has been approved by kvark

bors-servo · 2017-08-25T16:36:13Z

⌛ Testing commit 3fd351f with merge e3b2e00...


        Auto merge of #1607 - glennw:ws4, r=kvark

[RFC] Introduce a web based debugger and some basic examples. This introduces a simple web based debugger for WR, as an optional feature. The initial implementation allows toggling the debug flags (e.g. profiler, texture cache debug view) and dumping a list of draw call batches to the browser. In the future, I'd plan to expand the feature set significantly - for example, a render tree visualization, and more detailed timing. We can also use this as a debugging tool - for example, adding support for stepping through a single frame etc. The main things to answer are: * Should the client live in this repo or elsewhere? * Is the current setup of the feature going to work OK with vendoring? * Is the current implementation / threading strategy reasonable? The implementation uses Vue.js, websockets and Bulma.  --- This change is [<img src="https://reviewable.io/review_button.svg" height="34" align="absmiddle" alt="Reviewable"/>](https://reviewable.io/reviews/servo/webrender/1607)

bors-servo · 2017-08-25T18:02:34Z

💔 Test failed - status-travis

kvark · 2017-08-25T18:15:44Z

CI has legitimate errors:

error: no field opaque_batches on type tiling::BatchList
--> /home/travis/build/servo/webrender/webrender/src/renderer.rs:1564:53
|
1564 | .opaque_batches
| ^^^^^^^^^^^^^^ did you mean opaque_batch_list?


        Add 3rd party dependencies.


        Add debugger application.


        Basic WR debugger integration.

glennw · 2017-08-25T20:32:54Z

Ah, it needed a rebase after the batching PR landed - done.

kvark · 2017-08-25T20:38:38Z

thanks!
@bors-servo r+

bors-servo · 2017-08-25T20:38:39Z

📌 Commit dcbe7c9 has been approved by kvark

bors-servo · 2017-08-25T20:38:42Z

⌛ Testing commit dcbe7c9 with merge 56f75e7...


        Auto merge of #1607 - glennw:ws4, r=kvark

[RFC] Introduce a web based debugger and some basic examples. This introduces a simple web based debugger for WR, as an optional feature. The initial implementation allows toggling the debug flags (e.g. profiler, texture cache debug view) and dumping a list of draw call batches to the browser. In the future, I'd plan to expand the feature set significantly - for example, a render tree visualization, and more detailed timing. We can also use this as a debugging tool - for example, adding support for stepping through a single frame etc. The main things to answer are: * Should the client live in this repo or elsewhere? * Is the current setup of the feature going to work OK with vendoring? * Is the current implementation / threading strategy reasonable? The implementation uses Vue.js, websockets and Bulma.  --- This change is [<img src="https://reviewable.io/review_button.svg" height="34" align="absmiddle" alt="Reviewable"/>](https://reviewable.io/reviews/servo/webrender/1607)

bors-servo · 2017-08-25T22:07:04Z

☀️ Test successful - status-travis
Approved by: kvark
Pushing 56f75e7 to master...
