[WIP] Precise transformed primitive edge extrusion for AA

[kvark]

What

Includes #2254

Implemented a new code path for transformed vertex shaders: FIXED_EDGE_EXTRUSION. Defining it as (2.0) makes the behavior unchanged to what we have now. Undefining it makes the vertex shaders to compute edge extrusion dynamically, which handles non-trivial transformation cases of scaling/perspective. A reftest is added to demonstrate it.

Also includes a change (that was meant to go as a separate PR, and can still be moved out) that only applies extrusion to edges that are meant to have AA enabled. Unfortunately, this also requires a few fixes in both Rust and GLSL code to make sure we pass those flags correctly, since the semantics is changed a bit (or, rather, by 4 bits).

TODO

• get feedback on the current approach, starting with "do we really need this?" :) cc @glennw
• if the new behavior is desired, update the relevant reftest images (quite a few failures atm, because of the better quality), then investigate the Gecko side of things
• figure out how to only enable the new behavior for primitives in need, since it may be computationally heavy to do for all the brush vertices. Get WR_FEATURE_TRANSFORM back to affect brushes? (currently, the brush vertex shaders are unconditionally transform-enabled.

Example

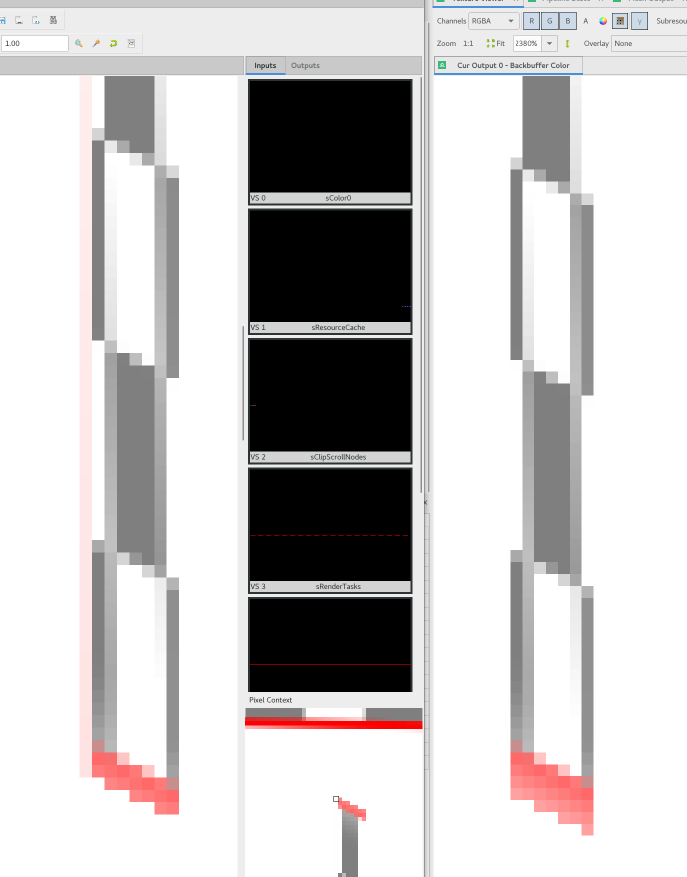

Left - new path. Right - old path. Notice the lack of vertical light-red edge.

---

This change is 

[glennw]

I like the idea, I think it's worth having. I don't really want to bring back the WR_FEATURE_TRANSFORM though - that's one of the nice benefits of the brush shaders, to not have to break batches in those cases. The brush (vertex) shader does do a dynamic branch based on whether there is a complex transform, perhaps that will be enough for your question above?

[kvark]

@glennw my main concern about dynamic branching would be that there is quite a bit of arithmetic-heavy code in the branch, so it will consume register space and penalize occupation of our vertex shaders.

[glennw]

That's a fair concern - can we profile to try and get some numbers on what effect it has?

[bors-servo]

☔ The latest upstream changes (presumably #2290) made this pull request unmergeable. Please resolve the merge conflicts.

[glennw]

@kvark Do we want to keep this one open for now?

[kvark]

I'll need to revive it...

[glennw]

Should we close this until you have time to revive it?
