Reduce the overdraw of border dashes.

[nical]

Shrink the dash segments using a conservative rect computed in the vertex shader.
The dash segment rects could be made tighter (using a very simple and safe conservative approximation here).

---

This change is 

[nical]

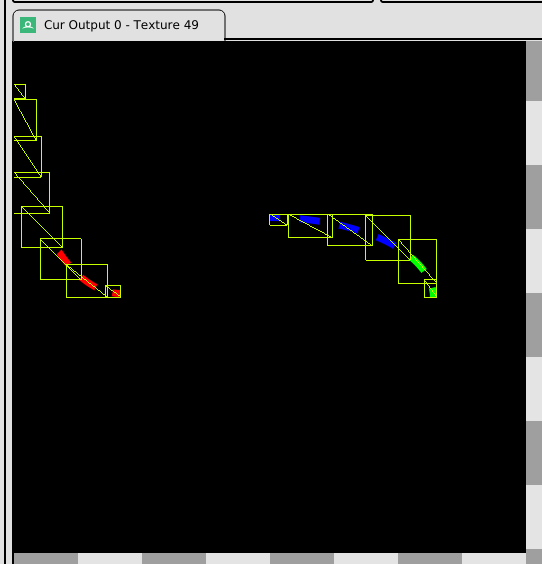

The picture below shows the geometry in renderedoc, as you can see the rect is very conservative and could be made tighter.

I think that it overshoots by a max of 30% (2.0 - sqrt(2)/2) a (still) conservative rect that would assume no curvature on the dashes. We could tweak this but I suspect that this PR is enough to fix #3399 and bug 1510076. Before this PR, each segment covers the entire corner so the wins are already significant.

[nical]

This changed a few pixels in the aa of reftests/border/border-suite-2 which are still covered by the segment rect so the small difference must come from vertex interpolation and float precision playing out slightly differently.

[nical]

With this we can re-enable the 4 disabled crashtests of bug 1510076 and they pass: https://treeherder.mozilla.org/#/jobs?repo=try&revision=6c622c1d46307b5b1f46d1f7d34ecc8890e619ca&selectedJob=220591569

r? @kvark

[kvark]

is it possible to process width and height separately here (and get a tighter bound therefore)?

[nical]

I may be missing something but since we don't know the orientation of the dash, it's hard to consider the dash width and length separately. So we have to assume the longest side in any direction and potentially the worst orientation (45 degrees).

We could compute the orientation from aClipParams1.xy and aClipParams2.xy which are at the start and end of the dash but that would add a lot of math. To get a really tight rect we'd need to consider the curvature of the dash in the computation which would make that a ton more complicated for a rather small amount of overdraw.

That's why I settled for a very conservative rect. Without extra information we could technically reduce the rect because, again, assuming dashes are rectangles with no curvature (which is not quite true), a sufficiently conservative bounding square would have each side equal to sqrt(2) * max(width, length) (sqrt(2) coming from the worst-case angle of 45 degrees) and this PR uses a factor of 2 instead of sqrt(2). The factor of two is implicit (it's just that we inflate the rect of that quantity on each side).

Because this formula doesn't account for the curvature we'd need some extra headroom to make sure we don't clip dashes with strong curvature but quantifying how much we need is not worth the complexity in my opinion. It's most likely less than the ~30% from this PR though. So if we are willing to accept a magic constant factor that has no mathematical ground, we should be safe multiplying by, say, 0.8 and leave only about 10% on each side for the curvature. I almost put that on the PR but I suspected an arbitrary factor would generate some debate.

I'm not sure real-world pages will benefit much from tighter bounding rects anyway, so I think we should stick to something simple and maybe come back and implement something more complicated if/when we have evidence that it can have an impact.

[kvark]

I see. Can we have that magic factor to be explicit, at least?

[nical]

So right now there isn't really a magic factor (other than that since we are creating a square with edges at ±max(width, length) from the center we get 2*max(width, length) sides). But I only say "2x" because I formulate the problem in my head relative to the length of the edges of the square, but one could think of it as the distance between the egdes and the center of the dash (1x then).

Do you mean adding a factor like the 0.8 I previously mentioned or do you mean I should reword the existing comment?

[kvark]

Let's refine in follow-ups then :)
@bors-servo r+

[bors-servo]

📌 Commit 5ff8947 has been approved by kvark

[bors-servo]

⌛ Testing commit 5ff8947 with merge c8648da...

[bors-servo]

💔 Test failed - status-appveyor

[kvark]

@bors-servo retry

[bors-servo]

⌛ Testing commit 5ff8947 with merge a25552a...

[bors-servo]

☀️ Test successful - status-appveyor, status-taskcluster
Approved by: kvark
Pushing a25552a to master...
