README.md

Scan2CAD

We present Scan2CAD, a novel data-driven method that learns to align 3D CAD models from a shape database to 3D scans.

Scan2CAD

Download Paper (.pdf)

See Youtube Video

Link to the annotation webapp source code

Demo samples

Scan2CAD Alignments

Loadu

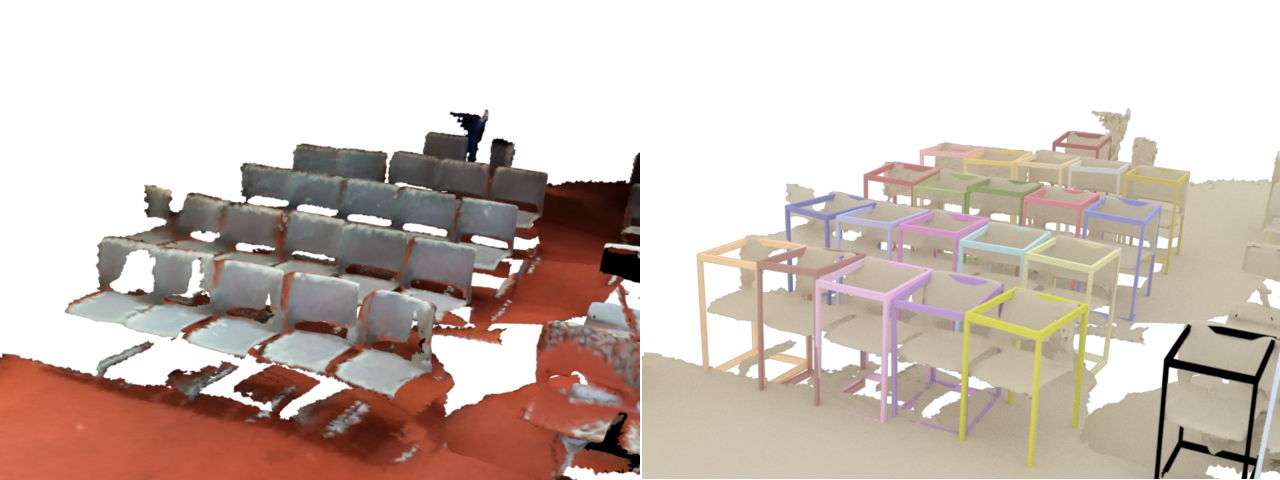

Orientated Bounding Boxes for Objects

Scan2CAD

Description

Dataset used in the research project: Scan2CAD: Learning CAD Model Alignment in RGB-D Scans

For the public dataset, we provide annotations with:

  • 97607 keypoint correspondences between Scan and CAD models
  • 14225 objects between Scan and CAD
  • 1506 scans

An additional annotated hidden testset, that is used for our Scan2CAD benchmark contains:

  • 7557 keypoint correspondences between Scan and CAD models
  • 1160 objects between Scan and CAD
  • 97 scans

Benchmark

We published a new benchmark for CAD model alignment in 3D scans (and more tasks to come) here.

Get started

  1. Clone repo:

git clone https://github.com/skanti/Scan2CAD.git

  1. Ask for dataset: (see sections below. You will need ScanNet, ShapeNet and Scan2CAD).

  2. Copy dataset content into ./Routines/Script/.

  3. Visualize data:

./Routines/Script/Annotation2Mesh.py

  1. Generate data:

./Routines/Script/GenerateCorrespondences.py

  1. Start pytorch training for heatmap prediction:

comming soon

Download Scan2CAD Dataset (Annotation Data)

If you would like to download the Scan2CAD dataset, please fill out this google-form.

A download script will be provided to automatically download the dataset.

Format of the Datasets

Format of "full_annotions.json"

The file contains 1506 entries, where the field of one entry is described as:

[{
id_scan : "scannet scene id",
trs : { // <-- transformation from scan space to world space

    translation : [tx, ty, tz], // <-- translation vector
    rotation : (qw, qx, qy, qz], // <-- rotation quaternion
    scale :  [sx, sy, sz], // <-- scale vector
    },
aligned_models : [{ // <-- list of aligned models for this scene
    sym : "(__SYM_NONE, __SYM_ROTATE_UP_2, __SYM_ROTATE_UP_4 or __SYM_ROTATE_UP_INF)", // <-- symmetry property only one applies
    catid_cad  : "shapenet category id",
    id_cad : "shapenet model id"
    trs : { // <-- transformation from CAD space to world space
        translation : [tx, ty, tz], // <-- translation vector
        rotation : [qw, qx, qy, qz], // <-- rotation quaternion
        scale : [sx, sy, sz] // <-- scale vector
	},
    keypoints_scan : { // <-- scan keypoints
        n_keypoints` : "(int) number of keypoints",
        position :  [x1, y1, z1, ... xN, yN, zN], // <--  scan keypoints positions in world space
	},
    keypoints_cad : { // <-- cad keypoints
        n_keypoints` : "(int) number of keypoints",
        position :  [x1, y1, z1, ... xN, yN, zN], // <--  cad keypoints positions in world space
	},
     // NOTE: n_keypoints (scan) = n_keypoints (CAD) always true
    }]
},
{ ... },
{ ... },
]

Format of "cad_appearances.json"

This file is merely a helper file as the information in this file are deducible from "full_annotations.json". The file contains 1506 entries, where the field of one entry is described as:

{
  scene00001_00 : { // <-- scan id as key
   "00000001_000000000000abc" : 2, // <-- catid_cad + "_" + id_cad as key, the number denotes the number of appearances of that CAD in the scene
   "00000003_000000000000def" : 1,
   "00000030_000000000000mno" : 1,
   ...
  },
  scene00002_00 : {
    ...
  },
},

Visualization of the Dataset

Once you have downloaded the dataset files, you can run ./Routines/Script/Annotation2Mesh.py to preview the annotations as seen here (toggle scan/CADs):

Data Generation for Scan2CAD Alignment

Scan and CAD Repository

In this work we used 3D scans from the ScanNet dataset and CAD models from ShapeNet (version 2.0). If you want to use it too, then you have to send an email and ask for the data - they usually do it very quickly.

Here is a sample (see in ./Assets/scannet-sample/ and ./Assets/shapenet-sample/):

Voxelization of Data as Signed Distance Function (sdf) and unsigned Distance Function (df) files

The data must be processed such that scans are represented as sdf and CADs as df voxel grids as illustrated here (see in ./Assets/scannet-voxelized-sdf-sample/ and ./Assets/shapenet-voxelized-df-sample/):

In order to create sdf voxel grids from the scans, volumetric fusion is performed to fuse depth maps into a voxel grid containing the entire scene. For the sdf grid we used a voxel resolution of 3cm and a truncation distance of 15cm.

In order to generate the df voxel grids for the CADs we used this repo (thanks to @christopherbatty).

Creating Training Samples

In order to generate training samples for your CNN, you can run ./Routines/Script/GenerateCorrespondences.py. From the Scan2CAD dataset this will generate following:

  1. Centered crops of the scan
  2. Heatmaps on the CAD (= correspondence to the scan)
  3. Scale (x,y,z) for the CAD
  4. Match (0/1) indicates whether both inputs match semantically

The generated data totals to approximately 500GB. Here is an example of the data generation (see in ./Assets/training-data/scan-centers-sample/ and ./Assets/training-data/CAD-heatmaps-sample/)

Citation

If you use this dataset or code please cite:

@article{avetisyan2018scan2cad,
	title={Scan2CAD: Learning CAD Model Alignment in RGB-D Scans},
	author={Avetisyan, Armen and Dahnert, Manuel and Dai, Angela and Savva, Manolis and Chang, Angel X and Nie{\ss}ner, Matthias},
	journal={arXiv preprint arXiv:1811.11187},
	year={2018}
}
