SparkFun Shifting µSD

SparkFun Shifting µSD

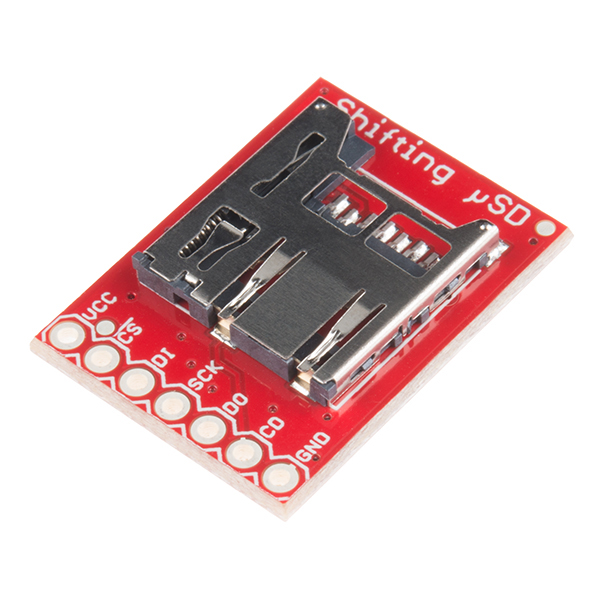

SparkFun Shifting µSD (DEV-13743)

Breakout board for the microSD socket that is not much bigger than your fingernail. Compatible with the SPI interface found on any SD card, this tiny form factor was created for cell phone storage and is perfect for your next data logging project!

Repository Contents

  • /Hardware — All Eagle design files (.brd, .sch)
  • /Firmware — A trivial write only Arduino word processor.
  • /Production — Test bed files and production panel files

Documentation

Product Versions

  • DEV-13743 — µSD socket with integrated level shifter
  • BOB-00544 — µSD socket (3.3V)

Version History

  • V_10 — Initial release

License Information

This product is open source!

Please review the LICENSE.md file for license information.

If you have any questions or concerns on licensing, please contact TechSupport@SparkFun.com.

Distributed as-is; no warranty is given.

— Your friends at SparkFun.
