SparkFun SparkFun Motor Driver - Dual TB6612FNG (1A) Arduino Library

SparkFun Motor Driver - Dual TB6612FNG (1A)

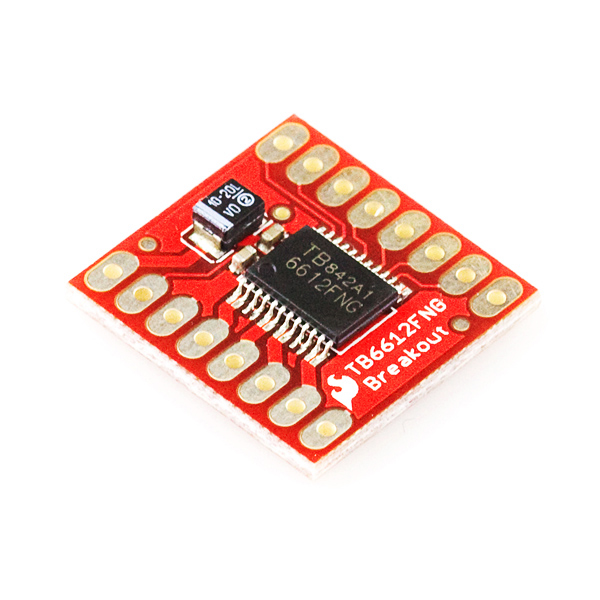

SparkFun Motor Driver - Dual TB6612FNG (1A) (ROB-0457)

The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.

Repository Contents

  • /examples - Example sketches for the library (.ino). Run these from the Arduino IDE.
  • /extras - Additional documentation for the user. These files are ignored by the IDE.
  • /src - Source files for the library (.cpp, .h).
  • keywords.txt - Keywords from this library that will be highlighted in the Arduino IDE.
  • library.properties - General library properties for the Arduino package manager.

Documentation

Products that use this Library

License Information

This product is open source!

Please review the LICENSE.md file for license information.

If you have any questions or concerns on licensing, please contact techsupport@sparkfun.com.

Distributed as-is; no warranty is given.

  • Your friends at SparkFun.
