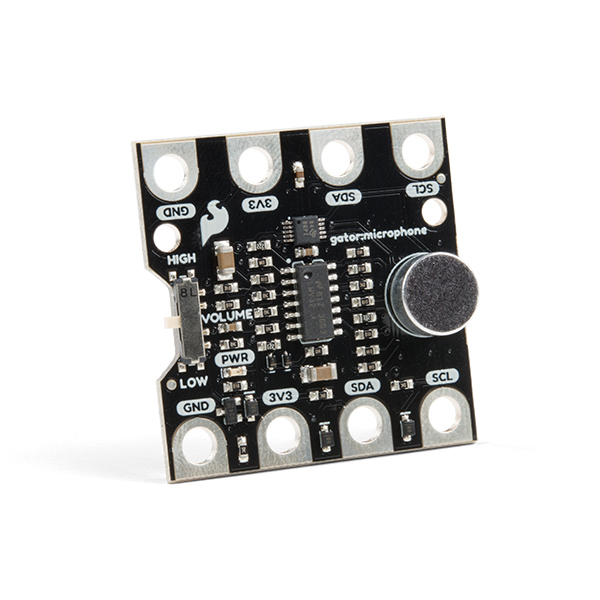

SparkFun gator:microphone - micro:bit Accessory Board (SEN-15289)
An I2C sensor for detecting sound with an electret microphone. The sensor measures the actual audio, amplitude envelope, and sound indication with an ADC (ADS1015).
Instead of using pin connections or requiring soldering, this product provides connection pads for a more kid freindly experience with alligator clips. The design intention of this product is to be used with the gato:bit (v2), and the micro:bit development board.
- /Hardware - Eagle design files (.brd, .sch)
- /Production - Production panel files (.brd)
- Hookup Guide - Basic hookup guide for the gator:microphone.
- gator:microphone PXT Package - PXT- package for the MakeCode gator:microphone extension.
This product is open source!
Please review the LICENSE.md file for license information.
If you have any questions or concerns on licensing, please visit the SparkFun Forum and post a topic. For more general questions related to our gator boards, please visit this section of the forum: Gator Products.
Distributed as-is; no warranty is given.
- Your friends at SparkFun.
