<Intial> glyph placement / leading encroaches on surrounding text with mode=harfbuzz, bidi=yes direction=rtl #287

webservant316 opened this issue Dec 16, 2020 · 6 comments


Copy link

See page #1, Hebrew example at
See layout.xml at
See configurations at

Worse examples also observed in my production environment

@pgundlach pgundlach added the Feedback needed User feedback is required to keep this issue open label Dec 17, 2020
Copy link

Could you please make a short test file for the problem? I have all fonts here, I just need the data and input.

Copy link

Copy link

I can't see what is wrong and what you'd expect instead. Perhaps a picture might help?

Copy link

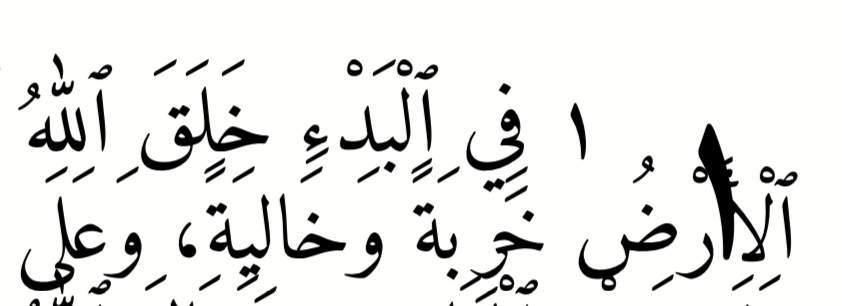

See failed use of in attached PDF. See the glyph in the overlaps surrounding text below the

Pages from Holy-Bible---Arabic---Arabic-Van-Dyck-Bible---Aionian-Edition.pdf

Had trouble illustrating with a small example to produce same effect. However, my entire package for produce the PDF documents is found at

@pgundlach pgundlach added Question / Support Needs investigation Needs further research before taking action Bug and removed Feedback needed User feedback is required to keep this issue open Question / Support Needs investigation Needs further research before taking action labels Dec 18, 2020
@pgundlach pgundlach assigned pgundlach and unassigned webservant316 Dec 18, 2020
@pgundlach pgundlach added this to the Version 4.2 milestone Dec 18, 2020
Copy link

Initial placement is pure luck currently in speedata.


<?xml version="1.0" encoding="UTF-8"?>
<Layout xmlns="" xmlns:sd="urn:speedata:2009/publisher/functions/en">
	<LoadFontfile mode="harfbuzz" name="amiri" filename="amiri-regular.ttf" />

	<DefineFontfamily name="text" fontsize="10" leading="12">
		<Regular fontface="amiri" />

	<DefineFontfamily name="init" fontsize="24" leading="24">
		<Regular fontface="amiri" />

	<!-- DEFINE PAGES -->
	<SetGrid width="4.5pt" height="4.5pt" />

	<Pagetype name="t" test="true()">
		<Margin left="0.25in" right="0.25in" top="0.25in" bottom="0.25in" />
		<PositioningArea name="area2col">
			<PositioningFrame row="1" column="1" width="43" height="132" />
			<PositioningFrame row="1" column="46" width="43" height="132" />

	<Record element="chapter">
		<Output area="area2col">
				<Paragraph language='Other' bidi="yes" direction="rtl">
					<Initial fontfamily="init" padding-right="2pt">
					<Value select="." />
<?xml version='1.0' encoding='utf-8'?>
<chapter CHAP='١'>
    <span class='vn' V='1' VN='١'> ١</span>
    <span class='v'>فِي ٱلْبَدْءِ خَلَقَ ٱللهُ ٱلسَّمَاوَاتِ وَٱلْأَرْضَ.</span>
    <span class='vn' V='2' VN='٢'> ٢</span>
    <span class='v'>وَكَانَتِ ٱلْأَرْضُ خَرِبَةً وَخَالِيَةً، وَعَلَى وَجْهِ ٱلْغَمْرِ ظُلْمَةٌ، وَرُوحُ ٱللهِ يَرِفُّ عَلَى وَجْهِ ٱلْمِيَاهِ.</span>
    <span class='vn' V='3' VN='٣'> ٣</span>
    <span class='v'>وَقَالَ ٱللهُ: «لِيَكُنْ نُورٌ»، فَكَانَ نُورٌ.</span>
    <span class='vn' V='4' VN='٤'> ٤</span>
    <span class='v'>وَرَأَى ٱللهُ ٱلنُّورَ أَنَّهُ حَسَنٌ.  وَفَصَلَ ٱللهُ بَيْنَ ٱلنُّورِ وَٱلظُّلْمَةِ.</span>
    <span class='vn' V='5' VN='٥'> ٥</span>
    <span class='v'>وَدَعَا ٱللهُ ٱلنُّورَ نَهَارًا، وَٱلظُّلْمَةُ دَعَاهَا لَيْلًا.  وَكَانَ مَسَاءٌ وَكَانَ صَبَاحٌ يَوْمًا وَاحِدًا.</span>
    <span class='vn' V='6' VN='٦'> ٦</span>
    <span class='v'>وَقَالَ ٱللهُ: «لِيَكُنْ جَلَدٌ فِي وَسَطِ ٱلْمِيَاهِ.  وَلْيَكُنْ فَاصِلًا بَيْنَ مِيَاهٍ وَمِيَاهٍ».</span>



Copy link

Version 4.1.25 will have this fixed (and more control over padding-top and padding-bottom). This is a non-backward compatible change and will change the appearance of all initials - so please double check that you get the desired output.

The old implementation was just crap and needed a complete rewrite (nothing big, just a different way to move the initial around and to calculate the line height).


Thank you as always for the example, the bug report and your patience.
