Maltrail is a malicious traffic detection system, utilizing publicly available (black)lists containing malicious and/or generally suspicious trails, along with static trails compiled from various AV reports and custom user defined lists, where trail can be anything from domain name (e.g.
zvpprsensinaix.com for Banjori malware), URL (e.g.
hXXp://126.96.36.199/harsh02.exe for known malicious executable), IP address (e.g.
188.8.131.52 for known attacker) or HTTP User-Agent header value (e.g.
sqlmap for automatic SQL injection and database takeover tool). Also, it uses (optional) advanced heuristic mechanisms that can help in discovery of unknown threats (e.g. new malware).
The following (black)lists (i.e. feeds) are being utilized:
360chinad, 360conficker, 360cryptolocker, 360gameover, 360locky, 360necurs, 360tofsee, 360virut, abuseipdb, alienvault, atmos, badips, bambenekconsultingc2dns, bambenekconsultingdga, bitcoinnodes, blackbook, blocklist, botscout, bruteforceblocker, ciarmy, cobaltstrike, cruzit, cybercrimetracker, dataplane, dshielddns, dshieldip, emergingthreatsbot, emergingthreatscip, emergingthreatsdns, feodotrackerip, greensnow, loki, malc0de, malwaredomainlistdns, malwaredomains, maxmind, minerchk, myip, openphish, palevotracker, policeman, pony, proxylists, proxyrss, proxyspy, ransomwaretrackerdns, ransomwaretrackerip, ransomwaretrackerurl, riproxies, rutgers, sblam, socksproxy, sslbl, sslproxies, talosintelligence, torproject, trickbot, turris, urlhaus, urlvir, vxvault, zeustrackermonitor, zeustrackerurl, etc.
As of static entries, the trails for the following malicious entities (e.g. malware C&Cs or sinkholes) have been manually included (from various AV reports and personal research):
404, 9002, aboc, ab, acbackdoor, acridrain, activeagent, advisorbot, adwind, adylkuzz, adzok, afrodita, agaadex, agenttesla, aldibot, alina, allakore, almalocker, almashreq, alpha, alureon, amadey, amavaldo, amend_miner, ammyyrat, android_acecard, android_adrd, android_alienspy, android_anubis, android_arspam, android_asacub, android_backflash, android_bankbot, android_bankun, android_basbanke, android_basebridge, android_besyria, android_boxer, android_buhsam, android_busygasper, android_callerspy, android_camscanner, android_cerberus, android_chuli, android_claco, android_clickfraud, android_cometbot, android_coolreaper, android_copycat, android_counterclank, android_cyberwurx, android_dendoroid, android_dougalek, android_droidjack, android_droidkungfu, android_enesoluty, android_ewalls, android_ewind, android_exodus, android_exprespam, android_fakeapp, android_fakebanco, android_fakedown, android_fakeinst, android_fakelog, android_fakemart, android_fakemrat, android_fakeneflic, android_fakesecsuit, android_fanta, android_feabme, android_flexispy, android_fraudbot, android_frogonal, android_funkybot, android_geinimi, android_generic, android_geost, android_ghostpush, android_ginmaster, android_gmaster, android_godwon, android_golddream, android_goldencup, android_golfspy, android_gonesixty, android_gplayed, android_gustuff, android_henbox, android_hiddad, android_ibanking, android_joker, android_jsmshider, android_kbuster, android_kemoge, android_lockdroid, android_lotoor, android_lovetrap, android_malbus, android_maxit, android_mobstspy, android_monokle, android_notcompatible, android_oneclickfraud, android_opfake, android_ozotshielder, android_pikspam, android_pjapps, android_qdplugin, android_ransomware, android_redalert, android_remotecode, android_repane, android_riltok, android_roamingmantis, android_roidsec, android_rotexy, android_samsapo, android_sandrorat, android_selfmite, android_shadowvoice, android_shopper, android_simbad, android_simplocker, android_skullkey, android_sndapps, android_spytekcell, android_stels, android_swanalitics, android_teelog, android_telerat, android_tetus, android_tonclank, android_torec, android_triada, android_uracto, android_usbcleaver, android_viceleaker, android_walkinwat, android_windseeker, android_wirex, android_xavirad, android_xhelper, android_zertsecurity, android_ztorg, andromeda, antefrigus, antibot, anubis, anuna, apt_01, apt_09, apt_12, apt_17, apt_18, apt_23, apt_30, apt_33, apt_37, apt_38, apt_aridviper, apt_babar, apt_bahamut, apt_barium, apt_bisonal, apt_bitter, apt_blacktech, apt_blindeagle, apt_blueprint, apt_bookworm, apt_buhtrap, apt_calypso, apt_careto, apt_casper, apt_cdt, apt_chafer, apt_charmingkitten, apt_cleaver, apt_cloudatlas, apt_cobaltdickens, apt_commentcrew, apt_copykittens, apt_cosmicduke, apt_cyberbit, apt_darkhotel, apt_darkhydrus, apt_deadlykiss, apt_deeppanda, apt_desertfalcon, apt_dnspionage, apt_docless, apt_domestickitten, apt_donot, apt_dragonok, apt_duke, apt_dustsquad, apt_energeticbear, apt_equationgroup, apt_evapiks, apt_ezq, apt_familiarfeeling, apt_finfisher, apt_flame, apt_fruityarmor, apt_gallmaker, apt_gamaredon, apt_gaza, apt_glasses, apt_goblinpanda, apt_goldenbird, apt_goldenrat, apt_goldmouse, apt_gorgon, apt_gothicpanda, apt_gref, apt_greyenergy, apt_groundbait, apt_group5, apt_hackingteam, apt_hermit, apt_hogfish, apt_icefog, apt_innaput, apt_irn2, apt_irontiger, apt_ke3chang, apt_keyboy, apt_kimsuky, apt_lazarus, apt_leafminer, apt_lotusblossom, apt_luckymouse, apt_lyceum, apt_machete, apt_magichound, apt_menupass, apt_middleeast, apt_miniduke, apt_mudcarp, apt_muddywater, apt_mustangpanda, apt_naikon, apt_nettraveler, apt_newsbeef, apt_oceanlotus, apt_oilrig, apt_packrat, apt_patchwork, apt_pegasus, apt_pkplug, apt_platinum, apt_pokingthebear, apt_potao, apt_quarian, apt_quasar, apt_rancor, apt_reaper, apt_redbaldknight, apt_redoctober, apt_rnexus, apt_rocketman, apt_sandworm, apt_sauron, apt_scanbox, apt_scarcruft, apt_scarletmimic, apt_scieron, apt_sectora05, apt_shamoon, apt_shiqiang, apt_sidewinder, apt_silence, apt_simbaa, apt_snowman, apt_sobaken, apt_sofacy, apt_stealthfalcon, apt_stolenpencil, apt_stonedrill, apt_strongpity, apt_stuxnet, apt_ta2101, apt_ta428, apt_ta555, apt_tajmahal, apt_telebots, apt_tempperiscope, apt_temptingcedar, apt_tibet, apt_tick, apt_tortoiseshell, apt_transparenttribe, apt_turla, apt_tvrms, apt_unclassified, apt_volatilecedar, apt_weakestlink, apt_webky, apt_whitecompany, apt_wickedpanda, apt_windshift, apt_wirte, arcane, arec, ares, arkei, artro, aspire, asruex, astaroth, astrobot, asyncrat, athenagorat, atilla, atm_dispcash, atomlogger, attor, aurora, autoit, avalanche, avemaria, avrecon, axpergle, azorult, babybot, babyshark, bachosens, backnet, badblock, badrabbit, balamid, baldr, balkanrat, bamital, bandook, bankapol, bankerflux, bankpatch, banload, banprox, banwarum, barys, bayrob, beamwinhttp, beapy, bebloh, bedep, beebone, belonard, betabot, bezigaterat, biskvit, bitpaymer, bitshifter, blackmoon, blacknet, blacknixrat, blackrat, blackshades, blacksquid, blackworm, blockbuster, bluebananarat, bluebot, bluecrab, bobax, bolek, bolik, bondat, bondnet, borr, bot_mikrotik, bozokrat, bredolab, breut, brushaloader, bubnix, bucriv, buer, bulehero, bunitu, buran, buterat, butter, cactustorch, calfbot, camerashy, cannibalrat, capturatela, carberp, cardinalrat, casbaneiro, ccleaner_backdoor, ceidpagelock, cerber, chainshot, changeup, chanitor, chasebot, cheshire, chewbacca, chinachopper, chisbur, chthonic, cirenegrat, clientmeshrat, clipsa, cloudatlas, coalabot, cobalt, cobint, cometer, conficker, contopee, corebot, cotxrat, couponarific, criakl, cridex, crilock, crimsonrat, cryakl, crylocker, cryptbot, cryptfile2, cryptinfinite, cryptodefense, cryptolocker, cryptowall, cryptxxx, ctblocker, cutwail, cybergaterat, cythosia, dailyscriptlet, damoclis, danabot, dangerous, danji, darkcloud, darkcrystalrat, darkgate, darkrat, darkshell, darkware, dcrat, defru, delshad, denizkizi, deprimon, destory, dexter, dharma, diamondfoxrat, dimnie, dircrypt, dirtjumper, dmalocker, dmsniff, dnsbirthday, dnschanger, dnstrojan, dofoil, domen, dorifel, dorkbot, dorshel, dorv, drahma, drapion, dridex, dropnak, dualtoy, dupzom, dursg, dyreza, elf_aidra, elf_amnesiark, elf_billgates, elf_chalubo, elf_chinaz, elf_coinminer, elf_darlloz, elf_ddosman, elf_dofloo, elf_ekoms, elf_emptiness, elf_evilgnome, elf_gafgyt, elf_generic, elf_groundhog, elf_hacked_mint, elf_hajime, elf_hellobot, elf_hiddenwasp, elf_hideseek, elf_httpsd, elf_iotreaper, elf_kaiten, elf_kerberods, elf_lady, elf_mayhem, elf_mirai, elf_mokes, elf_mumblehard, elf_openssh_backdoorkit, elf_pacha, elf_pasteminer, elf_pinscan, elf_qbot, elf_ransomware, elf_rekoobe, elf_roboto, elf_routex, elf_shelldos, elf_skidmap, elf_slexec, elf_sshdoor, elf_sshscan, elf_themoon, elf_torii, elf_tunpot, elf_turla, elf_vpnfilter, elf_xbash, elf_xnote, elf_xorddos, elpman, emdivi, emogen, emotet, empirerat, eredel, escelar, esfur, evilbunny, evilgrab, evilnum, evoltinpos, evrial, expiro, fakben, fakeadobe, fakeav, fakeran, fantom, fareit, farseer, fastloader, fbi_ransomware, felixhttp, fiexp, fignotok, filespider, fin4, fin6, fin7, fin8, fin9, finderbot, findpos, floxif, fnumbot, fobber, formbook, fox, frankenstein, fraudload, fruitfly, ftcode, fudcrypt, fynloski, fysna, gamapos, gandcrab, gaudox, gauss, gbot, generic, germanwiper, gh0strat, ghostdns, ghost_miner, glitchpos, globeimposter, glupteba, gobotkr, gobrut, godzilla, goldbrute, golroted, gootkit, grandoreiro, grand, gravityrat, greamerat, gruntstager, gtbot, guildma, hacking_team, harnig, hawkball, hawkeye, helompy, heodo, hiddenbeer, hiddenbee, hiddencobra, hiddentear, hiloti, hinired, hisoka, hollow_miner, honeybee, hoplight, houdini, huntpos, hvncrat, hydracrypt, hydseven, icedid, imminentrat, immortal, infinityrat, injecto, innfirat, investimer, invisimole, ios_keyraider, ios_muda, ios_oneclickfraud, ios_realtimespy, ios_specter, ios_xcodeghost, iron, ismdoor, isodisk, ispy, isr, jackpos, jacksbot, jasperloader, javarat, jigsaw, jrat, jripbot, jsoutprox, jssloader, karkoff, kasidet, kazy, kbot, kegotip, keitaro, kelihos, keybase, khrat, killrabbit, killua, king_miner, kingslayer, kjw0rm, kolab, konni, koobface, korgo, korplug, kovter, kpot, kradellsh, kromagent, kronos, krown, krugbot, krypton, kuago_miner, kulekmoko, l0rdix, ladon, lampion, latentbot, legion_loader, limerat, litehttp, loadpcbanker, lockbit, locked, locky, loda, lokibot, lollipop, loocipher, loopbackrat, lostdoorrat, loud_miner, lucifer, luckycat, lucky, luminositylinkrat, luoxk, luxnetrat, mado_miner, magicpos, magniber, majikpos, mambashim, mamo, manabot, mancsyn, mandaph, maplebot, marap, mariposa, marmoolak, marsjoke, marut, masad, mastermana, matrix, matsnu, maze, mdrop, mebroot, medbot, medusahttp, megacortex, megalodonhttprat, megaopac, megumin, mekotio, mercurybot, mestep, metamorfo, midie, milkyboy, millionware, minedoor, minotaur, misogow, mispadu, miuref, modirat, modpos, monero_backdoor, monsterinstall, moonlight, moreeggs, morto, morty, mozart, muhstik, mysticalnet, nampohyu, nanocore, nbot, necurs, neko, nemeot, nemty, nemucod, neonwallet, neshuta, nestrat, netsupport, netwire, neutrinopos, newddosbot, newpos, nexlogger, ngioweb, nigelthorn, nionspy, nitol, nivdort, njrat, nodersok, nonbolqu, notpetya, notrobin, novaloader, novel_miner, novobot, novter, nozelesn, nucleartor, nuqel, nwt, nymaim, nymeria, obliquerat, odcodc, oficla, onkods, optima, orcusrat, oski, ostap, osx_bundlore, osx_coinminer, osx_coldroot, osx_generic, osx_gmera, osx_imuler, osx_keranger, osx_keydnap, osx_linker, osx_lol, osx_loselose, osx_macspy, osx_mami, osx_mokes, osx_mughthesec, osx_proton, osx_salgorea, osx_shlayer, osx_trikster, osx_wirelurker, padcrypt, pandabanker, paradoxrat, parallax, parasitehttprat, patchbrowse, paycrypt, pcastle, pcshare, pdfjsc, pepperat, peppyrat, perl_shellbot, perseusrat, petya, pghost, phoenix, phorpiex, photo_miner, phpstudyghost, phytob, picgoo, pift, pinkslipbot, pipka, piratematryoshka, piritebot, plasmarat, plead, plugx, plurox, poisonivy, poisonrat, ponmocup, poshcoder, pots, powelike, powerpool, powershell_injector, predatory, proced, propagate, prorat, proslikefan, prostoclipper, prostoloader, protonbot, prowli, proxyback, psixbot, punisherrat, pupyrat, purplefox, pushdo, pykspa, pyleet, pylocky, pypi_backdoor, pyrogenic, python_brost, python_injector, python_xwo, pyxierat, qakbot, qeallerrat, qrat, quadagent, quantloader, quasarrat, qulab, qwertminer, raasberry, raccoon, ragnarok, rajump, rakhni, ramdo, ramnit, ranion, ransirac, ransomed, rarog, razy, reactorbot, reaver, redaman, rediswannamine, redsip, reductor, remcos, remexirat, renocide, revcoderat, revengerat, reveton, revetrat, rincux, rmsrat, rombertik, rovnix, rozena, rtm, rubella, ruby_backdoor, ruftar, runforestrun, rustock, ryuk, saefkorat, sage, sakabota, sakari, sakurel, sality, samsam, sanny, satana, sathurbot, scanbox, scarcruft, scranos, sdbot, seaduke, sectoprat, sefnit, selfdel, severe, shadownet, shadowtechrat, shelma, shifu, shimrat, shiotob, shurl0ckr, shylock, siesta, silentbrute, silly, simda, sinkhole_360netlab, sinkhole_abuse, sinkhole_arbor, sinkhole_bitdefender, sinkhole_bitsight, sinkhole_blacklab, sinkhole_bomccss, sinkhole_botnethunter, sinkhole_certgovau, sinkhole_certpl, sinkhole_changeip, sinkhole_checkpoint, sinkhole_cirtdk, sinkhole_cncert, sinkhole_collector, sinkhole_conficker, sinkhole_cryptolocker, sinkhole_dnssinkhole, sinkhole_doombringer, sinkhole_drweb, sinkhole_dynadot, sinkhole_dyre, sinkhole_farsight, sinkhole_fbizeus, sinkhole_fireeye, sinkhole_fitsec, sinkhole_fnord, sinkhole_fraunhofer, sinkhole_gamaredon, sinkhole_gameoverzeus, sinkhole_georgiatech, sinkhole_gladtech, sinkhole_hyas, sinkhole_infosecjp, sinkhole_kaspersky, sinkhole_kryptoslogic, sinkhole_menupass, sinkhole_microsoft, sinkhole_noip, sinkhole_nowdns, sinkhole_oceanlotus, sinkhole_opendns, sinkhole_rsa, sinkhole_secureworks, sinkhole_securityscorecard, sinkhole_shadowserver, sinkhole_sidnlabs, sinkhole_sinkdns, sinkhole_sobaken, sinkhole_sofacy, sinkhole_spamandabuse, sinkhole_sugarbucket, sinkhole_supportintel, sinkhole_switch, sinkhole_tech, sinkhole_torpig, sinkhole_tsway, sinkhole_turla, sinkhole_unknown, sinkhole_vicheck, sinkhole_virustracker, sinkhole_vittalia, sinkhole_wapacklabs, sinkhole_xaayda, sinkhole_yourtrap, sinkhole_zinkhole, skeeyah, skidrat, skynet, skyper, slenfbot, sload, slserver, smallnetrat, smokebot, smokeloader, smominru, smsfakesky, snatch, snifula, snslocker, sockrat, sodinokibi, sohanad, sonoko, sorano, spideybot, spybotpos, spyeye, spygaterat, stabuniq, stantinko, stealzilla, strictor, supremebot, surtr, susafone, svproxy, swamprat, symmi, syndicasec, synolocker, syscon, sysrat, systembc, systemd_miner, sysworm, t1087, ta505, tables, taskmasters, tdss, teambot, teamspy, teerac, telebots, telegrab, terracotta, teslacrypt, tflower, tinba, tinynuke, tinypos, tofsee, tor_backdoor, torpig, torrentlocker, tovkater, travle, treasurehunter, trickbot, troldesh, tron, tscookie, tuhkit, tupym, turkojanrat, tvrat, tvspy, udpos, unruy, up007, upatre, urausy, urlzone, ursnif, vaimalandra, varenyky, vawtrak, vbcheman, vbrat, vidar, viknok, vinderuf, virobot, virtum, virusrat, virut, vittalia, vjw0rm, vobfus, vssdestroy, vundo, wacatac, waledac, wallyshack, wannacry, wannamine, waprox, warezov, webcobra, wecorl, wecoym, weecnaw, whiteshadow, wildfire, winnti, wndred, wofeksad, wolfresearch, wp-vcd, xadupi, xenotix, xpay, xshark, xtbl, xtrat, yenibot, yimfoca, yoursqldumps, zaletelly, zcrypt, zegost, zemot, zeroaccess, zeropadypt, zeus, zherotee, zlader, zloader, zlob, zombieboy, zombrari, zonidel, zusy, zxshell, zyklon, etc.
Maltrail is based on the Traffic -> Sensor <-> Server <-> Client architecture. Sensor(s) is a standalone component running on the monitoring node (e.g. Linux platform connected passively to the SPAN/mirroring port or transparently inline on a Linux bridge) or at the standalone machine (e.g. Honeypot) where it "monitors" the passing Traffic for blacklisted items/trails (i.e. domain names, URLs and/or IPs). In case of a positive match, it sends the event details to the (central) Server where they are being stored inside the appropriate logging directory (i.e.
LOG_DIR described in the Configuration section). If Sensor is being run on the same machine as Server (default configuration), logs are stored directly into the local logging directory. Otherwise, they are being sent via UDP messages to the remote server (i.e.
LOG_SERVER described in the Configuration section).
Server's primary role is to store the event details and provide back-end support for the reporting web application. In default configuration, server and sensor will run on the same machine. So, to prevent potential disruptions in sensor activities, the front-end reporting part is based on the "Fat client" architecture (i.e. all data post-processing is being done inside the client's web browser instance). Events (i.e. log entries) for the chosen (24h) period are transferred to the Client, where the reporting web application is solely responsible for the presentation part. Data is sent toward the client in compressed chunks, where they are processed sequentially. The final report is created in a highly condensed form, practically allowing presentation of virtually unlimited number of events.
Note: Server component can be skipped altogether, and just use the standalone Sensor. In such case, all events would be stored in the local logging directory, while the log entries could be examined either manually or by some CSV reading application.
The following set of commands should get your Maltrail Sensor up and running (out of the box with default settings and monitoring interface "any"):
- For Debian/Ubuntu
sudo apt-get install git python-pcapy git clone --depth 1 https://github.com/stamparm/maltrail.git cd maltrail sudo python sensor.py
- For SUSE/openSUSE
sudo zypper install gcc gcc-c++ git libpcap-devel python-devel python2-pip sudo pip2 install pcapy git clone --depth 1 https://github.com/stamparm/maltrail.git cd maltrail sudo python sensor.py
To start the (optional) Server on same machine, open a new terminal and execute the following:
[[ -d maltrail ]] || git clone --depth 1 https://github.com/stamparm/maltrail.git cd maltrail python server.py
To test that everything is up and running execute the following:
ping -c 1 184.108.40.206 cat /var/log/maltrail/$(date +"%Y-%m-%d").log
Also, to test the capturing of DNS traffic you can try the following:
nslookup morphed.ru cat /var/log/maltrail/$(date +"%Y-%m-%d").log
To stop Sensor and Server instances (if running in background) execute the following:
sudo pkill -f sensor.py pkill -f server.py
Access the reporting interface (i.e. Client) by visiting the http://127.0.0.1:8338 (default credentials:
admin:changeme!) from your web browser:

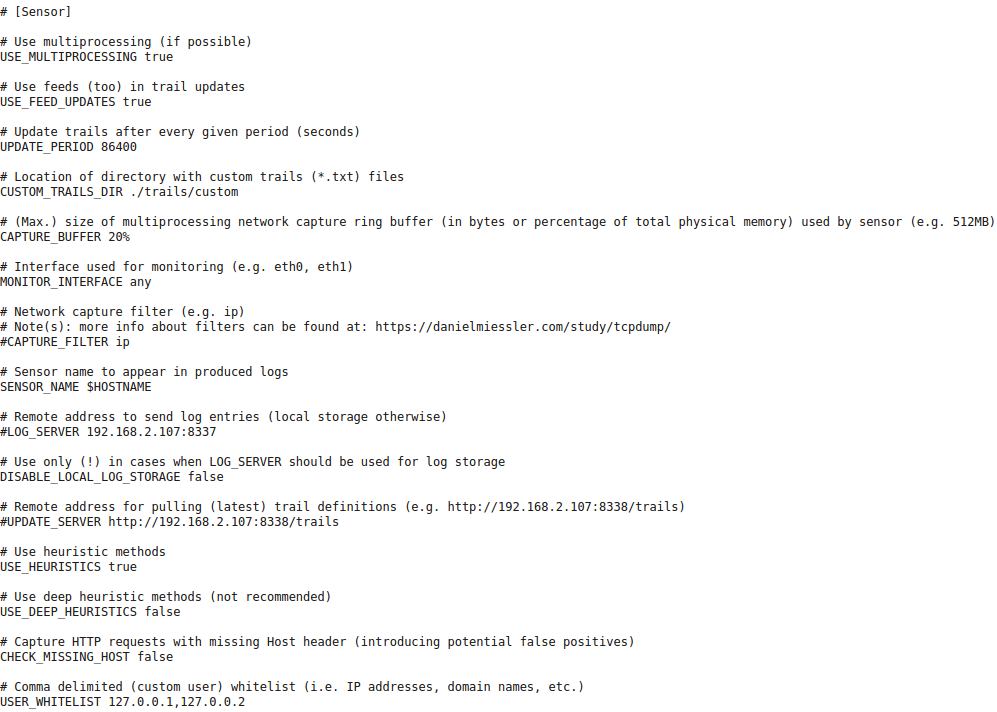

Sensor's configuration can be found inside the
maltrail.conf file's section
USE_MULTIPROCESSING is set to
true then all CPU cores will be used. One core will be used only for packet capture (with appropriate affinity, IO priority and nice level settings), while other cores will be used for packet processing. Otherwise, everything will be run on a single core. Option
USE_FEED_UPDATES can be used to turn off the trail updates from feeds altogether (and just use the provided static ones). Option
UPDATE_PERIOD contains the number of seconds between each automatic trails update (Note: default value is set to
86400 (i.e. one day)) by using definitions inside the
trails directory (Note: both Sensor and Server take care of the trails update). Option
CUSTOM_TRAILS_DIR can be used by user to provide location of directory containing the custom trails (
USE_HEURISTICS turns on heuristic mechanisms (e.g.
long domain name (suspicious),
excessive no such domain name (suspicious),
direct .exe download (suspicious), etc.), potentially introducing false positives. Option
CAPTURE_BUFFER presents a total memory (in bytes of percentage of total physical memory) to be used in case of multiprocessing mode for storing packet capture in a ring buffer for further processing by non-capturing processes. Option
MONITOR_INTERFACE should contain the name of the capturing interface. Use value
any to capture from all interfaces (if OS supports this). Option
CAPTURE_FILTER should contain the network capture (
tcpdump) filter to skip the uninteresting packets and ease the capturing process. Option
SENSOR_NAME contains the name that should be appearing inside the events
sensor_name value, so the event from one sensor could be distinguished from the other. If option
LOG_SERVER is set, then all events are being sent remotely to the Server, otherwise they are stored directly into the logging directory set with option
LOG_DIR, which can be found inside the
maltrail.conf file's section
[All]. In case that the option
UPDATE_SERVER is set, then all the trails are being pulled from the given location, otherwise they are being updated from trails definitions located inside the installation itself.
When running the sensor (e.g.
sudo python sensor.py) for the first time and/or after a longer period of non-running, it will automatically update the trails from trail definitions (Note: stored inside the
trails directory). After the initialization, it will start monitoring the configured interface (option
MONITOR_INTERFACE inside the
maltrail.conf) and write the events to either the configured log directory (option
LOG_DIR inside the
maltrail.conf file's section
[All]) or send them remotely to the logging/reporting Server (option
Detected events are stored inside the Server's logging directory (i.e. option
LOG_DIR inside the
maltrail.conf file's section
[All]) in easy-to-read CSV format (Note: whitespace ' ' is used as a delimiter) as single line entries consisting of:
"2015-10-19 15:48:41.152513" beast 192.168.5.33 32985 220.127.116.11 53 UDP DNS 0000mps.webpreview.dsl.net malicious siteinspector.comodo.com):
Server's configuration can be found inside the
HTTP_ADDRESS contains the web server's listening address (Note: use
0.0.0.0 to listen on all interfaces). Option
HTTP_PORT contains the web server's listening port. Default listening port is set to
8338. If option
USE_SSL is set to
SSL/TLS will be used for accessing the web server (e.g.
https://192.168.6.10:8338/). In that case, option
SSL_PEM should be pointing to the server's private/cert PEM file.
USERS contains user's configuration settings. Each user entry consists of the
UID represents the unique user identifier, where it is recommended to use values lower than 1000 for administrative accounts, while higher value for non-administrative accounts. The part
filter_netmask(s) represents the comma-delimited hard filter(s) that can be used to filter the shown events depending on the user account(s). Default entry is as follows:
UDP_ADDRESS contains the server's log collecting listening address (Note: use
0.0.0.0 to listen on all interfaces), while option
UDP_PORT contains listening port value. If turned on, when used in combination with option
LOG_SERVER, it can be used for distinct (multiple) Sensor <-> Server architecture.
FAIL2BAN_REGEX contains the regular expression (e.g.
attacker|reputation|potential[^"]*(web scan|directory traversal|injection|remote code)) to be used in
/fail2ban web calls for extraction of today's attacker source IPs. This allows the usage of IP blocking mechanisms (e.g.
ipset) by periodic pulling of blacklisted IP addresses from remote location. Example usage would be the following script (e.g. run as a
root cronjob on a minute basis):
#!/bin/bash ipset -q flush maltrail ipset -q create maltrail hash:net for ip in $(curl http://127.0.0.1:8338/fail2ban 2>/dev/null | grep -P '^[0-9.]+$'); do ipset add maltrail $ip; done iptables -I INPUT -m set --match-set maltrail src -j DROP
Same as for Sensor, when running the Server (e.g.
python server.py) for the first time and/or after a longer period of non-running, if option
USE_SERVER_UPDATE_TRAILS is set to
true, it will automatically update the trails from trail definitions (Note: stored inside the
trails directory). Its basic function is to store the log entries inside the logging directory (i.e. option
LOG_DIR inside the
maltrail.conf file's section
[All]) and provide the web reporting interface for presenting those same entries to the end-user (Note: there is no need install the 3rd party web server packages like Apache):
When entering the Server's reporting interface (i.e. via the address defined by options
HTTP_PORT), user will be presented with the following authentication dialog. User has to enter the proper credentials that have been set by the server's administrator inside the configuration file
maltrail.conf (Note: default credentials are
Once inside, user will be presented with the following reporting interface:
The top part holds a sliding timeline (Note: activated after clicking the current date label and/or the calendar icon ) where user can select logs for past events (Note: mouse over event will trigger display of tooltip with approximate number of events for current date). Dates are grouped by months, where 4 month period of data are displayed inside the widget itself. However, by using the provided slider (i.e. ) user can easily access events from previous months.
Once clicking the date, all events for that particular date should be loaded and represented by the client's web browser. Depending on number of events and the network connection speed, loading and display of logged events could take from couple of seconds, up to several minutes (e.g. 100,000 events takes around 5 seconds in total). For the whole processing time, animated loader will be displayed across the disabled user interface:
Middle part holds a summary of displayed events.
Events box represents total number of events in a selected 24-hour period, where red line represents IP-based events, blue line represents DNS-based events and yellow line represents URL-based events.
Sources box represents number of events per top sources in form of a stacked column chart, with total number of sources on top.
Threats box represents percentage of top threats in form of a pie chart (Note: gray area holds all threats having each <1% in total events), with total number of threats on top.
Trails box represents percentage of top trails in form of a pie chart (Note: gray area holds all trails having each <1% in total events), with total number of trails on top. Each of those boxes are active, hence the click on one of those will result with a more detailed graph.
Bottom part holds a condensed representation of logged events in form of a paginated table. Each entry holds details for a single threat (Note: uniquely identified by a pair
(src_ip, trail) or
(dst_ip, trail) if the
src_ip is the same as the
trail as in case of attacks coming from the outside):
threat holds threat's unique ID (e.g.
85fdb08d) and color (Note: extruded from the threat's ID),
sensor holds sensor name(s) where the event has been triggered (e.g.
events holds total number of events for a current threat,
severity holds evaluated severity of threat (Note: calculated based on values in
reference columns, prioritizing malware generated traffic),
first_seen holds time of first event in a selected (24h) period (e.g.
last_seen holds time of last event in a selected (24h) period (e.g.
sparkline holds a small sparkline graph representing threat's activity in selected period,
src_ip holds source IP(s) of a threat (e.g.
src_port holds source port(s) (e.g.
44556, 44589, 44601),
dst_ip holds destination IP(s) (e.g.
dst_port holds destination port(s) (e.g.
proto holds protocol(s), (e.g.
trail holds a blacklisted (or heuristic) entry that triggered the event(s),
info holds more information about the threat/trail (e.g.
known attacker for known attacker's IP addresses or
ipinfo for known IP information service commonly used by malware during a startup),
reference holds a source of the blacklisted entry (e.g.
(static) for static trails or
myip.ms for a dynamic feed retrieved from that same source) and
tags holds user defined tags for a given trail (e.g.
When moving mouse over
dst_ip table entries, information tooltip is being displayed with detailed reverse DNS and WHOIS information (Note: RIPE is the information provider):
Event details (e.g.
proto, etc.) that differ inside same threat entry are condensed in form of a bubble icon (i.e. ). This is performed to get an usable reporting interface with as less rows as possible. Moving mouse over such icon will result in a display of an information tooltip with all items held (e.g. all port numbers being scanned by
Clicking on one such icon will open a new dialog containing all stored items (Note: in their uncondensed form) ready to be Copy-Paste(d) for further analysis:
When hovering mouse pointer over the threat's trail for couple of seconds it will result in a frame consisted of results using the trail as a search term performed against DuckDuckGo search engine. In lots of cases, this provides basic information about the threat itself, eliminating the need for user to do the manual search for it. In upper right corner of the opened frame window there are two extra buttons. By clicking the first one (i.e. ), the resulting frame will be opened inside the new browser's tab (or window), while by clicking the second one (i.e. ) will immediately close the frame (Note: the same action is achieved by moving the mouse pointer outside the frame borders):
For each threat there is a column
tag that can be filled with arbitrary "tags" to closely describe all threats sharing the same trail. Also, it is a great way to describe threats individually, so all threats sharing the same tag (e.g.
yahoo) could be grouped out later:
In the following section some of the "usual suspects" scenarios will be described through the real-life cases.
Mass scans is a fairly common phenomenon where individuals and/or organizations give themselves a right to scan the whole 0.0.0.0/0 IP range (i.e. whole Internet) on a daily basis, with disclaimer where they say that if you don't like it then you should contact them privately to be skipped from future scans.
To make stuff worse, organizations as Shodan and ZoomEye give all results freely available (to other potential attackers) through their search engine. In the following screenshots you'll see details of Shodan scans in one single day.
Here is a reverse DNS and WHOIS lookup of the "attacker"'s address:
When hovering mouse pointer over the
trail column's content (IP address), you'll be presented with the search results from DuckDuckGo where you'll be able to find more information about the "attacker" (i.e. Shodan):

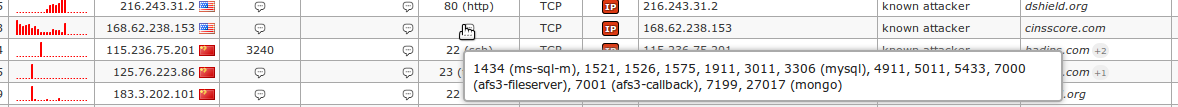

dst_port column you'll be able to see all ports that have been scanned by such mass scans:
In other similar situations you'll see the same behaviour, coming from blacklisted individual attacker(s) (in this case by cinsscore.com):
One more common behaviour is scanning of the whole 0.0.0.0/0 IP range (i.e. Internet) in search for one particular port (e.g. TCP port 443 when Heartbleed has been found). In the following screenshot you'll find one such case for previously blacklisted attacker(s) (in this case by alienvault.com and two other blacklists) targeting the UDP port 5060 (i.e. SIP) in search for misconfigured VoIP devices:
To spot the potential attackers hidden behind the Tor anonymity network, Maltrail utilizes publicly available lists of Tor exit nodes. In the following screenshot you'll see a case where potential attacker has been utilizing the Tor network to access the web target (over HTTP) in our organization's range in suspicious way (total 171 connection requests in 10 minutes):
Fairly similar case to the previous one is when previously blacklisted attacker tries to access particular (e.g. non-HTTP(s)) service in our organization's range in rather suspicious way (i.e. total 1513 connection attempts in less than 15 minutes):
If we enter the
ssh attacker to the
Filter field, we'll be able to see all similar occurrences for that day, but in this case for port 22 (i.e. SSH):
In case of connection attempts coming from infected computers inside our organization toward already known C&C servers, you'll be able to find threats similar to the following (in this case Beebone):
In the following case file downloads from blacklisted (in this case by malwarepatrol.net) URL(s) have occurred:
If we enter the particular malware name (in this case Ramnit) into the
Filter field, only threats that are known to be linked to this malware will be filtered in (showing you all affected internal computers):

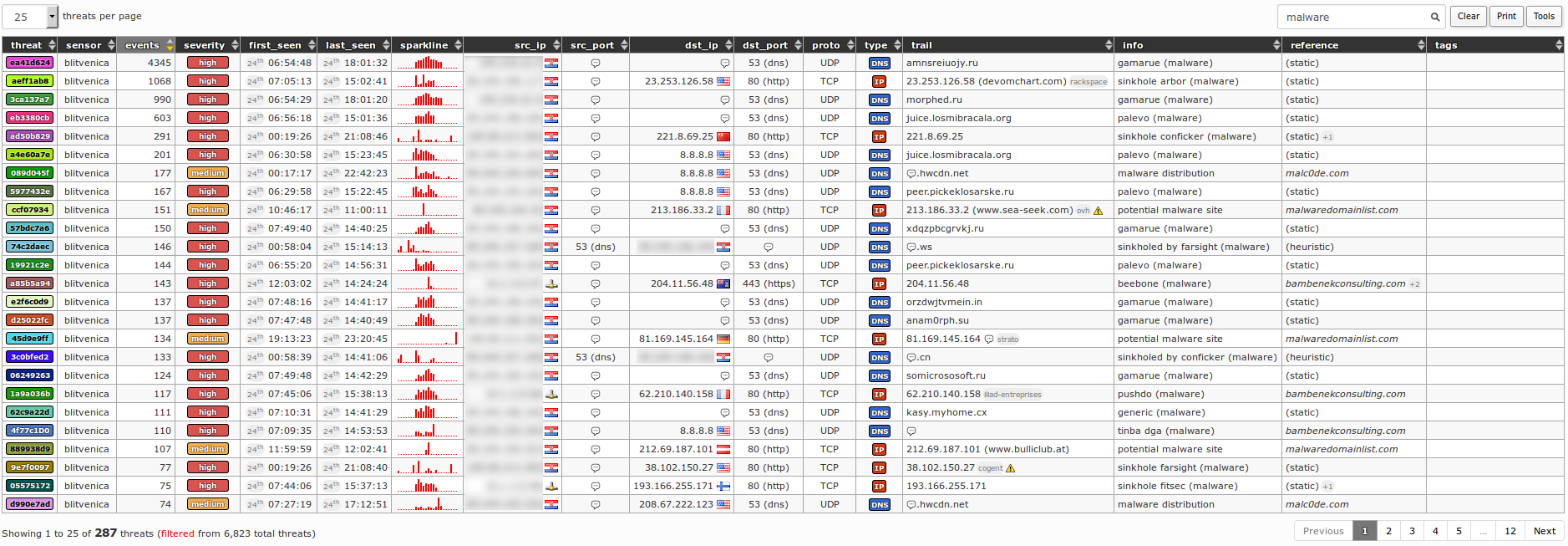

More generally, if we enter the
malware into the
Filter field, all threats that have been found by malware(-related) trails (e.g.
IP addresses) will be filtered in:
Suspicious domain lookups
Maltrail uses the static list of TLD domains that are known to be commonly involved in suspicious activities. Most such TLD domains are coming from free domain registrars (e.g. Freenom), hence they should be under greater scrutiny. In the following screenshot we can find a case where one such TLD domain
.cm has been used by unknown malware using the DGA algorithm to contact its C&C server(s):
There are also cases when perfectly valid TLD domains (e.g.
.ru) are used for suspicious activities, such in this case (e.g.
long domain name (suspicious)) where the domains are obviously DGA generated by unknown malware:

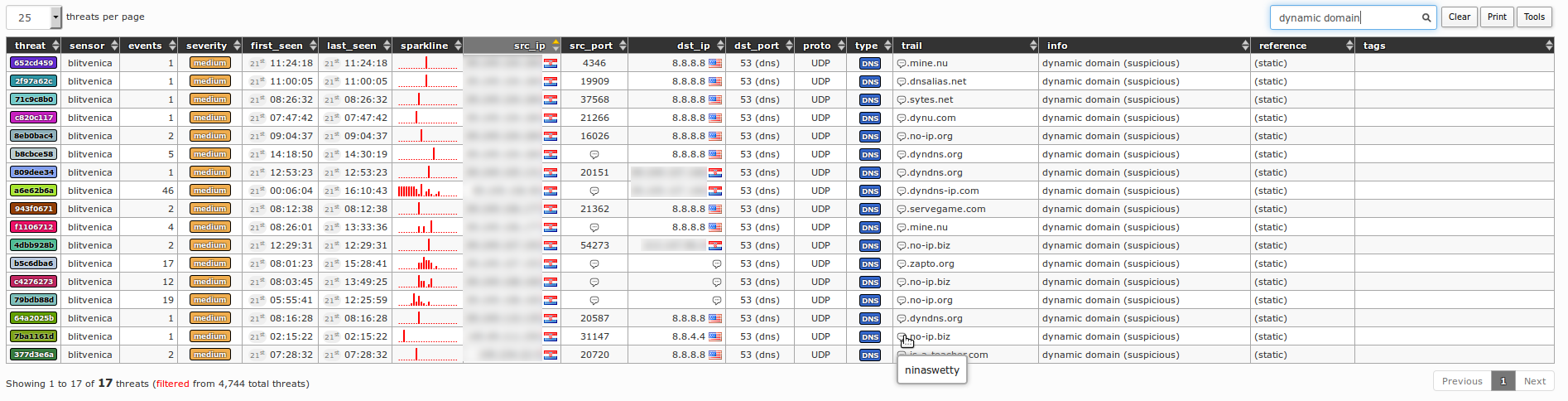

Maltrail uses static list of so-called "dynamic domains" that are often used in suspicious activities (e.g. for malware C&C servers that often change the destination's IP addresses):
Also, Maltrail uses static list of "onion"-related domains that are also often used in suspicious activities (e.g. malware contacting C&C servers by using Tor2Web service(s)):
In case of old and/or obsolete malware that sits undetected on organization's infected internal computers, there is often a "phenomenon" where malware continuously tries to contact the long dead C&C server's domain without any DNS resolution. Hence, those kind of (potential) threats will be marked as
excessive no such domain (suspicious):
In case that one trail is responsible for too many threats (e.g. in case of fake source IPs like in DNS amplification attacks), all similar threats will be grouped under a single
flood threat (Note: threat's ID will be marked with suffix
F0), like in the following example:
Suspicious ipinfo requests
Lots of malware uses some kind of
ipinfo service (e.g. ipinfo.io) to find out the victim's Internet IP address. In case of regular and especially in out-of-office hours, those kind of requests should be closely monitored, like in the following example:
By using filter
ipinfo all potentially infected computers in our organization's range can be listed that share this kind of suspicious behaviour:
Suspicious direct file downloads
Maltrail tracks all suspicious direct file download attempts (e.g.
.xpi file extensions). This can trigger lots of false positives, but eventually could help in reconstruction of the chain of infection (Note: legitimate service providers, like Google, usually use encrypted HTTPS to perform this kind of downloads):
Suspicious HTTP requests
In case of suspicious requests coming from outer web application security scanners (e.g. searching for SQLi, XSS, LFI, etc. vulnerabilities) and/or the internal user malicious attempts toward unknown web sites, threats like the following could be found (real case of attackers trying to exploit Joomla! CMS CVE-2015-7297, CVE-2015-7857, and CVE-2015-7858 vulnerabilities):
In following example, web application vulnerability scan has been marked as "suspicious":
In the following screenshot, a run of popular SQLi vulnerability tool sqlmap can be found inside our logs:
In case of too many connection attempts toward considerable amount of different TCP ports, Maltrail will warn about the potential port scanning, as a result of its heuristic mechanism detection. It the following screenshot such warning(s) can be found for a run of popular port scanning tool nmap:
DNS resource exhaustion
One popular DDoS attack against the web server(s) infrastructure is the resource exhaustion of its (main) DNS server by making valid DNS recursion queries for (pseudo)random subdomain names (e.g.
Miscellaneous programs (especially mobile-based) present malware(-like) behaviour where they send potentially sensitive data to the remote beacon posts. Maltrail will try to capture such behaviour like in the following example:
Like in all other security solutions, Maltrail is prone to "false positives". In those kind of cases, Maltrail will (especially in case of
suspicious threats) record a regular user's behaviour and mark it as malicious and/or suspicious. In the following example it can be seen that a blacklist feed provider
blocklist.de marked regular Google server as
attacker(s), resulting with the following threat:
By hovering mouse over the trail, frame with results from DuckDuckGo search show that this is a regular Google's server:
As another example, access to regular
.work domains (popular TLD for malicious purposes) resulted with the following threat:
Nevertheless, administrator(s) should invest some extra time and check (with other means) whether the "suspicious" means malicious or not, as in the following example:
To properly run the Maltrail, Python 2.6, 2.7 or 3.x is required, together with pcapy (e.g.
sudo apt-get install python-pcapy). There are no other requirements, other than to run the Sensor component with the administrative/root privileges.
- Install Maltrail:
On Debian/Ubuntu Linux OS
sudo apt-get install git python-pcapy cd /tmp git clone --depth 1 https://github.com/stamparm/maltrail.git sudo mv /tmp/maltrail /opt sudo chown -R $USER:$USER /opt/maltrail
On SUSE/openSUSE Linux OS
sudo zypper install gcc gcc-c++ git libpcap-devel python-devel python2-pip sudo pip2 install pcapy cd /tmp git clone --depth 1 https://github.com/stamparm/maltrail.git sudo mv /tmp/maltrail /opt sudo chown -R $USER:$USER /opt/maltrail
Set working environment:
sudo mkdir -p /var/log/maltrail sudo mkdir -p /etc/maltrail sudo cp /opt/maltrail/maltrail.conf /etc/maltrail sudo nano /etc/maltrail/maltrail.conf
Set running environment:
crontab -e # autostart server & periodic update
*/5 * * * * if [ -n "$(ps -ef | grep -v grep | grep 'server.py')" ]; then : ; else python /opt/maltrail/server.py -c /etc/maltrail/maltrail.conf; fi 0 1 * * * cd /opt/maltrail && git pull
sudo crontab -e # autostart sensor & periodic restart
*/1 * * * * if [ -n "$(ps -ef | grep -v grep | grep 'sensor.py')" ]; then : ; else python /opt/maltrail/sensor.py -c /etc/maltrail/maltrail.conf; fi 2 1 * * * /usr/bin/pkill -f maltrail
This software is provided under a MIT License. See the accompanying LICENSE file for more information.
- 47th TF-CSIRT Meeting, Prague (Czech Republic), 2016 (slides)
- Maltrail's daily updated blacklist of malware-related domains can be found here. It is based on trails found at trails/static/malware and can be used for DNS traffic blocking purposes.
- Thomas Kristner
- Eduardo Arcusa Les
- James Lay
- Ladislav Baco (@laciKE)
- John Kristoff (@jtkdpu)
- Michael Münz (@mimugmail)
- David Brush
- FreeBSD Port
- OPNSense Gateway Plugin
- D4 Project
- BlackArch Linux
- GScan 1
- MalwareWorld 1
- oisd | domain blocklist 1
- NextDNS 1
1 Using (only) trails
