Cannot use AWS_ROLE_ARN and AWS_WEB_IDENTITY_TOKEN_FILE for S3 Credentials

[aguynamedjoetoo]

Bug report

Describe the bug

When using an IAM role with strapi for the AWS upload plugin, permission is denied when attempting to configure the credentials.

Specifically, in this instance, I am using an IAM role within a pod in kubernetes using IAM Roles for Service Accounts. This automatically injects two env vars: AWS_WEB_IDENTITY_TOKEN_FILE and AWS_ROLE_ARN. I have confirmed for sure these two values exist, additionally I have verified I can perform actions against the named S3 bucket using the AWS cli within the same pod with no issue (or additional configuration needed).

This is using strapi 3.6.1 and strapi-provider-upload-aws-s3 v3.6.3

Steps to reproduce the behavior

1. Configure an IAM role within a kubernetes pod (Realistically, an EC2 instance with an instance profile should provide a similar interface)
2. Configure the s3 plugin with a configuration similar to (Note: I've also confirmed S3_ASSETS_BUCKET is the proper value):

var AWS = require('aws-sdk');

module.exports = ({ env }) => ({
  upload: {
    provider: 'aws-s3',
    providerOptions: {
      credentials: new AWS.TokenFileWebIdentityCredentials(),
      region: env('AWS_REGION') || 'us-west-2',
      params: {
        Bucket: env('S3_ASSETS_BUCKET'),
      },
    },
  },
});

3. Attempt to upload an asset in the strapi admin UI
4. Observe an error in the strapi logs similar to:

[2021-06-11T18:52:13.763Z] [2021-06-11t18:52:13.761z] error AccessDenied: Access Denied
    at Request.extractError (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/services/s3.js:718:35)
    at Request.callListeners (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/sequential_executor.js:106:20)
    at Request.emit (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/sequential_executor.js:78:10)
    at Request.emit (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:688:14)
    at Request.transition (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:22:10)
    at AcceptorStateMachine.runTo (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/state_machine.js:14:12)
    at /srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/state_machine.js:26:10
    at Request.<anonymous> (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:38:9)
    at Request.<anonymous> (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:690:12)
    at Request.callListeners (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/sequential_executor.js:116:18)
    at Request.emit (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/sequential_executor.js:78:10)
    at Request.emit (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:688:14)
    at Request.transition (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:22:10)
    at AcceptorStateMachine.runTo (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/state_machine.js:14:12)
    at /srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/state_machine.js:26:10
    at Request.<anonymous> (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:38:9)
[2021-06-11T18:52:13.764Z] error Error: Internal Server Error
    at convertToStrapiError (/srv/app/node_modules/strapi-plugin-upload/errors.js:38:26)
    at Object.upload (/srv/app/node_modules/strapi-plugin-upload/config/functions/bootstrap.js:35:11)
    at processTicksAndRejections (internal/process/task_queues.js:93:5)
    at async Object.uploadFileAndPersist (/srv/app/node_modules/strapi-plugin-upload/services/Upload.js:154:5)
    at async Promise.all (index 0)
    at async Object.upload (/srv/app/node_modules/strapi-plugin-upload/services/Upload.js:140:12)
    at async uploadFiles (/srv/app/node_modules/strapi-plugin-upload/controllers/upload/admin.js:187:27)
    at async Object.upload (/srv/app/node_modules/strapi-plugin-upload/controllers/Upload.js:65:5)
    at async /srv/app/node_modules/strapi/lib/middlewares/router/utils/routerChecker.js:79:22
    at async /srv/app/node_modules/strapi-utils/lib/policy.js:68:5
    at async /srv/app/node_modules/strapi/lib/middlewares/parser/index.js:48:23
    at async /srv/app/node_modules/strapi/lib/middlewares/xss/index.js:26:9

Expected behavior

Assets are uploaded using the IAM role to the S3 bucket configured.

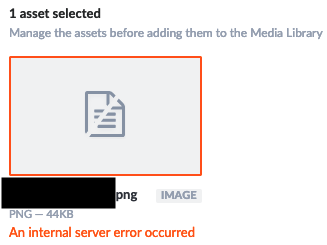

Screenshots

Code snippets

Our plugin config:

var AWS = require('aws-sdk');

module.exports = ({ env }) => ({
  upload: {
    provider: 'aws-s3',
    providerOptions: {
      credentials: new AWS.TokenFileWebIdentityCredentials(),
      region: env('AWS_REGION') || 'us-west-2',
      params: {
        Bucket: env('S3_ASSETS_BUCKET'),
      },
    },
  },
});

System

• Node.js version: v14.15.3 (Based on strapi-base image)
• NPM version: 6.14.9
• Strapi version: 3.6.1
• Database: Postgres
• Operating system: Debian 9 (Based on strapi-base image)

Additional context

The AWS Node SDK seems to indicate these vars should be read in by virtue of using AWS.TokenFileWebIdentityCredentials(): https://docs.aws.amazon.com/AWSJavaScriptSDK/latest/AWS/TokenFileWebIdentityCredentials.html

This class will read filename from AWS_WEB_IDENTITY_TOKEN_FILE environment variable or web_identity_token_file shared config variable, and get the OIDC token from filename. It will also read IAM role to be assumed from AWS_ROLE_ARN environment variable or role_arn shared config variable. This provider gets credetials using the AWS.STS.assumeRoleWithWebIdentity() service operation

For fun and profit, I also tried switching the credentials line to:

      credentialProvider: new AWS.TokenFileWebIdentityCredentials(),

That threw an even more ... interesting... error haha:

[2021-06-11T19:07:58.015Z] error TypeError: self.credentialProvider.resolve is not a function
    at Config.getCredentials (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/config.js:423:31)
    at Request.VALIDATE_CREDENTIALS (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/event_listeners.js:81:26)
    at Request.callListeners (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/sequential_executor.js:102:18)
    at Request.emit (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/sequential_executor.js:78:10)
    at Request.emit (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:688:14)
    at Request.transition (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:22:10)
    at AcceptorStateMachine.runTo (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/state_machine.js:14:12)
    at Request.runTo (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:408:15)
    at Request.send (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/request.js:372:10)
    at ManagedUpload.nextChunk (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/s3/managed_upload.js:487:51)
    at ManagedUpload.fillBuffer (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/s3/managed_upload.js:417:12)
    at ManagedUpload.send (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/s3/managed_upload.js:201:33)
    at features.constructor.upload (/srv/app/node_modules/strapi-provider-upload-aws-s3/node_modules/aws-sdk/lib/services/s3.js:1292:50)
    at /srv/app/node_modules/strapi-provider-upload-aws-s3/lib/index.js:24:14
    at new Promise (<anonymous>)
    at Object.upload (/srv/app/node_modules/strapi-provider-upload-aws-s3/lib/index.js:21:16)
[2021-06-11T19:07:58.016Z] error Error: Internal Server Error
    at convertToStrapiError (/srv/app/node_modules/strapi-plugin-upload/errors.js:38:26)
    at Object.upload (/srv/app/node_modules/strapi-plugin-upload/config/functions/bootstrap.js:35:11)
    at async Object.uploadFileAndPersist (/srv/app/node_modules/strapi-plugin-upload/services/Upload.js:154:5)

[aguynamedjoetoo]

Picking this back up today to try some other things:

Interestingly enough, from within the same pod strapi is running I wrote a stupid simple .js test file to upload an object to the same bucket in question, here's that code:

var AWS = require('aws-sdk');

AWS.config.update({region: 'us-west-2'})

// Create S3 service object
s3 = new AWS.S3({
  apiVersion: '2006-03-01',
  credential: new AWS.TokenFileWebIdentityCredentials(),
  region: 'us-west-2',
  params: {
    Bucket: 'mybucket',
  },
});

s3.upload(
  {
    Key: 'test.txt',
    Body: 'Foobar'
  }, function(err, data) {
    console.log(err, data);
});

This successfully uploads a file to S3, using the role as expected.

[aguynamedjoetoo]

🤦 I'm dumb, this works as intended. I had ACL blocks on my buckets, after reading the plugin code a bit more I noticed this piece:

          S3.upload(
            {
              Key: `${path}${file.hash}${file.ext}`,
              Body: Buffer.from(file.buffer, 'binary'),
              ACL: 'public-read',
              ContentType: file.mime,
              ...customParams,
            },

[strapi-bot]

This issue has been mentioned on Strapi Community Forum. There might be relevant details there:

https://forum.strapi.io/t/how-to-use-aws-s3-provider-with-a-kubernetes-service-account/17863/1
