Using Subutai Blueprints

Alex Karasulu edited this page Jan 31, 2018 · 23 revisions

Blueprints generally specify how P2P cloud applications are installed into Subutai Environments. Blueprints can be published by authors on the Subutai Hub's Bazaar. The Bazaar is a marketplace for Subutai Peer Plugins (used to extend the functionality of a peer) and for blueprints.

There are three ways in which users can trigger the installation of an application:

  1. From the Bazaar when searching for application blueprints
  2. From the GitHub Projects associated with your profile
  3. From an environment's Applications tab: the Add Application button

NOTE: If you want to install into an existing environment you MUST use the third option by navigating to an existing environment and adding the application. See Environment: Applications Tab.

The different ways to install applications using blueprints are explained in detail within the following sections.

Bazaar: Application Blueprints

Authors can publish their application blueprints Subutai Hub's Bazaar. Users can then directly use these blueprints to create new environments with the blueprint's application, or add the application to an existing environments. He's a screenshot of the bazaar:

TODO - screenshot is ancient ... need to update with tabs

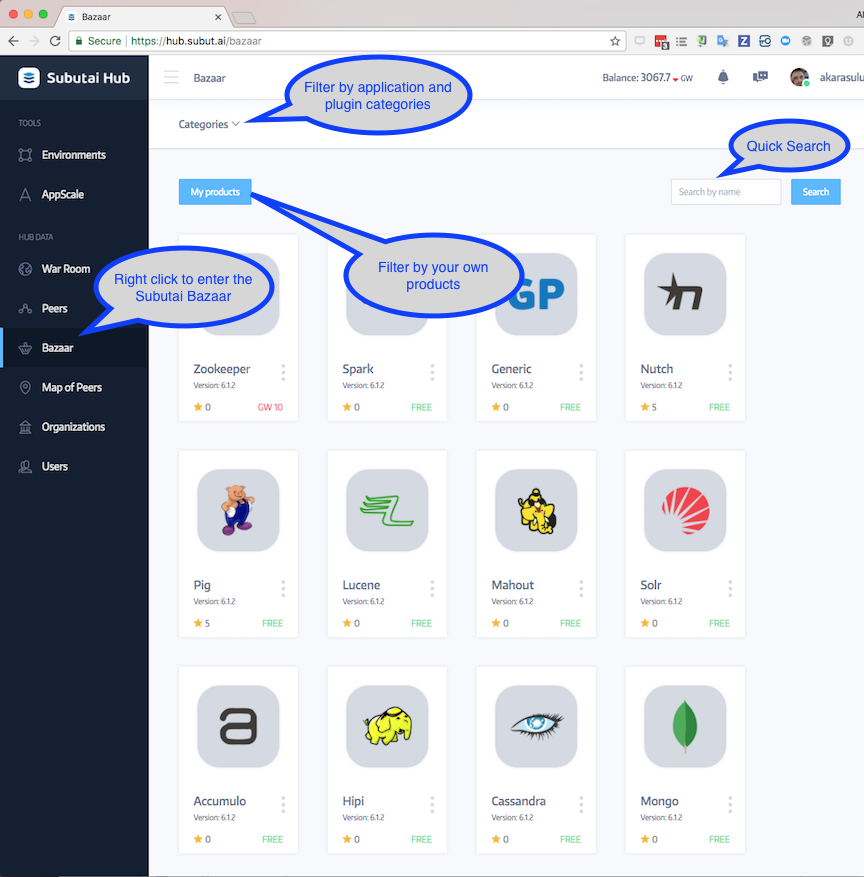

Subutai Bazaar

Blueprint authors can "Publish" their application blueprints on the Bazaar to be used for free or for some Subutai™ GoodWill. All the blueprints are open source so yes this is for sincerely rewarding good deeds. If you wanted to, you could still fork their public repository and use the blueprint privately, but why not contribute back? See the guide on Writing Subutai Blueprints to author and publish your own blueprints. Here's a view of the MatterMost blueprint view at the Bazaar once it is selected:

MatterMost View

Press the Build button to start up the wizard to build either a new environment or install into an existing one.

The Blueprint Wizard

When you select a blueprint to install an application, a wizard will guide you through the application installation process. Blueprints can interact with users through the wizard to get additional information almost like a traditional installer. Blueprint authors can use custom variables to parameterize the installation of the p2p cloud application. Based on values provided from the user, the installation occurs differently or configures itself differently. Here's a screenshot of the wizard while installing MatterMost:

Blueprint Wizard: MatterMost Installation

Initial Peers

When installing a blueprint application users are presented with an initial list of peers from all the available peers on the system. These are peers selected by constraints specified by the application author who knows a thing or two about the needs of the application. Don't worry you can adapt the environment as you please later on or just select your own peers which are also displayed.

One of the questions users frequently ask about is the max price constraint. Not all peers out there are free. Peer owners may choose to sell their resources for the market price of "GoodWill" or use their own prices for the various preset container sizes. You can setup a peer too and sell resources to make "GoodWill" and price containers as you like.

So when selecting the peers the first time blueprints will ask for the maximum price users would be willing to pay per hour to run the application on paid resources. This is used to select peers that can be used to host the infrastructure of the application. There might be many containers used by the application so this adds to the max price. Usually putting higher values are best, you anyway still have the option of selecting peers based on their prices at the end of the wizard. Your own peers, free peers, and your favorite peers will always be made available.

Application View

Once you kick off the application build in your cloud environment, you'll be offered the link to the environment in your list of environments. You'll see the new environment building or the new application building in an existing environment. Environments have an Applications to see the current state of an installing application.

TODO add screenshot of an application installing here

Once installed you can reinstall the application. The settings you used to install the application can be modified to reinstall the application to alter the deployment.

Application Settings

When you go through the wizard to install an application via blueprint, the settings you provide are stored in an area of your user profile called Application Settings. The settings you used are remembered so the next time you install the application there's less work.

Right now one click installation is almost there but not quite. We're working to make sure it becomes really easy for everyone to use one click installation.

You can navigate to your application settings and manage them through your profile's drop down menu. The Application Settings menu item will take you there.

TODO screenshot to show application settings

Accessing Containers

Normal users will rarely access the infrastructure installed, however power users, administrators and others will want direct access to those environment containers. Owners can deploy SSH public keys into all containers to enable SSH access via Subutai's P2P protocol.

Users can maintain their SSH public keys on the Hub in their user profile. This is useful because these keys can be automatically deployed to the environments they create to allow access to containers.

TODO screenshot of the SSH key management area in a user's profile

Blueprint authors may specify SSH key name references. This is the name of a default key in the users profile. If an SSH key by that name is present, the application requests that it be deployed to all the containers to allow SSH access. For example, a blueprint my reference the sysadmin SSH key name. If users have such a key, then the key is deployed. Obviously the key is different for every user, but the reference name is the same.

This feature makes it really nice to include Subutai.json files in Open Source projects in git repositories. Anyone can launch a cloud application and use their own keys to securely access the containers in the application's stack even though the key reference is the same.

GitHub: Private Blueprints

We're getting close into the realm of Writing Subutai Blueprints, however you don't have to write your own. You can use blueprints others have made yet have not published on the Subutai Bazaar.

Fork GitHub Projects

Blueprints are integrated with git. Users can launch blueprints in git repositories that contain them and the software they're associated with. This makes for a very nice workflow for developers, and makes it easy for new comers to use the application.

Users can fork GitHub projects for example and use the GitHub Projects profile area to launch those blueprints. Any project with a Subutai.json in the repository root will be loaded as a private blueprint. If you like you can publish those blueprints to the Bazaar as well.

Once the projects are loaded you can build new environments with the application or install the application into existing environments. The blueprint does NOT need to be published at the Subutai Hub's Bazaar.

GitHub Projects View

Environment: Applications Tab

You can launch both publish bazaar blueprints and private GitHub blueprints through an environment's Applications tab. There's a button there, Add Applications which opens a dialog that offers users two categories of application blueprints to select from: published application blueprints, and private application blueprints.

Environment Applications Tab
