Linguists (and scholars in related fields) use example sentences in their writing. There is a fairly accepted standard format for presenting those: Example sentences are numbered continuously throughout a document, and optionally can have subexamples, as in (2) below.
The platonic ideal of a LaTeX package for typesetting such examples
would provide an environment that behaves as much as possible as LaTeX's
built-in enumerate lists (because, at heart, example lists are just

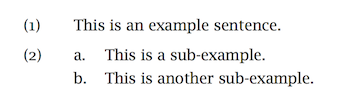

ordered lists). So the above examples should be typeset as:
\begin{examples}
\item This is an example.
\item \begin{examples}
\item This a sub-example.
\item This is another sub-example.
\end{examples}
\end{examples}The existing packages fall short of this ideal in several ways:
- linguex has a concise WYSIWYGish syntax that is very readable (which is why I favored it for a long time), but it betrays its TeX roots through various quirks. For example, it has very particular whitespace requirements, which can make working with it a hassle.
- The same is true for expex, which also features a rather exotic syntax that I've always found too difficult to remember.
- gb4e.sty is more LaTeXy than the other ones, but it has a number of strange inconsistencies.
As I was dissatisfied with this state of affairs, I decided to write my own package.
- Installation
- Basic Usage: Zero learning curve
- Syntactic sugar: Some enhancements for \item
- Referencing examples:
\ref{...},\ex{...}, and ``\exref{...}` - Typesetting dialogues withegin{conversation} ... \end{conversation}
- Glosses
- Customization
- Package Options
- Dependencies
- Compatibility with beamer
- Known issues
As usual, simply place the style files some place where TeX can find them (the directory where your tex files live will work if all else fails).
Then you can load it in the usual way, by placing the following in the preamble of your document:
\usepackage{example-sentences}There are a number of package options, described below.
If you know how to use the enumerate environment LaTeX provides, you
already know how to use example-sentences:
\begin{examples}
\item This is the first example.
\item This is second example.
\end{examples}This will produce:

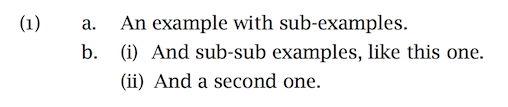

Nesting works, of course, up to three levels deep:
\begin{examples}
\item \begin{examples}
\item An example with sub-examples.
\item \begin{examples}
\item And sub-sub examples, like this one.
\item And a second one.
\end{examples}
\end{examples}
\end{examples}which will render as:
And, as usual, you can give an optional argument to \item to manually
specify the label (e.g., if you are quoting an example, and want to use
the original example number):
\begin{examples}
\item[(23)] This example will be numbered (23).
\end{examples}In fact, this is almost all you need to know in order to produce
everyting that example-sentences can produce. The only additional thing
to know is how to typeset diacritic marks indicating acceptability and
such. You can do this explicitly by using the \diacritic{} command:
\begin{examples}
\item \diacritic{*} Bad sentence this sounds.
\end{examples}Diacritics are typeset in the space between example number and example. So the above will render as:
However, explicit use of the \diacritic{} command is discouraged.
Instead, you should use the convenience macros described below.
A number of enhancements of the basic \item command are available,
unless your LaTeX installation is truly ancient.
All variants of \item allow for
an optional argument in angle brackets containing a
diacritic/acceptability mark:
\begin{examples}
\item<*> Bad sentence this sounds.
\end{examples}This renders as
This style is preferred over the explicit use of \diacritic{}.
The basic \label{} command works as it always does. However, a more
convenient way to assign labels to examples is provided. Simply supply
the desired label in parentheses after \item:
\begin{examples}
\item(harlem) If you want to go to Harlem, you have to take
the A train.
\end{examples}This is equivalent to:
\begin{examples}
\item\label{harlem} If you want to go to Harlem, you have to take
the A train.
\end{examples}Of course, this style can be used with diacritics, \item(labelname)<*> is valid and
produces the expected result. The same is true for \item[exnumber]<*>.
The standard \ref{} command works for examples. However, it produces
the (sub)example number without enclosing parentheses. This means that
it would have to be used in running text with explicit parentheses:
The sentence in (\ref{harlem}) is curious in that ...This is by design, because it is sometimes necessary to access the
example identifier itself, for example if one uses fancy packages for references
such as cleverref.
However, the package provides two handy shortcuts for example references.
Instead of writing (\ref{harlem}), you can simply write either:
The sentence in \ex{harlem} is curious in that ...or:
The sentence in \exref{harlem} is curious in that ...And, as an added nicety, you can provide arbitrary material that is appended to the example label as an optional argument:
\ex{imperatives}[a-f] show the varied uses of imperatives.Semanticists and pragmaticists often need to typeset short dialogues, like this:

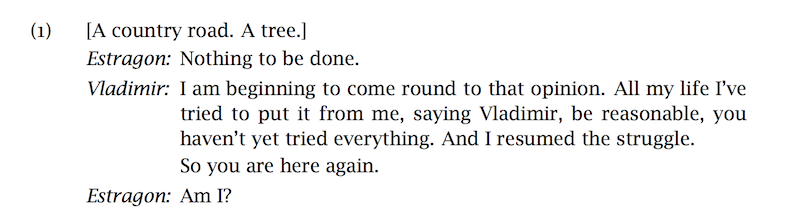

If you load example-sentences with the conversations option, a new
environment conversations becomes available, and the above can be
typeset as:
\begin{examples}
\item(godot)
[A country road. A tree.]
\begin{conversation}
\item[Estragon:] Nothing to be done.
\item[Vladimir:] I am beginning to come round to that opinion. All my
life I've tried to put it from me, saying Vladimir, be reasonable, you haven't yet tried everything. And I resumed the struggle.
So you are here again.
\item[Estragon:] Am I?
\end{conversation}
\end{examples}Configuration options are described in the file README-conversations.md
Currently, the package does not provide its own support for aligned
glosses. However, you can use cgloss4e.sty from
gb4e together with example-sentences.
Then you can use the \gll and \glll macros as usual:
\begin{examples}
\item \gll Das ist kein Beispielsatz.\\
This is no {example sentence}\\
\trans `This is not an example sentence.`
\end{examples}Note: As of this writing, there is a problem with diacritic marks.
A workaround is described
below under "Known Issues". Alternatively,
you can use
Alexis Dimitriadis's cgloss.sty,
which is a hacked version of cgloss4e that prevents the problem.
The examples environment is highly configurable. It is simply a clone
of the standard enumerate environment, created by enumitem. As a
result, all of the configuration options of that package are available.
For example, if you want to add a bit more space between example number for one particular example list (e.g., to accommodate and extra-long diacritic), you can simply pass configuration options to the example environment:
\begin{examples}[leftmargin=2.5\parindent]
\item<*****> Sentence very a bad is.
\end{examples}If you want to globally change how lists look, you can use
enumitem's \setlist command. Note that this command replaces the
list configuration, rather than overwriting individual parameters.
Hence, the following won't quite work, because it deletes the settings
for how example numbers should be formatted, and so forth:
\setlist[examples,1]{leftmargin=2.5\parindent}To make it easier to overwrite single settings example-sentences adds
configuration options that hold the default values. So instead, write:
\setlist[examples,1]{ex1defaults,leftmargin=2.5\parindent}ex1defaults holds the default settings for examples of level 1,
ex2defaults and ex3defaults those for nested example lists.
exdefaults holds the defaults for all lists.
For details about the many configuration options, see
the documentation of enumitem.
One of the aims of this package is to be compatible with as many LaTeX packages as possible. This has limits, obviously, whenever one of the convenience commands are defined (or modified) by another package. For that reason, the convenience commands can be turned off individually, using package options.
To provide the extended behavior for \item described above, LaTeX's
own implementation of this command needs to be overwritten (this happens
only in example lists, however). If you use any other packages that
modify this command (beamer comes to mind), there could be conflicts
and other problems.
For this reason, the loading the package with the option normalitem
(i.e., \usepackage[normalitem]{example-sentences}) tells the package
to not touch the \item command. In this case, the command \exitem
can be used in place of \item, which has all of the advanced behavior
of \item described above.
Since \ex is so short, it is not unlikely that other packages define a
command with this name. In this case, you might want to prevent
example-sentences from defining \ex as short way to create references
to examples, and use the longer name \exref instead (which always works).
\usepackage[noex]{example-sentences}If you pass the compat option to example-sentences, it will define the
new examples-environment, but do nothing else: No any enhancements to
\item, no reference commands besides the standard \ref, not even \exitem.
This is mainly intended for cases where there are unexpected incompatibilities with other packages, but it may be useful also in case you want to define your own convenience commands.
Standardly, example-sentences loads the enumitem package with the
loadonly option, which ensures that the standard LaTeX lists
(enumerate, itemize and description) are not enhanced by
enumitem.
If you want to change this, pass the enumitemize option to
example-sentences.
All options besides the one described above will be passed through to
enumitem.
Unless you (La)TeX installation is truly ancient, you should be able to
use example-sentences without further ado. For the record, here is a
list of the required packages:
- enumitem is the only required dependency.
- The
xparsepackage (available as part of l3packages) is not strictly required, but the enhancements for the\itemcommand described above will only be available ifxparseis present in your LaTeX-installation.
beamer is a powerful package for typesetting slide-style
presentations. As is the case with many packages, a few things have to
be kept in mind when using example-sentences with beamer.
By default, beamer defines an environment called examples and,
which typeset their contents in a block with the heading
"Examples". example-sentences overwrites this environment.
To use the beamer-style examples-environment when example-sentences
is loaded, you can use the alias beamerexamples:
\begin{beamerexamples}
This is a example in the beamer-style.
\end{beamerexamples}beamer provides a style-file beamerarticle.sty, which enables the
use of various beamer commands in documents that are typeset with other
document classes, like article. This makes it easier to share code
between beamer slidesand an article or handout.
To make sure that example-sentences plays nicely with
beamerarticle.sty, you have two options:
-
(recommended) Load
beamerarticle.stybeforeexample-sentences.sty. Then everything will work as usual. -
Load
beamerarticle.stywith thenotheoremsoption, like so:\usepackage[notheorems]{beamerarticle}.This means you have to manually declare any theorem-style environments that you want to use. However,
beamerwill still apply its enhancements (e.g., boxes) to such manually-defined environments.
Many linguists (semanticists and pragmaticists in particular) like to
start their examples with a description of the context, enclosed in
square brackets [...] or, more rarely, parenthes (...). This is fine,
but you have to take extra care if you are using \item without any
kind of argument (as you also have to do with enumerate lists).
The problem is that, in the following,
[This is a description of the context] will be interpreted as the
optional argument of \item (since LaTeX ignores spaces before the
first argument).
\begin{examples}
\item [This is a description of the context]\\
This is the example.
\end{examples}The recommendes way to avoid this problem is to give all your examples
a label via the
convenient \item(...) command.
The following will work without problems:
\begin{examples}
\item(mylabel) [This a description of the context]\\
This is the example.
\end{examples}Alternatively, simply put a pair of braces around the context description:
\begin{examples}
\item {[This is a description of the context]}\\
This is the example.
\end{examples}As of this writing, example-sentences does not correctly typeset
diacritics when used together with cgloss4e.sty. The best
workaround is to use
use Alexis Dimitriadis's cgloss.sty
in place of cgloss4e.
Alternatively, include the diacritic manually in the glossed sentence, like so:
\begin{examples}
\item
\gll \diacritic{*} Ungrammatisch dieser ist Satz.\\
{} Ungrammatical this is sentence\\
\trans (intended) `This sentence is ungrammatical.'
\end{examples}With this, the diacritic will be typeset correctly (i.e., set in the space between example and number). I am currently working on a better way around this problem.
It is custom to number examples in footnotes differently from the main text: Level one examples have lowercase roman numerals as labels, with counting starting anew for each footnote.
This is difficult to achieve in the general case. example-sentences
patches the standard LaTeX footnote commands (i.e., \footnote and
footnotetext), for all other methods of typesetting notes, you will
have to ensure yourself that the command \footnotizeexamples is called
at the beginning of each note (or before the first example) and
\unfootnotizeexamples is called at the end of each footnote (or after
the last example).
Note on implementation: The example environments used in footnotes is
in fact entirely different from the main examples (it is just mostly
configured in the same way). If you want to modify the appearance of
examples in footnotes, you'll need to use \setlist[fnexamples]{} /
\setlist[fnexamples,1]{}, etc.
Make sure that you do not use the
ex1defaults/ex2defaults/ex3defaults keywords in this case, as this
will reuse the main counters. Instead, use
fnex1defaults/fnex2defaults/fnex3defaults.
