@tim-lai tim-lai commented Jul 10, 2020

fixes #5181

Description

Changed how UI receives x-www-form-urlencoded form data. Specifically, set requestBodyValue values to be an immutable Map, as "value". Previously stored as a normal String.

This change enables the ability to add "errors" to a Map that can be used by validation.
This change also matches the existing behavior of OAS2, and OAS3 Parameters

For application/json and application/xml, the "errors" field is added directly to the bodyValue Map

Example:
Old: ...pathMethod,..., bodyValue Map { "id": 10, "name": "doggie" }
New: ...pathMethod,..., bodyValue Map { id: Map { value: 10, errors: List[] }, name: Map { value: "doggie", errors: List[] } }

For all other Request Bodies, e.g. Markdown,
Old: ...pathMethod,..., bodyValue Map { value: ""}
New: ...pathMethod,..., bodyValue Map { value: "", errors: List[] }
  • Dev note: getOAS3RequiredRequestBodyContentType requires state.spec, which is not available to state.oas3

Motivation and Context

Fixes #5181

For OAS3 Request Body, if required fields are empty, user should not be able to "Execute" and get a response. In addition, the missing required fields should be highlighted in Red.

How Has This Been Tested?

new cypress and mocha tests

Screenshots (if appropriate):

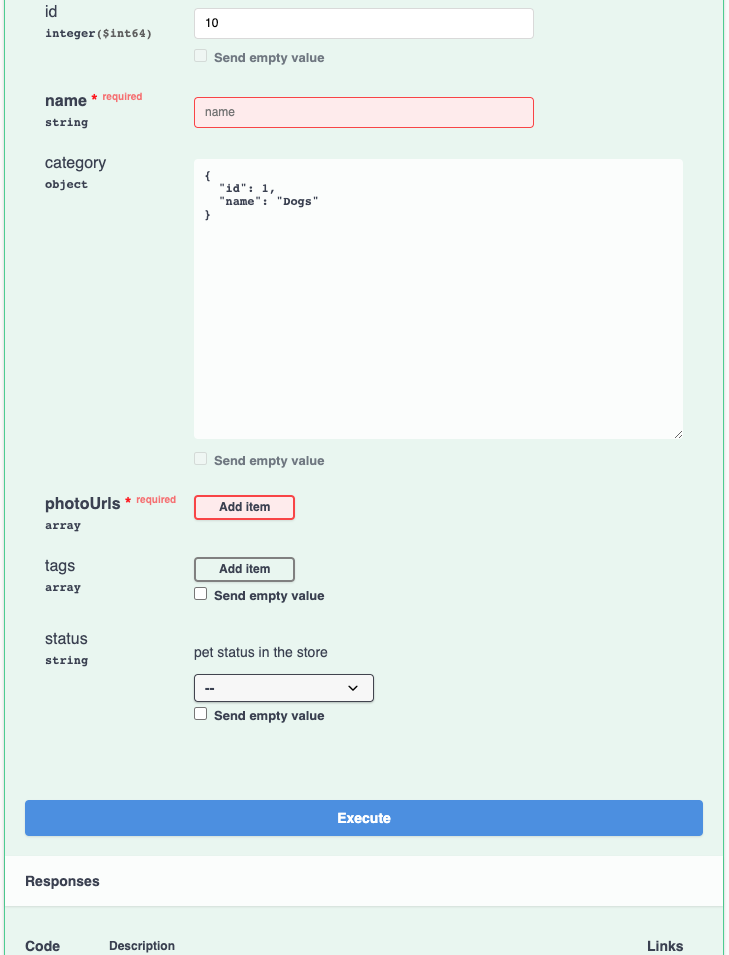

application/x-www-form-urlencoded
oas3-required-validation-urlencoded

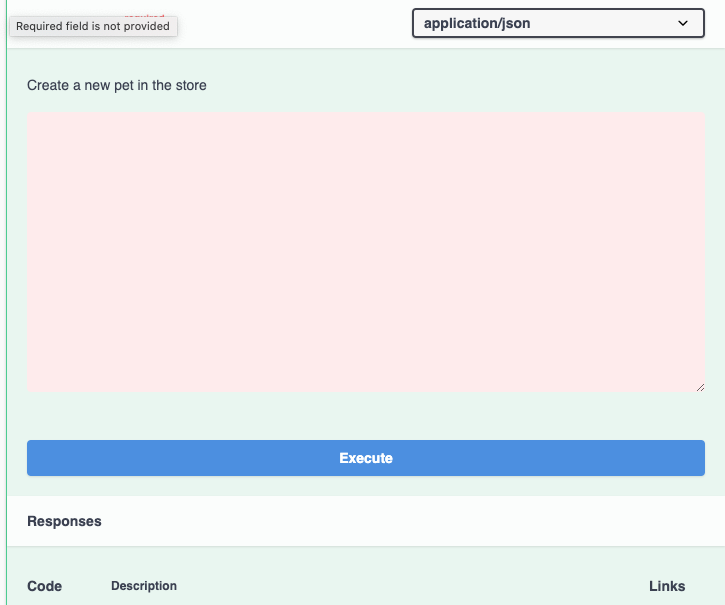

application/json (application/xml is similar)
oas3-required-validation-json

Checklist

My PR contains...

  • No code changes (src/ is unmodified: changes to documentation, CI, metadata, etc.)
  • Dependency changes (any modification to dependencies in package.json)
  • Bug fixes (non-breaking change which fixes an issue)
  • Improvements (misc. changes to existing features)
  • Features (non-breaking change which adds functionality)

My changes...

  • are breaking changes to a public API (config options, System API, major UI change, etc).
  • are breaking changes to a private API (Redux, component props, utility functions, etc.).
  • are breaking changes to a developer API (npm script behavior changes, new dev system dependencies, etc).
  • are not breaking changes.

Documentation

  • My changes do not require a change to the project documentation.
  • My changes require a change to the project documentation.
  • If yes to above: I have updated the documentation accordingly.

Automated tests

  • My changes can not or do not need to be tested.
  • My changes can and should be tested by unit and/or integration tests.
  • If yes to above: I have added tests to cover my changes.
  • If yes to above: I have taken care to cover edge cases in my tests.
  • All new and existing tests passed.

@tim-lai tim-lai marked this pull request as draft July 10, 2020 23:29
@tim-lai tim-lai requested a review from char0n July 10, 2020 23:30
@tim-lai tim-lai self-assigned this Jul 10, 2020
@tim-lai tim-lai added this to the M5 milestone Jul 10, 2020
@tim-lai tim-lai force-pushed the feat/oas3-request-body-required-validation branch from ea767df to caa2212 Compare July 15, 2020 23:10
@tim-lai tim-lai marked this pull request as ready for review July 15, 2020 23:21
@tim-lai
Copy link
Contributor Author

tim-lai commented Jul 17, 2020

please build

tim-lai added 4 commits July 16, 2020 17:44
fixes swagger-api#5181

* application/json
* application/xml
* application/x-www-form-urlencoded

* Set requestBodyValue values to be an immutable Map, as "value". Previously stored as a normal String.
* This enables adding "errors" to the Map, for validation use

* note: getOAS3RequiredRequestBodyContentType requires state.spec,
* which is not available to state.oas3
* requestBody
* requestBody - fields for application/json
* requestBody - fields for application/x-www-form-urlencoded
* switching between content types
