Tray icon empty on windows 10

[kubijo]

Describe the bug

The windows build of my app does have a tray entry, and its menu items seem to work, but there is no icon, only an invisible rectangle.

I've made built the icons resources through you icon command, so as far as I know, I am fulfilling the requirements outlined in the docs (that is that there needs to exist an *ico file)

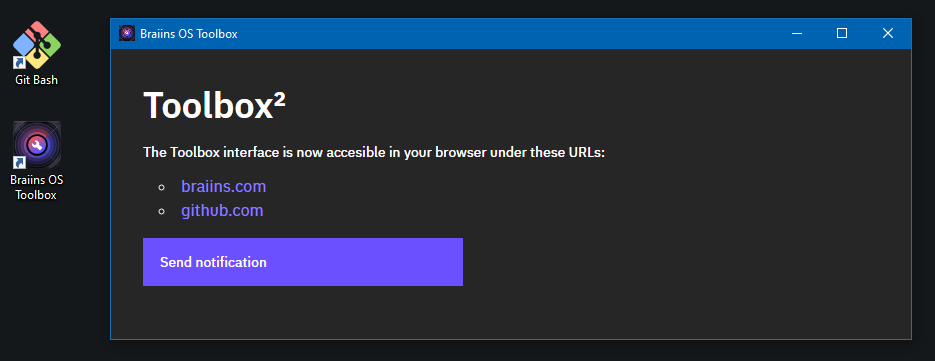

Also note the screenshot showing that desktop & title-bar icons work fine & try icon works too in linux

To Reproduce

I'd give more info if I'd know what would help, but at this point I haven't got a clue, but will cooperate if you have an idea what I should try & report back.
I did try a debug built that gave a console window in addition to the app window, but nothing happened there.

Expected behaviour

The tray icon should be visible

Screenshots

Platform and Versions (required):

Operating System - Windows, version 10.0.19043 X64
Webview2 - 94.0.992.31

Node.js environment
  Node.js - 14.17.0
  @tauri-apps/cli - 1.0.0-beta.10
  @tauri-apps/api - 1.0.0-beta.8

Global packages
  npm - 6.14.13
  yarn - 1.22.11

Rust environment
  rustc - 1.57.0-nightly
  cargo - 1.57.0-nightly

App directory structure
/src-tauri
/.yarn
/node_modules

App
  tauri.rs - 1.0.0-beta.5
  build-type - bundle
  CSP - default-src blob: data: filesystem: ws: wss: http: https: tauri: 'unsafe-eval' 'unsafe-inline' 'self' img-src: 'self'

Additional context

tauri.conf

{
  "package": {
    "productName": "Braiins OS Toolbox",
    "version": "0.1.0"
  },
  "build": {
    "distDir": "../../../web-ui/build/js/bundle/toolbox-tauri",
    "devPath": "http://localhost:3001",
    "withGlobalTauri": false
  },
  "tauri": {
    "bundle": {
      "active": true,
      "targets": "all",
      "identifier": "com.tauri.dev",
      "icon": [
        "icons/32x32.png",
        "icons/128x128.png",
        "icons/128x128@2x.png",
        "icons/icon.icns",
        "icons/icon.ico"
      ],
      "resources": [],
      "externalBin": [],
      "copyright": "",
      "category": "Utility",
      "shortDescription": "",
      "longDescription": "",
      "deb": {
        "depends": [],
        "useBootstrapper": false
      },
      "macOS": {
        "frameworks": [],
        "minimumSystemVersion": "",
        "useBootstrapper": false,
        "exceptionDomain": "",
        "signingIdentity": null,
        "entitlements": null
      },
      "windows": {
        "certificateThumbprint": null,
        "digestAlgorithm": "sha256",
        "timestampUrl": ""
      }
    },
    "updater": {
      "active": false
    },
    "systemTray": {
      "iconPath": "icons/icon.png",
      "iconAsTemplate": false
    },
    "allowlist": {
      "all": true,
      "notification": {
        "all": true
      }
    },
    "windows": [
      {
        "title": "Braiins OS Toolbox",
        "resizable": true,
        "fullscreen": false
      }
    ],
    "security": {
      "csp": "default-src blob: data: filesystem: ws: wss: http: https: tauri: 'unsafe-eval' 'unsafe-inline' 'self' img-src: 'self'"
    }
  }
}

Stack Trace

None seen anywhere

[FabianLars]

Is this still an issue if you upgrade to tauri.rs - beta.8 or the next branch?

[kubijo]

Yep, just tried it with a release build (no --debug flag) on next.

---

Also, as a sidenote: notifications still have the Windows Powershell title…

[FabianLars]

Yep, just tried it with a release build (no --debug flag) on next.

hmm, imo it looks like something specific to your icon tbh. (the tauri icon command is a little unfriendly at times :/ )
Can you try other icons/image editors/export methods? No idea otherwise, sorry.

Also, as a sidenote: notifications still have the Windows Powershell title…

Whoops my bad. Looks like it's tied to the msi installation (So if you distribute your app via the msi, it should be fine)

[kubijo]

hmm, imo it looks like something specific to your icon tbh. (the tauri icon command is a little unfriendly at times :/ )
Can you try other icons/image editors/export methods? No idea otherwise, sorry.

OK, I'll try a random different file. It is pretty strange though that it works in every other place except this one.

Whoops my bad. Looks like it's tied to the msi installation (So if you distribute your app via the msi, it should be fine)

I see, it indeed is, and it also has an icon of the app

[kubijo]

So, I've tried

• a different PNG, converted it by the tauri icon tool & got the same thing ... it worked everywhere except try area
• downloaded a random ico file from the internet and replaced the generated one, and now it works in the tray area too (albeit a bit rough around the edges, but that is not the point for now)

---

• ico is from here: https://findicons.com/icon/64873/download
• this is the second png I've tried: icon

---

Now, as far as I can tell just by hindsight, the difference seems to be that the ico you are generating is compressed.
Might that be the core of the problem?

[kubijo]

I have just tried both compression algorithms you declare as supported and the result is the same.

Can the compression be disabled and left to users to pngcrush the png images?

[lucasfernog]

I tested a lot of PNG->ICO libraries and methods (one online conversion site worked, one didn't) and png2icons is definitely not working so well here. I tried https://github.com/steambap/png-to-ico and it works nice, so I made a PR to use that instead.

Can you test that @kubijo ?

[kubijo]

Sure thing, first thing in the morning... What do I do? cargo update, build and see?

[lucasfernog]

You'll need to clone the repo, build the tooling/CLI.js package and run the icon command from it.

[kubijo]

Sorry for the delay… slow day both for me and for the computer it seems…

Anyway, the update seems to have worked nicely! 👍

---

If this was an application to be deployed, my next effort in this regard would be to solve the icon quality in these small dimensions.

It is tangential to this issue, but it would be interesting to known if you plan to address that in some way as well, or if that is to be solved by users themselves.

The only way to solve this I see would be to generate an ico file with hand-designed sizes because scaling can only do so much…

[kubijo]

It seems that this might also be accomplished by ImageMagick (available cross-platform): https://superuser.com/a/683203

[lucasfernog]

I think I can skip resizing if the image is squared. Otherwise there's not much to do.

[kubijo]

That is not the whole story though ... the point is to have an ico file with multiple sizes where potentially any of them can be custom designed because you can't use a design for 256×256 scaled down 16×16 and expect it to look nice
