UNet model with VGG11 encoder pre-trained on Kaggle Carvana dataset
Branch: master
Clone or download
ternaus Merge pull request #11 from sandpiturtle/master
Fix nn.Upsample deprecation warning
Latest commit 2b6239e Dec 5, 2018
Permalink
Type Name Latest commit message Commit time
Failed to load latest commit information.
.gitignore Initial commit Dec 30, 2017
Example.ipynb Update to PyTorch 0.4 Jun 15, 2018
LICENSE Update LICENSE Mar 3, 2018
README.md corrected link to linkedin Apr 4, 2018
TernausNet.pt Network renamed to TernausNet Jan 16, 2018
lexus.jpg Added car example Dec 30, 2017
unet_models.py Fix nn.Upsample deprecation warning Dec 5, 2018

README.md

TernausNet: U-Net with VGG11 Encoder Pre-Trained on ImageNet for Image Segmentation

By Vladimir Iglovikov and Alexey Shvets

Introduction

TernausNet is a modification of the celebrated UNet architecture that is widely used for binary Image Segmentation. For more details, please refer to our arXiv paper.

UNet11

(Network architecure)

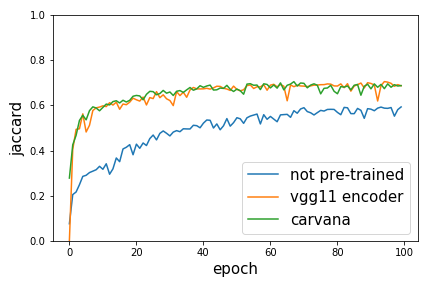

loss_curve

Pre-trained encoder speeds up convergence even on the datasets with a different semantic features. Above curve shows validation Jaccard Index (IOU) as a function of epochs for Aerial Imagery

This architecture was a part of the winning solutiuon (1st out of 735 teams) in the Carvana Image Masking Challenge.

Citing TernausNet

Please cite TernausNet in your publications if it helps your research:

@ARTICLE{arXiv:1801.05746,
         author = {V. Iglovikov and A. Shvets},
          title = {TernausNet: U-Net with VGG11 Encoder Pre-Trained on ImageNet for Image Segmentation},
        journal = {ArXiv e-prints},
         eprint = {1801.05746},
           year = 2018
        }

Example of the train and test pipeline

https://github.com/ternaus/robot-surgery-segmentation
