Infinite loop in Frame::ParseTrailer #77

Closed
chluo911 opened this issue Jul 26, 2022 · 1 comment
Closed

Infinite loop in Frame::ParseTrailer #77

chluo911 opened this issue Jul 26, 2022 · 1 comment

Comments

@chluo911
Copy link

chluo911 commented Jul 26, 2022

version: latest commit 14bf94c
poc: poc.zip
command: ./jpeg poc /dev/null

The backtrace in gdb:

(gdb) bt
#0  ByteStream::Get (this=0x790ae0) at bytestream.cpp:223
#1  0x000000000042331e in IOStream::PeekWord (this=0x790ae0)
    at iostream.cpp:543
#2  0x00000000004c38d5 in Frame::ParseTrailer (this=0x792590, io=0x790ae0)
    at frame.cpp:1018
#3  0x000000000043aac9 in JPEG::ReadInternal (this=0x7904c8,
    tags=0x7fffffffdd50) at jpeg.cpp:332
#4  0x000000000043988b in JPEG::Read (this=0x7904c8, tags=0x7fffffffdd50)
    at jpeg.cpp:210
#5  0x000000000041cabb in Reconstruct (infile=<optimized out>,
    outfile=0x7fffffffe70c "/dev/null", colortrafo=1, alpha=0x0, upsample=true)
    at reconstruct.cpp:121
#6  0x0000000000408b6a in main (argc=<optimized out>, argv=0x790f29)
    at main.cpp:747

Root cause:

There is a loop in frame.cpp:1017-1118.

In line 1018, the program continuously reads marker in the stream by calling IOStream::PeekWord() function.

LONG marker = io->PeekWord();

In cases of the default branch, the loop won't exit.

libjpeg/marker/frame.cpp

Lines 1088 to 1117 in 842c7ba

if (marker < 0xff00) {
JPG_WARN(MALFORMED_STREAM,"Frame::ParseTrailer",
"expecting a marker or marker segment - stream is out of sync");
// Advance to the next marker and see how it goes from there...
io->Get(); // Remove the invalid thing.
do {
marker = io->Get();
} while(marker != 0xff && marker != ByteStream::EOF);
//
if (marker == ByteStream::EOF) {
JPG_WARN(UNEXPECTED_EOF,"Frame::ParseTrailer",
"run into an EOF while scanning for the next marker");
return false;
}
io->LastUnDo();
// Continue parsing, check what the next marker might be.
} else {
// Something that looks like a valid marker. This could be the
// tables/misc section of the next frame or next scan, depending
// on whether we are hierarchical (next frame) or progressive (next scan).
// Unfortunately, what is what we only know after having received either
// the SOS marker (next scan) or an SOF marker (next frame).
// Thus, at this time, parse of the tables, place its data in the
// global table namespace, overriding what was there, then
// continue parsing here until we know what we have.
assert(m_pTables);
// This might include EXP if we are hierarchical.
m_pTables->ParseTables(io,NULL,m_pParent->isHierarchical(),(m_Type == JPEG_LS)?true:false);
}
}

The problem is that the IOStream::PeekWord() function might always return a same value.

Specifically, the IOStream::PeekWord() calls ByteStream::Get().

libjpeg/io/bytestream.cpp

Lines 214 to 224 in 91985dc

LONG ByteStream::Get(void) // read a single byte (not inlined)
{
if (m_pucBufPtr >= m_pucBufEnd) {
if (Fill() == 0) // Found EOF
return EOF;
}
assert(m_pucBufPtr < m_pucBufEnd);
return *m_pucBufPtr++;
}

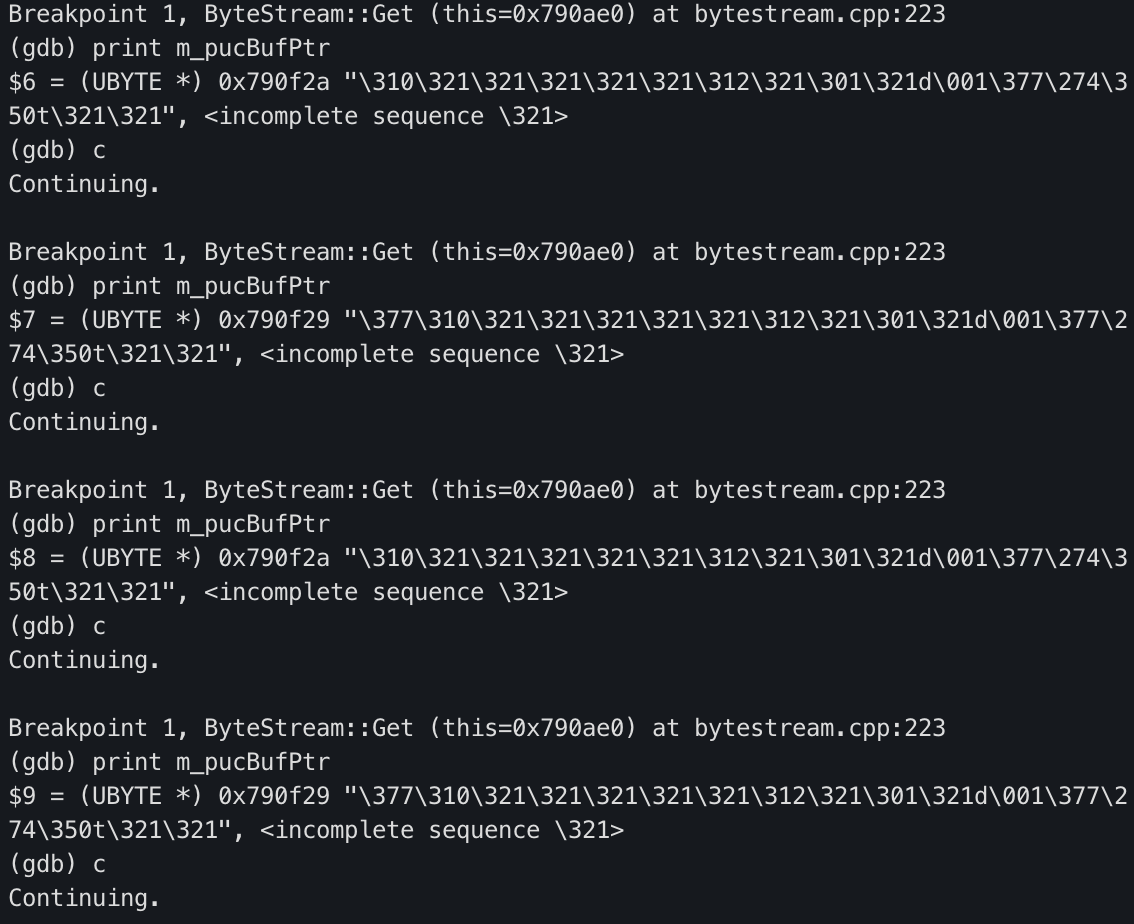

IOStream::PeekWord() returns at line 223 with m_pucBufPtr++. However, when using gdb to check the value of m_pucBufPtr, I found that the ByteStream::Get() functions repeatedly read the values from the same address. The 0x790f2a and 0x790f29 correspond to byte1 and byte2 in IOStream::PeekWord() and they never change.

Screen Shot 2022-07-26 at 23 54 05

IOStream::PeekWord() then always returns a same value (calculated by byte1 and byte2). Finally, the program never terminates because the return value forces the program to take the default branch.

@thorfdbg
Copy link
Owner

thorfdbg commented Aug 3, 2022

Thank you, this should be fixed in the latest trunk.

@thorfdbg thorfdbg closed this as completed Aug 3, 2022
