iOS 16: Tab Group not respecting safe area insets

[hansemannn]

Description

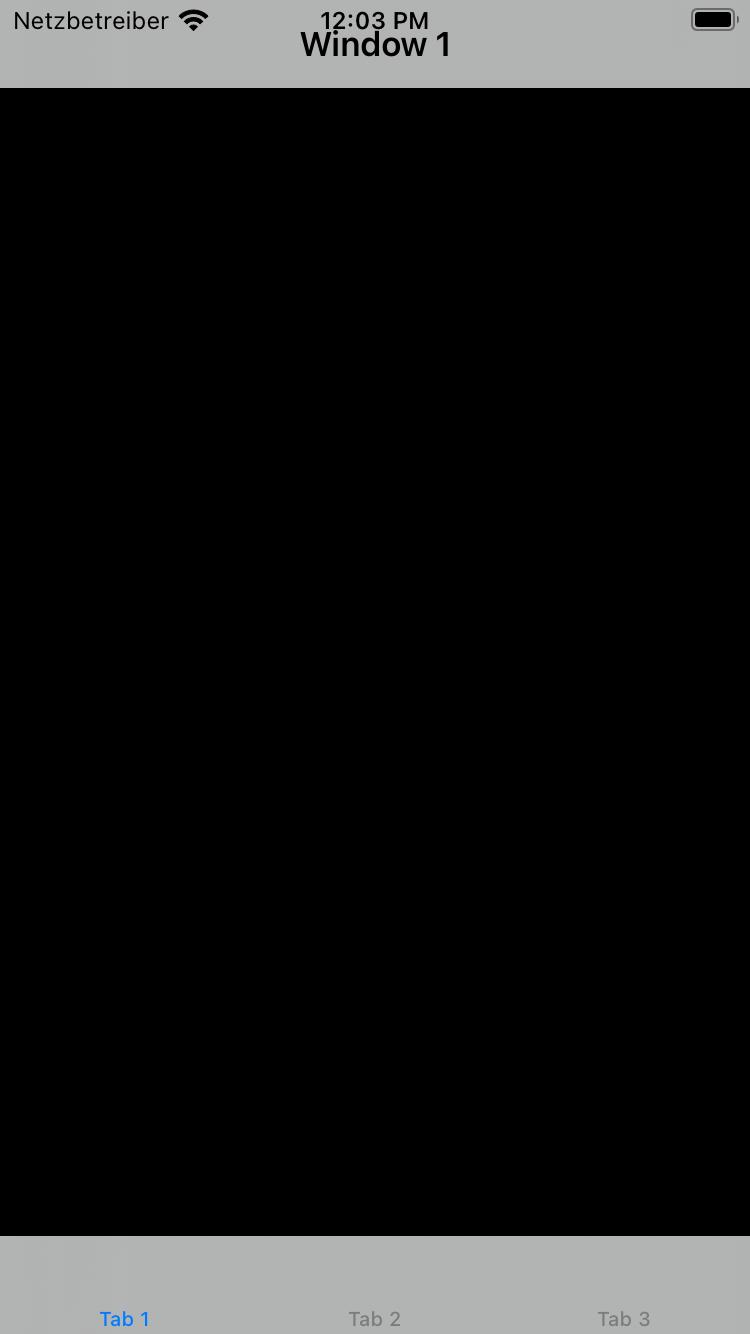

On iOS 16 Beta 1, the tab group does not honor the top-/bottom insets of the phone.

Expected Behavior

It should add proper top-/bottom insets.

Actual behavior

It does...not.

Reproducible sample

const window1 = Ti.UI.createWindow({ title: 'Window 1' });
const window2 = Ti.UI.createWindow({ title: 'Window 2' });
const window3 = Ti.UI.createWindow({ title: 'Window 3' });

const tabGroup = Ti.UI.createTabGroup({
	tabs: [
		Ti.UI.createTab({ window: window1, title: 'Tab 1' }),
		Ti.UI.createTab({ window: window2, title: 'Tab 2' }),
		Ti.UI.createTab({ window: window3, title: 'Tab 3' })
	]
});

tabGroup.open();

Steps to reproduce

1. Run the sample code

Platform

iOS

SDK version you are using

11.0.0

Alloy version you are using

No response

[hansemannn]

I was hoping that this will be fixed in one of the latest betas, but it seems like a Titanium-specific issue that we need to fix.

EDIT: It seems like the issue is that we are adding the view of the UITabBarController to the parent view instead of opening the view controller itself (inside the open: selector of the TiUITabGroup). This might be hard to tackle.

EDIT 2: Calling the following instead works, but it also decouples it from the TiRootViewController, which may have critical side glitches:

- (void)open:(id)args
{
  [[TiApp app] showModalController:self.tabController animated:NO];
}

EDIT 3: It also seems to work when adding a timeout, indicating that the safe area has not finished it's layout, yet:

- (void)open:(id)args
{
  dispatch_after(dispatch_time(DISPATCH_TIME_NOW, 3 * NSEC_PER_SEC), dispatch_get_main_queue(), ^{
    UIView *view = [self tabController].view;
    [view setFrame:[self bounds]];
    [self addSubview:view];
  });
}

Notable: The rect height remains the same.

[hansemannn]

Found it, wow. PR incoming!
