no .resid column with augment.lm and newdata

[cderv]

help page says that with newdata argument supplied, 3 columns are added to the dataset.

When newdata is supplied, augment.lm returns one row for each observation, with three columns added to the new data:

• .fitted Fitted values of model
• .se.fit Standard errors of fitted values
• .resid Residuals of fitted values on the new data

However only 2 are there - no .resid column is calculated

library(dplyr)
library(broom)

train <- mtcars %>%
  sample_frac(0.7)
test <- setdiff(mtcars, train)


model <- lm(mpg ~ cyl + disp, data= train)

augment(model, newdata = test) %>%
  names()
#>  [1] "mpg"     "cyl"     "disp"    "hp"      "drat"    "wt"      "qsec"
#>  [8] "vs"      "am"      "gear"    "carb"    ".fitted" ".se.fit"

So either, we could add a .resid column but it implies some calculation or at least the help page should be modified.

[yosuke-yasuda]

I also encountered this.

[cderv]

I could make a PR on this if it could help...

[simonthelwall]

same issue here
broom_0.4.1
R version 3.3.1 (2016-06-21)

[topepo]

Same thing here.

One issue is that newdata may not have the outcome variable in it. For lm (and most other single numeric outcome models), this can be used to determine if needed variable is present:

lm_response_var <- function(x) {
  y_index <- attr(x$terms, "response")
  if(y_index == 0) return(NA)
  var_list <- attr(x$terms, "variables")
  as.character(var_list[y_index + 1])
}

So inside augment.lm somewhere, there could be something like

if(!is.na(lm_response_var(x)) || lm_response_var(x) %in% colnames(newdata))
   res$.resid <- blah blah blah

[alexpghayes]

The goal is to have this behavior for all relevant augment methods, not just augment.lm, in 0.7.0. The first step will be adding to this augment test suite.

[IndrajeetPatil]

This is fixed in the development version.

library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(broom)

train <- mtcars %>%
  sample_frac(0.7)
test <- setdiff(mtcars, train)


model <- lm(mpg ~ cyl + disp, data= train)

augment(model, newdata = test) %>%
  names()
#>  [1] "mpg"     "cyl"     "disp"    "hp"      "drat"    "wt"      "qsec"
#>  [8] "vs"      "am"      "gear"    "carb"    ".fitted" ".resid"

^{Created on 2019-03-10 by the reprex package (v0.2.1.9000)}

Session info

devtools::session_info()
#> - Session info ----------------------------------------------------------
#>  setting  value
#>  version  R Under development (unstable) (2019-03-02 r76189)
#>  os       Windows 10 x64
#>  system   x86_64, mingw32
#>  ui       RTerm
#>  language (EN)
#>  collate  English_United States.1252
#>  ctype    English_United States.1252
#>  tz       America/Chicago
#>  date     2019-03-10
#>
#> - Packages --------------------------------------------------------------
#>  package     * version    date       lib
#>  assertthat    0.2.0      2017-04-11 [1]
#>  backports     1.1.3      2018-12-14 [1]
#>  broom       * 0.5.1.9000 2019-03-10 [1]
#>  callr         3.1.1      2018-12-21 [1]
#>  cli           1.0.1.9000 2019-01-20 [1]
#>  crayon        1.3.4      2017-09-16 [1]
#>  desc          1.2.0      2019-01-21 [1]
#>  devtools      2.0.1.9000 2019-02-18 [1]
#>  digest        0.6.18     2018-10-10 [1]
#>  dplyr       * 0.8.0.9006 2019-03-07 [1]
#>  evaluate      0.13       2019-02-12 [1]
#>  fs            1.2.6      2018-08-23 [1]
#>  generics      0.0.2      2019-03-05 [1]
#>  glue          1.3.0      2018-07-17 [1]
#>  highr         0.7        2018-06-09 [1]
#>  htmltools     0.3.6      2017-04-28 [1]
#>  knitr         1.22       2019-03-08 [1]
#>  magrittr      1.5        2014-11-22 [1]
#>  memoise       1.1.0      2017-04-21 [1]
#>  pillar        1.3.1      2018-12-15 [1]
#>  pkgbuild      1.0.2      2018-10-16 [1]
#>  pkgconfig     2.0.2      2018-08-16 [1]
#>  pkgload       1.0.2      2018-10-29 [1]
#>  prettyunits   1.0.2      2015-07-13 [1]
#>  processx      3.2.1      2018-12-05 [1]
#>  ps            1.3.0      2018-12-21 [1]
#>  purrr         0.3.1      2019-03-03 [1]
#>  R6            2.4.0      2019-02-14 [1]
#>  Rcpp          1.0.0      2018-11-07 [1]
#>  remotes       2.0.2      2018-10-30 [1]
#>  rlang         0.3.1      2019-01-08 [1]
#>  rmarkdown     1.11.6     2019-02-14 [1]
#>  rprojroot     1.3-2      2018-01-03 [1]
#>  sessioninfo   1.1.1      2018-11-05 [1]
#>  stringi       1.3.1      2019-02-13 [1]
#>  stringr       1.4.0      2019-02-10 [1]
#>  testthat      2.0.1      2018-10-13 [1]
#>  tibble        2.0.1.9001 2019-03-07 [1]
#>  tidyr         0.8.3.9000 2019-03-07 [1]
#>  tidyselect    0.2.5      2018-10-11 [1]
#>  usethis       1.4.0.9000 2019-02-18 [1]
#>  vctrs         0.1.0.9002 2019-03-07 [1]
#>  withr         2.1.2      2018-03-15 [1]
#>  xfun          0.5        2019-02-20 [1]
#>  yaml          2.2.0      2018-07-25 [1]
#>  zeallot       0.1.0      2018-01-28 [1]
#>  source
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.6.0)
#>  local
#>  CRAN (R 3.6.0)
#>  Github (r-lib/cli@94e2fc5)
#>  CRAN (R 3.5.1)
#>  Github (r-lib/desc@42b9578)
#>  Github (r-lib/devtools@188a613)
#>  CRAN (R 3.5.1)
#>  Github (tidyverse/dplyr@2ef1fd9)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.5.1)
#>  Github (r-lib/generics@c15ac43)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.6.0)
#>  Github (rstudio/rmarkdown@bbd0786)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.5.1)
#>  Github (tidyverse/tibble@5fc065b)
#>  Github (tidyverse/tidyr@7a51bfd)
#>  CRAN (R 3.5.1)
#>  Github (r-lib/usethis@ed9ae17)
#>  Github (r-lib/vctrs@6b8c98a)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.6.0)
#>  CRAN (R 3.5.1)
#>  CRAN (R 3.5.1)
#>
#> [1] C:/Users/inp099/Documents/R/win-library/3.6
#> [2] C:/Program Files/R/R-devel/library

[alexpghayes]

I want to keep this as a reminder to clearly document when you get .resid column in augment().

[mehrlander]

Just ran into the same problem, but resolved it by downloading the Github development version.

[Amogh-Joshi]

I would like to report a bug.
When you transform both variables (say a log transformation), augment will not display .resid column. Please check:
library(alr4); library(broom)

modelUN <- lm(I(log(fertility)) ~ I(log(ppgdp)), data = UN11)

augment(modelUN)

I tried removing and installing the library again. Any ideas on how to show the column?

[topepo]

@Amogh-Joshi Can you please start another issue and use the reprex::reprex() function so that it is reproducible?

[hardin47]

i find that when i transform the response variable, augment() doesn't keep .resid.

library(tidyverse)
library(broom)
house = read.table("http://www.rossmanchance.com/iscam2/data/housing.txt",
                   header=TRUE, sep="\t")

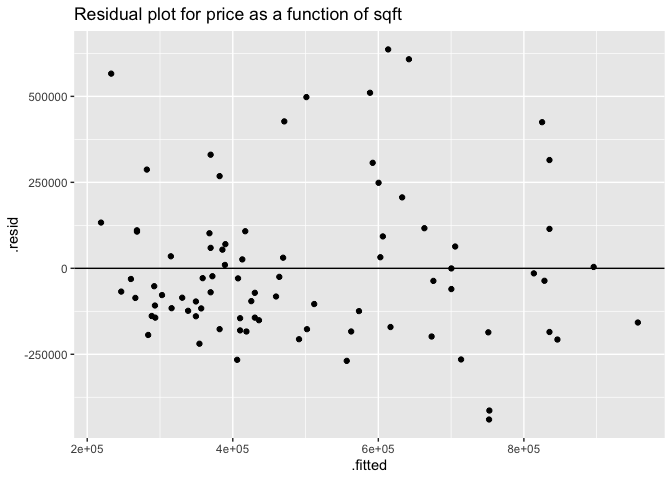

lm(price ~  sqft, data=house)  %>% augment () %>%
  ggplot(aes(x = .fitted, y = .resid)) +
  geom_point() +
  geom_hline(yintercept=0) +
  ggtitle("Residual plot for price as a function of sqft")

lm(log(price) ~  sqft, data=house)  %>% augment () %>%
  ggplot(aes(x = .fitted, y = .resid))+
  geom_point() +
  geom_hline(yintercept=0) +
  ggtitle("Residual plot for ln price as a function of sqft")
#> Error in FUN(X[[i]], ...): object '.resid' not found

^{Created on 2021-01-31 by the reprex package (v0.3.0)}

[hardin47]

i think it might have something to do with the fact that the variable used to be automatically changed to log.price. and now it is log(price) with the tick-quotations.

[simonpcouch]

Related to #937. :-) A helpful diagnostic here.

I'm in the same spot that Alex noted on that issue—not in a place where I can work through a fix right now, but would be glad to review a PR!

[github-actions]

This issue has been automatically closed due to inactivity.

[github-actions]

This issue has been automatically locked. If you believe you have found a related problem, please file a new issue (with a reprex: https://reprex.tidyverse.org) and link to this issue.
