finalize_workflow() assigns incorrect values when finalizing multiple recipes steps of the same type #316

Closed
SeeNewt opened this issue Oct 30, 2020 · 2 comments · Fixed by #317

Comments

@SeeNewt
Copy link

SeeNewt commented Oct 30, 2020

The problem

Hi,

Thanks for a great package, I really appreciate all the work that y'all have put into this and the other tidymodels packages!

I believe I've found a bug in finalize_workflow() that gives incorrect values when finalizing multiple recipes steps of the same type. I ran into this when tuning the polynomial degree for several vars using step_poly(). Here's a minimal reprex.

Reproducible example

Sorry, couldn't get reprex::reprex() to work, but this code should run.

library(dplyr)
library(purrr)
library(recipes)
library(parsnip)
library(dials)
library(tune)
library(workflows)

lm_rec <-
  recipe(form = mpg ~ ., data = mtcars) %>%
  step_poly(drat, degree = tune("drat_deg")) %>%
  step_poly(disp, degree = tune("disp_deg")) %>%
  step_poly(hp, degree = tune("hp_deg"))

lm_spec <- linear_reg(penalty = 0, mixture = 0) %>% set_engine("lm")

lm_wf <-
  workflow() %>%
  add_recipe(lm_rec) %>%
  add_model(lm_spec)

lm_grid <-
  parameters(lm_rec) %>%
  grid_regular() %>%
  slice(8)

lm_grid

# Gives incorrect output
lm_wf %>%
  finalize_workflow(lm_grid) %>%
  pull_workflow_preprocessor() %>%
  prep(mtcars) %>%
  bake(new_data = mtcars) %>%
  glimpse()

# This works though
lm_rec %>%
  merge(lm_grid) %>%
  .$x %>%
  pluck(1) %>%
  prep(mtcars) %>%
  bake(new_data = mtcars) %>%
  glimpse()

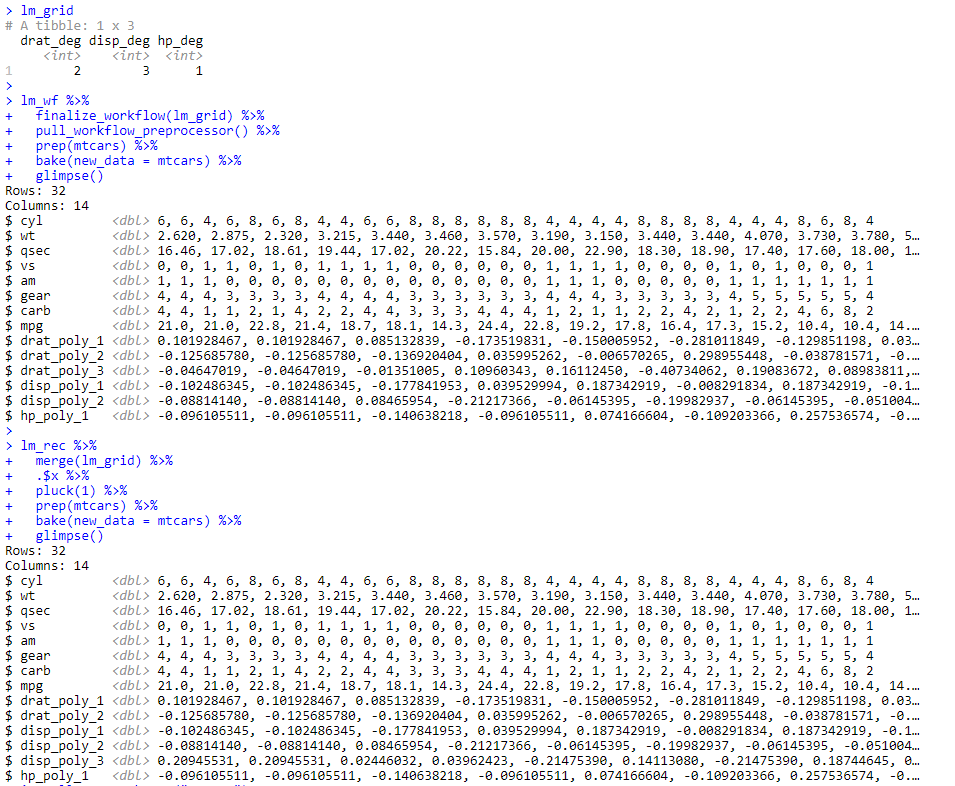

Here's a screenshot of the output - finalize_workflow() results in 3 poly terms for drat (instead of two) and 2 poly terms for disp (instead of 3). The when I merge the grid object into the recipe is correct, however.

I believe that the params are being applied in the sorted order of the recipe step names, rather than by matching on the name of the parameter.

Session Info:

> sessionInfo()
R version 3.4.1 (2017-06-30)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Red Hat Enterprise Linux

Matrix products: default
BLAS: /opt/microsoft/mlserver/9.2.1/runtime/R/lib/libRblas.so
LAPACK: /opt/microsoft/mlserver/9.2.1/runtime/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C               LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8    LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C             LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] reprex_0.3.0     workflows_0.2.0  tune_0.1.1       dials_0.0.9      scales_1.1.1     parsnip_0.1.3
 [7] recipes_0.1.13   purrr_0.3.4      dplyr_1.0.2      NAVpackrat_0.5.5

loaded via a namespace (and not attached):
 [1] Rcpp_1.0.5           lubridate_1.7.9      lattice_0.20-38      tidyr_1.1.2          ps_1.3.4
 [6] class_7.3-14         digest_0.6.25        assertthat_0.2.1     RevoUtilsMath_10.0.0 packrat_0.5.0
[11] ipred_0.9-9          foreach_1.5.0        utf8_1.1.4           R6_2.4.1             plyr_1.8.6
[16] evaluate_0.14        ggplot2_3.3.2        pillar_1.4.6         rlang_0.4.7          rstudioapi_0.11
[21] callr_3.4.4          whisker_0.4          DiceDesign_1.8-1     rpart_4.1-13         Matrix_1.2-10
[26] rmarkdown_2.3        devtools_1.13.3      splines_3.4.1        RevoUtils_10.0.5     gower_0.2.2
[31] munsell_0.5.0        xfun_0.17            compiler_3.4.1       pkgconfig_2.0.3      clipr_0.7.0
[36] htmltools_0.5.0      nnet_7.3-12          tidyselect_1.1.0     tibble_3.0.3         mrupdate_1.0.1
[41] prodlim_2019.11.13   codetools_0.2-15     GPfit_1.0-8          fansi_0.4.1          crayon_1.3.4
[46] withr_2.2.0          MASS_7.3-47          grid_3.4.1           jsonlite_1.7.1       gtable_0.3.0
[51] lifecycle_0.2.0      magrittr_1.5         pROC_1.16.2          cli_2.0.2            fs_1.5.0
[56] timeDate_3043.102    ellipsis_0.3.1       lhs_1.0.2            generics_0.0.2       vctrs_0.3.4
[61] lava_1.6.7           iterators_1.0.12     yardstick_0.0.7      tools_3.4.1          glue_1.4.2
[66] processx_3.4.4       survival_2.42-6      yaml_2.2.1           colorspace_1.4-1     memoise_1.1.0
[71] knitr_1.29
@DavisVaughan
Copy link
Member

I believe this is a tune issue that results from split() reordering by alphabetical order. split() is called in tune:::finalize_recipe(). We should use vec_split() instead.

by <- c("b", "c", "a")
x <- c(1, 2, 3)

split(x, by)
#> $a
#> [1] 3
#>
#> $b
#> [1] 1
#>
#> $c
#> [1] 2

vctrs::vec_split(x, by)
#>   key val
#> 1   b   1
#> 2   c   2
#> 3   a   3

Created on 2020-11-02 by the reprex package (v0.3.0.9001)

The issue is actually a bit random because split() is ordering by the randomly generated step name that recipes creates.
