geom_hex ignores size aesthetic/parameter #2488

Closed
econandrew opened this issue Mar 20, 2018 · 1 comment
Closed

geom_hex ignores size aesthetic/parameter #2488

econandrew opened this issue Mar 20, 2018 · 1 comment

Comments

@econandrew
Copy link
Contributor

@econandrew econandrew commented Mar 20, 2018

geom_hex defines a size default of 0.5, which by analogy with other filled geoms I would expect to control line weight (e.g. geom_bin2d, see bottom).

But it never gets passed to hexGrob so there is no change in the output size.

There's also an interesting inconsistency which may or may not be issue-worthy: geom_hex claims size as an aesthetic (in docs), whereas geom_bin2d does not, and for geom_bin2d size does indeed not work as an a aesthetic, only as a parameter, it seems.

library(ggplot2)
p <- ggplot(diamonds, aes(carat, price))

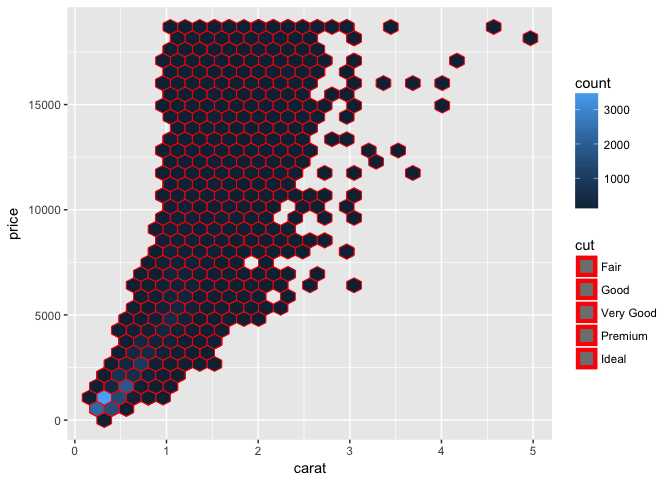

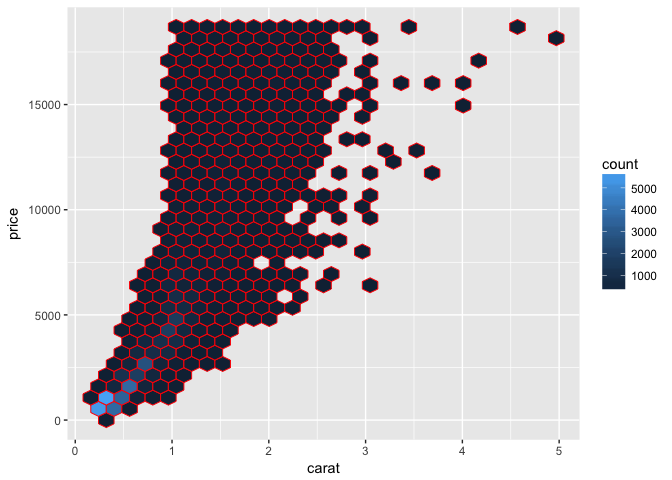

# This doesn't work as expected
p + geom_hex(size = 0.1, color = "red")

p + geom_hex(size = 2, color = "red")

p + geom_hex(aes(size = cut), color = "red")
#> Warning: Using size for a discrete variable is not advised.

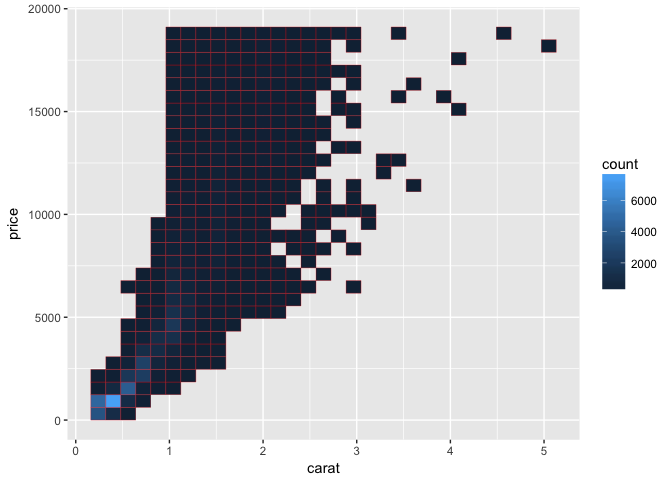

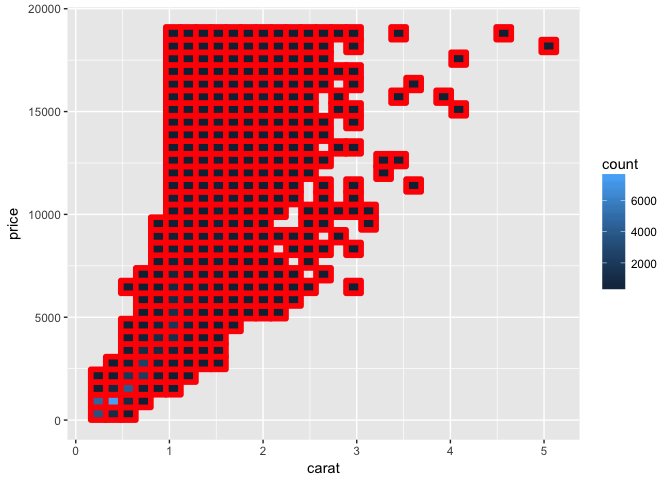

# This does work as expected
p + geom_bin2d(size = 0.1, color = "red")

p + geom_bin2d(size = 2, color = "red")

mikmart pushed a commit to mikmart/ggplot2 that referenced this issue May 29, 2018
mikmart pushed a commit to mikmart/ggplot2 that referenced this issue May 29, 2018
mikmart added a commit to mikmart/ggplot2 that referenced this issue Jul 9, 2018
mikmart added a commit to mikmart/ggplot2 that referenced this issue Jul 9, 2018
mikmart added a commit to mikmart/ggplot2 that referenced this issue Jul 9, 2018
@hadley hadley closed this in #2670 Jul 9, 2018
hadley added a commit that referenced this issue Jul 9, 2018
* Support size and linetype in geom_hex (#2488)

* Add unit test for geom_hex size and linetype

* Update NEWS with new geom_hex() aesthetics
@lock
Copy link

@lock lock bot commented Jan 5, 2019

This old issue has been automatically locked. If you believe you have found a related problem, please file a new issue (with reprex) and link to this issue. https://reprex.tidyverse.org/

@lock lock bot locked and limited conversation to collaborators Jan 5, 2019
