Telegraf Deployment Script

• Overview
• Requirements
• Setup
• Usage
  • Example
    • Screenshots
    • Commands
  • Parameters

Overview

This is a Telegraf deployment script for Windows Server* environments.

By default, the script will install a base configuration which includes:

• Telegraf agent (optionally as a system service - configurable).
• Your pre-configured output plugin.
• A comprehensive system metrics input plugin configuration.

It will then scan the system to determine candidacy for the following additional input plugins:

Role	Configuration Applied
Active Directory Domain Services	telegraf-adds.conf **
DFS Namespaces	telegraf-dfsn.conf
DFS Replication	telegraf-dfsr.conf
DNS Server	telegraf-dns.conf

I am happy to add further configurations upon request. Please raise an issue or pull request, ideally with an example Telegraf configuration.

* While this script is primarily designed for Windows Server, it will still work for Windows clients, the only difference being the additional configurations in the table above will never be installed (i.e. only the agent, output plugin, and system metrics input plugin).

** All of the above configurations are typically (but not always) applied to domain controllers since they commonly have all of the mentioned roles installed.

Suggested script deployment method: Group Policy computer start-up script. It is flexible in this regard though, the only requirement being that it is run on the device itself.

Requirements

• PowerShell 5.1 or higher.
• Administrator privileges.
• A network share with the following files in a flat structure:
  • telegraf.exe
  • telegraf.exe.sha256sum *
  • telegraf.conf
  • telegraf-adds.conf
  • telegraf-dfsn.conf
  • telegraf-dfsr.conf
  • telegraf-dns.conf
  • telegraf-system-metrics.conf

* This file must contain only the SHA256 sum of telegraf.exe.

Setup

1. Download all the files in this folder to your desired source location (i.e. a network path). This can be done by running the commands below in PowerShell *

   cd \\path\to\share # Make sure you change this
   [Net.ServicePointManager]::SecurityProtocol = [Net.SecurityProtocolType]::Tls12
   Invoke-WebRequest "https://github.com/tigattack/Install-Telegraf-PoSH/archive/refs/heads/main.zip" -OutFile "$env:TEMP\Install-Telegraf-PoSH.zip"
   Expand-Archive -Path "$env:TEMP\Install-Telegraf-PoSH.zip" -DestinationPath "$env:TEMP\"
   Remove-Item "$env:TEMP\Install-Telegraf-PoSH.zip"
   Remove-Item "$env:TEMP\Install-Telegraf-PoSH-main\.github" -Recurse
   Move-Item "$env:TEMP\Install-Telegraf-PoSH-main\" ".\Install-Telegraf"

2. Download the latest Telegraf release for Windows from Telegraf's GitHub releases.
3. Extract the EXE from the downloaded ZIP and move it to the source location.
4. Rename the EXE to telegraf.exe.
5. Open PowerShell, cd to the source directory (e.g. cd \\path\to\share) ,and run the following command:

   (Get-FileHash -Algorithm SHA256 ".\telegraf.exe").Hash | Out-File ".\telegraf.exe.sha256sum"

6. Configure your output plugin and any other Telegraf agent settings in telegraf.conf.

Ready to go!

* These commands are entirely safe. It instructs PowerShell to use TLS1.2 (allowing it to download from a secure (HTTPS) URL), downloads a ZIP of this repository to a temporary location, extracts the ZIP, removes the ZIP, moves this project into your destination directory, then removes the extracted directory. However, please also feel free to perform a manual download of all the files in this folder (except README.md and .github).

Usage

Example

Screenshots

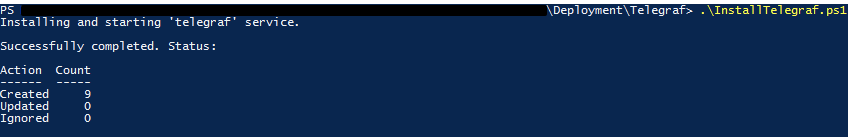

First install:

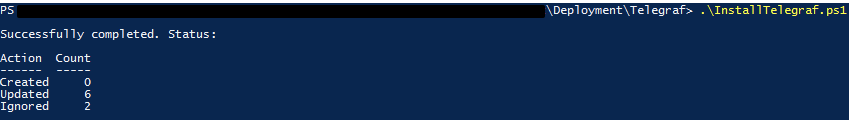

Update:

Commands

Standalone:

InstallTelegraf.ps1 -Source \\path\to\share `
    -Destination C:\custom\path `
    -InstallService `
    -ServiceName my-telegraf `
    -ServiceDisplayName 'My Telegraf' `
    -LogPath C:\Windows\TEMP\InstallTelegraf.log

Standalone dry run:

InstallTelegraf.ps1 -Source \\path\to\share `
    -Destination C:\custom\path `
    -InstallService `
    -ServiceName my-telegraf `
    -ServiceDisplayName 'My Telegraf' `
    -LogPath C:\Windows\TEMP\InstallTelegraf.log `
    -WhatIf

Automated Deployment:

PowerShell.exe -WindowStyle Hidden -File \\path\to\InstallTelegraf.ps1 -Source \\path\to\share `
    -Destination C:\custom\path `
    -InstallService `
    -ServiceName my-telegraf `
    -ServiceDisplayName 'My Telegraf' `
    -LogPath C:\Windows\TEMP\InstallTelegraf.log

Install without service:

InstallTelegraf.ps1 -Source \\path\to\share -Destination C:\custom\path -LogPath C:\Windows\TEMP\InstallTelegraf.log

Parameters

Parameter	Type	Description
Source	String	Path to network share containing Telegraf source (agent, configurations, etc.). Defaults to the script's parent directory.
Destination	String	Path to Telegraf destination directory. Defaults to 'C:\Program Files\Telegraf'.
InstallService	Switch	Switch parameter to control the installation of the Telegraf service. Service is installed if parameter is used, as per the examples above.
ServiceName	String	Telegraf service name. Defaults to 'telegraf'.
ServiceDisplayName	String	Telegraf service display name. Defaults to 'Telegraf'.
LogPath	String	Path to log file. Defaults to 'C:\InstallTelegraf.log'.
WhatIf	Switch	Performs a dry run.
Confirm	Switch	Prompts user for confirmation before taking action.
Verbose	Switch	Enables verbose output.

Credits

Thank you to feliasson for their help.
