One Tikv panic after upgrade from 5.0.1 to 5.3.0

[mayjiang0203]

Bug Report

What version of TiKV are you using?

/ # /tikv-server -V
TiKV
Release Version: 5.3.0
Edition: Community
Git Commit Hash: 6c14247
Git Commit Branch: heads/refs/tags/v5.3.0
UTC Build Time: 2021-11-22 10:51:38
Rust Version: rustc 1.56.0-nightly (2faabf579 2021-07-27)
Enable Features: jemalloc mem-profiling portable sse protobuf-codec test-engines-rocksdb cloud-aws cloud-gcp
Profile: dist_release

What operating system and CPU are you using?

Steps to reproduce

What did you expect?

What did happened?

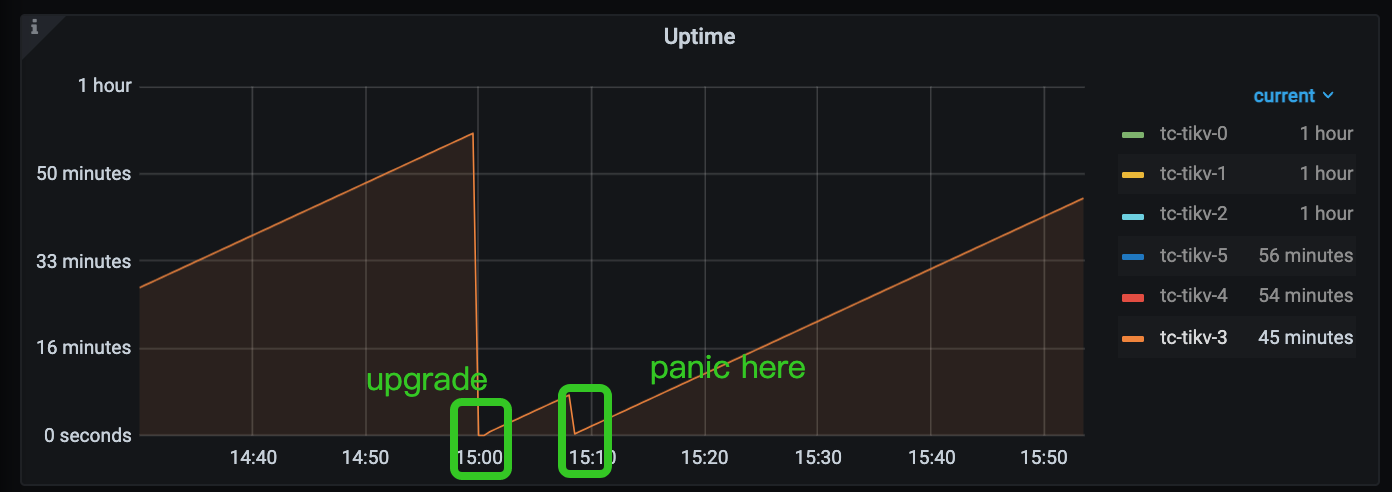

tikv 3 hit following fatal and panic.

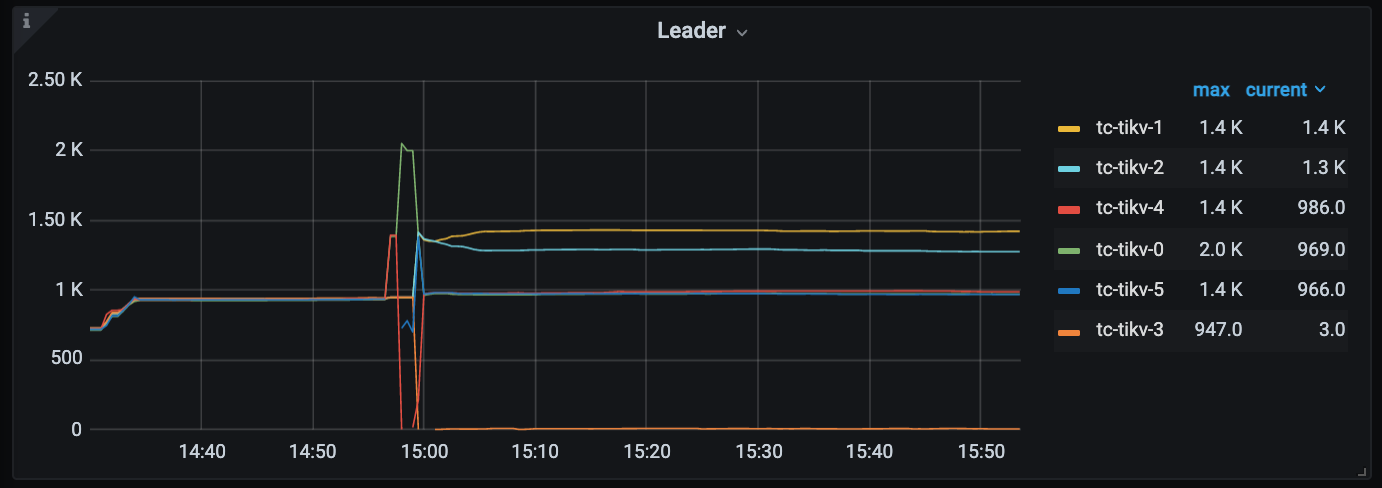

After tikv 3 restart, seem cannot work fine. No region leader has been move in, and upgrade hung.

[2021/11/25 07:08:09.979 +00:00] [WARN] [peer.rs:3403] ["min_matched < min_committed, raft progress is inaccurate"] [min_committed=16] [min_matched=0] [peer_id=31656] [region_id=160]
[2021/11/25 07:08:09.980 +00:00] [WARN] [peer.rs:3558] ["skip proposal"] [error_code=KV:Raftstore:Unknown] [err="Other("[components/raftstore/src/store/peer.rs:3450]: [region 160] 31656 log gap contains conf change, skip merging.")"] [peer_id=31656] [region_id=160]
[2021/11/25 07:08:10.117 +00:00] [FATAL] [lib.rs:465] ["[region 248] 32249 unexpected merge result: Some(min_index: 20 target { id: 252 start_key: 7480000000000000FF3700000000000000F8 end_key: 7480000000000000FF375F698000000000FF0000010000000000FA region_epoch { conf_ver: 35 version: 170 } peers { id: 766 store_id: 4 } peers { id: 765 store_id: 5 } peers { id: 764 store_id: 6 } } commit: 20) id: 766 store_id: 4 role: DemotingVoter FromTargetSnapshotStep2"] [backtrace=" 0: tikv_util::set_panic_hook::{{closure}}\n at home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tikv/components/tikv_util/src/lib.rs:464:18\n 1: std::panicking::rust_panic_with_hook\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/panicking.rs:626:17\n 2: std::panicking::begin_panic_handler::{{closure}}\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/panicking.rs:519:13\n 3: std::sys_common::backtrace::__rust_end_short_backtrace\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/sys_common/backtrace.rs:141:18\n 4: rust_begin_unwind\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/panicking.rs:515:5\n 5: std::panicking::begin_panic_fmt\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/panicking.rs:457:5\n 6: raftstore::store::fsm::peer::PeerFsmDelegate<EK,ER,T>::on_merge_result\n at home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tikv/components/raftstore/src/store/fsm/peer.rs:3326:13\n raftstore::store::fsm::peer::PeerFsmDelegate<EK,ER,T>::on_significant_msg\n at home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tikv/components/raftstore/src/store/fsm/peer.rs:1108:17\n raftstore::store::fsm::peer::PeerFsmDelegate<EK,ER,T>::handle_msgs\n at home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tikv/components/raftstore/src/store/fsm/peer.rs:597:49\n 7: <raftstore::store::fsm::store::RaftPoller<EK,ER,T> as batch_system::batch::PollHandler<raftstore::store::fsm::peer::PeerFsm<EK,ER>,raftstore::store::fsm::store::StoreFsm>>::handle_normal\n at home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tikv/components/raftstore/src/store/fsm/store.rs:791:9\n 8: batch_system::batch::Poller<N,C,Handler>::poll\n at home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tikv/components/batch-system/src/batch.rs:408:27\n batch_system::batch::BatchSystem<N,C>::start_poller::{{closure}}\n at home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tikv/components/batch-system/src/batch.rs:536:17\n std::sys_common::backtrace::__rust_begin_short_backtrace\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/sys_common/backtrace.rs:125:18\n 9: std::thread::Builder::spawn_unchecked::{{closure}}::{{closure}}\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/thread/mod.rs:476:17\n <std::panic::AssertUnwindSafe as core::ops::function::FnOnce<()>>::call_once\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/panic.rs:347:9\n std::panicking::try::do_call\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/panicking.rs:401:40\n std::panicking::try\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/panicking.rs:365:19\n std::panic::catch_unwind\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/panic.rs:434:14\n std::thread::Builder::spawn_unchecked::{{closure}}\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/thread/mod.rs:475:30\n core::ops::function::FnOnce::call_once{{vtable.shim}}\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/core/src/ops/function.rs:227:5\n 10: <alloc::boxed::Box<F,A> as core::ops::function::FnOnce>::call_once\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/alloc/src/boxed.rs:1572:9\n <alloc::boxed::Box<F,A> as core::ops::function::FnOnce>::call_once\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/alloc/src/boxed.rs:1572:9\n std::sys::unix::thread::Thread::new::thread_start\n at rustc/2faabf579323f5252329264cc53ba9ff803429a3/library/std/src/sys/unix/thread.rs:91:17\n 11: \n 12: clone\n"] [location=/home/jenkins/agent/workspace/build-common/go/src/github.com/pingcap/tikv/components/raftstore/src/store/fsm/peer.rs:3326] [thread_name=raftstore-4-1]
[2021/11/25 07:08:12.628 +00:00] [INFO] [lib.rs:80] ["Welcome to TiKV"]
[2021/11/25 07:08:12.628 +00:00] [INFO] [lib.rs:85] ["Release Version: 5.3.0"]
[2021/11/25 07:08:12.628 +00:00] [INFO] [lib.rs:85] ["Edition: Community"]

[mayjiang0203]

/assign @BusyJay

[Lily2025]

/Severity critical

[Lily2025]

/assign BusyJay

[Lily2025]

/severity Critical

[Lily2025]

/type bug

[BusyJay]

If the target peer is catching up logs by snapshot, it's possible that the target peer is not in the same peer state as promised before, which can make following check failed.

tikv/components/raftstore/src/store/fsm/peer.rs

Lines 3321 to 3332 in 25109a0

	let exists = self
	.fsm
	.peer
	.pending_merge_state
	.as_ref()
	.map_or(true, |s| s.get_target().get_peers().contains(&target));
	if !exists {
	panic!(
	"{} unexpected merge result: {:?} {:?} {:?}",
	self.fsm.peer.tag, self.fsm.peer.pending_merge_state, target, result
	);
	}

/cc @gengliqi

Only store id needs to be exact matched, and result target peer id can be not less than the stored target.
