A refactoring of the Sudoku solver notebook, inspired by Richard Bird's solution in Pearls of Functional Algorithm Design.
The Python solver records the steps performed in its iterations, to be fed as input into the visualization engine.
The Elm visualization expects log data as a list of steps, where type alias Step = { count : Int, action : Action, transform : Transform, stack : Int, score: Int, board : Board }. Action, Transform, and Board are type aliases defined in Main.elm.
In Python terms, the log consists of a list of dicts, where each dict logs state for a single step in the solver. solver_logging.py adds the logging logic to the original solver, ultimately writing the list of dicts to a JSON object with key model.
As an example, easy.json logs the iterations of the easy puzzle defined in solver_logging.py.
√ solver % jbro -c 100 easy.json (master)sudoku
> Show first 100 chars of file
{
"model": [
{
"action": "None",
"board": [
[
0,
0,
This nefarious puzzle takes the solver 7630 steps to solve (vs 28 steps for the easy puzzle). The log format is not optimized for conciseness (e.g. by logging deltas instead of whole boards), so the nefarious.json file size exceeds 100MB and is omitted from the repo.
000060080020000000001000000070000102500030000000000400004201000300700600000000050

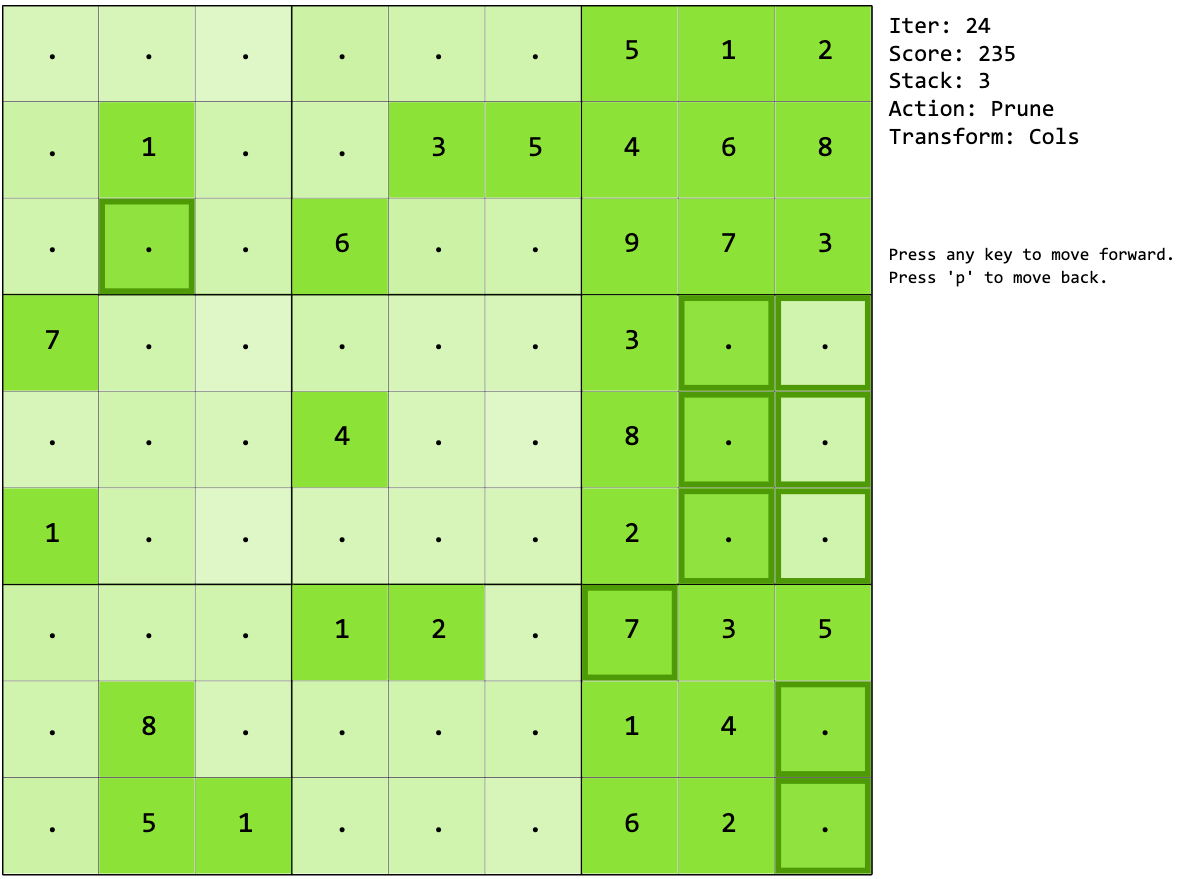

The Elm code compiles an SVG visualization of the solver's iterations.
To (re)compile the visualization, run elm make src/Main.elm --optimize --output=elm.js from the visualization directory.
The code assumes that a JSON log file such as easy.json is being served at the addressed defined by url in Main.elm. For one way of testing locally, see this page for an example of serving using json-server.
