Merge branch 'master' of github.com:tomochain/docs

  • Loading branch information...
thanhson1085 committed May 22, 2019
2 parents a34bb55 + 1522c41 commit 1f4b43bfbb50a94230b765c0c7f33daa2f73bc95
Showing with 339 additions and 2 deletions.
  1. +324 −1 docs/developers/tutoprivatenet.md
  2. +1 −1 docs/index.md
  3. +14 −0 docs/wp-and-research/specs/trc21_standard.md
@@ -4,4 +4,327 @@ so that one can learn to contribute to the development of TomoChain.
The tutorial is alo a first step for any developer who wants to customize TomoChain's
source code to use in a private or consortium environment.

## Content to be updated
The following will walk you step-by-step to setup a TomoChain private net with three masternodes.

## Install Golang
- Reference: https://golang.org/doc/install
- Set environment variables

```
set GOROOT=$HOME/usr/local/go
set GOPATH=$HOME/go
```

## Prepare tomo client software
- ```cd $GOPATH/src/github.com/ethereum/go-ethereum```
- Download source code and build

```
git init
git remote add git@github.com:tomochain/tomochain.git
git pull origin master
make all
```

- Create shortcuts/alias for easier access

```
alias tomo=$GOPATH/src/github.com/ethereum/go-ethereum/build/bin/tomo
alias bootnode=$GOPATH/src/github.com/ethereum/go-ethereum/build/bin/bootnode
alias puppeth=$GOPATH/src/github.com/ethereum/go-ethereum/build/bin/puppeth
```

## Setup chain data folders `datadir` and corresponding `keystore` folders for 3 masternodes

```
mkdir $HOME/tomochain
mkdir $HOME/tomochain/nodes
mkdir $HOME/tomochain/nodes/1 $HOME/tomochain/nodes/2 $HOME/tomochain/nodes/3
mkdir $HOME/tomochain/keystore/1 $HOME/tomochain/keystore/2 $HOME/tomochain/keystore/3
```

## Initialize / Import accounts for the masternodes's keystore
- Initialize new accounts: If you have existing accounts and prefer importing them, please ignore this step and go to `Import Accounts`

```
tomo account new \
--password [YOUR_PASSWORD_FILE_TO_LOCK_YOUR_ACCOUNT] \
--keystore $HOME/tomochain/keystore/1
```

```
tomo account new \
--password [YOUR_PASSWORD_FILE_TO_LOCK_YOUR_ACCOUNT] \
--keystore $HOME/tomochain/keystore/2
```

```
tomo account new \
--password [YOUR_PASSWORD_FILE_TO_LOCK_YOUR_ACCOUNT] \
--keystore $HOME/tomochain/keystore/3
```

- Import accounts

```
tomo account import [PRIVATE_KEY_FILE_OF_YOUR_ACCOUNT] \
--keystore $HOME/tomochain/keystore/1 \
--password [YOUR_PASSWORD_FILE_TO_LOCK_YOUR_ACCOUNT]
```

Repeat this step to import two more private keys for our three masternodes.

## Customize genesis block by using the `puppeth` tool
- Run puppeth command and answer questions about your private chain as follows:

```
puppeth
```

- Set chain name
```
> localtomo
```
![Private chain name](https://user-images.githubusercontent.com/17243442/57121919-bcbbd000-6da4-11e9-8a0e-dea3a15f3fc1.png)

- Enter 2 to configure new genesis
- Enter 3 to select `POSV` consensus
- Set blocktime (default 2 seconds)
- Set reward of each epoch
- Set addresses to be initial masternodes
- Set number of blocks of each epoch (default 900)
- Set gap (How many blocks before checkoint need prepare new masternodes set ?)
`suggestedGap = 5`
- Enter foundation address which you hold private key

![POSV configurations](https://user-images.githubusercontent.com/17243442/57122012-2f2cb000-6da5-11e9-8b1e-7fc1c034226a.png)

- Enter accounts which you control private keys to unlock MultiSig wallet

![MultiSig wallet setting](https://user-images.githubusercontent.com/17243442/57122031-453a7080-6da5-11e9-92d6-49fba3a4c1ea.png)

- Enter swap wallet address for fund 55 million TOMO

![Initial funds](https://user-images.githubusercontent.com/17243442/57122062-7024c480-6da5-11e9-98f1-4ce90b2941d6.png)

- Export genesis file
- Select `2. Manage existing genesis`
- Select `2. Export genesis configuration`
- Enter genesis filename

![Export genesis file](https://user-images.githubusercontent.com/17243442/57122075-82066780-6da5-11e9-89b2-e0369ec528f5.png)

- `Control + C` to exit

## Initialize your private chain with above genesis block

```
tomo --datadir $HOME/tomochain/nodes/1 init [PATH/TO/GENESIS_FILE]
tomo --datadir $HOME/tomochain/nodes/2 init [PATH/TO/GENESIS_FILE]
tomo --datadir $HOME/tomochain/nodes/3 init [PATH/TO/GENESIS_FILE]
```

## Setup bootnode
- Initialize bootnode key

```
bootnode -genkey bootnode.key
```

- Start bootnode and copy bootnode information

```
bootnode -nodekey ./bootnode.key
```

`enode://7e59324b1e54f8c282719465eb96786fb3a04a0265deee2cdb0f62e912337ca6f118d0c91f7ebfae6f5c17825205279249cf7ff65ae54d0a1a8908ef16f80f63@[::]:30301`
![Start bootnode](https://user-images.githubusercontent.com/17243442/57963757-9b85e280-7953-11e9-87ab-021a3cf5d8f8.png)

## Start masternodes
- Start masternode 1

```
tomo --syncmode "full" \
--datadir $HOME/tomochain/nodes/1 --networkid [YOUR_NETWORK_ID] --port 10303 \
--keystore $HOME/tomochain/keystore/1 --password [YOUR_PASSWORD_FILE_TO_UNLOCK_YOUR_ACCOUNT] \
--rpc --rpccorsdomain "*" --rpcaddr 0.0.0.0 --rpcport 1545 --rpcvhosts "*" \
--rpcapi "db,eth,net,web3,personal,debug" \
--gcmode "archive" \
--ws --wsaddr 0.0.0.0 --wsport 1546 --wsorigins "*" --unlock "[ADDRESS_MASTERNODE_1]" \
--identity "NODE1" \
--mine --gasprice 2500 \
--bootnodes [YOUR_BOOTNODE_INFORMATION] \
console
```
- Start masternode 2

```
tomo --syncmode "full" \
--datadir $HOME/tomochain/nodes/2 --networkid [YOUR_NETWORK_ID] --port 20303 \
--keystore $HOME/tomochain/keystore/2 --password [YOUR_PASSWORD_FILE_TO_UNLOCK_YOUR_ACCOUNT] \
--rpc --rpccorsdomain "*" --rpcaddr 0.0.0.0 --rpcport 2545 --rpcvhosts "*" \
--rpcapi "db,eth,net,web3,personal,debug" \
--gcmode "archive" \
--ws --wsaddr 0.0.0.0 --wsport 2546 --wsorigins "*" --unlock "[ADDRESS_MASTERNODE_2]" \
--identity "NODE2" \
--mine --gasprice 2500 \
--bootnodes [YOUR_BOOTNODE_INFORMATION] \
console
```

- Start masternode 3
```
tomo --syncmode "full" \
--datadir $HOME/tomochain/nodes/3 --networkid [YOUR_NETWORK_ID] --port 30303 \
--keystore $HOME/tomochain/keystore/3 --password [YOUR_PASSWORD_FILE_TO_UNLOCK_YOUR_ACCOUNT] \
--rpc --rpccorsdomain "*" --rpcaddr 0.0.0.0 --rpcport 3545 --rpcvhosts "*" \
--rpcapi "db,eth,net,web3,personal,debug" \
--gcmode "archive" \
--ws --wsaddr 0.0.0.0 --wsport 3546 --wsorigins "*" --unlock "[ADDRESS_MASTERNODE_3]" \
--identity "NODE3" \
--mine --gasprice 2500 \
--bootnodes [YOUR_BOOTNODE_INFORMATION] \
console
```

- Some explanations on the flags

```
--verbosity: log level from 1 to 5. Here we're using 4 for debug messages
--datadir: path to your data directory created above.
--keystore: path to your account's keystore created above.
--identity: your full-node's name.
--password: your account's password.
--networkid: our testnet network ID.
--port: your full-node's listening port (default to 30303)
--rpc, --rpccorsdomain, --rpcaddr, --rpcport, --rpcvhosts: your full-node will accept RPC requests at 8545 TCP.
--ws, --wsaddr, --wsport, --wsorigins: your full-node will accept Websocket requests at 8546 TCP.
--mine: your full-node wants to register to be a candidate for masternode selection.
--gasprice: Minimal gas price to accept for mining a transaction.
--targetgaslimit: Target gas limit sets the artificial target gas floor for the blocks to mine (default: 4712388)
--bootnode: bootnode information to help to discover other nodes in the network
--gcmode: blockchain garbage collection mode ("full", "archive")
--synmode: blockchain sync mode ("fast", "full", or "light". More detail: https://github.com/tomochain/tomochain/blob/master/eth/downloader/modes.go#L24)
```
To see all flags usage

```
tomo --help
```


## Check your private chain
- Connect ipc

```
tomo attach $HOME/tomochain/nodes/1/tomo.ipc
```

```
admin.nodeInfo
eth.getBlock(0)
eth.getBlock(1)
```

- Connect rpc

```
tomo attach tomo attach http://0.0.0.0:1545
```

```
eth.getBlock(0)
eth.getBlock(1)
```

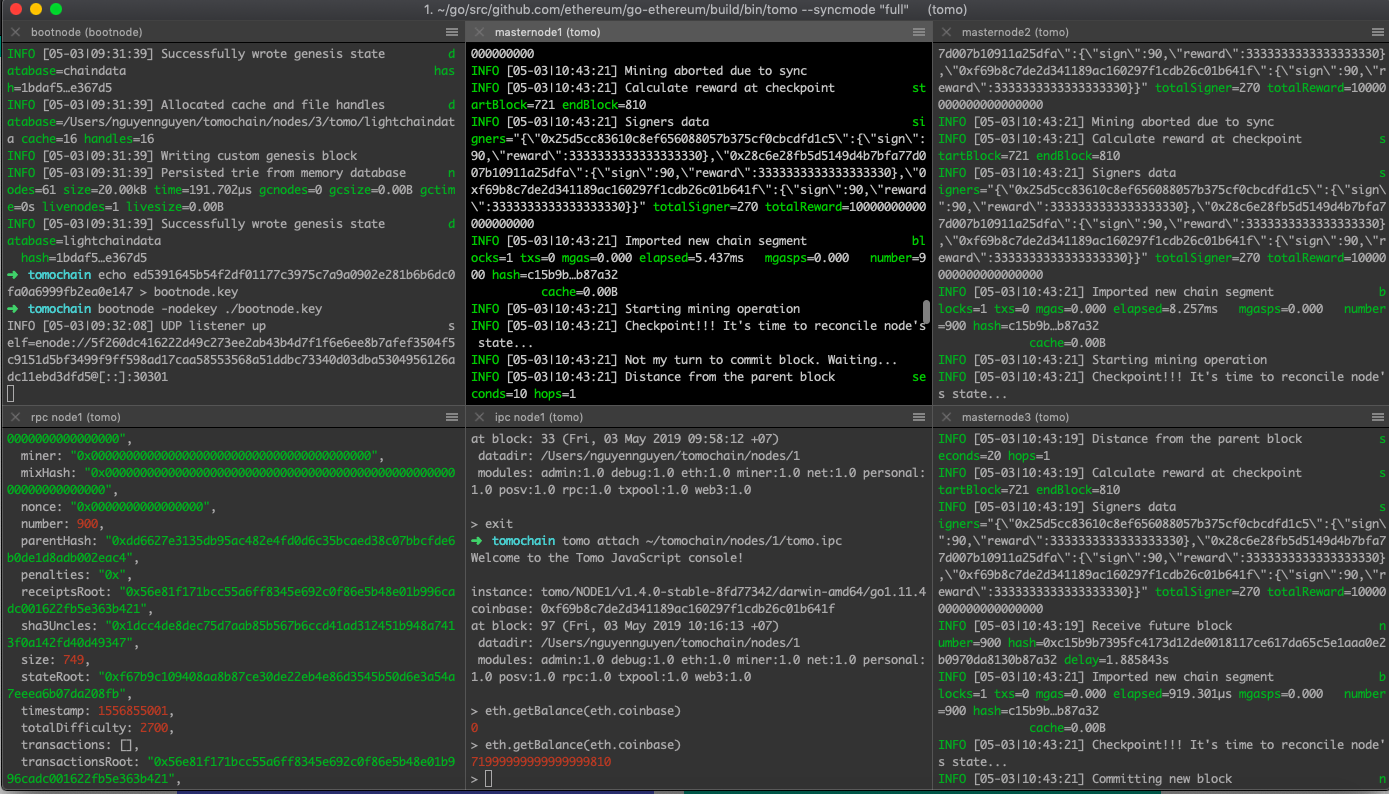

- Verify Checkpoints

Wait about 30 minutes to see if your chain passes the first checkpoint
![Console log at checkpoint](https://user-images.githubusercontent.com/17243442/57122084-93e80a80-6da5-11e9-81cf-598693bd2779.png)

tomo attach tomo attach http://0.0.0.0:1545

```
eth.getBlock(900)
```

## Troubleshooting
- Reset your chain

```
rm -rf $HOME/tomochain/nodes/1/tomo $HOME/tomochain/nodes/2/tomo $HOME/tomochain/nodes/3/tomo
tomo --datadir $HOME/tomochain/nodes/1 init genesis.json
tomo --datadir $HOME/tomochain/nodes/2 init genesis.json
tomo --datadir $HOME/tomochain/nodes/3 init genesis.json
```
@@ -1,4 +1,4 @@
# The most efficient platform for the token economy
# The most efficient Blockchain for the Token Economy

The blockchain industry and the infrastructure of the Internet of Value are being built rapidly around the globe, and to many the atmosphere is eerily similar to the building of the Internet in the late ’90s, with pioneers and dreamers coming together to build a new future. The objective of TomoChain is to become a leading part of this phenomenon through seamlessly merging an ecosystem of applications with cryptographic tokens used by millions of mainstream users with a unique blockchain infrastructure architecture, allowing for fast, frictionless payment and a secure, decentralised, and trusted store of value.

@@ -32,6 +32,8 @@ interface ITRC21 {
function balanceOf(address who) external view returns (uint256);
function estimateFee(uint256 value) external view returns (uint256);
function issuer() external view returns (address);
function allowance(address owner, address spender) external view returns (uint256);
@@ -76,6 +78,18 @@ Token issuers can fully customize the implementation of the function.

This function will also be called by user wallets to evaluate fees the user must be paying.

- `issuer`: Returns the address of the token issuer.

```solidity
function issuer() external view returns (address);
```

The method returns the address of the token issuer.
The is to ensure that only the issuer has the right to apply to the TomoZ protocol for paying fees of token-holder transactions to
the token contract in terms of the token itself.
The method will be called by the TomoZ protocol source code to verify that no one else is able to apply
the token to the TomoZ protocol, except the issuer.

- ```transfer```:
Transfers ```_value``` amount of tokens to address ```_to```, and MUST fire the ```Transfer``` and ```Fee``` event.
