Gruff Graphs

Build Status Gem Version

A library for making beautiful graphs.

Built on top of rmagick; see its web page for a list of the system-level prerequisities (ImageMagick etc) and how to install them.

Installation

Add this line to your application's Gemfile:

gem 'gruff'

And then execute:

$ bundle

Or install it yourself as:

$ gem install gruff

Usage

require 'gruff'
g = Gruff::Line.new
g.title = 'Wow!  Look at this!'
g.labels = { 0 => '5/6', 1 => '5/15', 2 => '5/24', 3 => '5/30', 4 => '6/4',
             5 => '6/12', 6 => '6/21', 7 => '6/28' }
g.data :Jimmy, [25, 36, 86, 39, 25, 31, 79, 88]
g.data :Charles, [80, 54, 67, 54, 68, 70, 90, 95]
g.data :Julie, [22, 29, 35, 38, 36, 40, 46, 57]
g.data :Jane, [95, 95, 95, 90, 85, 80, 88, 100]
g.data :Philip, [90, 34, 23, 12, 78, 89, 98, 88]
g.data :Arthur, [5, 10, 13, 11, 6, 16, 22, 32]
g.write('exciting.png')

Examples

You can find many examples in the test directory along with their resulting charts in the expected directory.

Accumulator bar chart

Accumulator bar chart

Area chart

Area chart

Bar chart

Bar chart

Bezier chart

In progress!

Bezier chart

Bullet chart

In progress!

Bullet chart

Dot chart

Dot chart

Line chart

Line chart

LineXY chart

LineXY chart

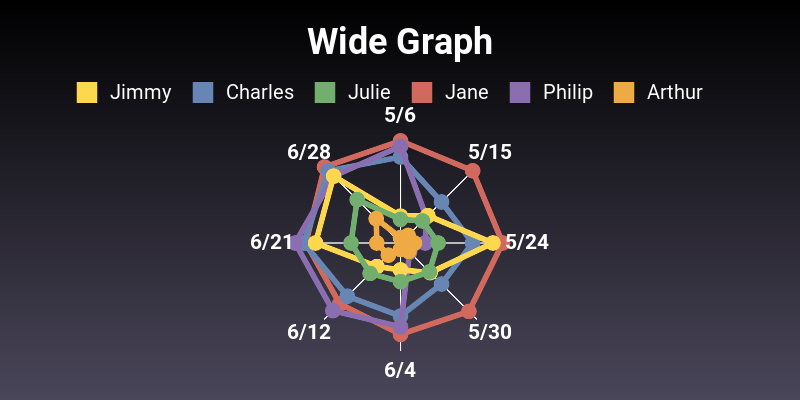

Net chart

Net chart

Pie chart

Pie chart

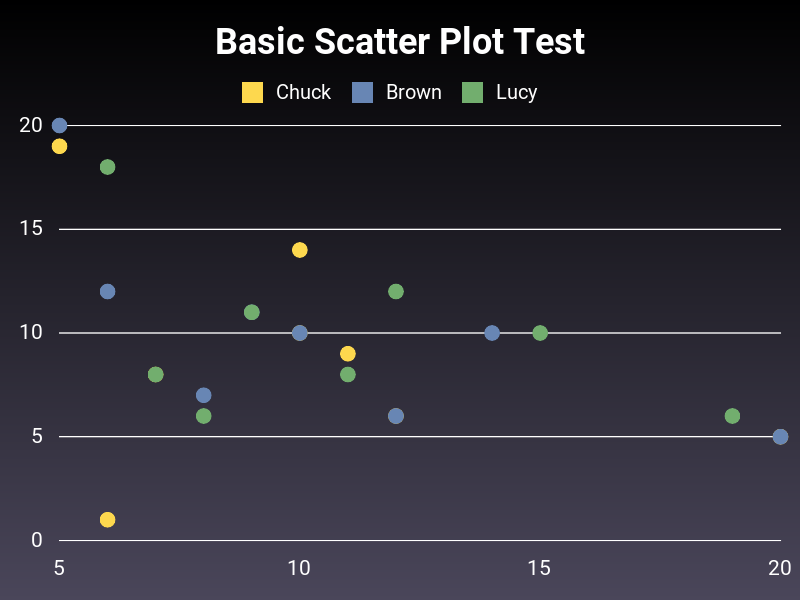

Scatter chart

Scatter chart

Side bar chart

Side bar chart

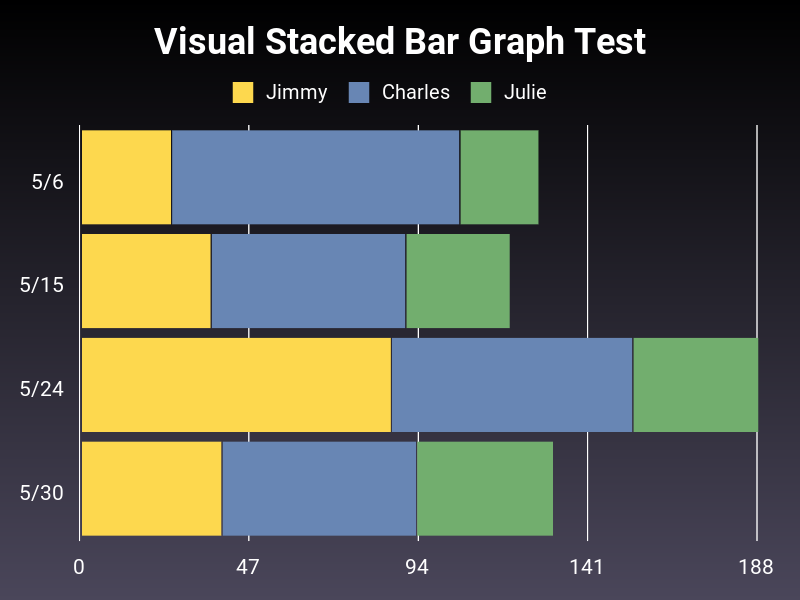

Side stacked bar chart

Side stacked bar chart

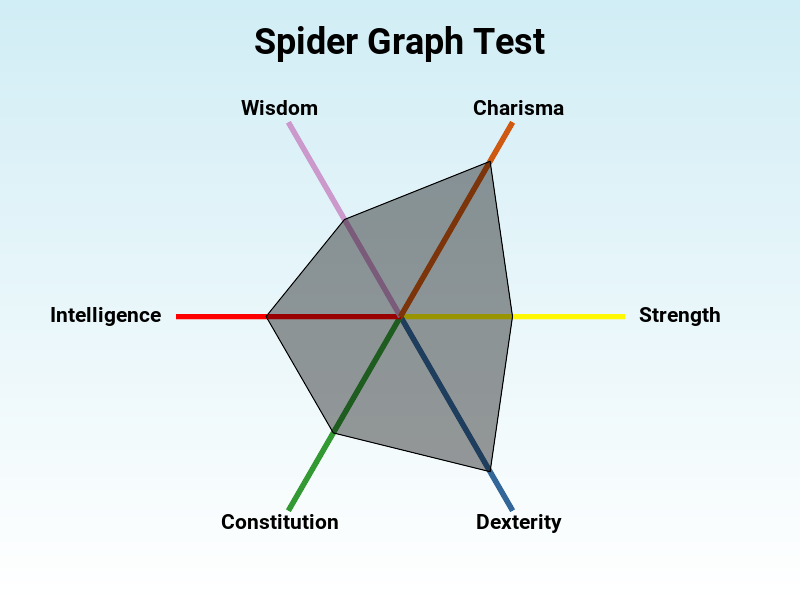

Spider chart

Spider chart

Stacked area chart

Stacked area chart

Stacked bar chart

Stacked bar chart

Histogram chart

Histogram chart

Documentation

http://www.rubydoc.info/github/topfunky/gruff/frames

Supported Ruby Versions

We aim to support all Ruby implementations supporting Ruby language level 1.9.3 or later. Currently we are running CI for MRI, JRuby, and Rubinius.

Development Setup

  1. Build docker image
$ ./docker/build.sh
  1. Launch docker image
$ ./docker/launch.sh
  1. Run tests
$ bundle install
$ bundle exec rake

Contributing

Source

The source for this project is now kept at GitHub:

http://github.com/topfunky/gruff

  1. Fork it
  2. Create your feature branch (git checkout -b my-new-feature)
  3. Commit your changes (git commit -am 'Add some feature')
  4. Push to the branch (git push origin my-new-feature)
  5. Create new Pull Request
