JSDK-1510 Implementing the Bandwidth Constraints example app. #25

manjeshbhargav · 2017-09-19T00:32:01Z

This PR contains the implementation of the Bandwidth Constraints Example.

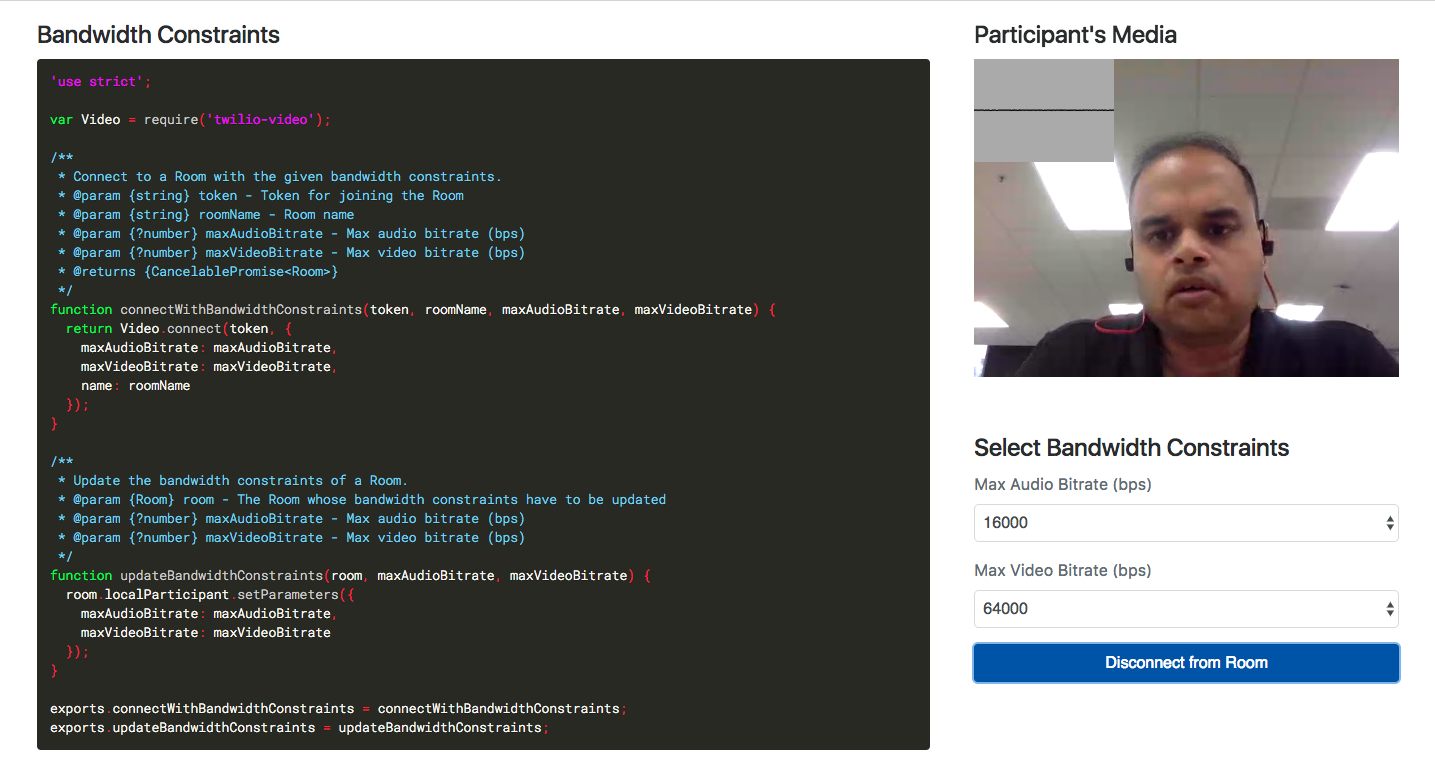

Screenshot:

markandrus · 2017-09-19T15:49:42Z

README.md

@@ -45,8 +45,10 @@ video in both the tabs!

 ## Examples

-The project contains some common use-case examples for the Twilio Video JS SDK.
+The project contains some common use-case examples for the Twilio Video JS SDK. After running the application
+by following the instructions above, click on these links to run the examples.


I think this indicates we ought to find a way to include these links in the app, e.g. a navigation bar or something?

@markandrus I'll add an examples/index.html page linking to all the examples.

markandrus · 2017-09-19T15:50:48Z

examples/bandwidthconstraints/src/index.js

+  if (!canvas) {
+    waveformContainer.appendChild(waveform.element);
+  }
+}


We need to start factoring this stuff out, otherwise it will get difficult to maintain, IMO.

@markandrus I've already moved Waveform to the utils folder.

How about our "attach"/"detach" helpers? Can these be made common?

@markandrus They're not entirely common. In this case, we're also attaching the Track to the Waveform module, whereas in other examples we are not. And I also don't want too much of the app logic to be modularized as it affects the flow of reading the code.

markandrus · 2017-09-19T15:51:28Z

examples/bandwidthconstraints/src/index.js

+  // display the media of the second Participant that will enter
+  // the Room with bandwidth constraints.
+  return Video.connect(creds.token, { tracks: [] });
+}).then(function(_room) {


I think we can use async/await now. This also lets us avoid binding _room.

@markandrus Do Firefox and Safari support it?

Yes, recent versions support it.

markandrus · 2017-09-19T15:52:33Z

examples/util/getroomcredentials.js

+        resolve(JSON.parse(xhr.responseText));
+      }
+    };
+    xhr.send(null);


Can we use fetch instead?

@markandrus Do Firefox and Safari support it?

markandrus · 2017-09-19T15:53:23Z

Looks good. What about indicating to the user that the constraints took effect? E.g., by reading getStats? Will it visually be clear enough that the video is at a lower bitrate? Audibly?

manjeshbhargav · 2017-09-19T16:05:04Z

@markandrus I'm working on adding the bitrate graphs. I'm thinking of leveraging the graph module used by the webrtc sample app demonstrating bandwidth constraints: https://github.com/webrtc/samples/blob/gh-pages/src/js/third_party/graph.js
WDYT?

manjeshbhargav · 2017-09-19T23:09:31Z

@markandrus I've updated the PR with the following changes:

Used async/await in the Bandwidth Constraints example app.
Used fetch() for getting the Room token.
Added examples/index.html that lists the example apps' links.
Added bitrate graphs in the Bandwidth Constraints example app.

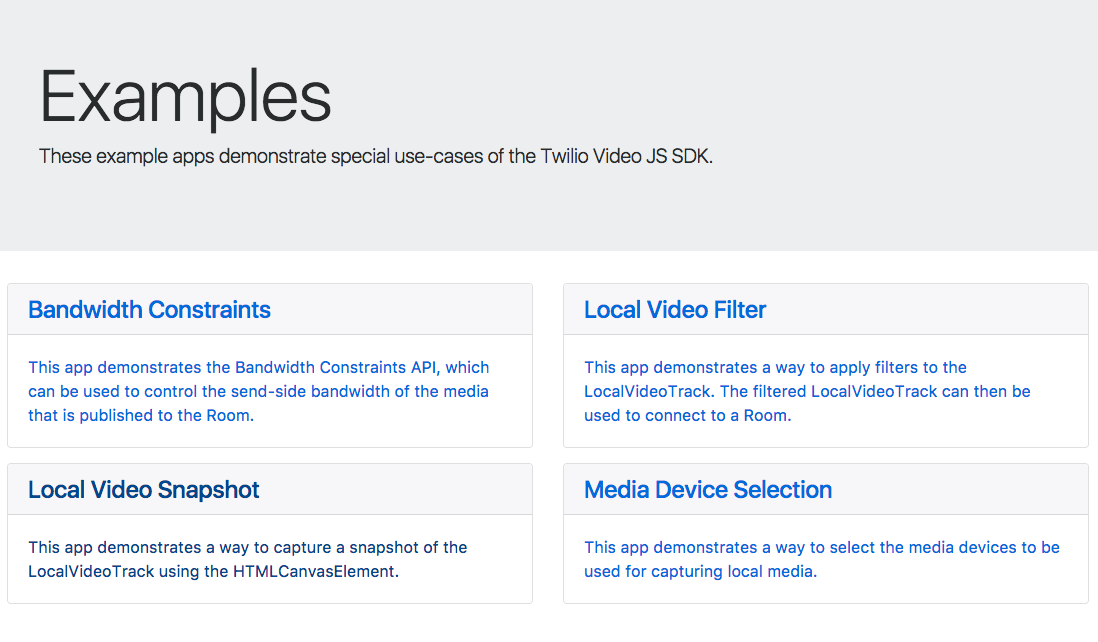

Screenshot of examples/index.html:

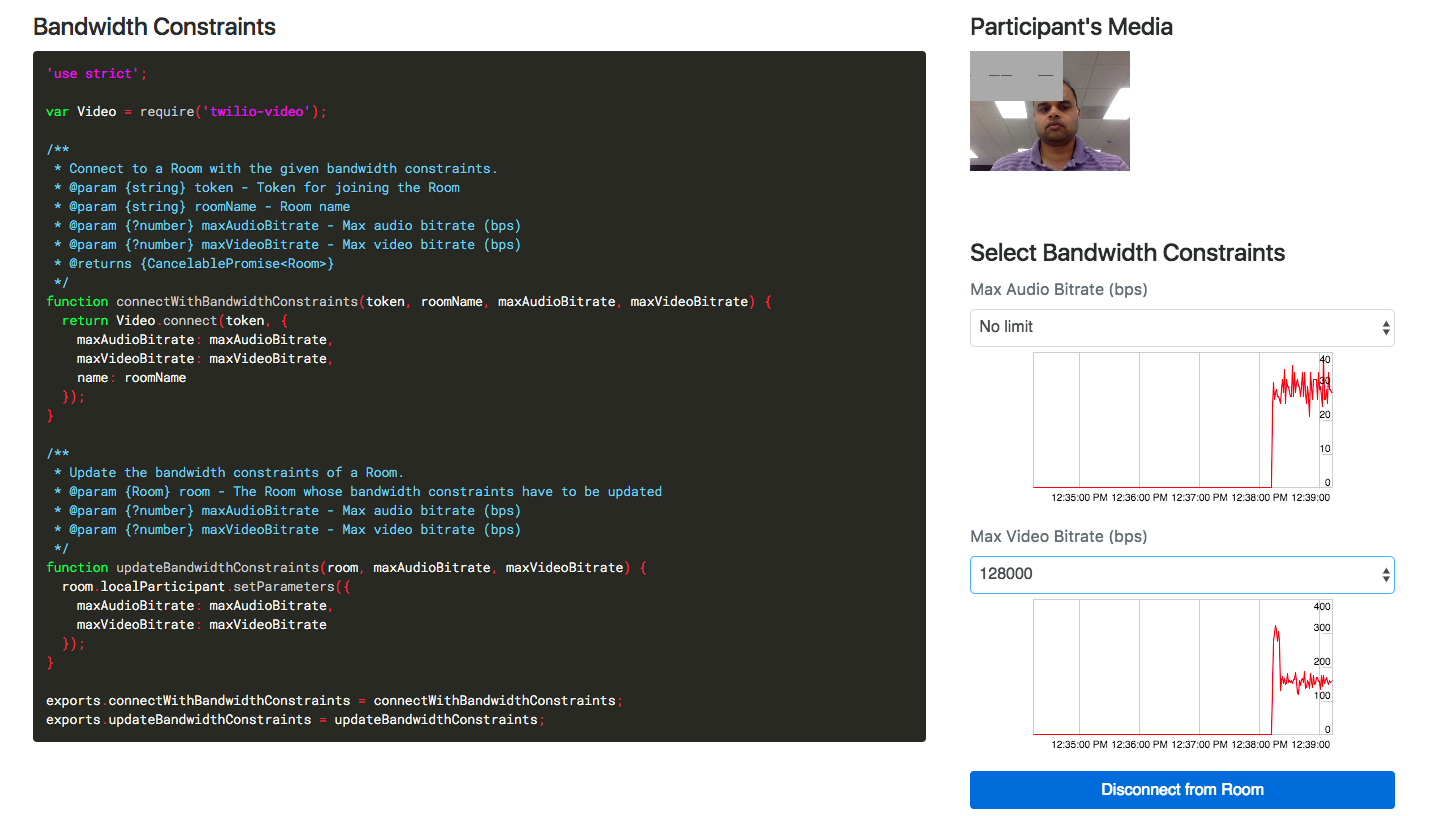

Screenshot of the bitrate filters:

markandrus · 2017-09-21T13:19:57Z

examples/bandwidthconstraints/src/index.js

+var helpers = require('./helpers');
+var waveform = require('../../util/waveform');
+var connectWithBandwidthConstraints = helpers.connectWithBandwidthConstraints;
+var updateBandwidthConstraints = helpers.updateBandwidthConstraints;


Can you also use const and let instead of var? If async/await is supported, so is const and let.

markandrus · 2017-09-21T13:20:59Z

examples/bandwidthconstraints/src/index.js

+  // Connect to a random Room with no media. This Participant will
+  // display the media of the second Participant that will enter
+  // the Room with bandwidth constraints.
+  var _room = await Video.connect(creds.token, { tracks: [] });


Why are we binding _room instead of assigning to room?

Ah, why not randomRoom or someRoom?

markandrus · 2017-09-21T13:22:17Z

examples/bandwidthconstraints/src/index.js

+async function connectToOrDisconnectFromRoom(e) {
+  e.preventDefault();
+  if (room) {
+    e.target.value = 'Connect to Room';


You already have connectOrDisconnect, can you set connectOrDisconnect.value instead of e.target?

markandrus · 2017-09-21T13:22:30Z

examples/bandwidthconstraints/src/index.js

+/**
+ * Connect to or disconnect from a Room.
+ */
+async function connectToOrDisconnectFromRoom(e) {


I think event is better than e here.

markandrus · 2017-09-21T13:23:27Z

examples/bandwidthconstraints/src/index.js

+}
+
+/**
+ * Connect to or disconnect from a Room.


I think it is better to have two functions, connectToRoom, and disconnectFromRoom, then let connectToRoom reassign the "click" event handler of to disconnectFromRoom and vice-versa.

markandrus · 2017-09-21T13:23:58Z

examples/bandwidthconstraints/src/index.js

+        ? stats[0].remoteAudioTrackStats[0]
+        : stats[0].remoteVideoTrackStats[0]
+      var _bytesReceived = remoteTrackStats.bytesReceived;
+      var _timestamp = remoteTrackStats.timestamp;


Why are we binding _bytesReceiver and _timestamp?

@markandrus We are not binding these values. These are just the current values, which will be stored in their non-underscored counterpart variables to serve as previous values for the next bitrate calculation.

markandrus · 2017-09-21T13:55:09Z

examples/util/getroomcredentials.js

+function getRoomCredentials() {
+  return fetch('/token').then(function(response) {
+    return response.json();
+  });


Can use fat-arrow functions and async/await. Basically, I would like us to use all the modern syntax since it is widely available now, e.g.

async function getRoomCredentials() { const response = await fetch('/token') return response.json(); }

markandrus · 2017-09-22T09:11:32Z

examples/util/timelinegraph.js

+ *  Copyright (c) 2015 The WebRTC project authors. All Rights Reserved.
+ *
+ *  Use of this source code is governed by a BSD-style license
+ *  that can be found in the LICENSE file in the root of the source


We need to add/update our LICENSE.md file. It can take the same form as https://github.com/twilio/twilio-video.js/blob/master/LICENSE.md with a couple changes:

First section: Twilio license

Second section: the WebRTC license

markandrus · 2017-09-22T09:12:22Z

One comment, otherwise looks good 👍

manjeshbhargav force-pushed the bandwidth-constraints branch from dd0402e to add2bef Compare September 19, 2017 07:49

JSDK-1510 Implementing the Bandwidth Constraints example app.

add2bef

markandrus reviewed Sep 19, 2017

View reviewed changes

JSDK-1510 Adding bitrate graphs to Bandwidth Constraints example app.

cf19a0a

manjeshbhargav force-pushed the bandwidth-constraints branch 4 times, most recently from da00882 to 94792f0 Compare September 19, 2017 23:04

JSDK-1510 Adding examples page, using fetch() and using async/await.

94792f0

markandrus reviewed Sep 21, 2017

View reviewed changes

JSDK-1510 Using const/let and other refactorings.

8f0ebfb

markandrus reviewed Sep 22, 2017

View reviewed changes

JSDK-1510 Updating LICENSE.md.

1cf49cb

manjeshbhargav merged commit b77b816 into twilio:master Sep 22, 2017

manjeshbhargav deleted the bandwidth-constraints branch September 22, 2017 17:30
