USWDS - Select: Multiple select overflow

[mahoneycm]

Summary

Added ellipses to overflow text in the multiple variant of the select component. This provides a clear indication to users that there is text that extends beyond the select width.

Breaking change

This is not a breaking change.

Related issue

Closes #5047

Related pull requests

Site Changelog PR

Preview link

Multiple select →

Problem statement

Multiple select cuts off long options on Safari & Firefox due to browser styles changing the text color to white, and additional padding leftover from the single select's dropdown icon

Solution

Unfortunately, there is no way to wrap option text within a select element at this time. Instead, the component should convey that there is additional text not visible to the user. This will provide a better user experience for all multiple select users.

This still isn't ideal for users and developers should focus on allowing options to be completely visible within their selects by either increasing the select element width or using short, concise options.

Testing and review

1. Visit multiple select story in Safari or Firefox
2. View the longer Option C
3. Confirm ellipses are visible
4. Select option C
5. Confirm no information loss due to padding or text color change

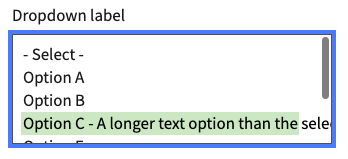

Screenshots

Before

Chrome:

Firefox

Safari

After

Chrome:

Firefox

Safari

• Confirm that this code follows the 18F Front End Coding Style Guide and Accessibility Guide.
• Run git pull origin [base branch] to pull in the most recent updates from your base and check for merge conflicts. (Often, the base branch is develop).
• Run npm run prettier:scss to format any Sass updates.
• Run npm test and confirm that all tests pass.

[amyleadem]

@mahoneycm, this seems to resolve the issue, but unfortunately I was not able to see the ellipsis on Safari. I've added some notes below.

Here are some of the things I tested:

• On init, confirm ellipsis is present on long option text
  • I do not see the ellipsis in Safari. I do see the ellipsis in Firefox and Chrome.
    Safari (initialized):

• On focus, confirm background color extends the full width of the input
  • In Safari, the background does not extend the full-width of the text. Chrome and Firefox look good.


• Confirm screen reader reads entire text
• Tested on Firefox, Safari, Chrome
  • Note, there is some behavior in Firefox that I didn't expect, but it appears to be native behavior in select boxes with overflow-x: hidden options.
    • If I hit tab once, focus moves to the entire input (Expected)
    • If I hit tab again while focus is on the input, it focuses on the option with overflow text. (Not expected, for me at least)
    • Some quick testing revealed that this happens in non-USWDS/standard multiple select boxes as well. Not sure if there is any action that can be taken here, just wanted to flag it in case anyone else noticed or if there is a workaround.

[mahoneycm]

Update

Elipsis on Safari

Unfortunately, it looks like Safari doesn't support text-overflow: ellipsis on <option> tags. I looked around for solutions and tried playing with it myself for a while but it doesn't seem possible without JS.

We can either remove it so it's consistent across the board or keep it for Chrome and Firefox

Removed all of the right-side padding

Now that we can't rely on the ellipses to stop the text from reaching the edge, I've removed the right side padding completely to allow the focus background to reach the edge of the select element.

Results:

Chrome:

Safari:

Resolved Firefox keyboard behavior

Switching overflow-x to overflow. This resolved the tabbing issue where Firefox would target overflow options after targetting the select box itself

[mahoneycm]

@mejiaj @amyleadem Bumping for re-review once you all have availability after 3.5.0 work!

[amyleadem]

Looks good to me! I performed the following tests:

• Move focus to the long text option item - Confirm content and background color extends the full width of the input
• Select the long text option item by moving focus to it then move focus out of the component - Confirm that the background color shows behind only the selected text and that the background color extends the full width of the input
• Tested on Firefox, Safari, Chrome

[mahoneycm]

@mejiaj bumping for review !

[mejiaj]

LGTM! I tested the following:

Visual crossbrowser testing

• Confirmed ellipsis in Chromium/Firefox.
• Confirmed Safari doesn't ― which is OK since this was flagged in description.

Code

Code looks good, no issues. It's unfortunate that the component is hardcoded HTML, so the template isn't reusable. That's not a blocker for this though ― and it'd require a new JSON file anyways. Also, unsure of removing padding right. Either way it doesn't make a huge impact. Just flagging these concerns.

---

@mahoneycm could you please update the PR description so the information/links are accurate?

Broken preview link

Site PR link confusing

Site PR link is showing as closed:

There's a comment at the bottom that links it to an already merged 3.5.0 PR.

[mahoneycm]

@mejiaj thanks for flagging! Updated PR description and reopened changelog PR.

If we want to adjust the right padding instead of getting rid of it completely, we could do something like this:

Lmk what you think!

[mahoneycm]

@mejiaj It does result in odd styles for Safari

[mejiaj]

PR description is accurate & up-to-date. Approved!
