A WebVR volumetric video player that uses color-depth based videos hosted on Vimeo.
Switch branches/tags
Clone or download

README.md

Vimeo Depth Player

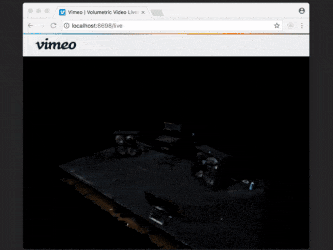

A GIF of a volumetric WebVR demo

A WebVR volumetric video player that uses color-depth based videos hosted on Vimeo.

This repository consists of tools and demos presetned at the Volumetric Filmmaking meetup at NYC.
Check out our demo and our complimentary depth viewer repository.

License Codeship Status PRs Welcome remix button

Overview

Requirements

Getting started

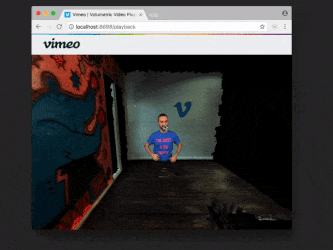

Demo Livestreaming demo Check out our volumetric playback and volumetric live-streaming demos.

Upload a depth video

Make sure you check out the requirements before starting.

First you'll need a video to test with on your Vimeo account. You can download one of the following demo videos:

Upload them into your Vimeo account. Copy the description of the video on Vimeo as well - it's our hacky way of storing JSON config information.

Note: In order to stream Vimeo videos, you will need direct video file access via the Vimeo API. Accessing video files via API is limited to Vimeo Pro and Business customers.

Glitch setup

If you're unfamiliar with setting up Node, the easiest way to get started is to just remix our demos on Glitch (click the GIFs above).

  1. Click here to Remix the demo on Glitch
  2. We will need to use the Vimeo API so that we can grab the video files directly for WebGL to use. To make your life easy, we made this handy link which will generate the token for you. Once you have authorized the app, it will give you a token so you can paste into the .env file. If you're running this locally, create a .env file in your root folder. Your .env file should now look something like this:
VIMEO_TOKEN=406cea4d4xxxxxxxxxxe437756d036f5
  1. In the examples folder swap your volumetric Vimeo video id with the one provided in the examples/demo.html
depthPlayer = new Vimeo.DepthPlayer('YOUR_VIDEO_ID');

Node.js setup

  1. Download or clone the repository, git clone https://github.com/vimeo/vimeo-depth-player.git
  2. Generate a token for your Vimeo account here and save the token into a .env file in the root folder of the repository. It should look something like this:
VIMEO_TOKEN=asfa733240239qwerfhuasf
PORT=5000
  1. Install all dependencies by running npm install inside the repository folder
  2. Run the server, npm run dev
  3. In the examples folder swap your volumetric Vimeo video id with the one provided in the examples/demo.html
depthPlayer = new Vimeo.DepthPlayer('YOUR_VIDEO_ID');

Example demos

  • localhost:5000/demo - A simple volumetric demo that also includes a background 3D model.
  • localhost:5000/live - Almost identical to demo.html just different assets. We included this just to show what we used in our livestreaming volumetric demo.
  • localhost:5000/resolution - This shows you how to select different video resolutions for playback.

Features

  • Supports Depthkit volumetric video hosted on Vimeo.
  • Supports adaptive video (HLS/DASH) for fast video delivery and rendering (on supported browsers and mobile devices).
  • Leverage our Depth Viewer to livestream volumetric video (color-depth) using Vimeo Live
  • Supports streams captured with an Intel RealSense D415/D435

API

All the functionality is acsseable after instancing a Vimeo DepthPlayer in the following way

var depthPlayer = new Vimeo.DepthPlayer('YOUR_VIDEO_ID');

Here is a list of all the parameters you can provide to the Vimeo.DepthPlayer() constructor:

Vimeo.DepthPlayer(
  _vimeoVideoId, // (required) - The first parameter must be provided and describes the Vimeo video ID
  _videoQuality, // Default is `auto` which will try to establish an adaptive stream, you can specifiy a fixed width by providing a number instead.
  _depthType, // An enum desciring the depth encoding type. Currently you can choose between `Vimeo.DepthType.DepthKit` or `Vimeo.DepthType.RealSense`.
  _depthStyle,  // An enum desciring the depth rendering style. Default is `Vimeo.RenderStyle.Points`. Optionally you can use `Vimeo.RenderStyle.Mesh` or `Vimeo.RenderStyle.Wire`.
);

Depth player methods

  • play() - Play the volumetric video
  • stop() - Pause playback and set the video time to 0
  • pause() - Pause playback
  • setVolume(volume) - Set the volume of the audio
  • setLoop(state) - Controls the loop state
  • setPointSize(size) - If rendering Vimeo.RenderStyle.Points controls the size of the points
  • setOpacity(opacity) - Control the opacity of the 3D object
  • setLineWidth(width) - If rendering Vimeo.RenderStyle.Wire controls the width of the wireframe
  • dispose() - Get rid of the depthPlayer instance and clean up all resources

Questions, help, and support

For questions and support, ask on StackOverflow. If you found a bug, please file a GitHub issue.

Make pull requests, file bug reports, and make feature requests via a GitHub issue.

Let's collaborate

Working on a cool video project? Let's talk - labs at vimeo dot com

Thanks

Special thanks to three.js, Depthkit and Depthkit.js
