Render Arnold's scene description

[wahn]

I started to implement a parser, which can read Arnold's .ass (Arnold Scene Source) files:

> ./target/release/examples/parse_ass_file -i assets/ass/cornell_box.ass
FILE = assets/ass/cornell_box.ass
search_directory is /mill3d/users/jan/git/github/rs_pbrt/assets/ass
5174 bytes read
options {
 xres 500
 yres 500
 camera "CACamera"
 GI_total_depth 11 }
persp_camera { name CACamera
 matrix ...
 fov 39.14625 }
standard_surface { name MAdefault }
gaussian_filter { name filter }
driver_exr { name driver }
driver_exr { name driver_emission }
driver_exr { name driver_diffuse_direct }
driver_exr { name driver_specular_direct }
driver_exr { name driver_transmission_direct }
driver_exr { name driver_transmission_indirect }
driver_exr { name driver_diffuse_indirect }
driver_exr { name driver_specular_indirect }
polymesh { name MELight
 matrix ...
 nsides ...
 vidxs 4 1 UINT ...
 vlist 4 1 VECTOR ... }
ray_switch_rgba { name MAEmitter }
mesh_light { name MALight_light
 color 1 1 1
 intensity 100
 samples 2
 mesh "MELight" }
polymesh { name MElarge_box
 matrix ...
 nsides 6 1 UINT ...
 vidxs 24 1 UINT ...
 vlist 8 1 VECTOR ... }
standard_surface { name MAbox_Material }
polymesh { name MEsmall_box
 matrix ...
 nsides 6 1 UINT ...
 vidxs 24 1 UINT ...
 vlist 8 1 VECTOR ... }
polymesh { name MEcornell_box
 matrix ...
 nsides 5 1 UINT ...
 vidxs 20 1 UINT ...
 vlist 8 1 VECTOR ... }
standard_surface { name MAcbox_Material }
standard_surface { name MAcbox_red }
standard_surface { name MAcbox_green }
render_camera = "CACamera"
fov = 39.14625
filter_name = "gaussian"
filter_width = 2.0
max_depth = 11
number of primitives = 36
resolution = Point2 { x: 500, y: 500 }
BVHAccel::recursive_build(...)
PT0.000493672S seconds for building BVH ...
BVHAccel::flatten_bvh_tree(...)
PT0.000001119S seconds for flattening BVH ...
Rendering with 8 thread(s) ...
1024 / 1024 [==========================================================================================================] 100.00 % 119.54/s
Writing image "pbrt.png" with bounds Bounds2 { p_min: Point2 { x: 0, y: 0 }, p_max: Point2 { x: 500, y: 500 } }

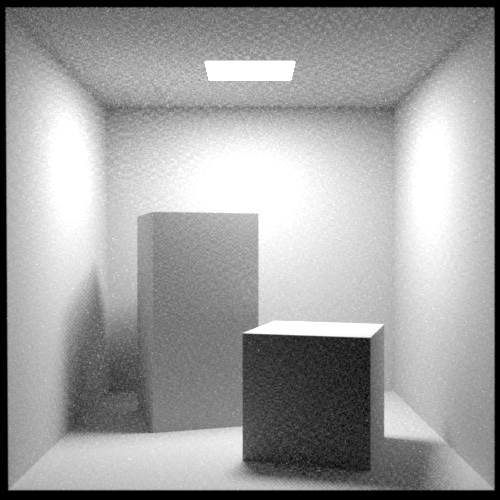

Currently (since commit 15e69c0) it renders using path tracing and a default matte material everywhere:

This issue keeps track of the progress ...

[wahn]

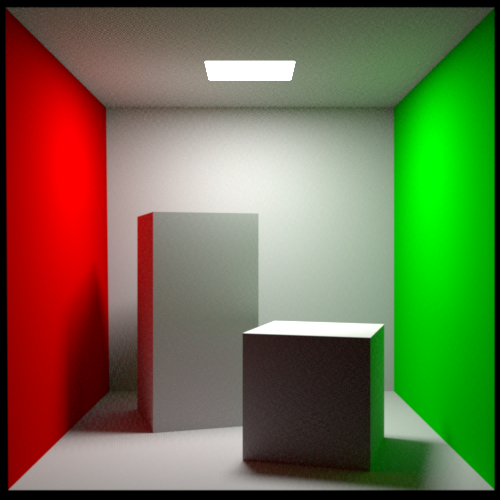

Since commit 41e8b7c we can read and use the parsed standard_surface materials, but we translate them simply to a MatteMaterial using only the base_color parameter:

> ./target/release/examples/parse_ass_file -s 128 -i assets/ass/cornell_box.ass
FILE = assets/ass/cornell_box.ass
search_directory is /mill3d/users/jan/git/github/rs_pbrt/assets/ass
5174 bytes read
...
Writing image "pbrt.png" with bounds Bounds2 { p_min: Point2 { x: 0, y: 0 }, p_max: Point2 { x: 500, y: 500 } }

BTW the -i command line parameter allows you to specify the samples_per_pixel (in this case 128).

[wahn]

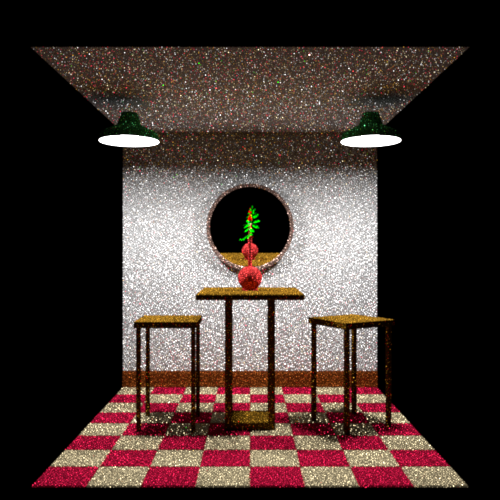

Since commit c262229 we can render two more (variations of the same) scene(s). See commit 866cfbd ...

We have to support more materials though, like glass, metal, mirror (for the mirror behind the vase and rose), or plastic (for some specular highlights) ...

[wahn]

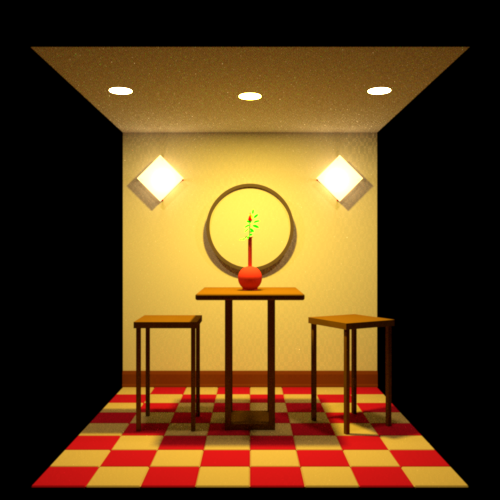

Since commit d67d8fa we support MetalMaterial and MirrorMaterial based on Arnold's standard_surface shader parameters metalness, specular_color, and specular_roughness:

We still miss glass and plastic like materials ...
