Plasma System Monitor's appstream id and component type get changed at build-time from what was specified in metainfo file

[Pointedstick]

Plasma's System Monitor app uses the desktop-application component type and id org.kde.plasma-systemmonitor, and this is reflected in the name of its metainfo and desktop files:

nate@Liberator:~/kde/src/plasma-systemmonitor$  (master) grep -ri "org\.kde\.plasma-systemmonitor"
CMakeLists.txt:61:install(PROGRAMS org.kde.plasma-systemmonitor.desktop  DESTINATION  ${KDE_INSTALL_APPDIR})
src/main.cpp:112:    aboutData.setDesktopFileName(QStringLiteral("org.kde.plasma-systemmonitor"));
org.kde.plasma-systemmonitor.metainfo.xml:7:  <id>org.kde.plasma-systemmonitor</id>
org.kde.plasma-systemmonitor.metainfo.xml:130:  <launchable type="desktop-id">org.kde.plasma-systemmonitor.desktop</launchable>
grep: .git/index: binary file matches

nate@Liberator:~/kde/src/plasma-systemmonitor$  (master) find . | grep -i "org\.kde\.plasma-systemmonitor"
114:./org.kde.plasma-systemmonitor.metainfo.xml
4936:./org.kde.plasma-systemmonitor.desktop

Nonetheless, at build-time, the metainfo file is renamed to org.kde.plasma.systemmonitor.appdata.xml and the content is split into multiple files:

nate@Liberator:~/kde/src/plasma-systemmonitor$  (master) ls ~/kde/usr/share/metainfo/ | grep -i monitor
125:org.kde.plasma.systemmonitor.appdata.xml
126:org.kde.plasma.systemmonitor.cpu.appdata.xml
127:org.kde.plasma.systemmonitor.cpucore.appdata.xml
128:org.kde.plasma.systemmonitor.diskactivity.appdata.xml
129:org.kde.plasma.systemmonitor.diskusage.appdata.xml
130:org.kde.plasma.systemmonitor.memory.appdata.xml
131:org.kde.plasma.systemmonitor.net.appdata.xml

Furthermore, its ID has been changed to org.kde.plasma.systemmonitor and its component type has been changed to addon!

nate@Liberator:~/kde/src/plasma-systemmonitor$  (master) head -n 4 /home/nate/kde/usr/share/metainfo/org.kde.plasma.systemmonitor.appdata.xml
<?xml version="1.0" encoding="UTF-8"?>
<component type="addon">
    <id>org.kde.plasma.systemmonitor</id>
    <extends>org.kde.plasmashell</extends>

This seems wrong and breaks detection in KDE's Kickoff; see extended discussion in https://invent.kde.org/plasma/plasma-workspace/-/merge_requests/2086#note_518577

[ximion]

I've read this multiple times to try to figure out what the issue has to do with AppStream itself. Projects can generate anything they like, as long as the result:

• Does not duplicate component IDs (one piece of software == one ID, non sharing allowed!)
• The generated files ideally have the name %{cid}.metainfo.xml (although I think nothing relies on that, it's a nice convention
• The resulting files validate with appstreamcli validate

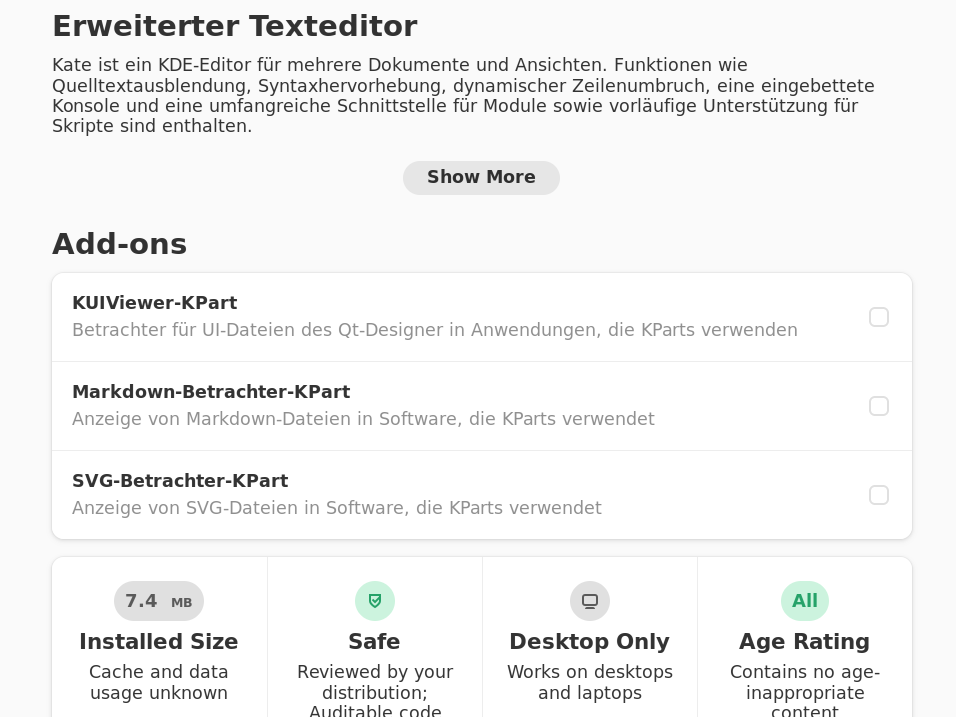

Or do you mean that the system monitor app is not recognized as a launchable target because it makes itself an addon? In that case, the app needs to decide what it is: A think that can be individually launched, or an addon. Addons have different rules and are represented differently in software centers, see for example GNOME Software:

Addons are just checkboxes below the main app there.

So, to me this really looks like something upstream needs to sort out, unless I am missing some point here?

[Pointedstick]

because it makes itself an addon.

...but as far as I can tell, it doesn't make itself an addon. I don't see where it would be setting that. As far as I can tell, in the metainfo file it marks itself as a desktop app: https://invent.kde.org/plasma/plasma-systemmonitor/-/blob/master/org.kde.plasma-systemmonitor.metainfo.xml#L6

So my perhaps incorrect conclusion was that there's an issue in AppStream itself that's inappropriately marking it as an addon, because we're not doing it in KDE--at least, not as far as I can tell.

[nicolasfella]

nate@Liberator:~/kde/src/plasma-systemmonitor$ (master) ls ~/kde/usr/share/metainfo/ | grep -i monitor
125:org.kde.plasma.systemmonitor.appdata.xml
126:org.kde.plasma.systemmonitor.cpu.appdata.xml
127:org.kde.plasma.systemmonitor.cpucore.appdata.xml
128:org.kde.plasma.systemmonitor.diskactivity.appdata.xml
129:org.kde.plasma.systemmonitor.diskusage.appdata.xml
130:org.kde.plasma.systemmonitor.memory.appdata.xml
131:org.kde.plasma.systemmonitor.net.appdata.xml

I think those do not come from plasma-systemmonitor, those come from the systemmonitor applet in plasma-workspace

[Pointedstick]

That would explain some things, as well as being confusing because they have the same user-facing name. So maybe the app's metainfo file isn't getting installed at all or something...?

[nicolasfella]

Yes, plasma-systemmonitor doesn't actually install its metadata file

[Pointedstick]

Oh. Well that's the problem then.

[Pointedstick]

https://invent.kde.org/plasma/plasma-systemmonitor/-/merge_requests/190

[ximion]

Ah, so that explains the duplicate-component error on https://appstream.debian.org/sid/main/issues/plasma-sdk.html as well!
Very good to have this solved :-)
