Option to show chunk options in output #1688

Closed
ulyngs opened this issue Mar 24, 2019 · 10 comments
Closed

Option to show chunk options in output #1688

ulyngs opened this issue Mar 24, 2019 · 10 comments
Labels
feature Feature requests next Issues/PRs considered for the next release

Comments

@ulyngs
Copy link

@ulyngs ulyngs commented Mar 24, 2019

It's often important to be able to display a code chunk in the output where the reader is also able to see the chunk options.

At the moment, one has to do this rather awkwardly with something like:

````markdown
`r ''````{r setup, echo=TRUE}
library(tidyverse)
```
````

Which outputs

```{r setup, echo=TRUE}
library(tidyverse)
```

It would be fantastically useful if something like

```{r setup, echo_opts=TRUE}
library(tidyverse)
```

had the same effect.

@yihui
Copy link
Owner

@yihui yihui commented Mar 25, 2019

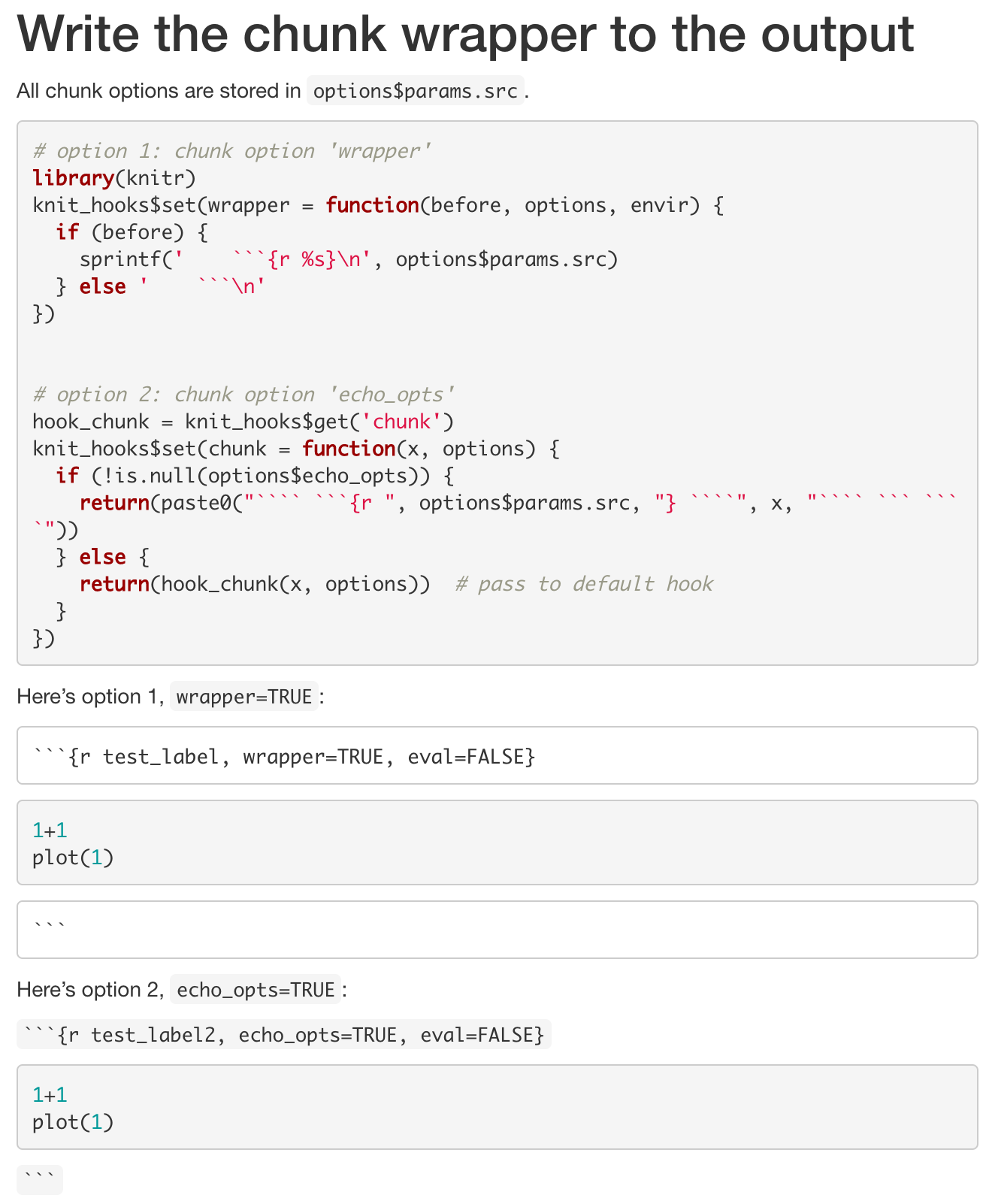

Yes, I admit it is awkward, and it has been bothering myself (but only mildly). Do you have time to improve https://github.com/yihui/knitr-examples/blob/master/062-chunk-wrapper.Rmd?

@ulyngs
Copy link
Author

@ulyngs ulyngs commented Mar 26, 2019

Not sure this is an improvement on the solution you showed, but here's an alternative approach:

# option 2: chunk option 'echo_opts'
hook_chunk = knit_hooks$get('chunk')
knit_hooks$set(chunk = function(x, options) {
  if (!is.null(options$echo_opts)) {
    return(paste0("```` ```{r ", options$params.src, "} ````", x, "```` ``` ````"))
  } else {
    return(hook_chunk(x, options))  # pass to default hook
  }
})

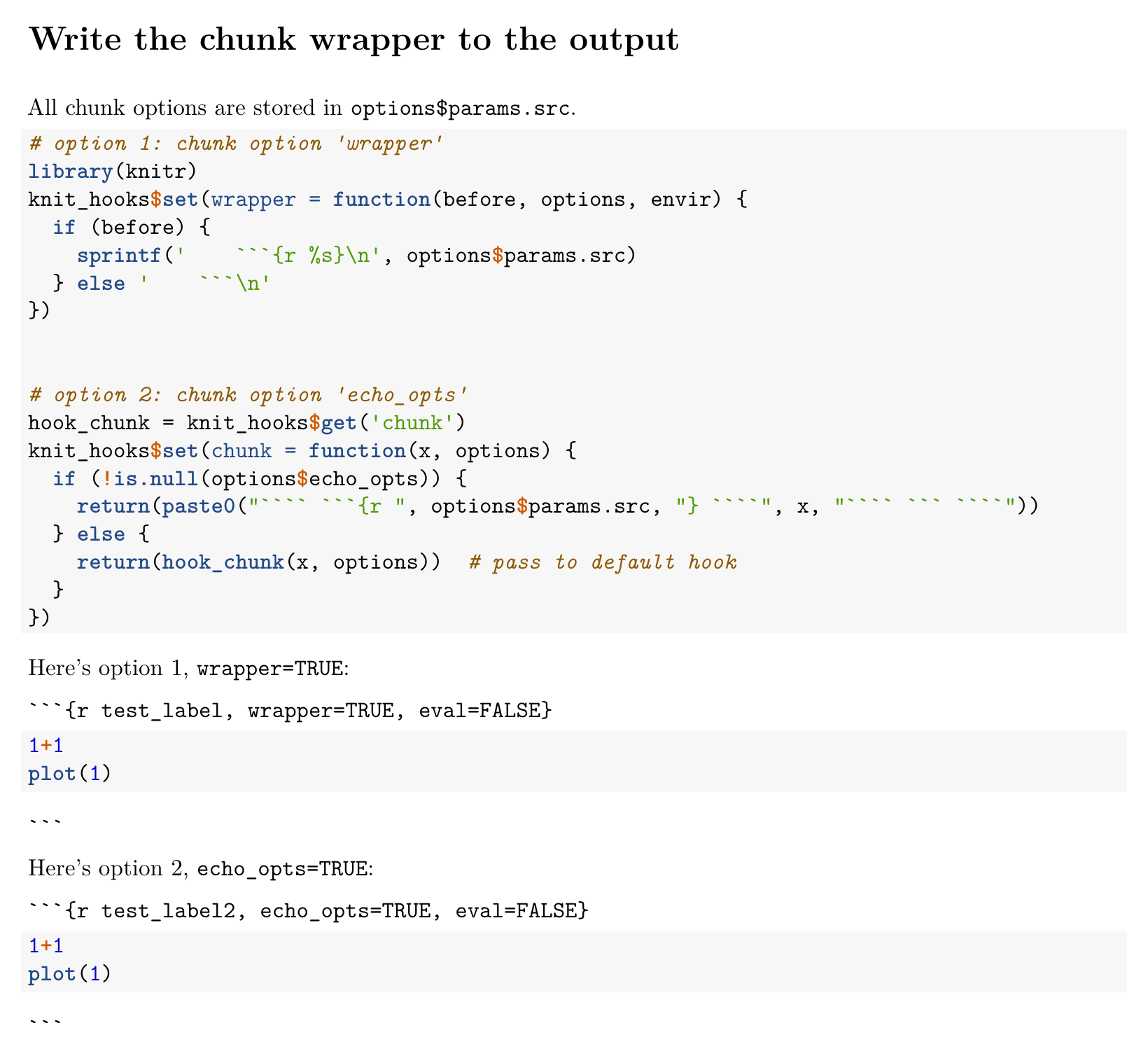

Output is identical in PDF, but slightly different in HTML:
Screenshot 2019-03-26 at 10 09 49


@yihui yihui added this to the v1.23 milestone Mar 26, 2019
@yihui
Copy link
Owner

@yihui yihui commented Mar 26, 2019

Unless you want to actually evaluate the code chunk, I would put everything in a single code block: the chunk header, the code, and footer (all inside four backticks). Anyway, it seems you have understood the method. I'm not particularly interested in providing built-in support for this (it will require more thinking, e.g. code chunks may be indented, and I don't have time for this task).

@yihui yihui closed this as completed May 16, 2019
@yihui yihui reopened this Jun 20, 2019
@cderv cderv added the feature Feature requests label Jan 28, 2021
@cderv cderv removed this from the v1.23 milestone Jan 28, 2021
@cderv
Copy link
Collaborator

@cderv cderv commented Jan 28, 2021

I believe this is related to #1931 and #1275

@yihui yihui added the next Issues/PRs considered for the next release label Aug 27, 2021
@apreshill
Copy link

@apreshill apreshill commented Aug 30, 2021

Hi- wanted to share the Quarto syntax for this:
https://quarto.org/docs/computations/running-code.html#escaping

So instead of:

````r
```{r setup, echo=TRUE}`r ''`
library(tidyverse)
```
````

You would use:

````{.r}
```{{r setup, echo=TRUE}}
library(tidyverse)
```
````

@cderv
Copy link
Collaborator

@cderv cderv commented Aug 31, 2021

Thanks @apreshill ! This is interesting, I wasn't aware

I guess this works too

````r
```{{r setup, echo=TRUE}}
library(tidyverse)
```
````

This is done in Quarto by a Lua filter. So we could bring this syntax to rmarkdown pretty easily. The filter would just need to be added to all type of formats. It works this way:

  • knitr won't parse this part of the Rmd source
  • Pandoc will create a Codeblock element with the content
  • The Lua filter will replace the text content inside this CodeBlock ```{{r setup, echo=TRUE}} by ```{r setup, echo=TRUE} using a regex + gsub. This will create a code block of the language class set in the external backticks to show as-is a knitr code chunk with engine an option.

I guess you find it to be an easier syntax, aren't you ? It is quite nice.
@yihui what do you think of this syntax ?
I can work on a PR for this if we want it in R Markdown.

Side note on the result:
I am always puzzled by what the highlighting should be. So I either don't set any language or set markdown

````{.markdown}
```{{r setup, echo=TRUE}}
library(tidyverse)
```
````

@yihui
Copy link
Owner

@yihui yihui commented Aug 31, 2021

what do you think of this syntax ?
I can work on a PR for this if we want it in R Markdown.

It looks good to me. A PR will be great.

I am always puzzled by what the highlighting should be. So I either don't set any language or set markdown

I don't have a strong preference, but I always set the language to markdown.

@cderv
Copy link
Collaborator

@cderv cderv commented Nov 17, 2021

@ulyngs current dev version of knitr supports a new verbatim engine. See https://github.com/yihui/knitr/blob/master/NEWS.md

You can write

````{verbatim, lang="markdown"}
```{r setup, echo=TRUE}
library(tidyverse)
```
````

to output the content of the verbatim chunk in a fenced code block

````markdown
```{r setup, echo=TRUE}
library(tidyverse)
```
````

I believe this solves you initially need, isn't it ?

@ulyngs
Copy link
Author

@ulyngs ulyngs commented Nov 17, 2021

Hip hooray!!!!! :D

@ulyngs ulyngs closed this as completed Nov 17, 2021
@github-actions
Copy link

@github-actions github-actions bot commented May 18, 2022

This old thread has been automatically locked. If you think you have found something related to this, please open a new issue by following the issue guide (https://yihui.org/issue/), and link to this old issue if necessary.

@github-actions github-actions bot locked as resolved and limited conversation to collaborators May 18, 2022
