ITV Hub .ttml subs fail to convert to .srt

[Vangelis66]

• I've verified and I assure that I'm running youtube-dl 2017.09.11
• At least skimmed through the README, most notably the FAQ and BUGS sections
• Searched the bugtracker for similar issues including closed ones

What is the purpose of your issue?

• Bug report (encountered problems with youtube-dl)

Standalone youtube-dl.exe v2017.09.11 on Windows Vista SP2 32bit, fully patched.
Command issued:

youtube-dl -f worst "https://www.itv.com/hub/royal-stories/2a4353a0004" -o "The People's Princess[2a4353a0004].mp4" --write-sub --convert-subs=srt --add-metadata -v > ITVHub_VLog.txt 2>&1

Verbose log is quite lengthy, instead of being inserted in the body of this issue, it's been attached:
ITVHub_VLog.txt
FWIW, the failure part reads:

[ffmpeg] Converting subtitles
WARNING: You have requested to convert dfxp (TTML) subtitles into another format, which results in style information loss
Traceback (most recent call last):
  File "__main__.py", line 19, in <module>
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\__init__.py", line 465, in main
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\__init__.py", line 455, in _real_main
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\YoutubeDL.py", line 1966, in download
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\YoutubeDL.py", line 787, in extract_info
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\YoutubeDL.py", line 841, in process_ie_result
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\YoutubeDL.py", line 1601, in process_video_result
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\YoutubeDL.py", line 1947, in process_info
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\YoutubeDL.py", line 2012, in post_process
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\postprocessor\ffmpeg.py", line 589, in run
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\utils.py", line 2677, in dfxp2srt
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmp24lzs8ny\build\youtube_dl\compat.py", line 2510, in compat_etree_fromstring
  File "C:\Python\Python34\lib\xml\etree\ElementTree.py", line 1335, in XML
xml.etree.ElementTree.ParseError: encoding specified in XML declaration is incorrect: line 1, column 30

Hopefully this is something that can be fixed...
Many thanks for your ongoing efforts 👍

[remitamine]

#12909 should fix this problem.

[yan12125]

Thanks to @remitamine, this will be fixed in the next version.

[Vangelis66]

@yan12125 & @remitamine

Unfortunately, latest release 2017.09.15 has not fixed this original issue 😢 , though now a different error is printed; youtube-dl command used:

youtube-dl -f worst "https://www.itv.com/hub/royal-stories/2a4353a0004" -o "The People's Princess[2a4353a0004].mp4" --write-sub --convert-subs=srt --add-metadata

Command prompt window excerpt:

[ffmpeg] Converting subtitles
WARNING: You have requested to convert dfxp (TTML) subtitles into another format
, which results in style information loss
Traceback (most recent call last):
  File "__main__.py", line 19, in <module>
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmpl1klaw4y\bu
ild\youtube_dl\__init__.py", line 465, in main
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmpl1klaw4y\bu
ild\youtube_dl\__init__.py", line 455, in _real_main
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmpl1klaw4y\bu
ild\youtube_dl\YoutubeDL.py", line 1967, in download
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmpl1klaw4y\bu
ild\youtube_dl\YoutubeDL.py", line 787, in extract_info
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmpl1klaw4y\bu
ild\youtube_dl\YoutubeDL.py", line 841, in process_ie_result
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmpl1klaw4y\bu
ild\youtube_dl\YoutubeDL.py", line 1601, in process_video_result
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmpl1klaw4y\bu
ild\youtube_dl\YoutubeDL.py", line 1948, in process_info
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmpl1klaw4y\bu
ild\youtube_dl\YoutubeDL.py", line 2013, in post_process
  File "C:\Users\dst\AppData\Roaming\Build archive\youtube-dl\rg3\tmpl1klaw4y\bu
ild\youtube_dl\postprocessor\ffmpeg.py", line 589, in run
  File "C:\Python\Python34\lib\codecs.py", line 319, in decode
UnicodeDecodeError: 'utf-8' codec can't decode byte 0xff in position 0: invalid
start byte

Please re-open this
Many thanks in anticipation...

[yan12125]

Sorry I didn't check carefully. It should really be fixed in the next version: (3869028)

$ youtube-dl -f worst "https://www.itv.com/hub/royal-stories/2a4353a0004" -o "The People's Princess[2a4353a0004].mp4" --write-sub --convert-subs=srt
[ITV] 2a4353a0004: Downloading webpage
[ITV] 2a4353a0004: Downloading XML
[info] Writing video subtitles to: The People's Princess[2a4353a0004].en.ttml
[download] Destination: The People's Princess[2a4353a0004].mp4
[download]  99.9% of ~84.89MiB at  1.17MiB/s ETA 00:00
[rtmpdump] 88923610 bytes
[download] 100% of 84.80MiB
[ffmpeg] Converting subtitles
WARNING: You have requested to convert dfxp (TTML) subtitles into another format, which results in style information loss
Deleting original file The People's Princess[2a4353a0004].en.ttml (pass -k to keep)

[Vangelis66]

@yan12125 wrote:

Sorry I didn't check carefully. It should really be fixed in the next version

Hi 😄 I hope you're well !
No need to apologise; as ever, your constant efforts and user support is greatly appreciated (this goes to the whole team BTW 👍 )

So, after a wait of several days, next (latest) version 2017.09.24 was released and I was eager to try it out:

youtube-dl -f worst "https://www.itv.com/hub/the-jonathan-ross-show/2a1166a0135" --write-sub --convert-subs=srt -k

As expected, now the subs conversion from .ttml to .srt completes successfully; for the record, out of the major software players on the Windows platform, only VLC 3.0.0-git appears to have native support for the .ttml (dfxp) subs format; but I usually use MPC-BE / MPC-HC / PotPlayer, which all require the conversion to .srt, hence the original issue that was filed...

Trying the generated .srt file with MPC-BE, I almost immediately saw there must be a flaw somewhere in the conversion from .ttml -> .srt, which is demonstrated as the following issue:

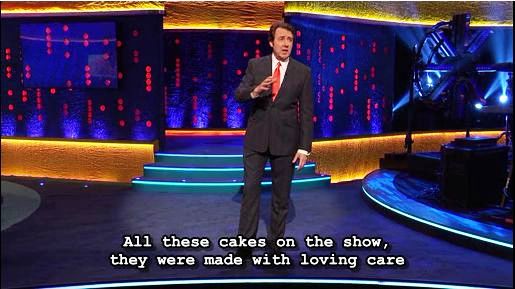

1. When a sub contains two (or more) lines and the font colour is white, everything looks OK:

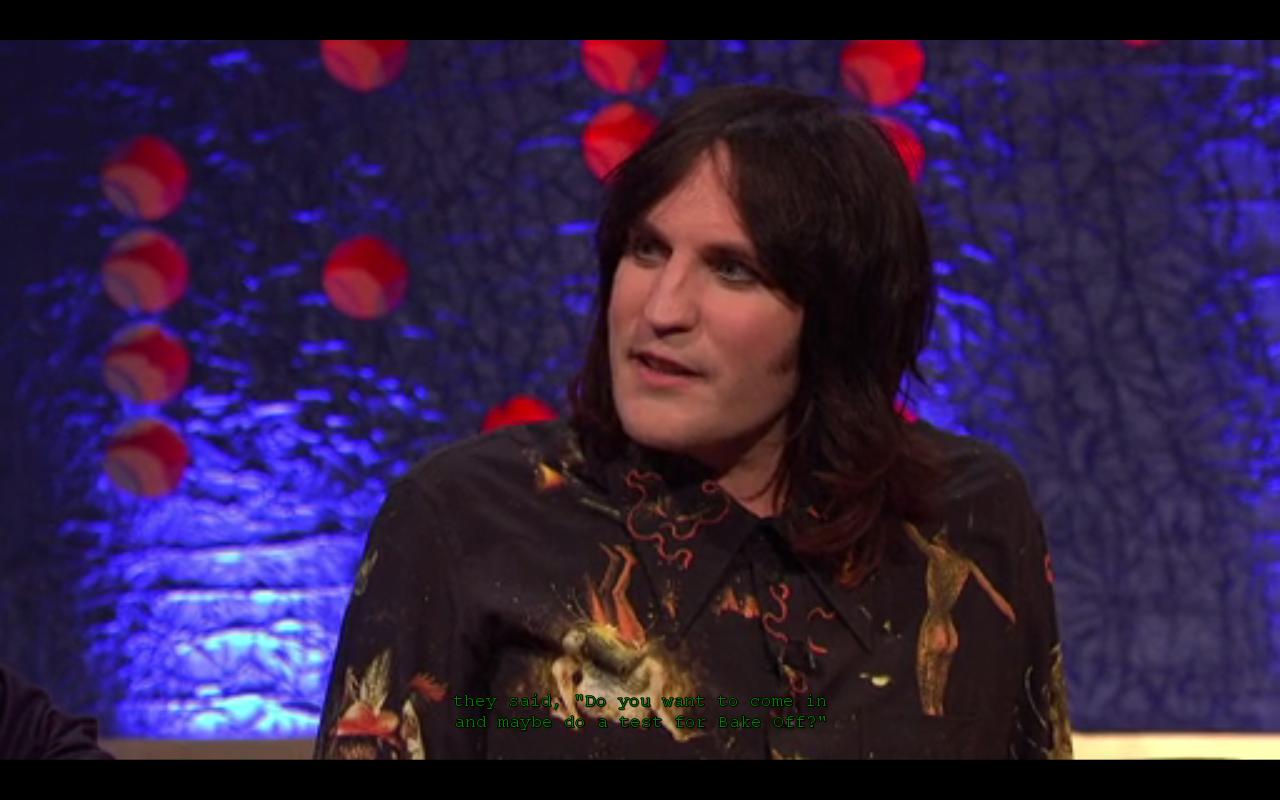

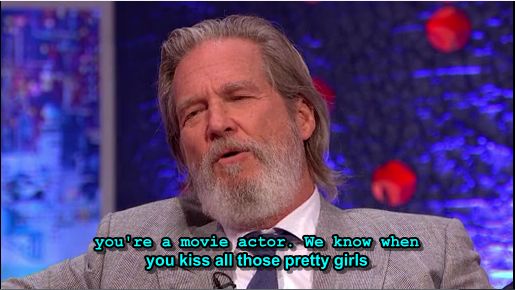

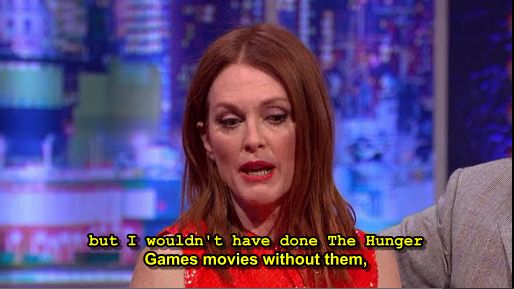

2. However, in every two-line subtitle where font colour !=white (even with different colours between lines), the font size in the second line is noticeably bigger that the first one:

Unfortunately, I know nothing about Python, this is not something I can fix myself and submit a PR, so again it should be investigated and hopefully remedied by a dev...

A personal comment/suggestion:
I see that the .ttml subs is the first item to be downloaded by youtube-dl, folowed by the video itself,
the subs conversion is the last step; maybe consider putting the subs conversion right after fetching the .ttml file (this would avoid waiting for the video download to complete before grabbing the .srt file)?
In a related matter, ITV Hub usually first publish a fresh video without the accompanying subs, these may (or in rare cases may not) be added at a later stage; AFAICS, there's not a --subs-only switch in youtube-dl so as to fetch only the subs once they become available; reading the docs it would appear
--skip-download --write-sub --convert-subs=srt -k
should be able to achieve the same thing, but, sadly, I am left with only the .ttml subs (because subs conversion follows after video fetch... 😞 ).
For your convenience and further testing, I am attaching here both .ttml+.srt subs produced by latest youtube-dl: ITV_Subs_bug.zip
And I'm not sure if it's at all helpful, but here's a link how get-flash-videos handles the subs conversion in Perl...
A million thanks for this excellent tool, along with your consideration for disabled people (my sister is hard of hearing, so relies on .srt subs...).

[yan12125]

I am left with only the .ttml subs (because subs conversion follows after video fetch... 😞 ).

Yep that's another bug (caused by me!). Please follow #9073 for updates.

For the issue of larger texts, could you try the SRT on more players? At the first glance, the transformed srt for this video seems correct.

[dstftw]

Neither VLC nor mpv have such problem. Most likely MPC does not support nested tags properly.

[Vangelis66]

... Thank you both for your input/suggestions.

yan12125 wrote:

For the issue of larger texts, could you try the SRT on more players?

Well, being on a Sunday I had some more free time to check, and:
MPC-HC (stable release and latest beta) exhibits the same behaviour as described in #14191 (comment); in default video dimensions/maximised window/full screen, second line of coloured subtitle has larger fonts.
MPC-BE (my preferred video player), being a fork of MPC-HC, as expected has the same "issue"; let me just say for the record that I've been using MPC-HC for almost a decade (WinXP/Vista/7), for the last year or so switched to MPC-BE (on Vista/7), and it's the first time a flavour of .srt subtitles isn't rendered properly... 😕

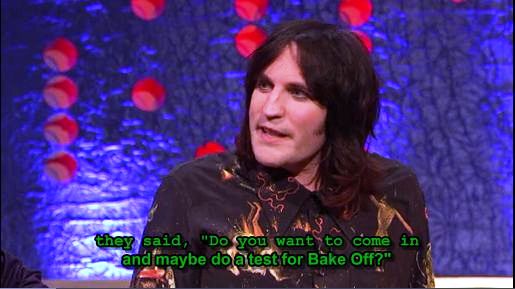

PotPlayer is a mixed bag case; the .srt file produced by yt-dl has the "issue" I reported when viewing the video in default dimensions, but the "issue" goes away in maximised window/full screen modes; even more bizarrely, this "issue" goes completely away, in all possible window modes, if I make the subtitle fonts bold (???). So, using PotPlayer with bold fonts is one solution I could change to...

dstftw wrote:

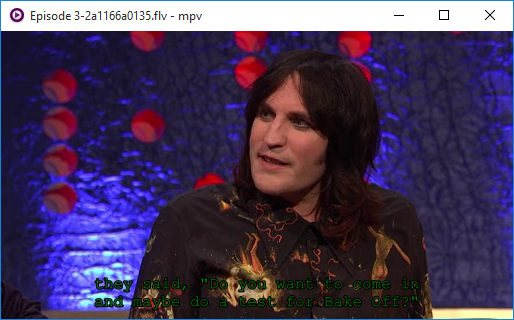

Neither VLC nor mpv have such problem.

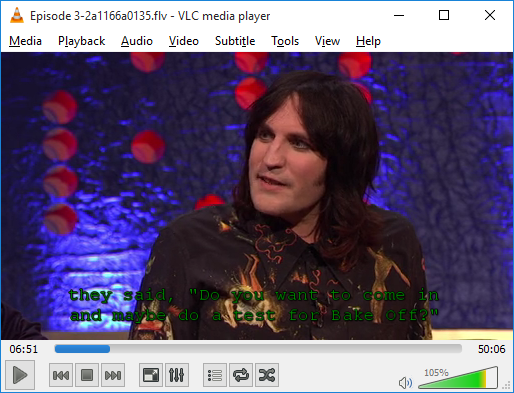

I do have a portable installation of VLC 2.2.6 on this Vista laptop and can confirm; however, I mostly use VLC as an audio stream recorder rather than a video viewer; be that as it may, when I full-screen VLC with this certain type of .srt file produced by youtube-dl, the subtitles remain extremely small:

Again, to overcome this flaw in VLC and read subs in full-screen I have to go into its advanced options and unselect subtitle formatting (resulting in monochrome subs 👎) ...
To conclude, I do insist the ITV .srt subs produced by yt-dl have a (small) flaw; you, OTOH, state:

At first glance, the transformed srt for this video seems correct.

and

Most likely MPC does not support nested tags properly.

(blaming in essence the player...).
I'm not a coder so can't challenge your claims, in fact I'm overly grateful for this app; your coding time is probably better spent fixing other crucial yt-dl issues than this small subtitles handicap... If others are also OK with current status, I personally will further process those .srt subs with SubtitleEdit (or similar) to strip formatting and create a look of them I'm more comfortable with...

Again, many thanks!
