VISTA-PATH: An interactive foundation model for pathology image segmentation and quantitative analysis in computational pathology

📎 Paper Link: https://www.arxiv.org/abs/2601.16451

🔥 Overview

VISTA-PATH (Visual Interactive Segmentation and Tissue Analysis for Pathology) is an interactive foundation model for histopathology image segmentation that integrates visual context, textual class prompts, and expert-guided interaction. Pre-trained on over 1.6 million samples, VISTA-PATH achieves strong segmentation generalization across organs and tissue types, supports efficient human-in-the-loop refinement, and enables clinically interpretable analysis through survival-associated morphological features.

🤖 Model Overview

Overview of VISTA-PATH model architecture

🎬 Demo Video

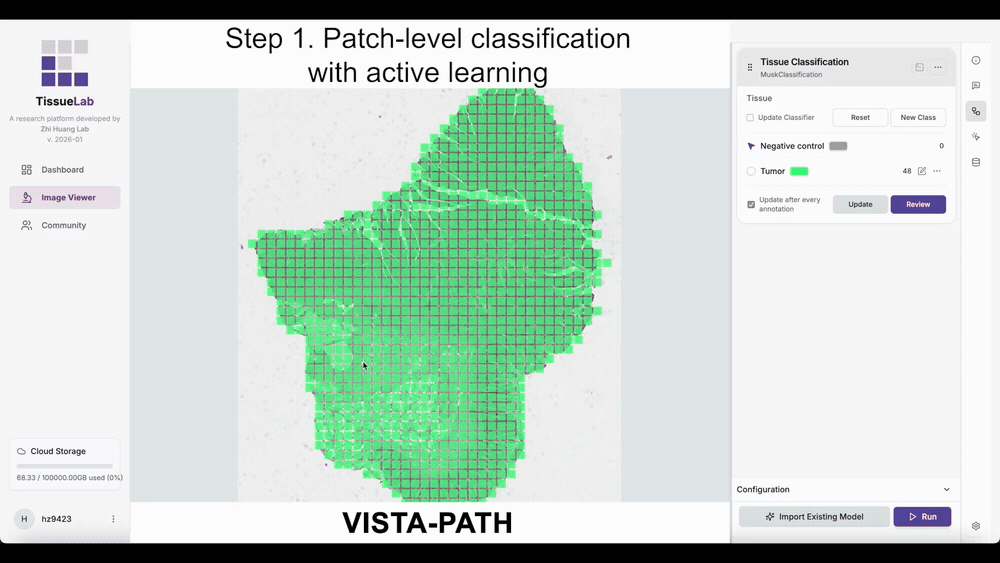

VISTA-PATH supports human-in-the-loop refinement by propagating sparse, patch-level bounding-box annotation feedback into whole-slide, pixel-level segmentation. VISTA-PATH is integrated into TissueLab.

🚀 Installation

First clone the repo (including the model checkpoint) and cd into the repo

git lfs install
git clone https://github.com/zhihuanglab/VISTA-PATH.git
cd VISTA-PATH
git lfs pull

Create a new enviroment with anaconda.

conda create -n VISTA-PATH python=3.12
conda activate VISTA-PATH
conda install -c conda-forge scikit-image opencv pandas pillow numpy
conda install -c conda-forge openslide openslide-python
conda install pytorch==2.4.0 torchvision==0.19.0 torchaudio==2.4.0  pytorch-cuda=11.8 -c pytorch -c nvidia
pip install transformers==4.46.1
pip install pycocotools matplotlib scikit-learn
pip install accelerate==0.26.0
conda install -c conda-forge opencv
conda install -c conda-forge albumentations

🧠 Model Download

The VISTA-PATH model can be downloaded from

https://github.com/zhihuanglab/VISTA-PATH/tree/main/checkpoints/pytorch_model.bin

🔬 Quick Start: Model Inference

put the checkpoint into the file ./checkpoints

a. do inference without bbx

dataset_name=TCGA-COAD

python3 inference.py \
  --infer_vis_dir ./results/${dataset_name} \
  --checkpoint_file ./checkpoints/pytorch_model.bin \
  --image_file /data/TCGA-COAD/20x_images/TCGA-AZ-6608-01Z-00-DX1.40d9f93f-f7d8-4138-9af1-bb579c53194b.tif \
  --bbx_random 1 \
  --class_names "Tumor" "Stroma"

--bbx_random indicates to use bbx prompts or not, 1 means not using bbx, 0 means using bbx

--infer_vis_dir saves final outputs. Two types of files are save: .jpg shows visual example, .npz saves probability maps produced by the model for each class, which in the format: [class_name]: [probability map]

b. do inference with bbx

Toy examples are provided in ./examples/BRCA for quick start

dataset_name=BRCA

python3 inference_bbx.py \
  --infer_vis_dir ./results/${dataset_name} \
  --json_file ./idx_to_names/${dataset_name}.json \
  --checkpoint_file ./checkpoints/pytorch_model.bin \
  --image_dir ./examples/${dataset_name}/images \
  --mask_dir ./examples/${dataset_name}/masks \
  --bbx_random 0

--mask_dir provides bbx prompts

--json_file provides class names

🌟 Acknowledgement

The project was built on top of repositories such as PLIP and SAM. We thank the authors and developers for their contribution.

📖 Publication

@misc{liang2026vistapath,
  title        = {VISTA-PATH: An interactive foundation model for pathology image segmentation and quantitative analysis in computational pathology},
  author       = {Liang, Peixian and Li, Songhao and Koga, Shunsuke and Li, Yutong and Alipour, Zahra and Tang, Yucheng and Xu, Daguang and Huang, Zhi},
  year         = {2026},
  eprint       = {2601.16451},
  archivePrefix= {arXiv},
  primaryClass = {cs.CV},
  doi          = {10.48550/arXiv.2601.16451},
}
