This program displays a calendar view in the Emacs buffer.
Currently, calfw has 4 views, month, 1week, 2week and day view.
Pushing SPC key, the detail buffer pops up. Pushing SPC key again, the buffer is closed.
Many information items are displayed in the Emacs buffer.
To use this program, locate this file to load-path directory, and add the following code to your .emacs.
(require 'calfw)
;; For compatiblity with the old name scheme (starting with `cfw:`
;; instead of `calfw-`), uncomment the following code:
;;
;; (setq calfw-compat-mark-obsolete nil) ;; This supresses obsolete messages
;; (require 'calfw-compat)Executing the command calfw-open-calendar-buffer, switch to the calendar buffer.
You can navigate the date like calendar.el.
Schedule data which are shown in the calendar view, are collected by a
list of the struct calfw-source objects through the named argument
variables :contents-sources and :annotation-sources. The former
source defines schedule contents. The later one does date
annotations like the moon phases.
This program gets the holidays using the function
calendar-holiday-list. See the document for the holidays.el and the Info text.
In the calendar buffer and region, you can use following key bindings:
| Navigation | |
|---|---|
| [left], b, h | Previous day |
| [right], f, l | Next day |
| [up], p, k | Previous week |
| [down], n, j | Next week |
| ^ | Week begin |
| $ | Week end |
| [home] | First date in this month |
| [end] | Last date in this month |
| M-v, [PgUp], < | Previous month |
| C-v, [PgDown], > | Next month |
| t | Today |
| g | Absolute date (YYYY/MM/DD) |
| TAB | Next item in a day |
| Changing View | |
|---|---|
| M | Month view |
| W | 1 Week view |
| T | 2 Week view |
| D | Day view |
| Operation | |
|---|---|
| r | Refresh data and re-draw contents |
| SPC | Pop-up detail buffer (like Quicklook in Mac) |
| RET, [click] | Jump (howm, orgmode) |
| q | Bury buffer |
The buttons on the toolbar can be clicked.
Following programs are also useful:
- calfw-howm.el : Display howm schedules (http://howm.sourceforge.jp/index.html)
- calfw-ical.el : Display schedules of the iCalendar format, such as the google calendar.
- calfw-org.el : Display org schedules (http://orgmode.org/)
- calfw-cal.el : Display diary schedules.
(eval-after-load "howm-menu" '(progn
(require 'calfw-howm)
(calfw-howm-install-schedules)
(define-key howm-mode-map (kbd "M-C") 'calfw-howm-open-calendar)
))If you are using Elscreen, here is useful.
(define-key howm-mode-map (kbd "M-C") 'calfw-howm-elscreen-open-calendar)You can display a calendar in your howm menu file.
%here%(calfw-howm-schedule-inline)
(require 'calfw-org)
Then, M-x calfw-open-org-calendar.
You can choose agenda items with calfw-org-agenda-schedule-args, like following code:
(setq calfw-org-agenda-schedule-args '(:timestamp))This setting restricts items containing a date stamp or date range matching the selected date.
If calfw-org-agenda-schedule-args is nil, the default customize variable org-agenda-entry-types is used. For the further information, please refer the orgmode document.
You can use another key binding like org agenda buffer, setting calfw-org-overwrite-default-keybinding to non-nil, like following code:
(setq calfw-org-overwrite-default-keybinding t)Then, following key bindings are overwritten:
| key | function |
|---|---|
| g | Refresh data and re-draw contents (calfw-refresh-calendar-buffer) |
| j | Goto the specified date (calfw-org-goto-date) |
| k | org-capture |
| x | Close calfw and other buffers opened by calfw-org (calfw-org-clean-exit) |
| d | Day view (calfw-change-view-day) |
| v d | Day view (calfw-change-view-day) |
| v w | 1 Week view (calfw-change-view-week) |
| v m | Month View (calfw-change-view-month) |
Here is the program which helps synchronization schedule items between org and google calendar, and also collaborates with calfw.
Here is a minimum sample code:
(require 'calfw-ical)
(calfw-ical-open-calendar "http://www.google.com/calendar/ical/.../basic.ics")
Here is the add-on program which communicate with google calendar via API:
Here is a minimum sample code:
(require 'calfw-cal)Then, M-x calfw-cal-open-diary-calendar.
If you see a blank entry for each day, set the variable diary-list-include-blanks to nil.
The calfw view can display many schedule items, gathering some schedule sources.
Using the function calfw-open-calendar-buffer is the general way to display the schedules.
Here is the sample code:
(require 'calfw-cal)
(require 'calfw-ical)
(require 'calfw-howm)
(require 'calfw-org)
(defun my-open-calendar ()
(interactive)
(calfw-open-calendar-buffer
:contents-sources
(list
(calfw-org-create-source "Green") ; orgmode source
(calfw-howm-create-source "Blue") ; howm source
(calfw-cal-create-source "Orange") ; diary source
(calfw-ical-create-source "Moon" "~/moon.ics" "Gray") ; ICS source1
(calfw-ical-create-source "gcal" "https://..../basic.ics" "IndianRed") ; google calendar ICS
)))The function calfw-open-calendar-buffer receives schedules sources via
the named argument :contents-sources.
One can customize the keymap on the calendar buffer with the named
argument :custom-map of calfw-open-calendar-buffer.
The calfw collects holidays from the customize variable
calendar-holidays which belongs to holidays.el in the Emacs. See the
document and source of holidays.el for details.
The calfw uses some customization variables in the calendar.el.
Here is a customization code:
;; Month
(setq calendar-month-name-array
["January" "February" "March" "April" "May" "June"
"July" "August" "September" "October" "November" "December"])
;; Week days
(setq calendar-day-name-array
["Sunday" "Monday" "Tuesday" "Wednesday" "Thursday" "Friday" "Saturday"])
;; First day of the week
(setq calendar-week-start-day 0) ; 0:Sunday, 1:MondayOne can customize the faces.
Here is a template code for face customization:
(custom-set-faces
'(calfw-face-title ((t (:foreground "#f0dfaf" :weight bold :height 2.0 :inherit variable-pitch))))
'(calfw-face-header ((t (:foreground "#d0bf8f" :weight bold))))
'(calfw-face-sunday ((t :foreground "#cc9393" :background "grey10" :weight bold)))
'(calfw-face-saturday ((t :foreground "#8cd0d3" :background "grey10" :weight bold)))
'(calfw-face-holiday ((t :background "grey10" :foreground "#8c5353" :weight bold)))
'(calfw-face-grid ((t :foreground "DarkGrey")))
'(calfw-face-default-content ((t :foreground "#bfebbf")))
'(calfw-face-periods ((t :foreground "cyan")))
'(calfw-face-day-title ((t :background "grey10")))
'(calfw-face-default-day ((t :weight bold :inherit calfw-face-day-title)))
'(calfw-face-annotation ((t :foreground "RosyBrown" :inherit calfw-face-day-title)))
'(calfw-face-disable ((t :foreground "DarkGray" :inherit calfw-face-day-title)))
'(calfw-face-today-title ((t :background "#7f9f7f" :weight bold)))
'(calfw-face-today ((t :background: "grey10" :weight bold)))
'(calfw-face-select ((t :background "#2f2f2f")))
'(calfw-face-toolbar ((t :foreground "Steelblue4" :background "Steelblue4")))
'(calfw-face-toolbar-button-off ((t :foreground "Gray10" :weight bold)))
'(calfw-face-toolbar-button-on ((t :foreground "Gray50" :weight bold))))Users can have nice unicode grid frame. However, in the some environment, the Emacs can not display the grid characters correctly. Please try following settings.
Grid setting example:
;; Default setting
(setq calfw-fchar-junction ?+
calfw-fchar-vertical-line ?|
calfw-fchar-horizontal-line ?-
calfw-fchar-left-junction ?+
calfw-fchar-right-junction ?+
calfw-fchar-top-junction ?+
calfw-fchar-top-left-corner ?+
calfw-fchar-top-right-corner ?+ )
;; Unicode characters
(setq calfw-fchar-junction ?╋
calfw-fchar-vertical-line ?┃
calfw-fchar-horizontal-line ?━
calfw-fchar-left-junction ?┣
calfw-fchar-right-junction ?┫
calfw-fchar-top-junction ?┯
calfw-fchar-top-left-corner ?┏
calfw-fchar-top-right-corner ?┓)
;; Another unicode chars
(setq calfw-fchar-junction ?╬
calfw-fchar-vertical-line ?║
calfw-fchar-horizontal-line ?═
calfw-fchar-left-junction ?╠
calfw-fchar-right-junction ?╣
calfw-fchar-top-junction ?╦
calfw-fchar-top-left-corner ?╔
calfw-fchar-top-right-corner ?╗)If a content string is longer than the cell width, the calfw breaks into the multiple lines.
In the current implementation, the Calfw has 3 strategies: none, simple and wordwrap. The variable calfw-render-line-breaker selects the strategy to break lines.
calfw-render-line-breaker-none- Never breaks lines. Longer contents are truncated.
calfw-render-line-breaker-simple(default)- This strategy breaks lines with rigid width. This may be not so beautiful, but In the most cases it looks good.
calfw-render-line-breaker-wordwrap- This strategy breaks lines with the emacs function
fill-region. Although, the line breaking algorithm of the Emacs is not so smart as more complicated ones, such as Knuth/Plass algorithm, this strategy is better than the simple one.
- This strategy breaks lines with the emacs function
In this section, I would explain how to add a new calendar source and how to embed the calfw component in the other applications.
Defining the calfw-source object, one can extend calfw calendar source.
The struct calfw-source is a simple data type defined by cl-defstruct.
Here is the details of the slot members of calfw-source.
| slot name | description |
|---|---|
| name | [required] Source name. This name is shown at the status bar. |
| data | [required] Data function which returns calendar contents. The function details are described in the next section. |
| update | [option] Update function. Calfw calls this function when this source needs to refresh the data. |
| color | [option] Color string for this source. Color names those are shown by M-x list-colors-display or RGB hex format like "#abcdef". |
| period-fgcolor | [option] Foreground color for period items. The default color is white or black. |
| period-bgcolor | [option] Background color for period items. The default color is calfw-source-color. |
| opt-face | [option] Additional options for the normal item face. Ex. :opt-face '(:weight bold) |
| opt-period-face | [option] Additional options for the period item face. |
Only name and data slots are essential. Many slots are visual options.
In many cases, one has to specify only the color slot for visual,
because the calfw chooses appropriate colors for the rest color options.
This section explains what objects the function-slot calfw-source-data should return.
The function-slot calfw-source-data receives two arguments, start and
end date of the query period, and returns a list of instances of calfw-event struct.
Here is a simple example.
calfw-source-data example1:
;; calfw-source-data example
(defun sample-data1 (b e)
(list
(make-calfw-event :title "item1" :start-date (calfw-date 1 1 2011))
(make-calfw-event :title "item2-1" :start-date (calfw-date 1 10 2011))
(make-calfw-event :title "item2-2" :start-date (calfw-date 1 10 2011))))
(calfw-open-calendar-buffer
:date (calfw-date 1 1 2011)
:contents-sources
(list
(make-calfw-source

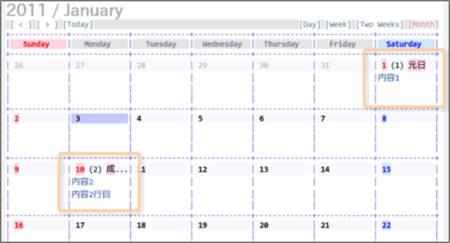

:name "test1" :data 'sample-data1)))Evaluating this code in the scratch buffer, following result is displayed.
The date is specified by calfw-date type, ([month] [day] [year]). This format is commonly used in calendar.el and orgmode.
(I diagrammed the exchange ways for some time and date formats in Emacs, here.)
Period items are little different. One period item is specified by
:start-date and :end-date, and the nested list which has the symbol periods at the head collects them, like the following code.
calfw-source-data example2:
;; calfw-source-data period items
(defun sample-data2 (b e)
(list
(make-calfw-event :title "Item1"
:start-date (calfw-date 1 15 2011))
(list 'periods
(make-calfw-event :title "Period item"
:start-date (calfw-date 1 8 2011)
:end-date (calfw-date 1 9 2011)
:description "Period item description")
(make-calfw-event :title "Next item"
:start-date (calfw-date 1 11 2011)
:end-date (calfw-date 1 12 2011)
:description "Next item description"))))
(calfw-open-calendar-buffer
:date (calfw-date 1 1 2011)
:contents-sources
(list
(make-calfw-source
:name "test2" :data 'sample-data2)))Evaluating this code in the scratch buffer, following result is displayed.
Here are other detailed specifications.
- The both start and end date are included by the query period.
- The items those aren't included in the query period are ignored.
calfw-source-datashould return a value as fast as possible, because users are waiting for the result. Caching is good idea.- Schedule items don't have to be ordered. Duplicated items may be gathered.
- In the day cell, the items are sorted by
string-lessp, i.e. numerical and alphabetical order.- The ordering function can be customized by the named argument
:sorterof the component construction.
- The ordering function can be customized by the named argument
In the above examples, the dates of the schedule items are fixed. The actual sources generate result values by the programs. The codes of calfw add-ons may be helpful for your implementation.
The calfw-event struct:
| slot name | description |
|---|---|
title |
event title [string] |
start-date |
start date of the event [calfw-date] |
start-time |
start time of the event (optional) |
end-date |
end date of the event [calfw-date] (optional) |
end-time |
end of the event (optional) |
description |
event description [string] (optional) |
location |
location [string] (optional) |
source |
[internal] source of the event |
The framework has several formatting functions for calfw-event instances.
The functions are used by the calfw plugins (cal,ical, etc) to display in a common way.
| Format function | Description |
|---|---|
calfw-event-overview |
To get an overview of the event (month, 2-week & week view) |
calfw-event-days-overview |
Overview in day-view. |
calfw-event-period-overview |
Overview of periods (same for all views) |
calfw-event-detail |
Detailed information of the event for the detail-view |
The formatting can be customized by the user with several formatting strings:
calfw-event-format-overviewcalfw-event-format-days-overviewcalfw-event-format-period-overviewcalfw-event-format-detailcalfw-event-format-titlecalfw-event-format-start-datecalfw-event-format-start-timecalfw-event-format-end-datecalfw-event-format-end-timecalfw-event-format-locationcalfw-event-format-description
- calfw-git.el
- Displaying git commit history items in calfw calendar view
- calfw-syobocal.el
- Retrieving schedule items via Web API and displaying them in calfw calendar view
This subsection explains legacy method to define schedule items, so as for users to read old source codes. We should not use this method in the future.
The function-slot calfw-source-data receives two arguments, start and
end date of the query period, and returns an alist that consists of
([date] . ([item1] [item2] ... )).
Here is a simple example.
calfw-source-data example1:
;; calfw-source-data example
(defun sample-data1 (b e)
'(
((1 1 2011) . ("item1"))
((1 10 2011) . ("item2-1" "item2-2"))
))
(calfw-open-calendar-buffer
:date (calfw-date 1 1 2011)
:contents-sources
(list
(make-calfw-source
:name "test1" :data 'sample-data1)))Period items are little different. One period item is specified by
([start date] [end date] [content]) and the periods record of the
alist collects them as a list, like the following code.
calfw-source-data example2:
;; calfw-source-data period items
(defun sample-data2 (b e)
'(
((1 8 2011) . ("item1"))
(periods
((1 8 2011) (1 9 2011) "period item")
((1 11 2011) (1 12 2011) "next item"))
))
;; (A . (B C) ) is equivalent to (A B C)
(calfw-open-calendar-buffer
:date (calfw-date 1 1 2011)
:contents-sources
(list
(make-calfw-source
:name "test2" :data 'sample-data2)))In this section, the details of calfw components would be explained so as for users to extend calfw in themselves.
Calfw is built on the MVC architecture, using simple structure objects and modules employed by naming rules.
Calfw has three destination components to display the calendar.
- Independent buffer
- Region in the other buffer
- Text output
The 'buffer' destination displays the calendar view as ordinary Emacs applications do.
The function calfw-open-calendar-buffer makes a new calendar buffer (calfw buffer) and displays it by switch-to-buffer. The major mode of the calfw buffer is calfw-calendar-mode and the keymap calfw-calendar-mode-map is bound.
This destination is easy to use for applications and users, because the buffer is usual application boundary and users know how to use buffers.
The 'Region' destination embeds the calendar view in the buffer which is managed by the other applications. This destination can give the other applications a nice calendar view. See the howm embedding for example.
Let's try a demonstration. Evaluate this code in your scratch buffer.
Region destination example:
;; Evaluate this code in the scratch buffer
(require 'calfw)
(calfw-create-calendar-component-region :height 10)Then, the calendar view will be embedded in the scratch buffer like the following screenshot. You can navigate the calfw view in the buffer. Undoing for the some times, you can remove the calfw view.
Because this destination never interacts anything out of the region and has its own key-binds as a text property, users can easily embed a calendar view in the other applications.
The 'text' destination generates just a text which represent calfw view. The function calfw-get-calendar-text returns the text.
Three destinations are explained as mentioned above. Although they have different appearance, the application can operate the calfw component in the same way.
Let us call them 'destination', it is the abstraction of UI components.
The similar word 'view' means in which form the calfw displays the contents, for example, monthly form, two-weeks and weekly one and etc.
The calfw consists of four objects:
calfw-componentthat gathers following objects up.calfw-modelthat manages calendar contents.calfw-sourcethat defines schedule items.calfw-destthat is abstraction of destinations.
The relations between the objects are displayed as UML class diagram (Diagrammed by astah).
calfw-component acts as Controller of MVC. It connects model object and destination one, and controls all events. It also gives the interface of calfw objects for the other applications.
calfw-model and calfw-source act as Model of MVC. They manage the schedule contents and calendar logic.
calfw-dest acts as View of MVC. It abstracts the common interface from UI destinations.
The object calfw-component controls calfw objects and events.
The object has following information:
- References to
calfw-destobject andcalfw-modelone. - Selected date on the calfw component.
- View style.
- Hooks
update-hooksselection-change-hooksclick-hooks.
The object has following operations:
- Getting object references to
calfw-dest,calfw-model, belonging buffer and so on. - Getting and setting the selected date (
get-selected-date/set-selected-date). - Getting and setting the view style (
get-view/set-view).- The view style is a symbol, such as
month,two-weeks,weekandday.
- The view style is a symbol, such as
- Resizing and refreshing the view (
resize/update). - Managing hooks (
add-xxx-hook/remove-xxx-hook)
After construction of the calfw component, the destination object can not be changed.
The views are defined as a function and dispatched by the function calfw-cp-dispatch-view-impl.
The instance of the calfw component is stored at following places:
bufferdestination: the buffer-local variablecalfw-componentregiondestination: the text propertycfw:componenttextdestination: N/A
Calling the utility function calfw-cp-get-component, one can obtain the calfw instance at the appropriate places. The stateless functions, such as simple event handler functions, can use this function to get the instance.
The applications those have the state-full operations, however, should hold their own calfw instance for the safety object reference.
The object calfw-model gathers schedule sources and gives a common interface for view functions to access the contents.
The object has following information:
- contents source objects (
contents-sources) - annotation source objects (
annotation-sources) - sorting function (
sorter)
The model object has no information of views and destinations, just manages schedule contents.
The holidays are retrieved from the global function calendar-holiday-list of calendar.el.
The schedule contents are modified through the model object after the component construction.
(In the current implementation, the model object is build by alist. Then, view functions adds some data as view model. I think it is not good solution, so the implementation may be modified in future.)
The object calfw-dest abstracts rendering destinations and gives a common interface of rendering operation to view functions.
The object has following information:
- destination buffer object (
buffer) - region functions (
min-func,max-func) - reference size (
width,height) - clearing function (
clear-func) - advice functions (
before-update-func,after-update-func) - overlay data (
select-ol,today-ol)
In the current implementation, calfw-dest has three forms, buffer, region and text, mentioned above. Actually, the region destination is what I want. One buffer can have some destination objects, because all data (including local-variables and keymaps) are packed in the calfw-dest object.
In this section, I would describe a simple guide line of application design using calfw.
One can use calfw as an application UI (like calfw-howm) or dialog UI for selecting a date (like calendar.el). The user application can choose the destination style: buffer or region. Switching between them is very easy.
The data presentation can be achieved by defining calfw-source object. It may be straightforward.
The input events by the user can be caught by hooks in the calfw-component. Then, the selected date is obtained by the function calfw-cursor-to-nearest-date or calfw-cursor-to-date. The current implementation, calfw can not treat a range on the calendar.
Generally, any events can be caught by the custom keymap which is given by the named argument :custom-map with component construction. Furthermore, because calfw reserves the text properties (face, keymap and so on) on the text that is returned by calfw-source objects, one can control event handling at each characters.
Once the model is modified, update function of the calfw-component object should be called to refresh the view.
The summary diagram is here.
See the calfw-howm.el code for more details.
- 2025/09/13 ver 2.0 : Fixed bugs, used standard naming and docs. Changed maintainer.
- 2015/09/24 ver 1.5 : Fixed bugs and added some customize variables.
- 2015/02/27 ver 1.4 : Introduced calfw-event struct, improved some functions, fixed some bugs.
- 2011/10/10 ver 1.3 : Improved visual and navigation: multi-line, moving items in a day, diary mode and so on.
- 2011/07/20 ver 1.2 : Merged many patches and improved many and bug fixed.
- 2011/07/05 ver 1.0 : Refactored the whole implementation and design. Improved UI and views.
- 2011/01/07 ver 0.2.1 : Supporting org-agenda schedules.
- 2011/01/07 ver 0.1 : First release. Supporting howm and iCal schedules.
SAKURAI, Masashi m.sakurai atmark kiwanami.net
Time-stamp: <2015-09-24 11:47:57 sakurai>
