- Note: Visit the Chroma Animation Guide to find the latest supported plugin for Chroma RGB.
- REST Sample App - This repository expands from the sample app to include support for
Chromaanimation playback.
Table of Contents
Docs:
- Chroma Animation Guide - Visual examples of the Chroma Animation API methods
Plugins:
- CChromaEditor - C++ native MFC library for playing and editing Chroma animations
-
Install Synapse
-
Make sure the Chroma Connect module is installed.
- If you don't have Chroma hardware, you can see Chroma effects with the Chroma Emulator
- (Optional) Node.js - Use to host the sample locally
Browser Security
In order to allow an HTML5 page to talk with the Chroma REST API (cross-site scripting), add the response header for Access-Control-Allow-Origin.
Access-Control-Allow-Origin: https://chromasdk.io:54236/*
Node.JS (Optional) The sample project can be hosted in Node.js
1 Install Node.js
2 Open a terminal in the project folder
3 Install Node.js dependencies
npm install
4 Start the server
node ServerNode.js
5 Browse the Node.js server and pick one of the samples at http://localhost:1337/
Hosted
1 Upload the project files to an online website
2 Browse PlayAnimationSample.html
3 Browse RazerChromaSDKSampleApplication.html
4 Browse 'LayerSample.html'
This library supports the Chroma animation exports from UE4, Unity, and GameMaker.

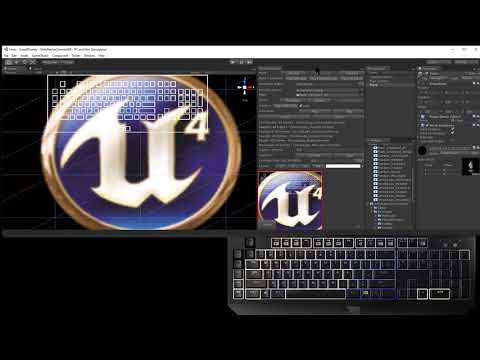

Import Animation From Unity
- The same
Chromaanimation files can be played on HTTP and HTTPS websites.
Initialization
Include the JS includes to get access to the API.
<html>
<head>
<script src="ChromaSDKImpl.js"></script>
</head>
</html>Initialize/Uninitialize the Chroma SDK from the body events.
<script>
var chromaSDK = undefined;
function onPageLoad() {
chromaSDK = new ChromaSDK();
chromaSDK.init();
}
function onPageUnload() {
if (chromaSDK != undefined) {
chromaSDK.uninit()
}
}
</script>
<body onload="onPageLoad()" onunload="onPageUnload()">Clear
The clear method will turn off the lighting effect for a device.
ChromaAnimation.clear(EChromaSDKDeviceEnum.DE_ChromaLink);
ChromaAnimation.clear(EChromaSDKDeviceEnum.DE_Headset);
ChromaAnimation.clear(EChromaSDKDeviceEnum.DE_Keyboard);
ChromaAnimation.clear(EChromaSDKDeviceEnum.DE_Keypad);
ChromaAnimation.clear(EChromaSDKDeviceEnum.DE_Mouse);
ChromaAnimation.clear(EChromaSDKDeviceEnum.DE_Mousepad);Clear All
The clearAll method sets the clear state for all devices.
ChromaAnimation.clearAll();Static Color
The staticColor method will set the Chroma lighting to all the same color for the device, given a color.
var red = 0xFF;
var green = 0xFF00
var blue = 0xFF0000;
var white = 0xFFFFFF;
var color = white;
ChromaAnimation.staticColor(EChromaSDKDeviceEnum.DE_ChromaLink, color);
ChromaAnimation.staticColor(EChromaSDKDeviceEnum.DE_Headset, color);
ChromaAnimation.staticColor(EChromaSDKDeviceEnum.DE_Keyboard, color);
ChromaAnimation.staticColor(EChromaSDKDeviceEnum.DE_Keypad, color);
ChromaAnimation.staticColor(EChromaSDKDeviceEnum.DE_Mouse, color);
ChromaAnimation.staticColor(EChromaSDKDeviceEnum.DE_Mousepad, color);Play Animation
The playAnimation method will play a Chroma animation file. With loop set to true, the animation will repeat. With loop set to false, the animation will play once.
var loop = true;
ChromaAnimation.playAnimation('Random_ChromaLink.chroma', loop);
ChromaAnimation.playAnimation('Random_Headset.chroma', loop);
ChromaAnimation.playAnimation('Random_Keyboard.chroma', loop);
ChromaAnimation.playAnimation('Random_Keypad.chroma', loop);
ChromaAnimation.playAnimation('Random_Mouse.chroma', loop);
ChromaAnimation.playAnimation('Random_Mousepad.chroma', loop);Stop Animation
The stopAnimation method will stop playing a Chroma animation file.
ChromaAnimation.stopAnimation('Random_ChromaLink.chroma');
ChromaAnimation.stopAnimation('Random_Headset.chroma');
ChromaAnimation.stopAnimation('Random_Keyboard.chroma');
ChromaAnimation.stopAnimation('Random_Keypad.chroma');
ChromaAnimation.stopAnimation('Random_Mouse.chroma');
ChromaAnimation.stopAnimation('Random_Mousepad.chroma');Stop All
The stopAll method stops all animations from playing for all devices.
ChromaAnimation.stopAll();Play Composite
The playComposite method will play a set of Chroma animation files. With loop set to true, the animations will repeat. With loop set to false, the animations will play once.
var loop = true;
ChromaAnimation.playComposite('Random', loop);
// playComposite will play the set of animations
//ChromaAnimation.playAnimation('Random_ChromaLink.chroma', loop);
//ChromaAnimation.playAnimation('Random_Headset.chroma', loop);
//ChromaAnimation.playAnimation('Random_Keyboard.chroma', loop);
//ChromaAnimation.playAnimation('Random_Keypad.chroma', loop);
//ChromaAnimation.playAnimation('Random_Mouse.chroma', loop);
//ChromaAnimation.playAnimation('Random_Mousepad.chroma', loop);Open Animation
The openAnimation method downloads a Chroma animation and invokes a callback after the animation has loaded.
var baseLayer = "EnvironmentSnow_Keyboard.chroma";
// open animation
ChromaAnimation.openAnimation(baseLayer, function(baseAnimation) {
});Close Animation
The closeAnimation method stops an animation if playing and then removes the animation so that it can be reloaded. This allows an animation to go back to the original state before any modifications had taken place.
var baseLayer = "EnvironmentSnow_Keyboard.chroma";
//reset animation
ChromaAnimation.closeAnimation(baseLayer);
//open animation
ChromaAnimation.openAnimation(baseLayer, function(baseAnimation) {
});Multiply Intensity All Frames
The multiplyIntensityAllFrames method multiplies a color intensity for all frames of an animation. This is useful to control the intensity of a layer. 0.0 results in a completely black layer. 0.5 would half the color values for all frames.
var baseLayer = "EnvironmentSnow_Keyboard.chroma";
// reset animation
ChromaAnimation.closeAnimation(baseLayer);
// open animation
ChromaAnimation.openAnimation(baseLayer, function(baseAnimation) {
// set base intensity
ChromaAnimation.multiplyIntensityAllFrames(baseLayer, (baseIntensity.value / 100.0));
});Offset Nonzero Colors All Frames
The offsetNonZeroColorsAllFrames method offsets the RGB values for all frames in the animation that aren't black. This method allows a gray animation layer to be tinted to any color while keeping the black colors black. Red, green, blue use expected values 0 to 255.
var layer2 = "RingGray_Keyboard.chroma";
// reset animation
ChromaAnimation.closeAnimation(layer2);
// open animation
ChromaAnimation.openAnimation(layer2, function(layer2Animation) {
// set base intensity
ChromaAnimation.multiplyIntensityAllFrames(layer2,
(effectIntensity.value / 100.0));
//animation starts with 127,127,127 so adding 127,-127,-127 results in 255,0,0 or red
ChromaAnimation.offsetNonZeroColorsAllFrames(layer2, 127, -127, -127);
});Copy NonZero All Keys All Frames
The copyNonZeroAllKeysAllFrames method copies all non-black colors for all frames from a source animation to a target animation. This is useful for combining multiple layers into a base layer.
ChromaAnimation.copyNonZeroAllKeysAllFrames(sourceAnimationName, targetAnimationName);Copy Keys Colors All Frames
The copyKeysColorAllFrames method copies all specified keys from one source animation to a target animation.
// set wasd keys
var keys = [];
keys.push(RZKEY.RZKEY_W);
keys.push(RZKEY.RZKEY_A);
keys.push(RZKEY.RZKEY_S);
keys.push(RZKEY.RZKEY_D);
ChromaAnimation.copyKeysColorAllFrames(sourceAnimationName, targetAnimationName, keys);
