Relay examples

This repository contains examples of common patterns used in real-world applications so you don't have to re-invent the wheel every time. It currently contains following examples:

@kiwicom/relay package usage
simple fetching using createFragmentContainer
bi-directional (also known as window) pagination using createRefetchContainer
"load more" pagination using createRefetchContainer
"load more" pagination using createPaginationContainer
query polling (live queries)

This example project also uses single directory for artifacts which means that all the generated metafiles are stored in single __generated__ directory. It improves Flow types as a side-effect.

Do you like our open source? We are looking for skilled JavaScript developers to help us build it. Check our open positions: https://jobs.kiwi.com/

Install and run

yarn install
yarn start

You should regenerate Relay files in case you are changing Relay fragments:

yarn relay

This is necessary because Relay is not working with the GraphQL code you write directly. Instead, it generates optimized metafiles to the __generated__ folder and it's working with these files. It's a good idea to check what files are being regenerated and sometimes even look inside and read them. You'll eventually learn a lot about how it actually works and what optimizations are actually being done.

Using `@kiwicom/relay`

Docs

We use @kiwicom/relay internally to help with some difficult Relay tasks and to share knowledge via code across all our teams. It exposes high-level (and to some extend compatible) API very similar to Relay. The key element is so called Query Renderer. This renderer expects root query which will be automatically fetched and function to call (with the new data) to render some UI:

import * as React from 'react';
import { graphql, QueryRenderer } from '@kiwicom/relay';
import type { AppQueryResponse } from '__generated__/AppQuery.graphql';

function handleResponse(props: AppQueryResponse) {
  const edges = props.allLocations?.edges ?? [];
  return (
    <ol>
      {edges.map(edge => (
        <li key={edge?.node?.id}>{edge?.node?.name}</li>
      ))}
    </ol>
  );
}

export default function App(props) {
  return (
    <QueryRenderer
      query={graphql`
        query AppQuery {
          allLocations(first: 20) {
            edges {
              node {
                id
                name
              }
            }
          }
        }
      `}
      onResponse={handleResponse}
    />
  );
}

The package @kiwicom/relay exposes correct Flow types so you can just require it and use it. There are other key elements helping us to build the applications well: @kiwicom/eslint-config and @kiwicom/babel-preset-kiwicom. The eslint config prevents you from using Relay incorrectly and the Babel preset helps us to write modern JS including the graphql ... syntax and using optional chain (a?.b) which is very common in our applications.

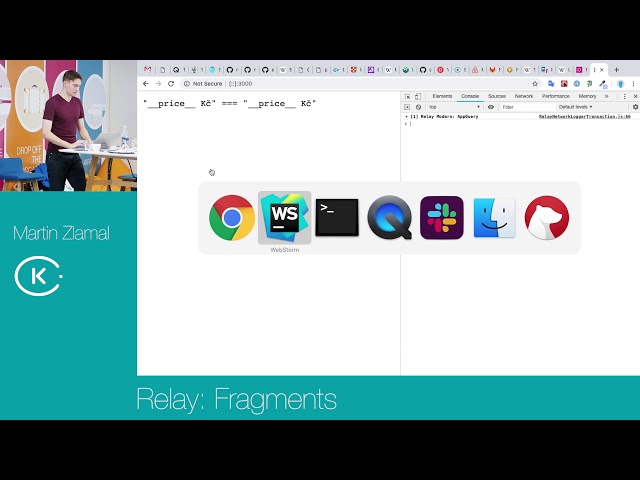

Fragment compositions

Relay docs

It is correct to write the whole query into Query Renderer. However, as application grows it's necessary to decompose the root application component into smaller parts. Relay copies React components exactly so when you write new component then you should specify there data requirements as well. This is how we could refactor the previous example - first, let's move the whole query into separate component using createFragmentContainer:

function AllLocations(props) {
  // TODO: move the React code here (iterate props.data)
}

export default createFragmentContainer(AllLocations, {
  data: graphql`
      fragment LocationsPaginated_data on RootQuery
        allLocations(first: 20) {
          edges {
            node {
              id
              name
            }
          }
        }
      }
    `,
});

Please note: you could decompose it on many different levels and it all depends on your needs and experience where to cut the line. This is handy for the future steps around pagination but otherwise it would be OK to just decompose the single location with id and name. It really depends...

Now, we have to modify the original application to use our new component:

import * as React from 'react';
import { graphql, QueryRenderer } from '@kiwicom/relay';
import type { AppQueryResponse } from '__generated__/AppQuery.graphql';

import AllLocations from './AllLocations';

function handleResponse(props: AppQueryResponse) {
  return <AllLocations data={props} />;
}

export default function App(props) {
  return (
    <QueryRenderer
      query={graphql`
        query AppQuery {
          ...AllLocations
        }
      `}
      onResponse={handleResponse}
    />
  );
}

And that's it - we have two components and they describe what data they need exactly. Our first component needs to iterate all locations and requires id and name. Our second component requires data for AllLocations but doesn't care more about what data is it actually. This is very important concept in Relay and in GraphQL in general: always describe what you need in the component itself. It is important because it's 1) very explicit and you can be sure that you are not gonna greak anything when refactoring the component and 2) you can easily use the component somewhere and just spread the requirements using ...AllLocations. This is crucial for composing UI from many many React components.

Bi-directional pagination

Relay docs

The best fit for bi-directional (sometimes known as "window" or "next/prev" pagination) is createRefetchContainer. This container is the best when you are changing variables in the component fragment (which is exactly our use-case). Pagination in GraphQL world works like this (try in https://graphql.kiwi.com/):

{
  allLocations(first: 5) {
    edges {
      cursor
      node {
        name
      }
    }
  }
  page: allLocations(
    first: 1
    after: "YXJyYXljb25uZWN0aW9uOjI="
    last: null
    before: null
  ) {
    edges {
      node {
        name
      }
    }
  }
}

This query returns 5 results and let'say the middle one has ID YXJyYXljb25uZWN0aW9uOjI=. To get page after this page you have to query it with first/after combo. To get previous page you have to use last/before combo. It can be a bit burdensome to work with the cursor manually so you can also use pageInfo field (that's exactly how it works in our Relay example). There are only few steps you have to do in order to make it work in Relay:

Export component using createRefetchContainer. This component accept the raw React component as a first argument, regular GraphQL fragment as a second argument (start with the same fragment as from the createFragmentContainer) and last argument is a query which is going to be called during the refetch.
Describe what variables your fragment needs using @argumentDefinitions(argName: { type: "Int!", defaultValue: null }).
Pass down all the variables from the query to the fragment using @arguments(argName: $argName) and finally:
Call props.relay.refetch with the variables necessary for the refetch query.

Tip: you don't have to specify the defaultValue in arguments definition. It can be a bit difficult because GraphQL strings cannot contain string substitutions. It's a good idea to pass it down from the parent component using @arguments just like you do in the refetch query.

Check LocationsPaginatedBidirectional.js for the implementation.

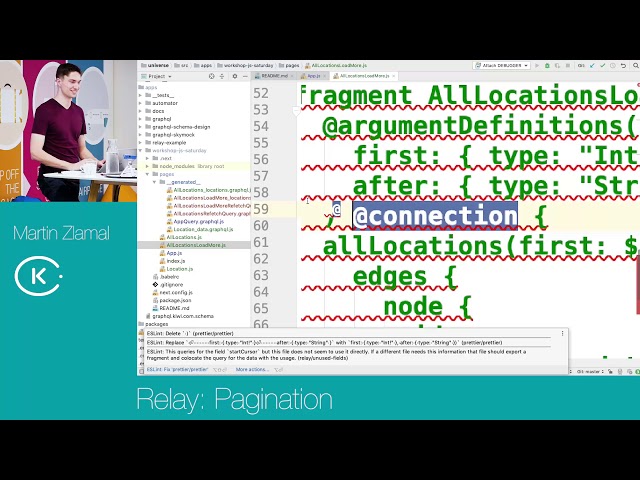

Load more pagination

Relay docs

Load more pagination works almost exactly the same but there are two important differences:

we paginate only forward (or backwards) and only loading new records
old records are not being updated because new records are only appended (or prepended)

To do this we can easily use createRefetchContainer as well and just annotate the fragment with @connection directive. This annotation implements cursor based pagination automatically (best practice in GraphQL these days) and it merges the edges from subsequent fetches into the store after the previous edges. This is exactly what we need for the "load more" feature.

There is also createPaginationContainer which simplifies this one particular flow so you don't have to manage pageInfo manually. The difference is minimal and all the containers are to some extend interchangeable. These steps are necessary in order to make the createPaginationContainer work:

Export component using createPaginationContainer with standard API: first argument is the raw React component and second argument is a fragment.
Add object to the 3rd argument with two fields: refetch query and getVariables which is a function to get the variables for this query.
Annotate the fragment with @argumentDefinitions and refetch query with @arguments.
And lastly add @connection(key: " ... ") to the fragment to signify that we want to append the records and not replace them.

Check these examples for the actual implementation:

LocationsPaginated.js
LocationsPaginatedRefetch.js

Query polling

Relay supports subscriptions and experimental live queries via polling to allow modifications to the store whenever a payload is received. Query polling is a simple (but very powerful) way how to achieve live data updates without any change to infrastructure or complicated changes to your code. All you need to do is to instruct your query renderer to update Relay cache every few seconds using cacheConfig.poll:

import React from 'react';
import { graphql, QueryRenderer } from '@kiwicom/relay';

export default function Polling() {
  return (
    <QueryRenderer
      clientID="https://github.com/kiwicom/relay-example"
      query={graphql`
        query PollingQuery {
          currency(code: "czk") {
            code
            rate
          }
        }
      `}
      cacheConfig={{
        poll: 5000, // update UI every 5 seconds
      }}
      onResponse={data => {
        // this callback is gonna be called every time your data change
        console.log(data);
      }}
    />
  );
}

This is preferable solution over subscriptions in many cases because:

it's extremely simple (we added only one property and it's good to go)
there is no need to update the server code
auth works by default correctly since it's the same like query fetching
it reconnects to the failed server by design
it doesn't open expensive persistent websockets (and you don't need such an infrastructure)
