import { Chart } from "@antv/g2"; const chart = new Chart({ container: "container", width: 320, height: 320 }); chart.coordinate({ type: "theta", outerRadius: 0.8 }); chart .data([ { id: "中后台", value: 33355 }, { id: "移动端", value: 70143 }, { id: "服务端", value: 11433 }, { id: "营销活动", value: 2433 }, { id: "文档和官网", value: 2433 } ]) .interaction({ type: "tooltip" }) .interaction({ type: "elementHighlight" }); chart .interval() .transform({ type: "stackY" }) .encode("y", "value") .encode("color", "id") .label({ text: "value", fontWeight: "bold", position: "outside", transform: [{ type: "spider", edgeDistance: 20 }, { type: "dodgeY" }] }) .style("stroke", "#fff") .style("lineWidth", 1) .legend(false) .encode("enterType", "waveIn") .encode("updateType", "waveIn"); chart.render();

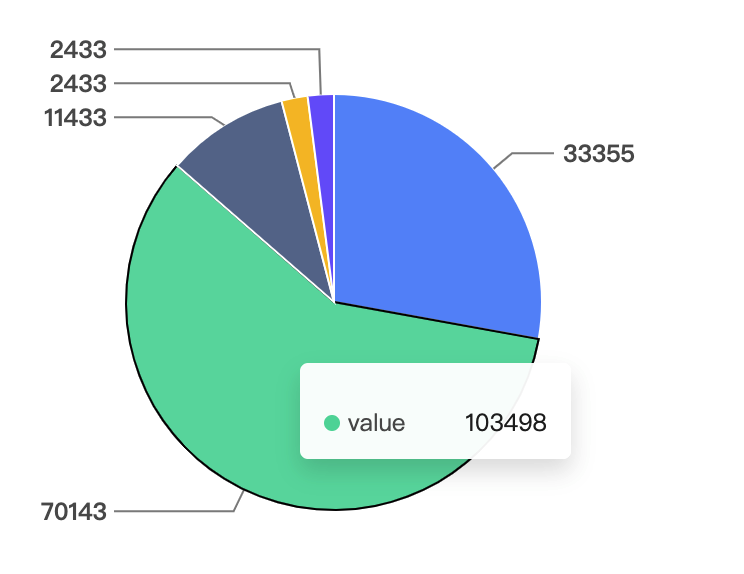

可以看到黑色描边少了一条。这种 case 之前在 4.0 的时候也修复过,需要将激活的元素层级提前,取消交互选中之后,还原层级
The text was updated successfully, but these errors were encountered:
其实这个地方配置 highlightedZIndex 就可以了:
chart.interaction({ type: 'elementHighlight', highlightedZIndex: 1, highlightedStroke: 'black', });
