[FEATURE] open-api-gateway - allow all operations to use the same lambda integration

[mteichtahl]

Describe the feature

Today an Api requires a lambda function and associated integration for each operation. This proposed feature should allow a developer to send all operations to a single lambda integration.

Use Case

As a developer

• I want to use a single lambda as a handler for all Api operations.
• PDK should provision my single lambda
• the provisioned lambda should provide me a simple way of integrating my modules for each operation
• I want this functionality to work regardless of my lambda implementation language

Proposed Solution

export class SampleApi extends Api {
  constructor(scope: Construct, id: string) {
    super(scope, id, {
      defaultAuthorizer: Authorizers.iam(),
      integration:  Integrations.lambda(new NodejsFunction(scope, 'apiHandlerFunction')
    });
  }
}```

### Other Information

_No response_

### Acknowledgements

- [ ] I may be able to implement this feature request
- [ ] This feature might incur a breaking change

### PDK version used

0.12.24

### What languages will this feature affect?

Typescript, Java, Python

### Environment details (OS name and version, etc.)

N/A

[cogwirrel]

I've raised a PR for this with only TypeScript support for now. Rather than opt for a single integration property, I kept the existing construct interface the same and provided a helper method Operations.all which can repeat the integration for every operation, eg:

import { Operations } from 'my-api-typescript-client';

export class SampleApi extends Api {
  constructor(scope: Construct, id: string) {
    super(scope, id, {
      defaultAuthorizer: Authorizers.iam(),
      integrations: Operations.all({
        integration: Integrations.lambda(new NodejsFunction(scope, 'apiHandlerFunction')),
      })
    });
  }
}

In your lambda function, you'd export the handlerRouter as your handler function, which can delegate to your type-safe handlers for each operation, eg:

import { handlerRouter, sayHelloHandler, sayGoodbyeHandler } from "my-api-typescript-client";
import { corsInterceptor } from "./interceptors";
import { sayGoodbye } from "./handlers/say-goodbye";

const sayHello = sayHelloHandler(async ({ input }) => {
  return {
    statusCode: 200,
    body: {
      message: `Hello ${input.requestParameters.name}!`,
    },
  };
});

export const handler = handlerRouter({
  // Interceptors declared in this list will apply to all operations
  interceptors: [corsInterceptor],
  // Assign handlers to each operation here
  handlers: {
    sayHello,
    sayGoodbye,
  },
});

You get a type error if you forget to route an operation:

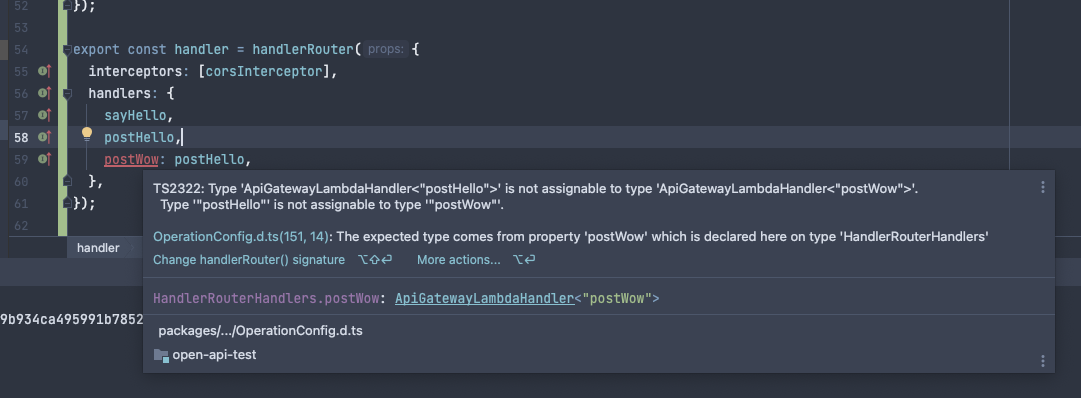

Or if you accidentally assign the wrong handler to an operation:

[mteichtahl]

This is fantastic. Thanks for the speedy response and implementation.

[cogwirrel]

Python and Java are now also supported! For completeness, here's how one might use them:

Python

Operations.all is available to apply the same lambda integration to all operations:

self.api = Api(self, 'Api',
    default_authorizer=Authorizers.iam(),
    integrations=Operations.all(
        OpenApiIntegration(
            integration=Integrations.lambda_(Function(...))
        ),
    ),
)

And the handler_router can be exported as the handler for your single lambda entrypoint:

from myapi_python.apis.tags.default_api_operation_config import say_hello_handler, SayHelloRequest, ApiResponse, SayHelloOperationResponses, handler_router, HandlerRouterHandlers
from myapi_python.model.api_error import ApiError
from myapi_python.model.hello_response import HelloResponse
from other_handlers import say_goodbye
from my_interceptors import cors_interceptor

@say_hello_handler
def say_hello(input: SayHelloRequest, **kwargs) -> SayHelloOperationResponses:
    return ApiResponse(
        status_code=200,
        body=HelloResponse(message="Hello {}!".format(input.request_parameters["name"])),
        headers={}
    )

handler = handler_router(
    # Interceptors defined here will apply to all operations
    interceptors=[cors_interceptor],
    handlers=HandlerRouterHandlers(
        say_hello=say_hello,
        say_goodbye=say_goodbye
    )
)

Java

Operations.all is also available in Java to apply the same lambda integration to all operations. Note that this returns a Builder class so you can optionally override any defaults for specific operations before calling .build():

public class SampleApi extends Api {
    public SampleApi(Construct scope, String id) {
        super(scope, id, ApiProps.builder()
                .defaultAuthorizer(Authorizers.iam())
                .corsOptions(CorsOptions.builder()
                        .allowOrigins(Arrays.asList("*"))
                        .allowMethods(Arrays.asList("*"))
                        .build())
                .integrations(Operations.all(
                        OpenApiIntegration.builder()
                                .integration(Integrations.lambda(
                                        new Function(...)
                                ))
                                .build())
                        .build())
                .build());
    }
}

You can set the lambda entrypoint to a class which extends the HandlerRouter. The HandlerRouter class forces you to define methods which will construct an instance of your typed lambda handler class:

import com.generated.api.myapijava.client.api.Handlers.SayGoodbye;
import com.generated.api.myapijava.client.api.Handlers.HandlerRouter;
import com.generated.api.myapijava.client.api.Handlers.Interceptors;
import com.generated.api.myapijava.client.api.Handlers.SayHello;

import java.util.Arrays;
import java.util.List;

// Interceptors defined here apply to all operations
@Interceptors({ TimingInterceptor.class })
public class ApiHandlerRouter extends HandlerRouter {
    // You must implement a method to return a handler for every operation
    @Override
    public SayHello sayHello() {
        return new SayHelloHandler();
    }

    @Override
    public SayGoodbye sayGoodbye() {
        return new SayGoodbyeHandler();
    }
}

Versions

• 0.12.25 - TypeScript and Python support
• 0.12.26 - Java support
